Submersible Pump

Submersible Pump
PW Series

Designed for submerged operations, offering flexible options tailored to requirements.
Thermal overload protection to prevent burnout.
Energy-efficient and high-performance.

Construction Industry

Entertainment & Leisure Industry

Agriculture, Forestry, Fishery and Animal Husbandry

Water Supply & Pollution Control

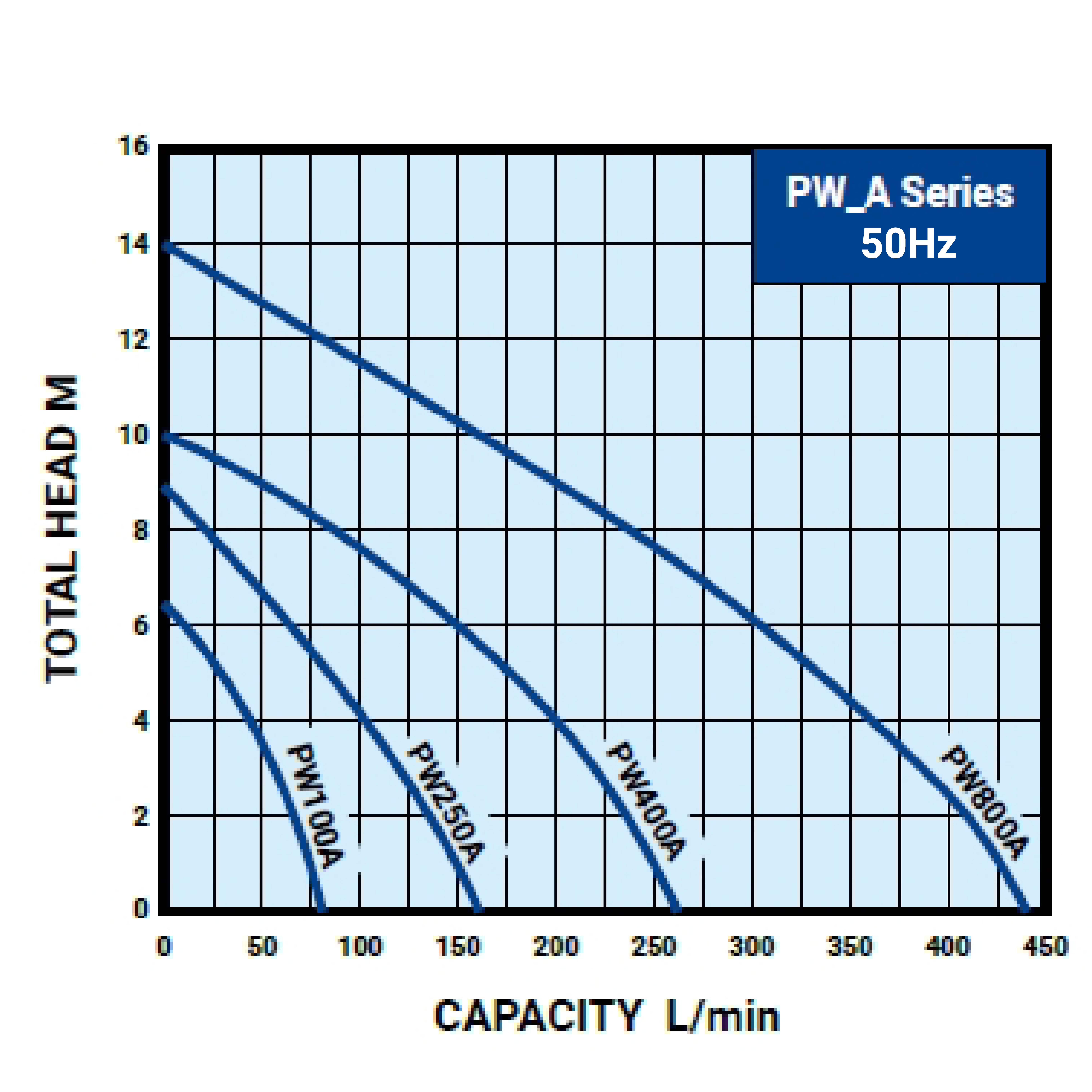

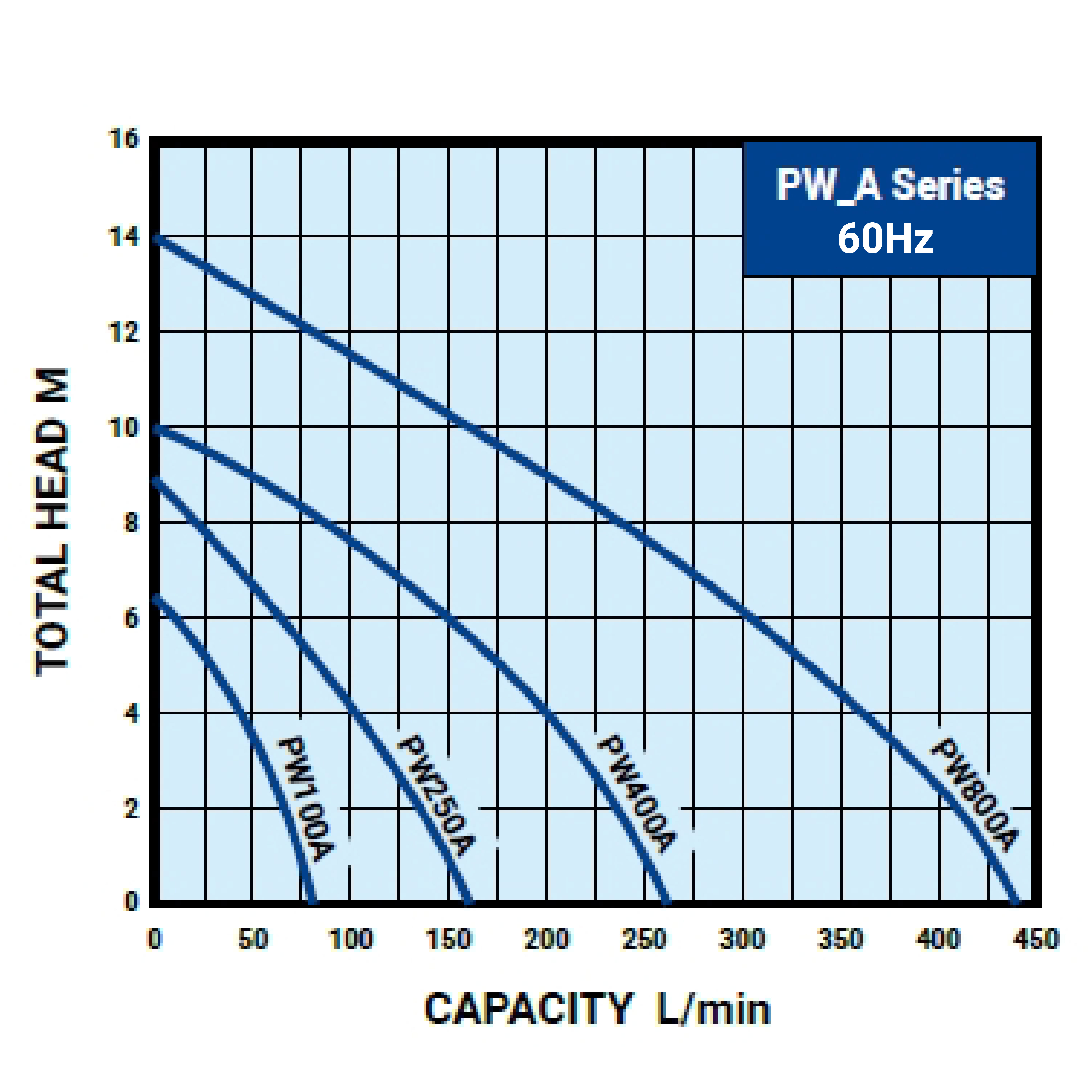

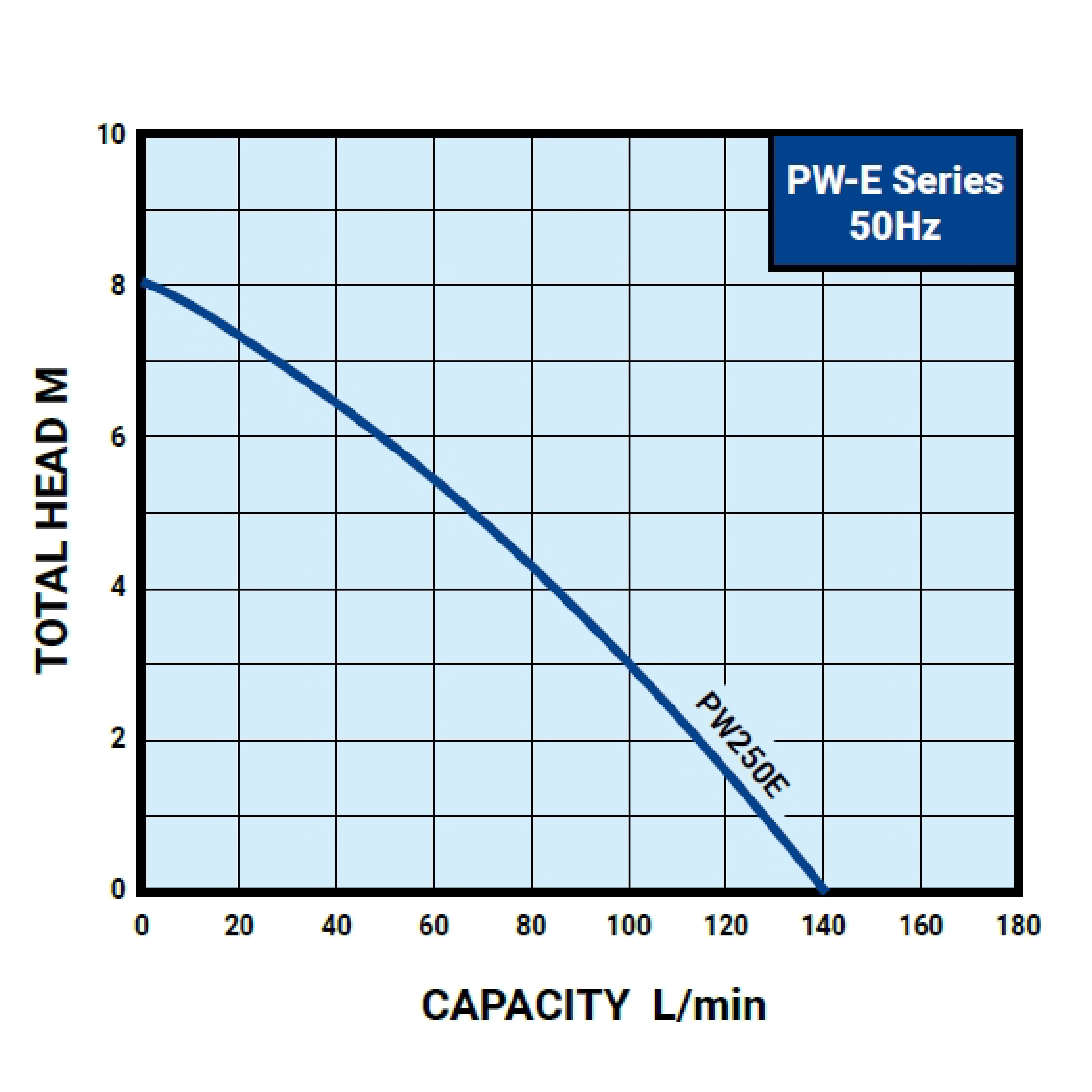

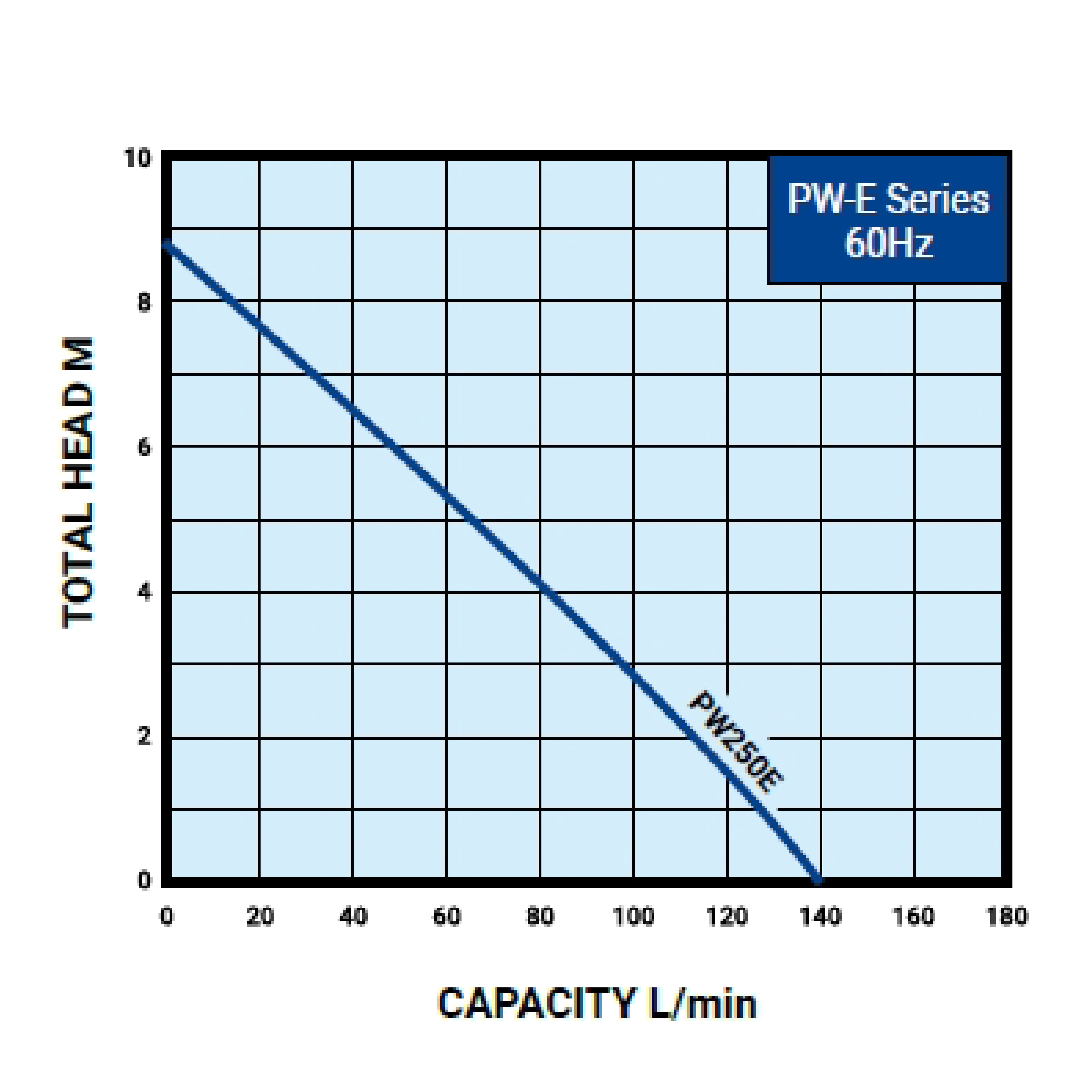

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

0.1 - 0.8

Up to 14

Up to 440

0.1 - 0.8

Up to 14

Up to 440

Features

Wide Applications

Ideal for submerged operations in ponds, fish tanks, and water reservoirs, as well as for removing accumulated water in various application areas.

Excellent Performance

Equipped with a high-efficiency motor, offering energy savings and superior performance.

Thermal Overload Protection

The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.

Lightweight Design

Using high-performance composite materials, durable and lightweight.

User-Friendly

Includes plug-in power cord for easy use.

Diverse Selections

Other options for Sea Water, Float Ball Level Switch, Level Regulator and Low Suction.

Air Release Design

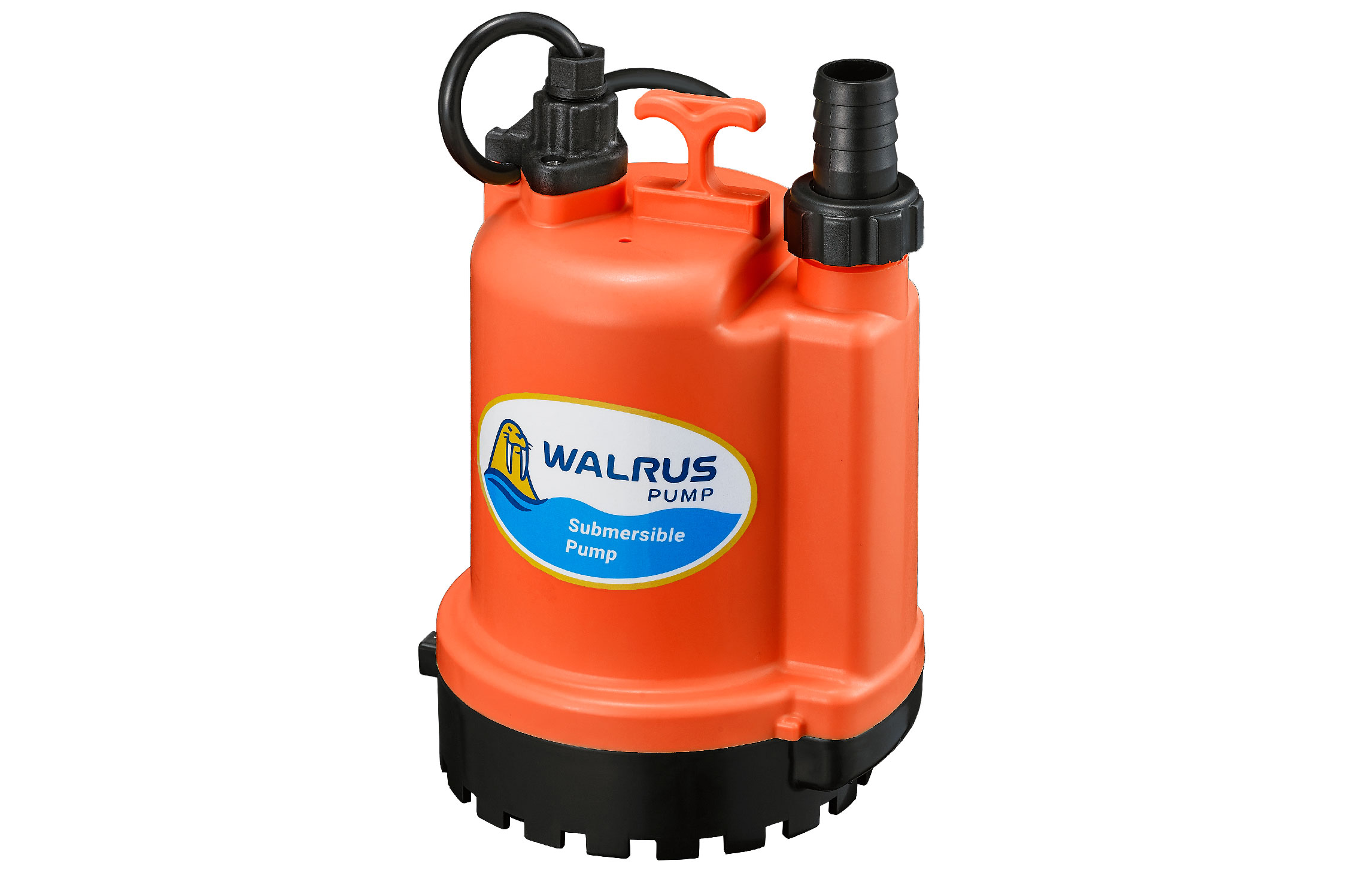

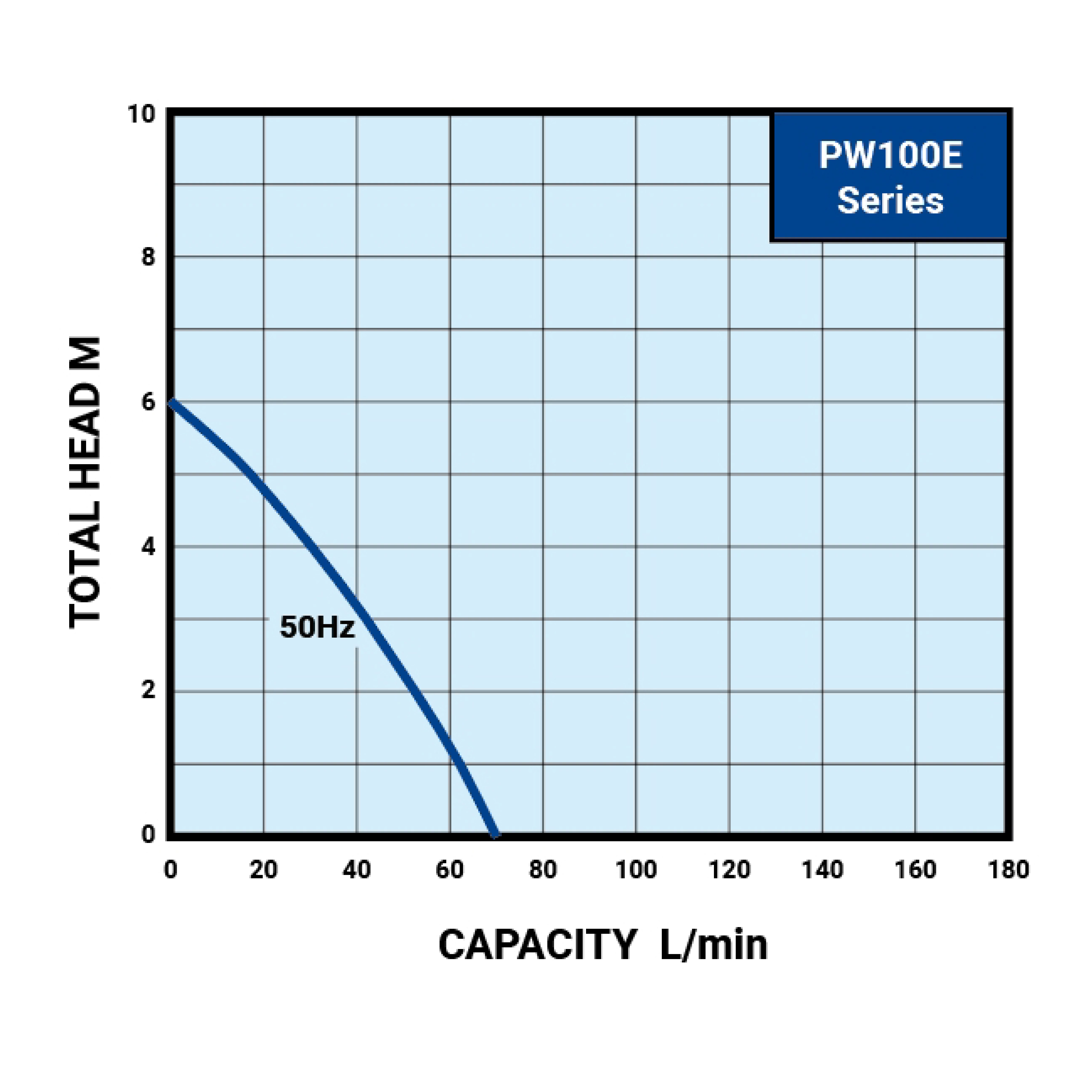

The PW100A/PW100E features an air release port design that eliminates airlocks within the pump. (A small amount of water may be discharged during operation)

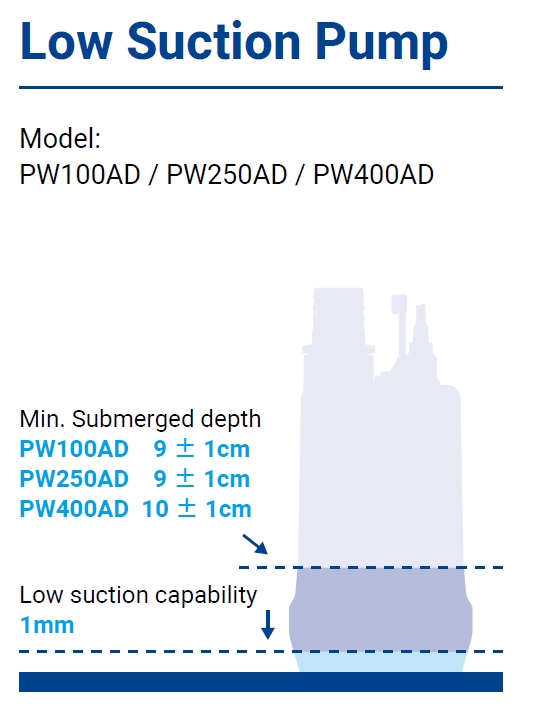

Ultra-Low Suction

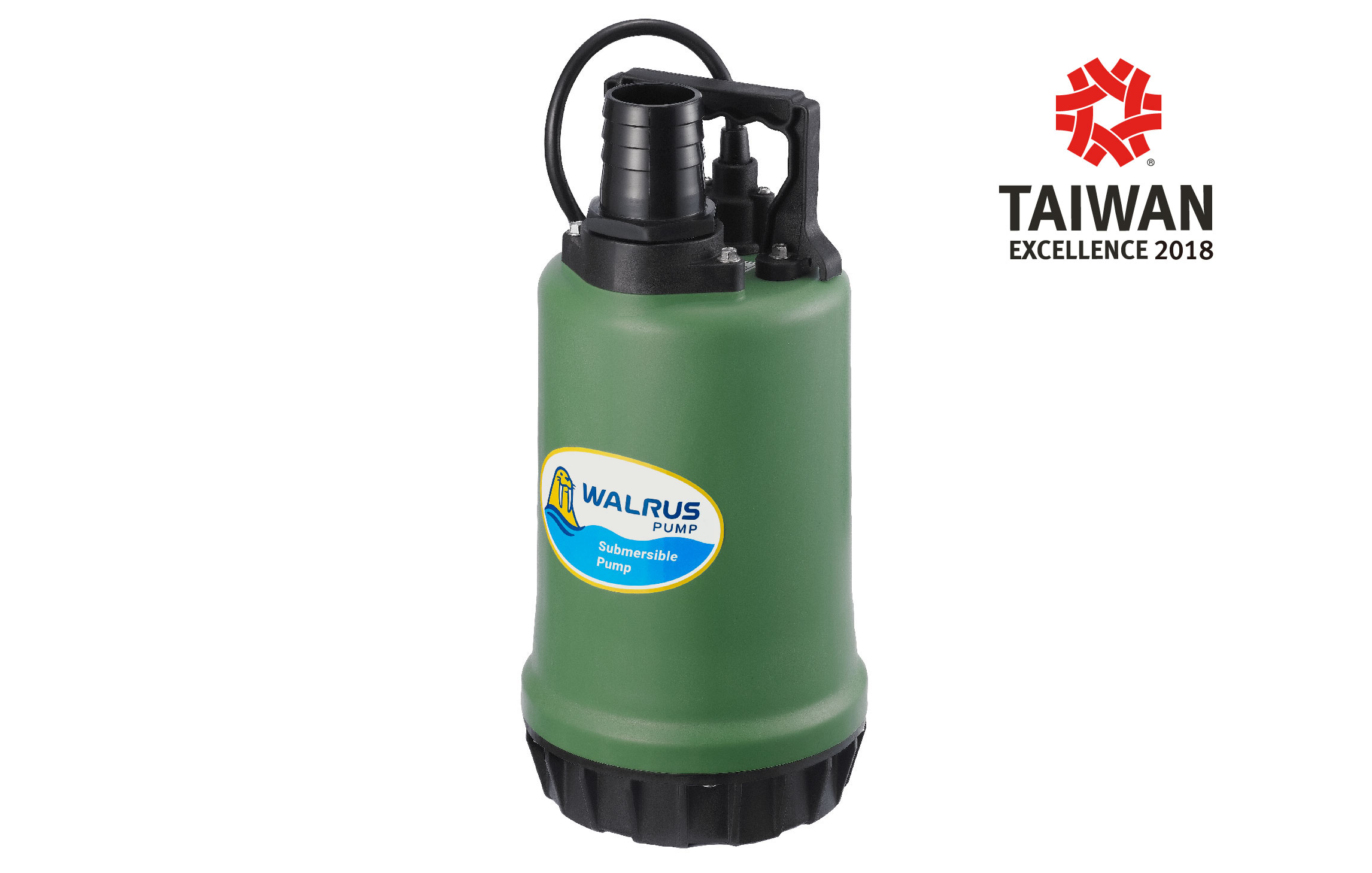

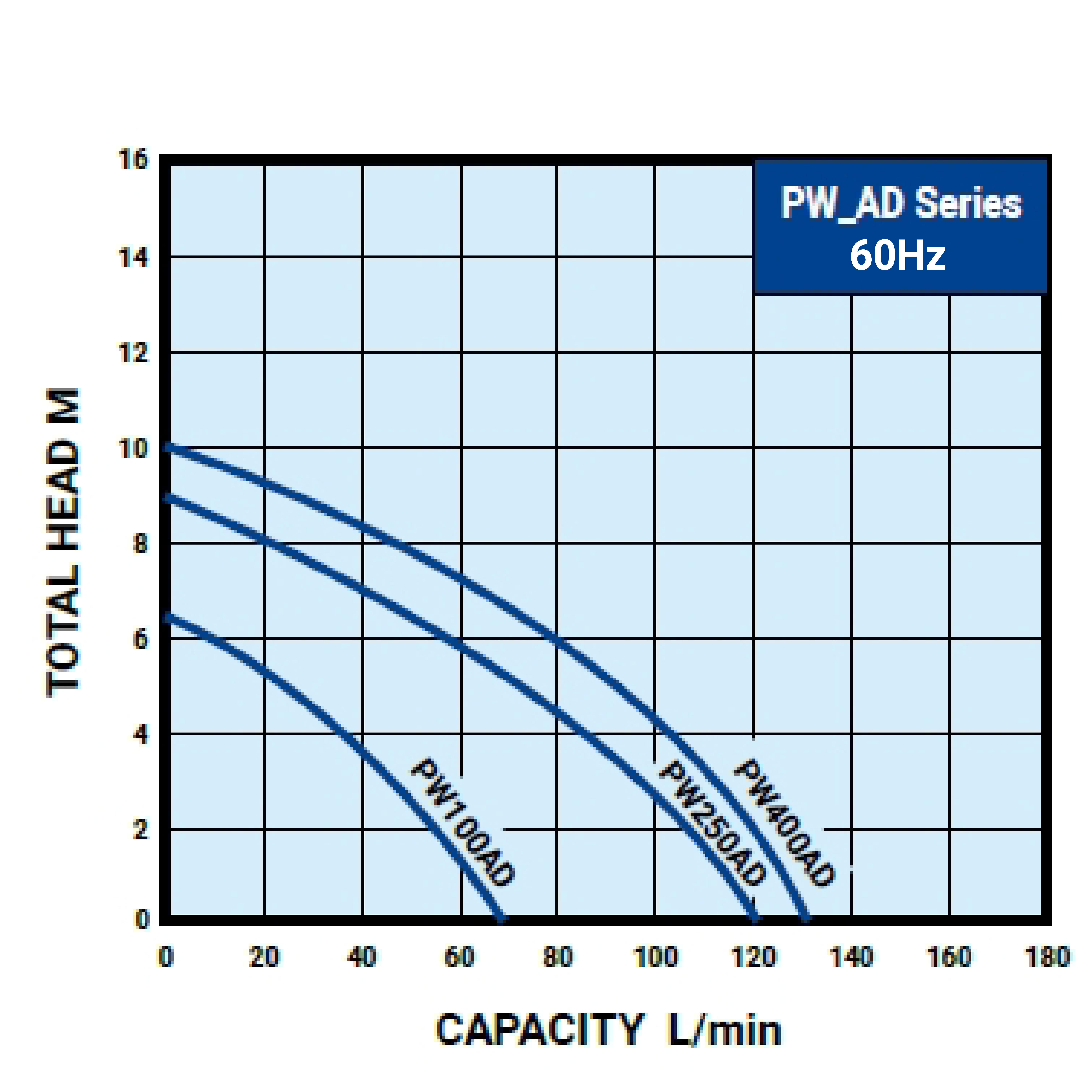

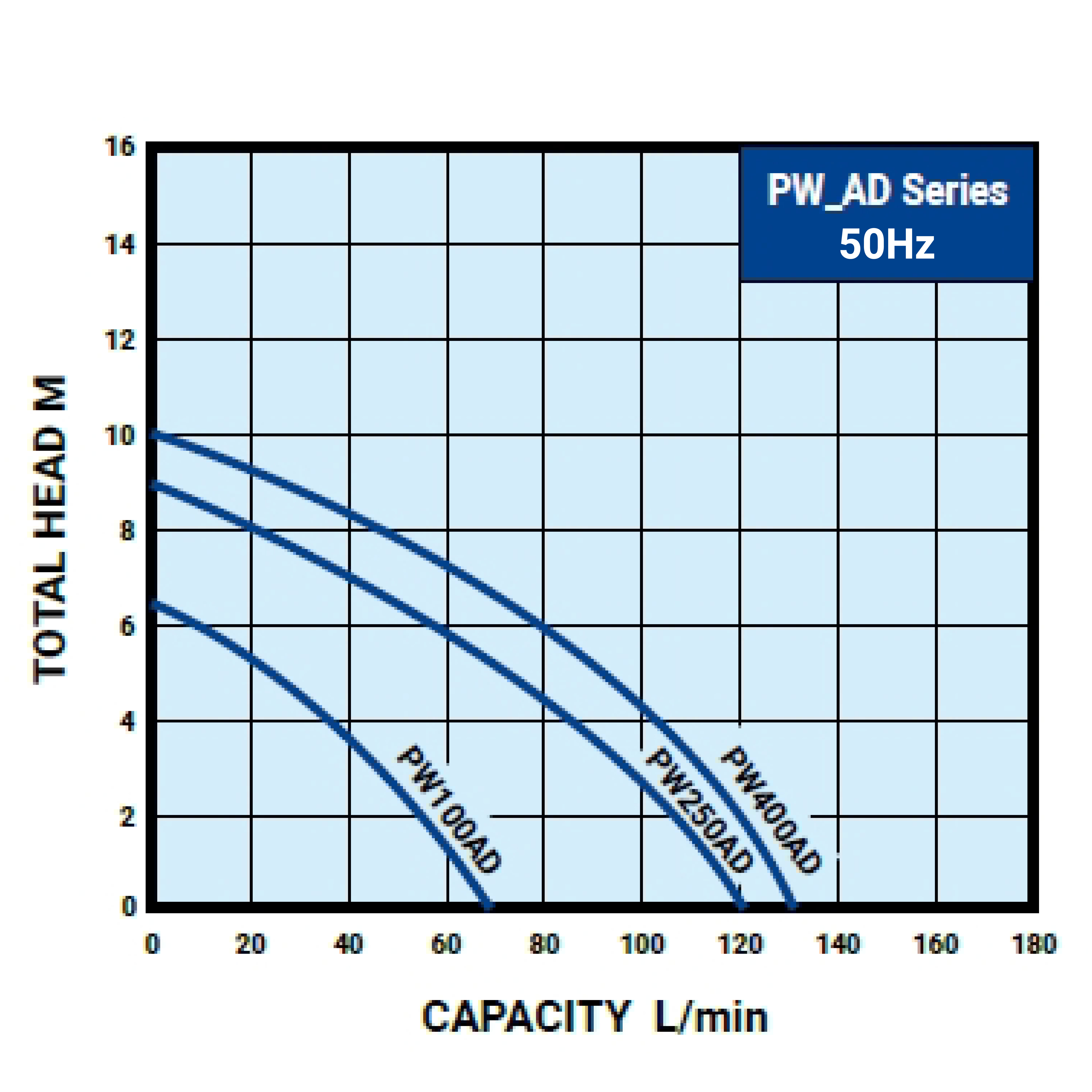

The PW_AD series efficiently drains down to an ultra-low water level of just 1mm.

For Industrial Applications

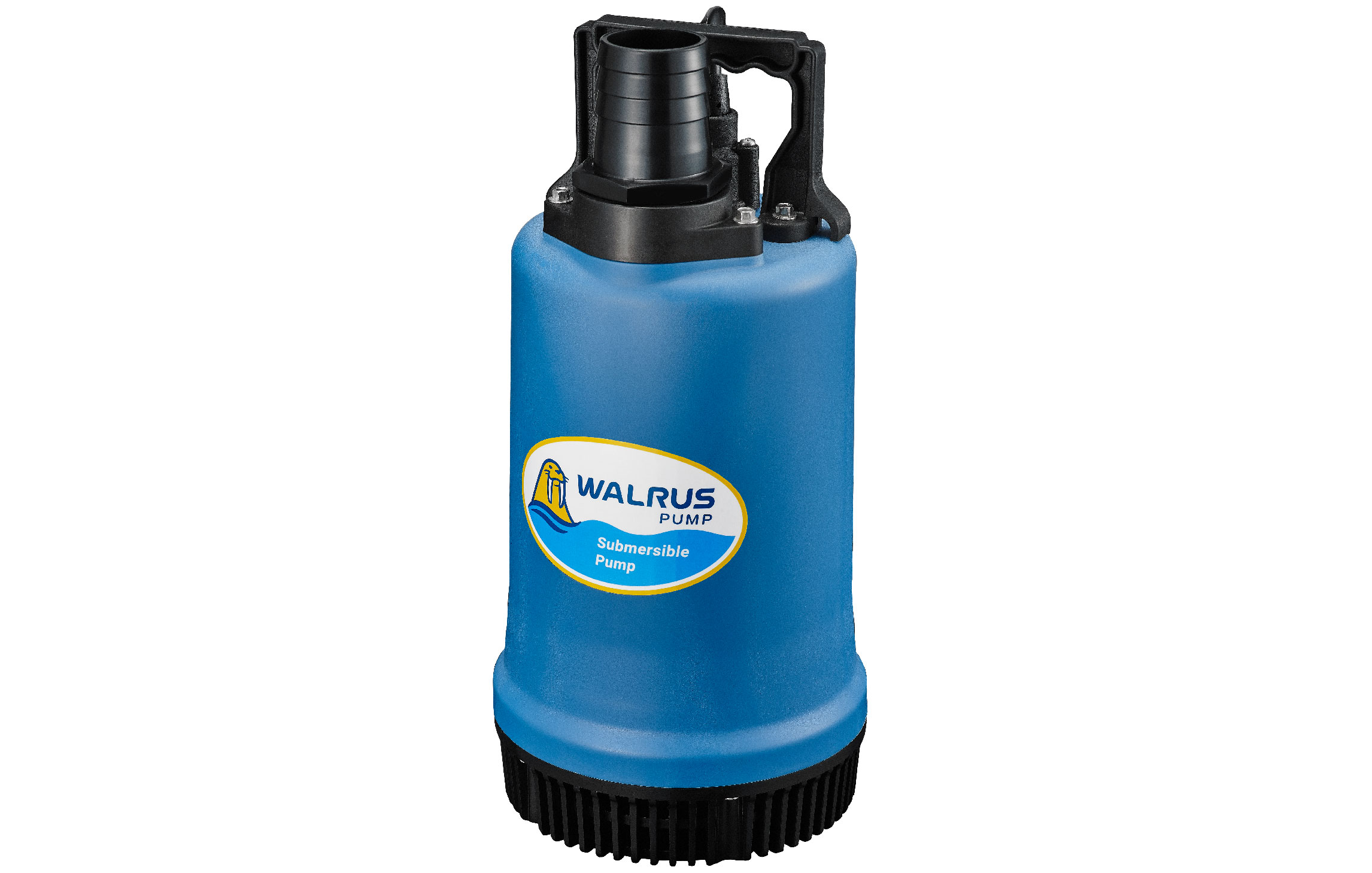

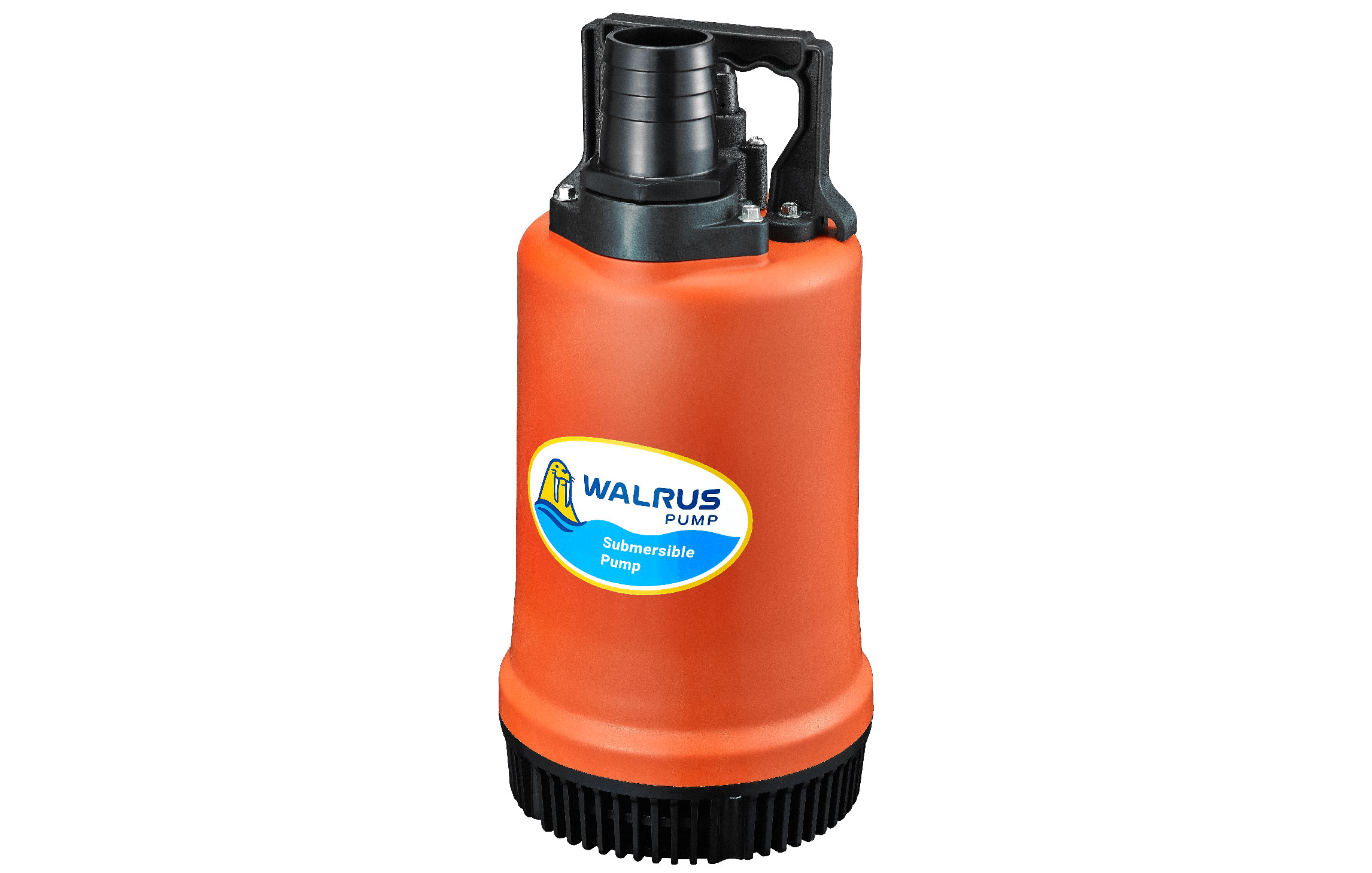

The PW400AB, fitted with an industrial-grade shaft seal, enhances wear resistance and is suitable for industrial applications.

Operating Conditions

Liquid Temp.

4°C ~ +35°C

Min. Submerged Depth

PW100 : 7±1 cm
PW250 : 9±1 cm
PW400 : 10±1 cm
PW800 : 12±1 cm

Motor

Protection

IP68

Insulation Class

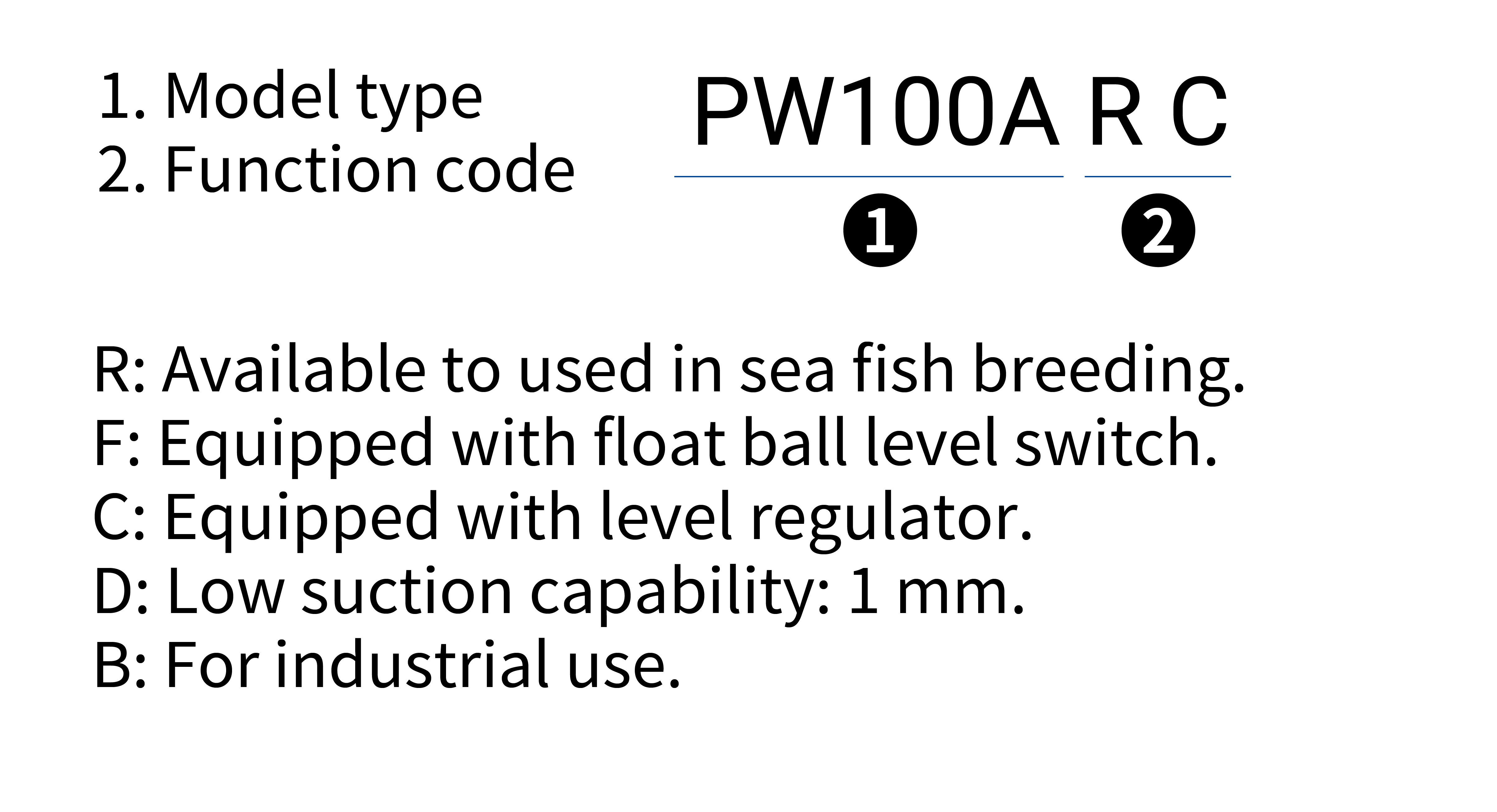

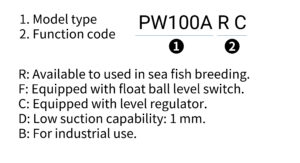

Model code

Frequency

50 Hz

60 Hz

Standard Type

For Salt Water

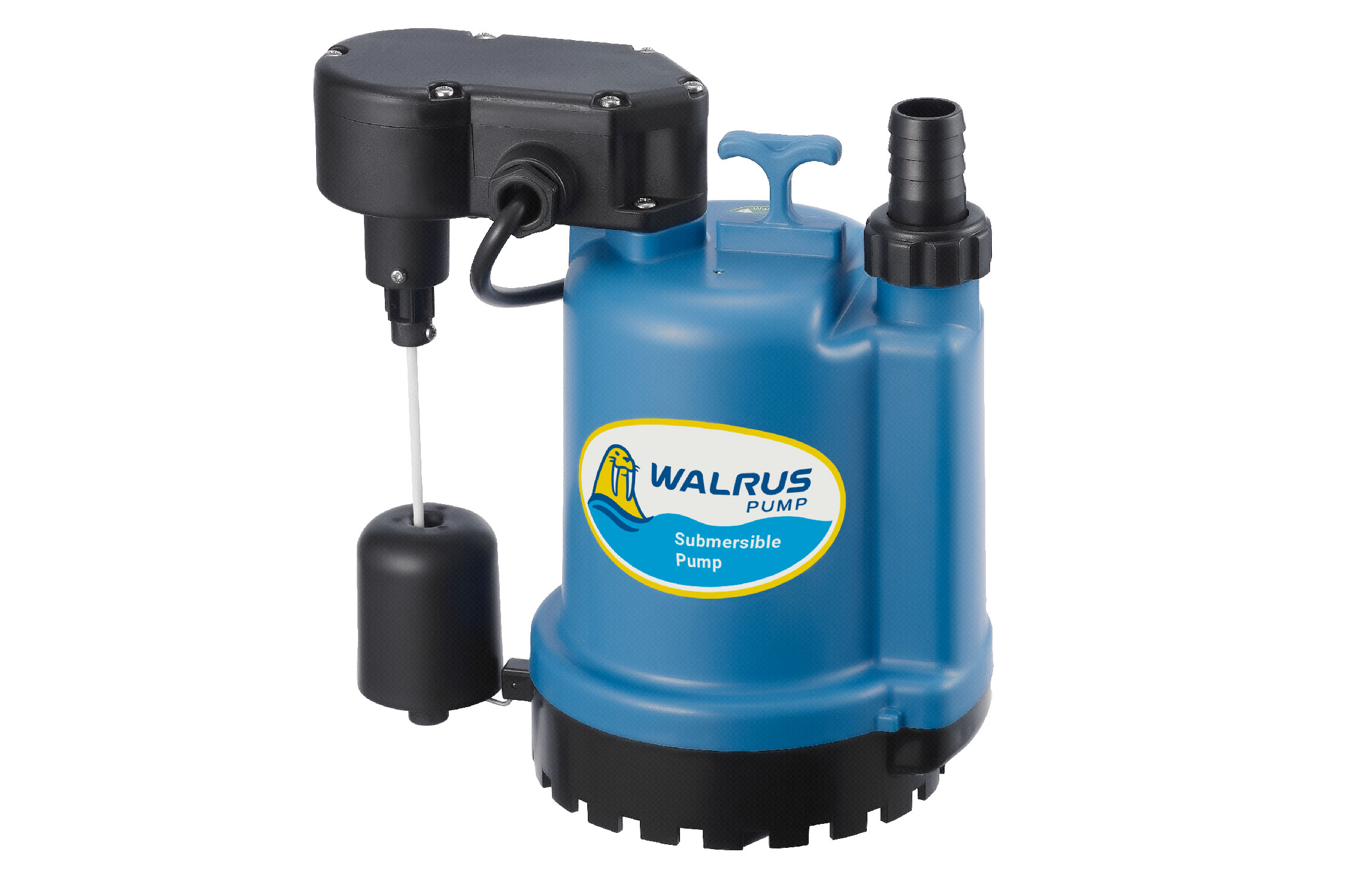

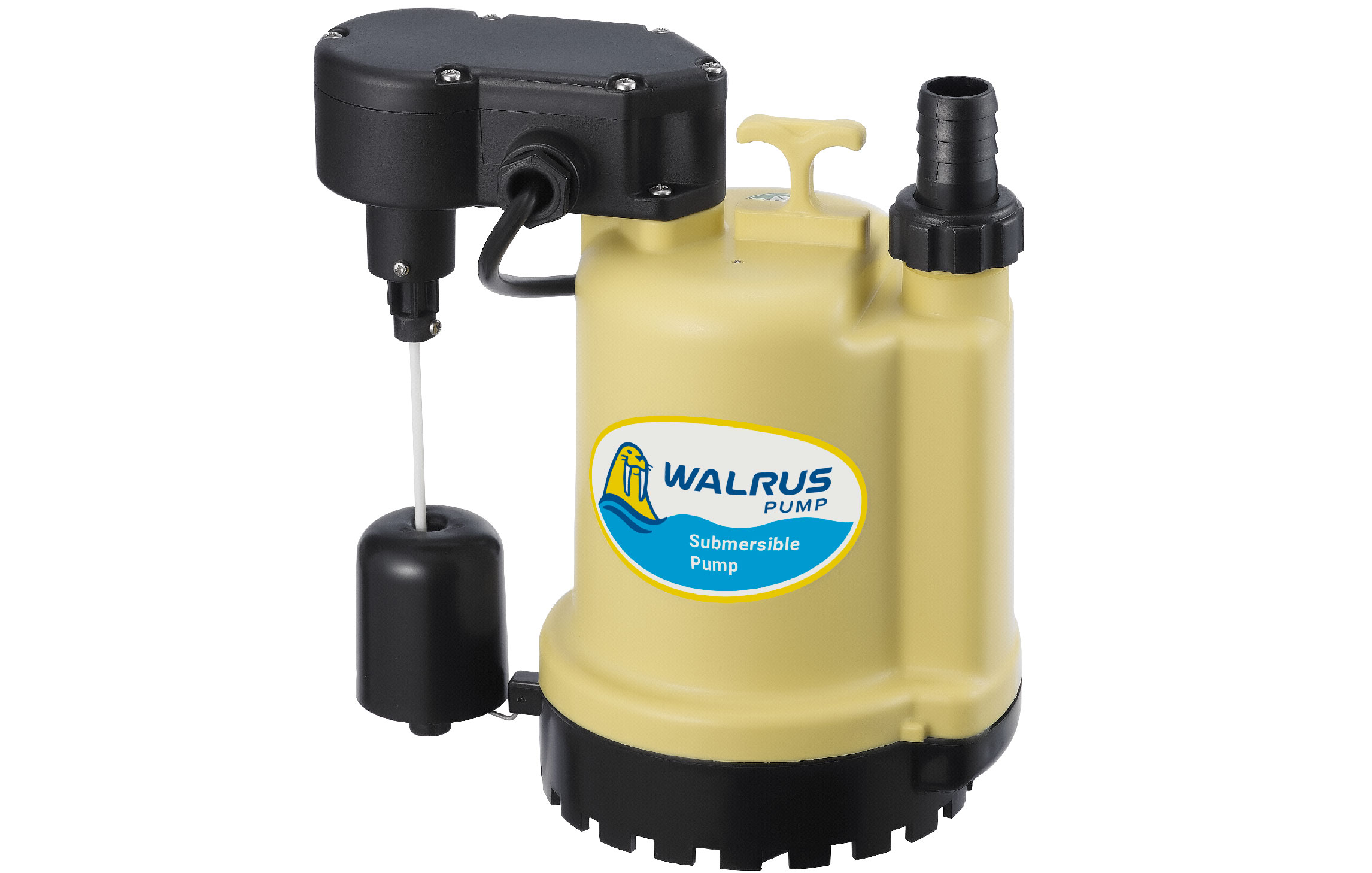

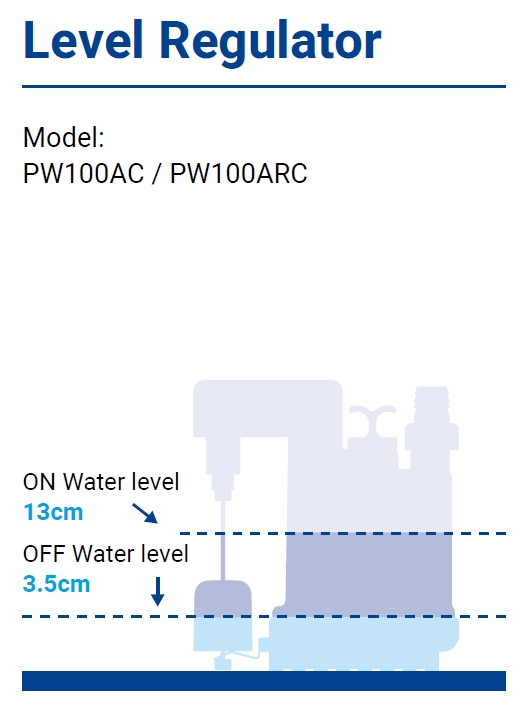

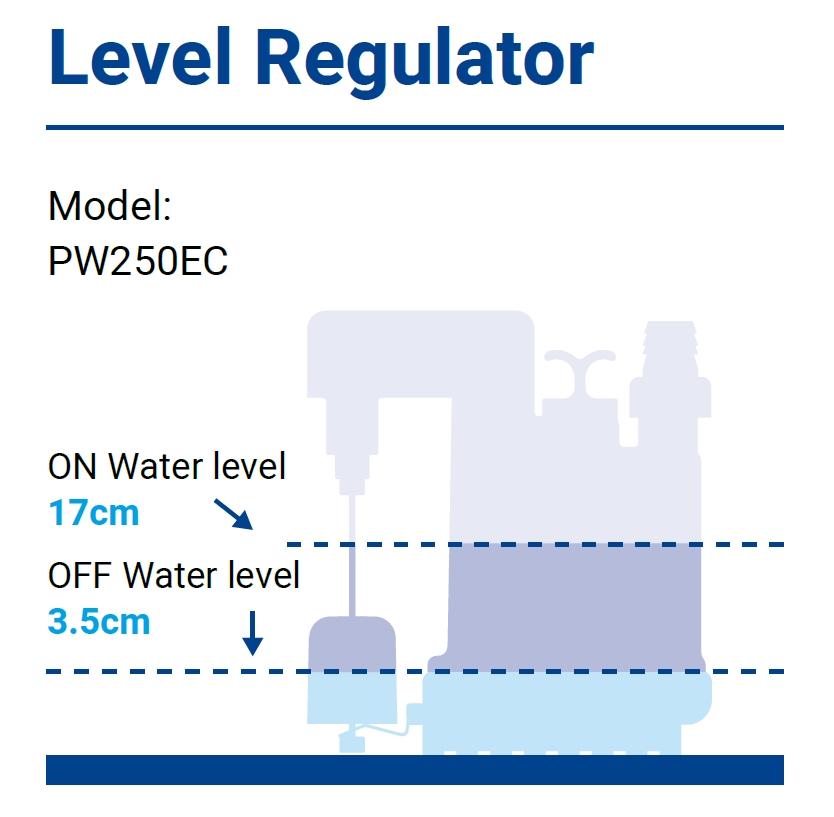

Level Regulator

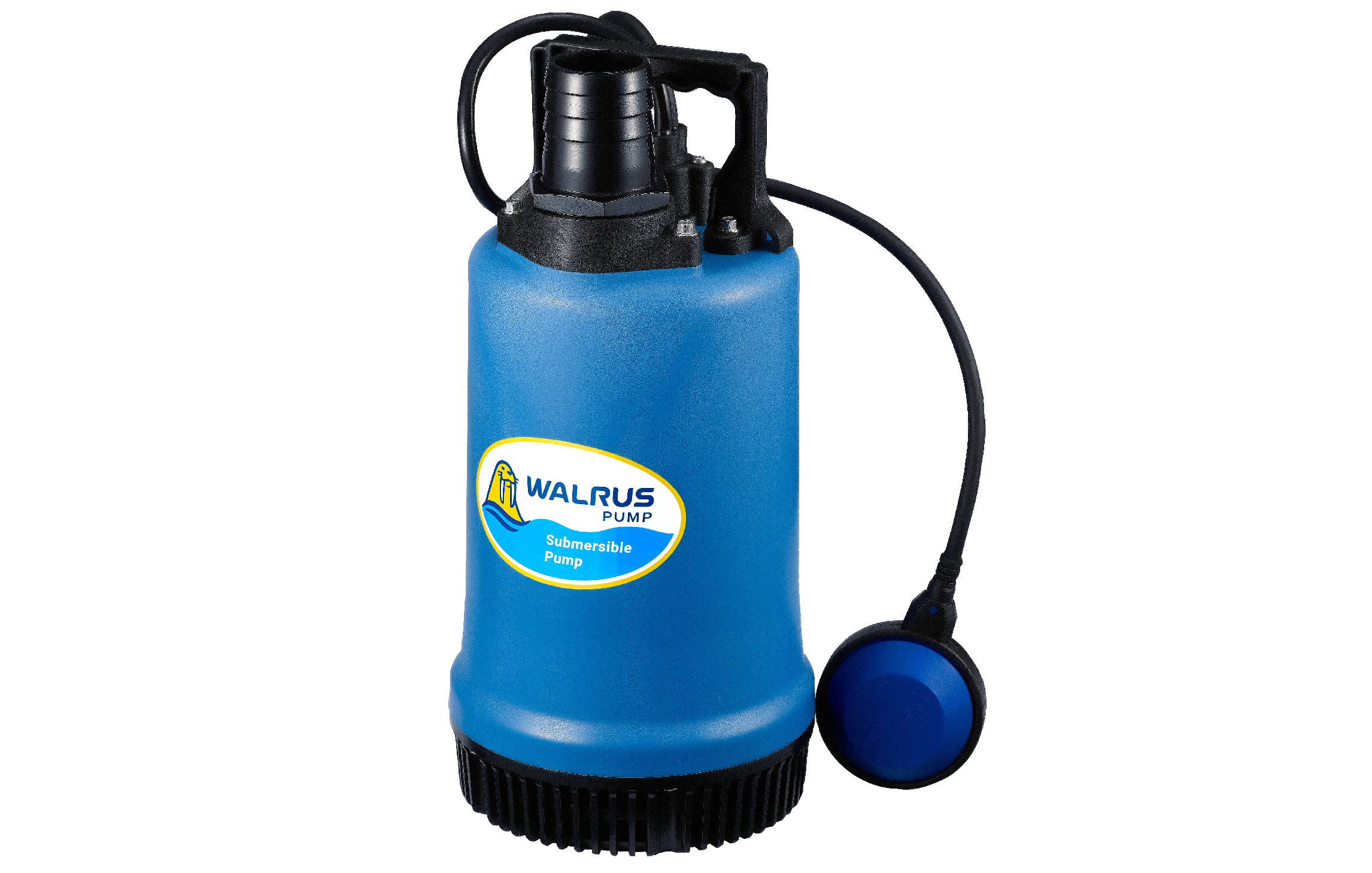

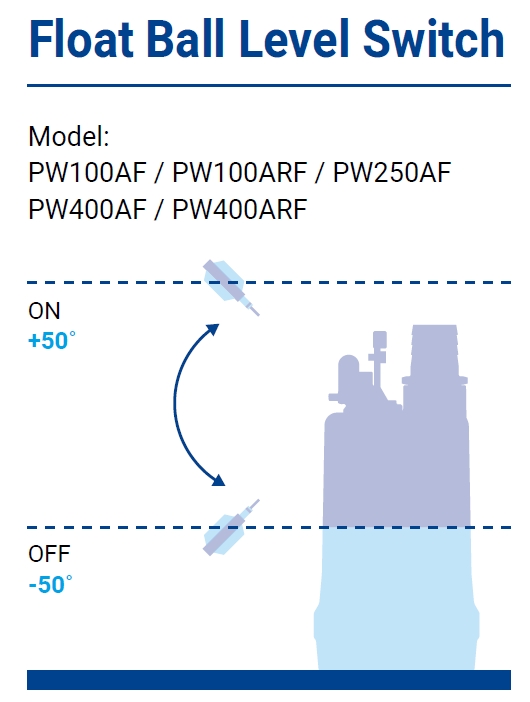

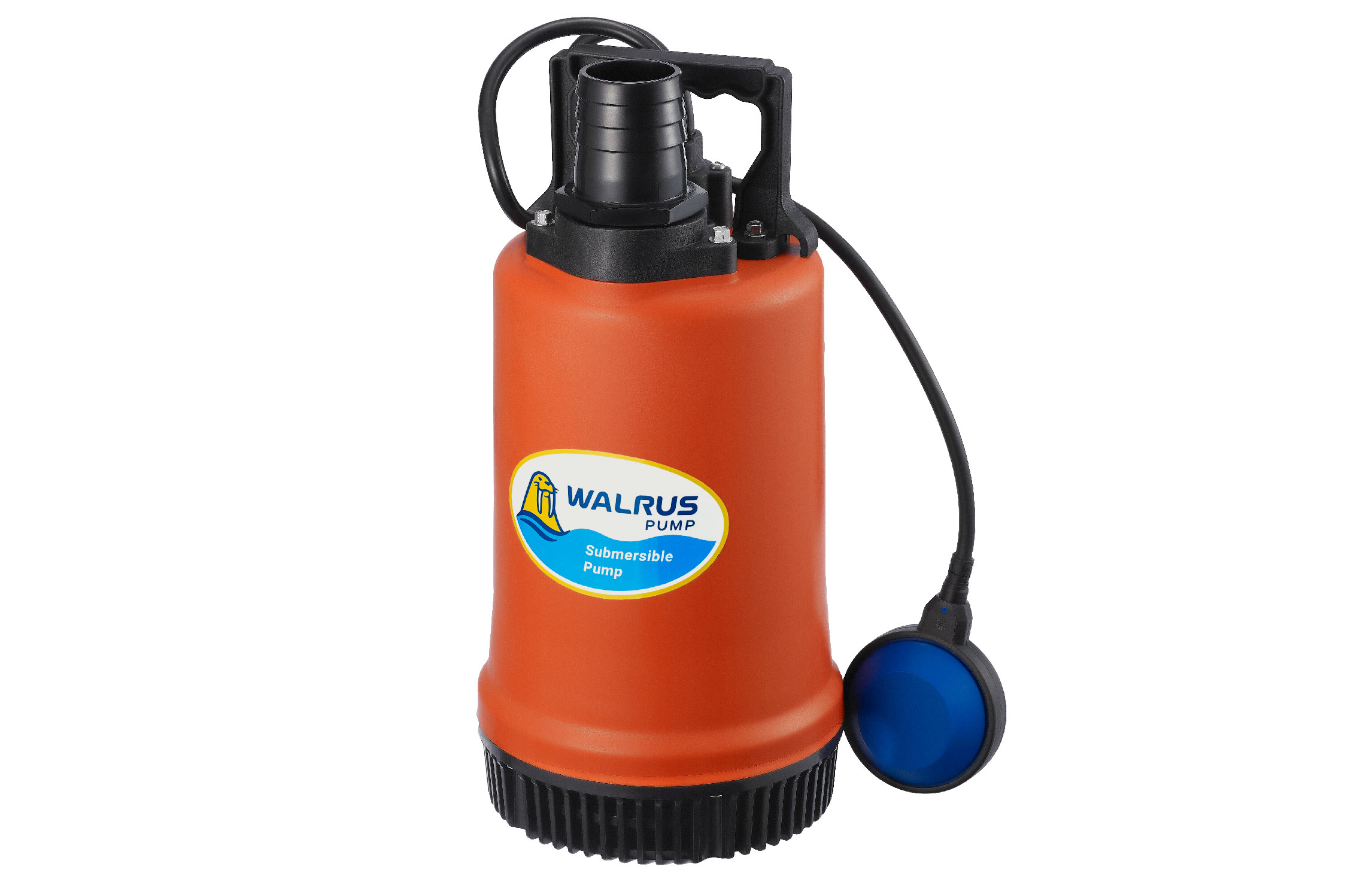

Float Ball Level Switch

Low Suction

PW Series Applications

Construction Industry

Landscape Pond Water Recirculation

Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.

Construction Industry

Drainage

Quickly removes water accumulation in basements, parking areas, construction sites, and low-lying zones. Especially effective during rainy seasons.

Beautiful,Fountain,In,Tsaritsyno,Park,In,Moscow,,Russia

Entertainment & Leisure Industry

Landscape Pond Water Circulation

Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.

Water Flow Treatment System From The Water Pump Pipe.Motion Of W

Agriculture, Forestry, Fishery and Animal Husbandry

Water Supply for Animal Husbandry and Aquaculture

Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
