Application

The TPHK8T(S)E is vertical ultistage centrifugal pump, designed for industrial use, specially for machine tool. It is suitable to carry fluids such as water, coolant, light oil and other clean, non aggressive matters:

Industrial circulation system

Washing/cleaning system

Filtration system

Product feature

Immersible vertical multistage centrifugal pump,self-priming, co-axial pump/motor design,impellers mounted on extended motor shaft. Main working parts made by tainless steel.

Enclosure protection class:IP54

Insulation class:F.

Operating Condition

Ambient temperature:Max. +40℃

Liquid temperature:+0℃ ~ +90℃

Operating pressure:Max.10kg/cm²

Submerged depth:Min. 40mm

Model Code

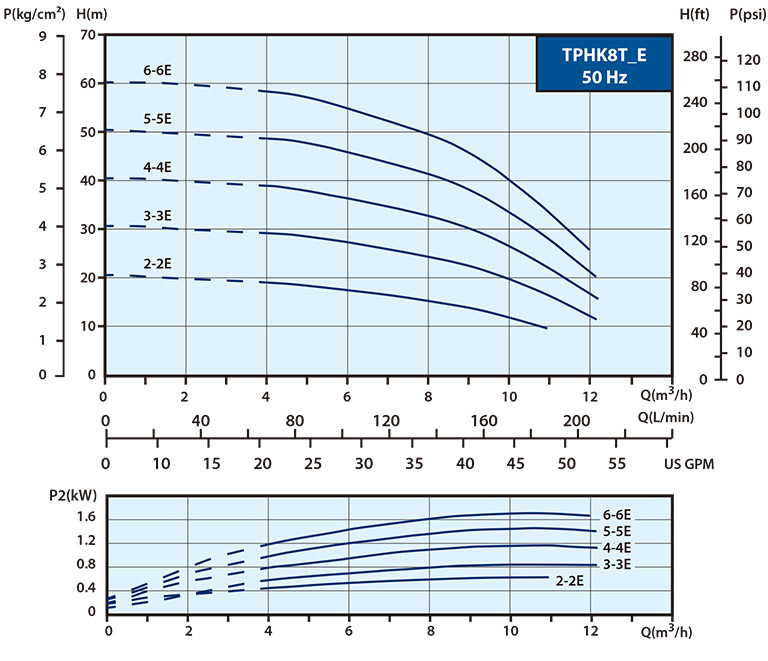

50Hz/60Hz, 2900/3500rpm

Compare Products (multiple options available)

Type
TPHK8T2-2(S)E
TPHK8T3-3(S)E
TPHK8T4-4(S)E
TPHK8T5-5(S)E
TPHK8T6-6(S)E
Type Cycle
(Hz)
Phrase
(Ø)
Voltage
(V)
P2
(kW)
Ampere I 1/1
(A)
Ampere I max
(A)
Dim. L
(mm)
Dim. A
(mm)
Dim. B
(mm)
Dim. C
(mm)
Dim. D
(mm)
Dim. E
(mm)
N.W.
(kg)
TPHK8T2-2(S)E 5060 3 200-230 / 342-415220-255 / 380-480 1.1 5.2-5.4 / 3.1-3.44.6-4.6 / 2.8-3.1 5.5-5.7/ 3.3-3.56.2-5.7 / 3.6-3.5 455 284 171 231 110 145 17
TPHK8T3-3(S)E 5060 3 200-230 / 342-380220-240 / 380-440 2.2 9.5-10.5 / 5.5-5.68.6-8.4 / 4.9-5.0 10.2-10.9 / 5.9-5.912.1-11.2 / 6.9-6.4 519 321 198 244 123 181 24
TPHK8T4-4(S)E 5060 3 200-230 / 342-380220-240 / 380-440 2.2 9.5-10.5 / 5.5-5.68.6-8.4 / 4.9-5.0 10.2-10.9 / 5.9-5.912.1-11.2 / 6.9-6.4 546 321 225 244 123 181 25
TPHK8T5-5(S)E 5060 3 200-230 / 342-380220-240 / 380-440 3.0 12.2-13.1 / 7.1-7.111.2-10.7 / 6.4-6.3 13.4-14.0 / 7.9-7.814.5-13.3 / 8.3-7.6 598 346 252 244 123 181 28
TPHK8T6-6(S)E 5060 3 200-230 / 342-380220-240 / 380-440 3.43.7 13.4-13.0 / 7.8-7.413.4-12.6 / 7.7-7.0 14.6-13.9 / 8.5-8.016.4-15.1 / 9.4-8.4 645 366 279 244 123 181 31

Dimensions (mm)
