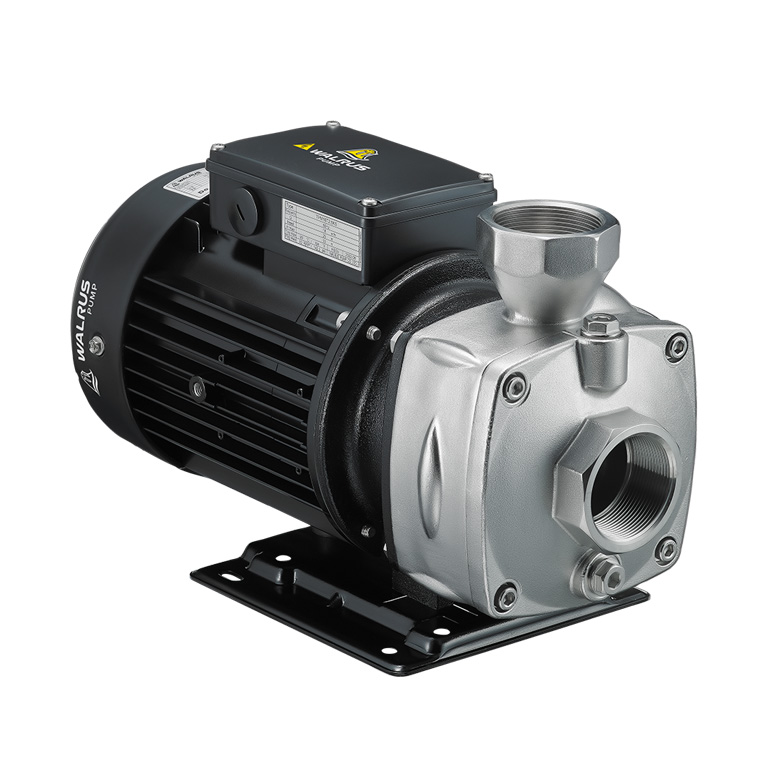

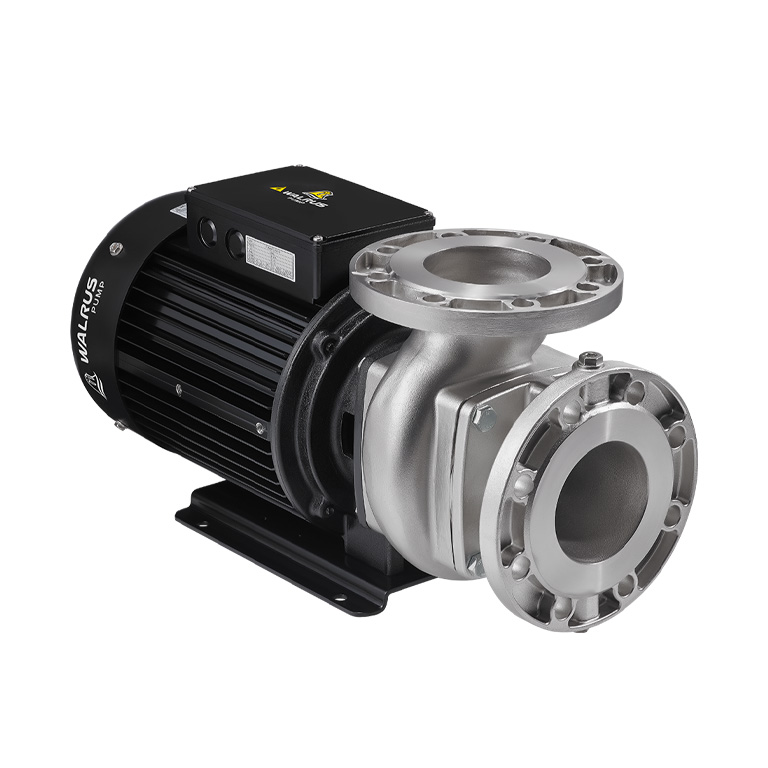

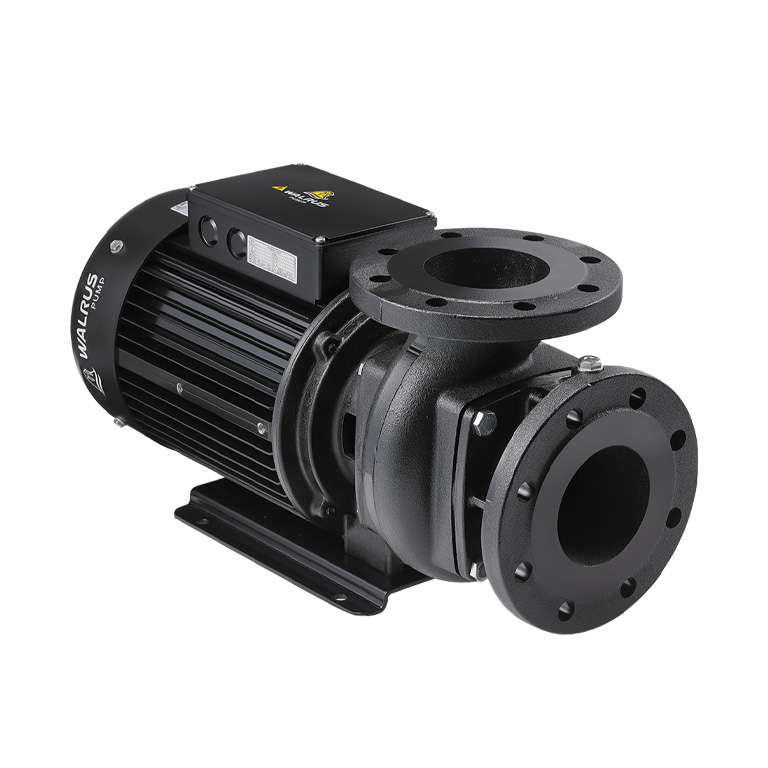

Pump Construction

Horizontal multistage centrifugal pump,non self-priming,co-axial pump/motor design,impellers mounted on extended motor shaft. Main working parts made by stainless steel.

Operating Conditions

Ambient temperature :Max. +40°C

Liquid temperature range:+0°C ~ +90°C

Operating pressure:Max. 10 kg/cm²

Inlet pressure:Max. 6 kg/cm²

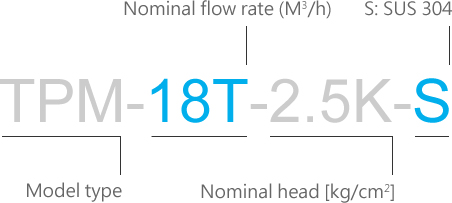

Model Code

TPM18T 50Hz, 2900rpm, Motor Efficiency IE3

Compare Products (multiple options available)

Type
TPM18T2K(S)
TPM18T3K(S)
Type Voltage code Phase
(Ø)
Voltage
(V)
Output Power
(kW)
Ampere I 1/1
(A)
S.F. Ampere I max
(A)
TPM18T2K(S) 59V 3 200-230/342-380 2.2 9.5-10.5/5.5-5.6 1.1 10.2-10.9/5.9-5.9
TPM18T3K(S) 59V 3 200-230/342-380 3.0 12.2-13.1/7.1-7.1 1.1 13.4-14.0/7.9-7.8

TPM18T 60Hz, 3500rpm, Motor Efficiency IE3

Compare Products (multiple options available)

Type
TPM18T2K(S)
TPM18T2.5K(S)
TPM18T4K(S)
Type Voltage code Phase
(Ø)
Voltage
(V)
Output Power
(kW)
Ampere I 1/1
(A)
S.F. Ampere I max
(A)
TPM18T2K(S) 69V 3 220-240/380-440 1.5 5.8-5.5/3.4-3.1 1.5 8.3-7.6/4.8-4.2
TPM18T2.5K(S) 69V 3 220-240/380-440 2.2 8.6-8.4/4.9-5.0 1.5 12.1-11.2/6.9-6.4
TPM18T4K(S) 69V 3 220-240/380-440 3.0 11.2-10.7/6.4-6.3 1.3 14.5-13.3/8.3-7.6

TPM25T 50Hz, 2900rpm, Motor Efficiency IE3

Compare Products (multiple options available)

Type
TPM25T2.5K(N)F
TPM25T3K(N)F
TPM25T4K(N)F
TPM25T5K(N)F
Type Voltage code Phase
(Ø)
Voltage
(V)
Output Power
(kW)
Ampere I 1/1
(A)
S.F. Ampere I max
(A)
TPM25T2.5K(N)F 59U 3 220-240/380-415 4 16.0-16.6/9.0-9.5 1.1 17.4-17.5/9.7-10.1
TPM25T3K(N)F 59U 3 220-240/380-415 5.5 19.6-19.9/11.3-11.4 1.1 21.3-21.2/12.3-12.2
TPM25T4K(N)F 59U 3 220-240/380-415 5.5 19.6-19.9/11.3-11.4 1.1 21.3-21.2/12.3-12.2
TPM25T5K(N)F 59U 3 220-240/380-415 7.5 25.0-24.8/14.6-14.5 1.1 27.3-26.8/15.9-15.7

TPM25T 60Hz, 3500rpm, Motor Efficiency IE3

Compare Products (multiple options available)

Type
TPM25T2.5K(N)F
TPM25T3K(N)F
TPM25T4K(N)F
TPM25T5K(N)F
TPM25T6K(N)F
Type Voltage code Phase
(Ø)
Voltage
(V)
Output Power
(kW)
Ampere I 1/1
(A)
S.F. Ampere I max
(A)
TPM25T2.5K(N)F 69U 3 220-255/380-440 4 14.6-14.7/8.5-8.5 1.15 16.5-16.0/9.6-9.3
TPM25T3K(N)F 69U 3 220-255/380-440 4 14.6-14.7/8.5-8.5 1.15 16.5-16.0/9.6-9.3
TPM25T4K(N)F 69U 3 220-255/380-440 5.5 21.7-19.9/12.4-11.5 1.15 21.7-19.9/12.4-11.5
TPM25T5K(N)F 69U 3 220-255/380-440 7.5 28.9-27.1/16.7-15.8 1.15 28.9-27.1/16.7-15.8
TPM25T6K(N)F 69U 3 220-255/380-440 7.5 28.9-27.1/16.7-15.8 1.15 28.9-27.1/16.7-15.8

TPM50T 50Hz, 2900rpm, Motor Efficiency IE3

Compare Products (multiple options available)

Type
TPM50T2K(N)F
TPM50T3K(N)F
Type Voltage code Phase
(Ø)
Voltage
(V)
Output Power
(kW)
Ampere I 1/1
(A)
S.F. Ampere I max
(A)
TPM50T2K(N)F 59U 3 220-240/380-415 5.5 19.6-19.9/11.3-11.4 1.1 21.3-21.2/12.3-12.2
TPM50T3K(N)F 59U 3 220-240/380-415 7.5 25.0-24.8/14.6-14.5 1.1 27.3-26.8/15.9-15.7

TPM50T 60Hz, 3500rpm, Motor Efficiency IE3

Compare Products (multiple options available)

Type
TPM50T2.5K(N)F
TPM50T4K(N)F
Type Voltage code Phase
(Ø)
Voltage
(V)
Output Power
(kW)
Ampere I 1/1
(A)
S.F. Ampere I max
(A)
TPM50T2.5K(N)F 69U 3 220-255/380-440 5.5 19.1-17.9/10.9-10.3 1.15 21.7-19.9/12.4-11.5
TPM50T4K(N)F 69U 3 220-255/380-440 7.5 25.4-24.4/14.7-14.1 1.15 28.9-27.1/16.7-15.8

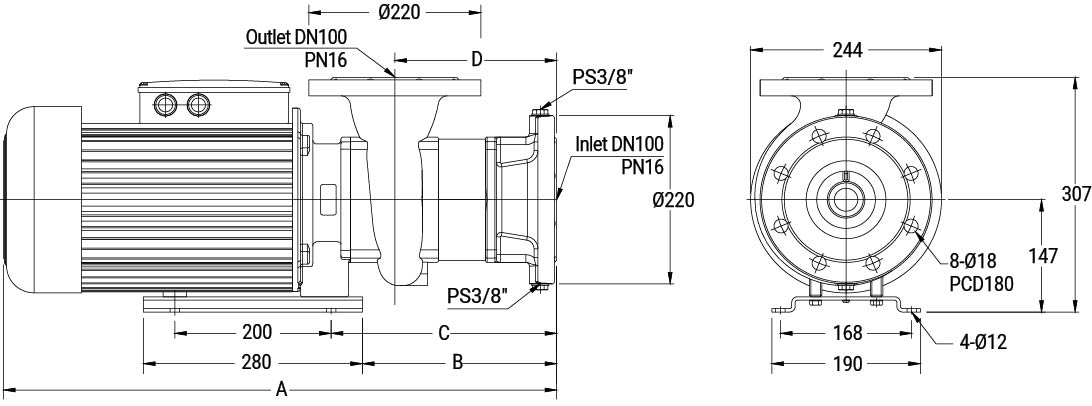

Dimensions (mm)

TPM 18T

50Hz

Model Dimensions N.W.(kg)
A(mm) B(mm) C(mm) D(mm)
TPM18T2K(S) 458 108 133 107 31
TPM18T3K(S) 483 108 133 107 34

60Hz

Model Dimensions N.W.(kg)
A(mm) B(mm) C(mm) D(mm)
TPM18T2K(S) 404 76 101 75 27
TPM18T2.5K(S) 426 76 101 75 31
TPM18T4K(S) 483 108 133 107 34
TPM 25T

50Hz

Model Dimensions N.W.(kg)
A(mm) B(mm) C(mm) D(mm)
TPM25T2.5K(N)F 643 223 263 185 64.5
TPM25T3K(N)F 703 283 323 245 71
TPM25T4K(N)F 703 283 323 245 71
TPM25T5K(N)F 803 383 383 305 82.5

60Hz

Model Dimensions N.W.(kg)
A(mm) B(mm) C(mm) D(mm)
TPM25T2.5K(N)F 583 163 203 125 61.5
TPM25T3K(N)F 643 223 263 185 64
TPM25T4K(N)F 643 223 263 185 69
TPM25T5K(N)F 743 283 323 245 80
TPM25T6K(N)F 743 283 323 245 80
TPM 50T

50Hz

Model Dimensions N.W.(kg)
A(mm) B(mm) C(mm) D(mm)
TPM50T2K(N)F 667 248 288 207 73
TPM50T3K(N)F 767 308 348 267 84.5

60Hz

Model Dimensions N.W.(kg)
A(mm) B(mm) C(mm) D(mm)
TPM50T2.5K(N)F 607 188 228 147 71
TPM50T4K(N)F 707 248 288 207 82

TPM 18T

TPM 25T

TPM 50T

i.Catalog

Catalog

TPM Series Multistage Centrifugal Pump

Updated on 2021/12/20

5.11MB

ii.Instruction Manual

Instruction Manual

TPM Series Multistage Centrifugal Pump

Updated on 2021/12/20

672KB
