Product Feature

This HQC series most suitable to Install it below the water tower, to downward pressurization, When using the water; the pump will automatically start increase the pressure to supply water, when stop using the pump will automatically stop supply power and water.

Compact design and quiet operation make the HQC series suitable for many applications.

The HQC is constructed from the top quality corrosion resistant materials.

The motor has built-in thermal overload to protect against high operating temperatures and over current.

The pumps will lift water up to 7.6m. with foot valve and pump suction piping filled with water.

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: + 4°C ~ + 40°C

Pressure Range : Max. 6kg/cm²

Suction Pipes: Must run in positive pressure only a negative pressure unable to work the pump.

Discharge Pipes: Must lower than water tower over 0.5-meter.

Specification, 50Hz

Compare Products (multiple options available)

Type
HQC200
HQC400
HQC800
Type Power
(kW)
Phase
(Ø)
Voltage
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Maximum Pressure
(kg/cm²)
Maximum Capacity
(L/min)
N.W.
(kg)
HQC200 0.18 1 200~240 1.5 1" 1" 2.4 55 7.3
HQC400 0.37 1 200~240 2.8 1" 1" 3.1 85 8.3
HQC800 0.75 1 200~240 4.5 1" 1" 3.3 110 11.1

Specification, 60Hz

Compare Products (multiple options available)

Type
HQC200
HQC400
HQC800
Type Power
(kW)
Phase
(Ø)
Voltage
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Maximum Pressure
(kg/cm²)
Maximum Capacity
(L/min)
N.W.
(kg)
HQC200 0.18 1 110/220 4.0/2.0 1" 1" 2.4 60 7.3
HQC400 0.37 1 110/220 6.0/3.0 1" 1" 2.6 80 8.3
HQC800 0.75 1 110/220 9.0/4.5 1" 1" 2.7 120 10.6

Dimensions (mm)

Model Cycle (Hz) Dimensions (mm)
A B C
HQC200 50/60 292 91 96
HQC400 50/60 292 91 96
HQC800 50/60 344 96 101


i.Catalog

Catalog

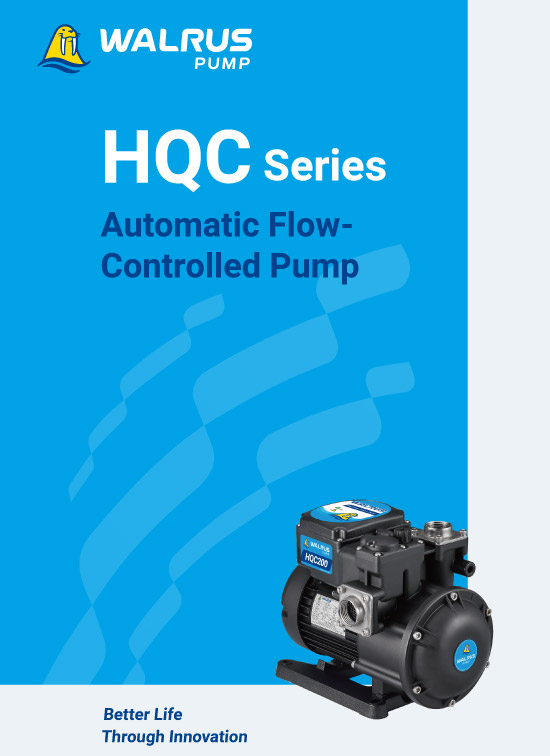

HQC Series Automatic Flow-Controlled Pump

Updated on 2021/12/20

ii.Instruction Manual

Instruction Manual

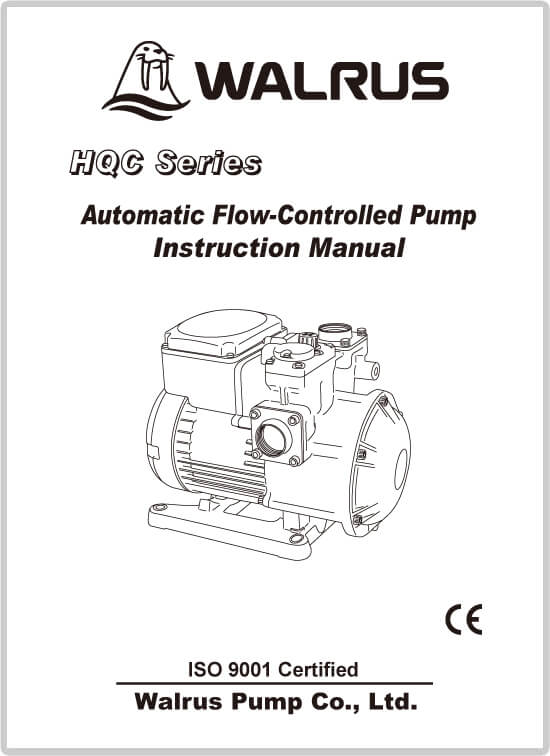

HQC Series Instruction Manual

Updated on 2021/12/20

Thank you HQC Series products !
