Product Feature

Automatic Flow-Controlled Pump

Compact design and quiet operation make the TQC series suitable for many applications.

The TQC is constructed from the top quality corrosion resistant materials.

The motor has built-in thermal overload to protect against high operating temperatures and over current.

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: + 4°C ~ + 40°C

Pressure Range : Max. 6kg/cm²

Suction Pipes: Must run in positive pressure only a negative pressure unable to work the pump

Discharge Pipes: Must lower than water tower over 0.5-meter.

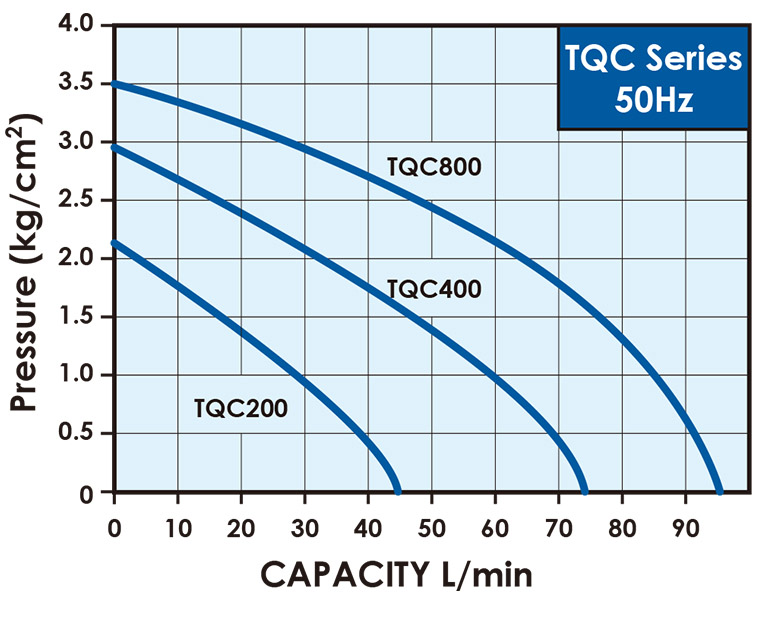

Specification, 50Hz

Compare Products (multiple options available)

Type
TQC200
TQC400
TQC800
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TQC200 0.18 1 200 - 240 1.5 1" 1" 22 45 6.7 7.2 45
TQC400 0.37 1 200 - 240 3 1" 1" 30 75 8.2 8.7 45
TQC800 0.75 1 200 - 240 4.4 1" 1" 35 95 10.4 10.9 30

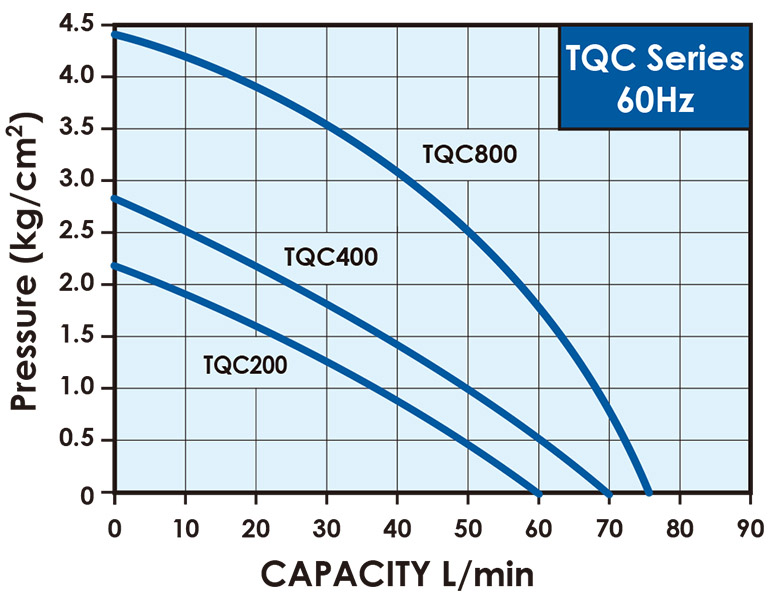

Specification, 60Hz

Compare Products (multiple options available)

Type
TQC200
TQC400
TQC800
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TQC200 0.18 1 110/220 4.0/2.0 1" 1" 22 60 6.3 7.4 45
TQC400 0.37 1 110/220 6.0/3.0 1" 1" 28 70 7.8 8.9 45
TQC800 0.75 1 110/220 11/5.5 1" 1" 44 75 11.7 12.0 30

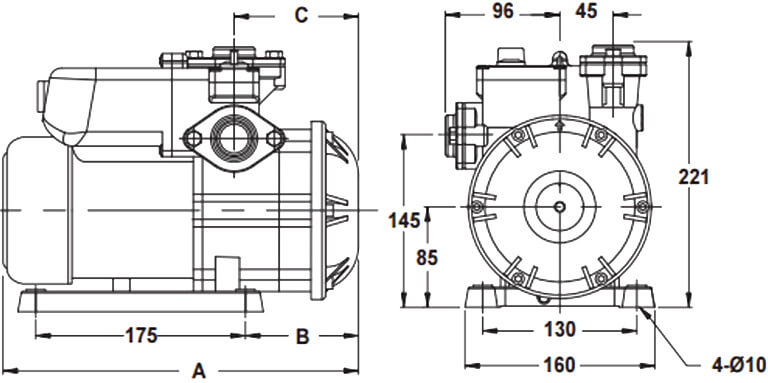

Dimensions (mm)

Model Cycle (Hz) Dimensions (mm)
A B C
TQC200 50 297 91 96
60 273 67 72
TQC400 50 306 99 104
60 280 73 78
TQC800 50/60 352 99 104

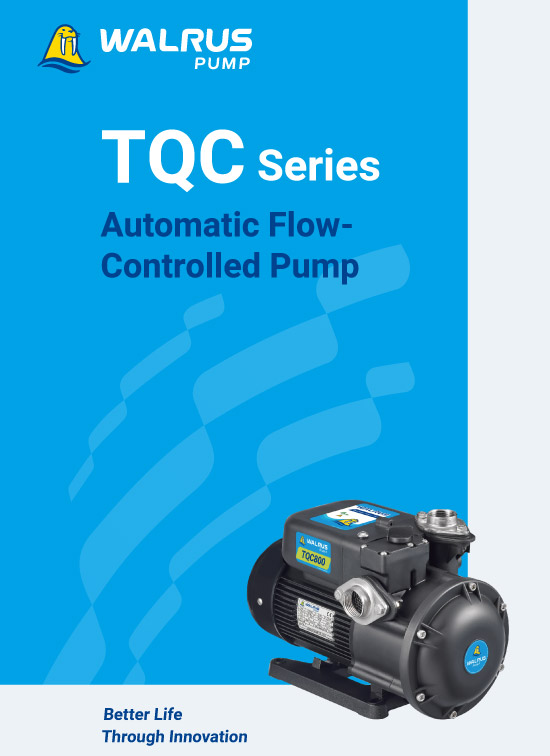

i.Catalog

Catalog

TQC Series Automatic Flow-Controlled Pump

Updated on 2023/10/17

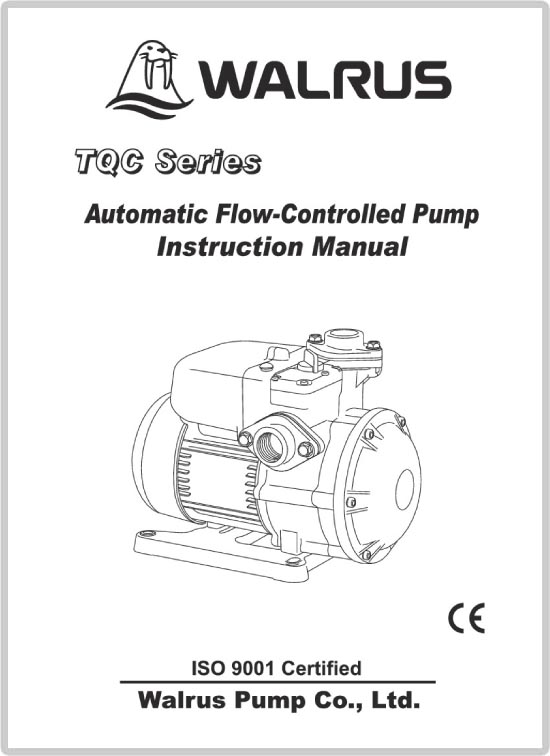

ii.Instruction Manual

Instruction Manual

TQC Series Automatic Flow-Controlled Pump

Updated on 2021/12/20

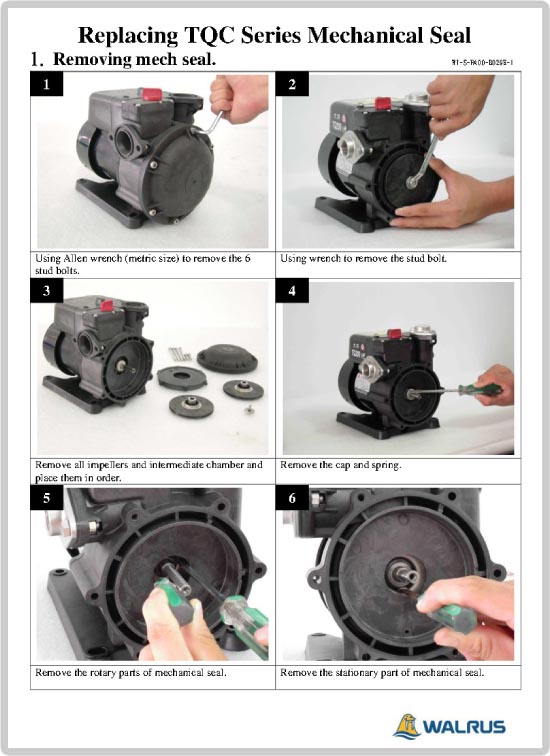

iii.Mechanical Seal

Mechanical Seal

TQC Mechanical Seal

Updated on 2021/12/20

Thank you TQC Series products !
