Product Feature

The TQCN is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

Compact design and quiet operation make the TQCN series suitable for many applications.

The TQCN is constructed from the top quality corrosion resistant materials.

The motor has built-in thermal overload to protect against high operating temperatures and over current.

The TQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

Relief value will automatically release the pressure when the TQCN full system pressure exceeds 5kg/cm².

Operating Condition

Ambient temperature:Max. +40°C

Liquid temperature:+4°C~+90°C

Relief pressure value automatically:Max. 5 kg/cm²

Relative Humidity:Max. 85%(RH)

Before using the pump, be sure the inlet pressure setting is lower than factory pressure setting

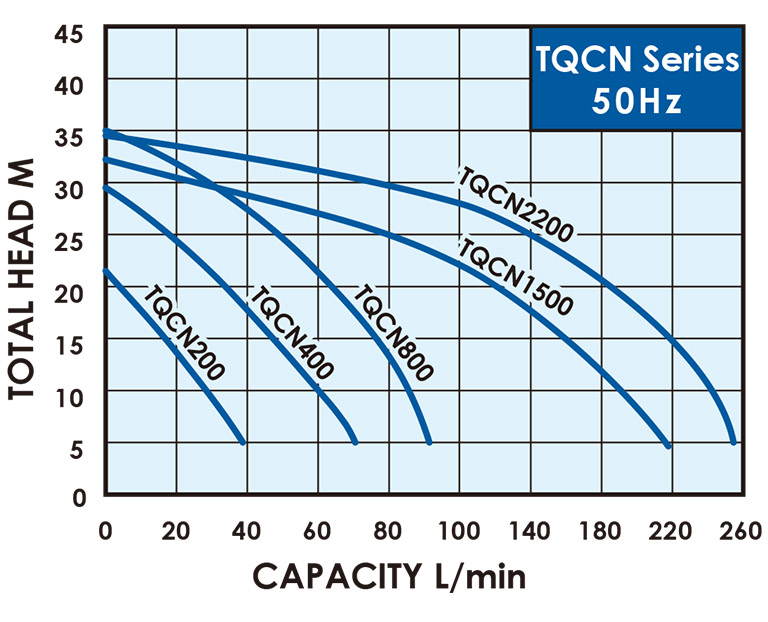

Specification, 50Hz

Compare Products (multiple options available)

Type
TQCN200
TQCN400
TQCN800
TQCN1500
TQCN2200
Type Power
(kW)
Phrase
(Ø)
Voltage
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
Maximum Head
(M)
Maximum Capacity
(L/min)
N.W.
(kg)
TQCN200 0.18 1 200~240 1.5 1" 1" 1.2 22 45 7.4
TQCN400 0.37 1 200~240 3 1" 1" 1.8 30 75 9.4
TQCN800 0.75 1 200~240 4.4 1" 1" 2.0 35 95 11
TQCN1500 1.5 13 200~240200~240 7.25.8 2" 2" 2.5 32 230 28
TQCN2200 2.2 13 200~240200~240 11.17.2 2" 2" 2.5 34 250 31

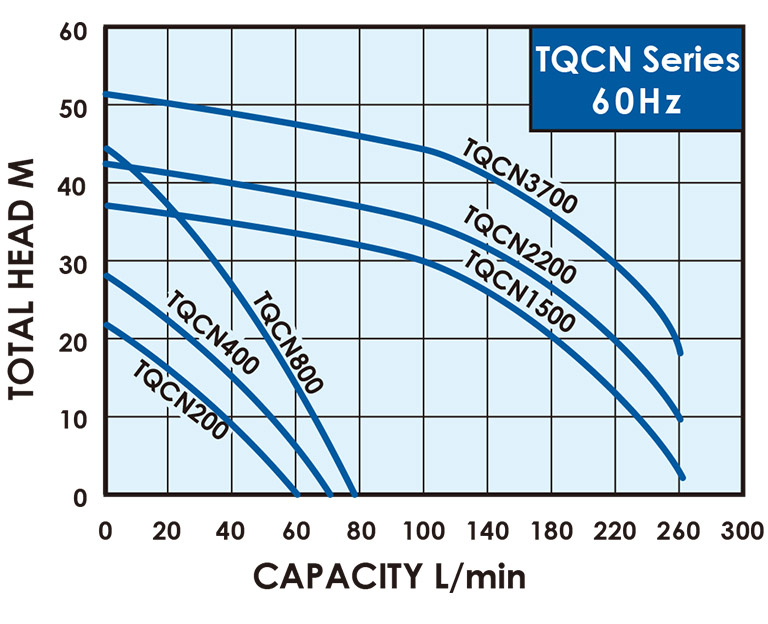

Specification, 60Hz

Compare Products (multiple options available)

Type
TQCN200
TQCN400
TQCN800
TQCN1500
TQCN2200
TQCN3700
Type Power
(kW)
Phrase
(Ø)
Voltage
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
Maximum Head
(M)
Maximum Capacity
(L/min)
N.W.
(kg)
TQCN200 0.18 1 110/220 4.0/2.0 3/4" 3/4" 1.4 22 60 7.4
TQCN400 0.37 1 110/220 6.0/3.0 1" 1" 1.8 28 70 9.4
TQCN800 0.75 1 110/220 11/5.5 1" 1" 2.5 44 75 11.6
TQCN1500 1.5 13 220220 9.59.5 2" 2" 3.0 37 270 28
TQCN2200 2.2 3 220 9.5 2" 2" 3.0 42 270 31
TQCN3700 3.7 3 220 13.8 2" 2" 3.0 52 270 31.5

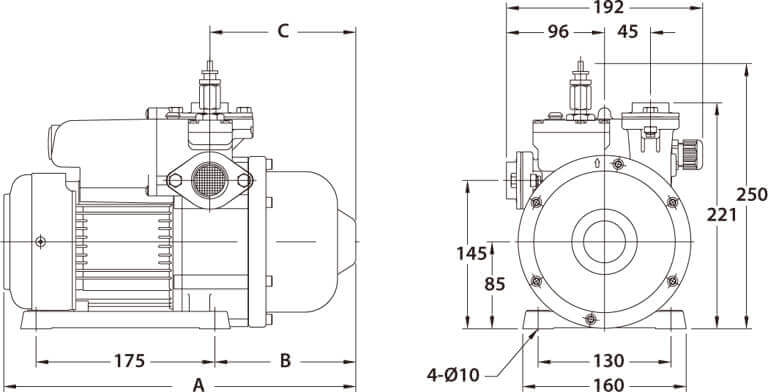

Dimensions (mm)

TQCN200/400/800
Model Cycle(Hz) Dimensions (mm)
A B C
TQCN200 50 360 153 158
60 336 129 134
TQCN400 50 371 164 169
60 345 138 143
TQCN800 50 / 60 417 164 169

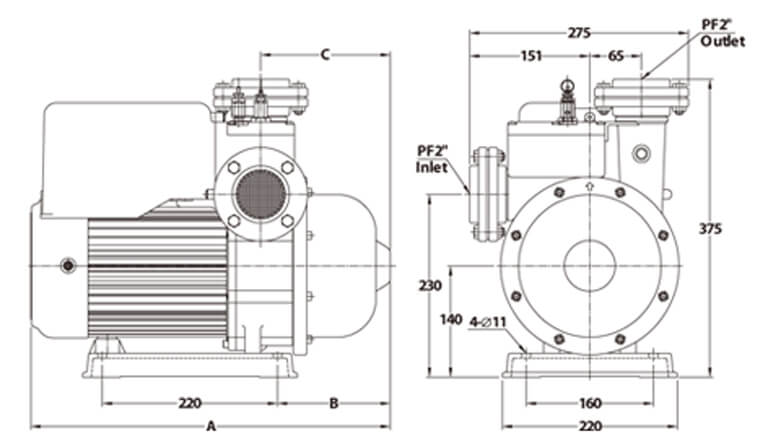

TQCN1500/2200/3700
Model Cycle (Hz) Dimensions (mm)
A B C
TQCN1500/2200 50 / 60 452 142 163
TQCN3700 60 452 142 163

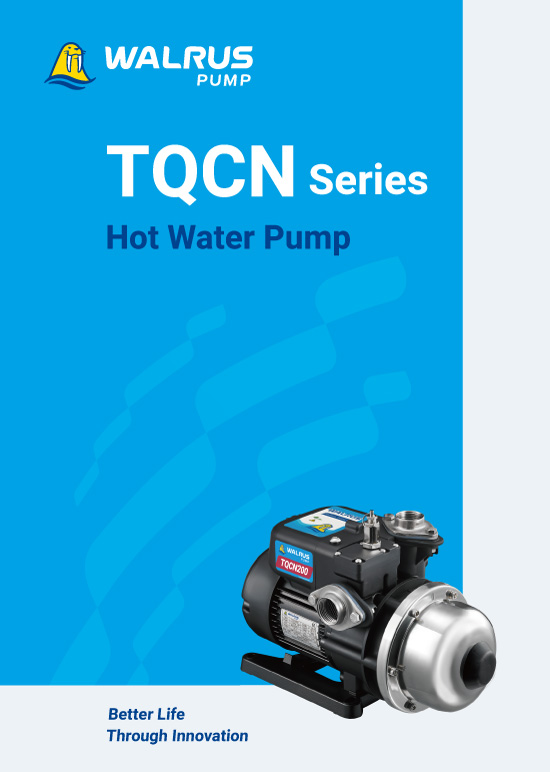

i.Catalog

Catalog

TQCN Series Hot Water Pump

Updated on 2021/12/20

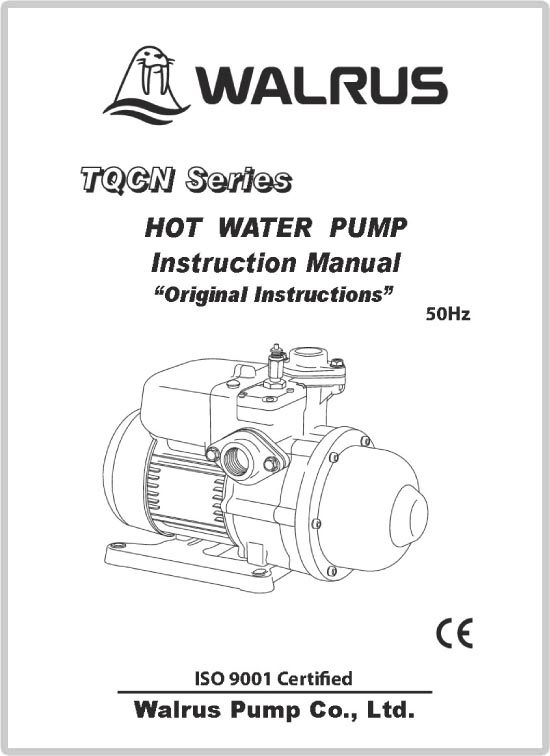

ii.Instruction Manual

Instruction Manual

TQCN Series Hot Water Pump

Updated on 2021/12/20

iii.Mechanical Seal

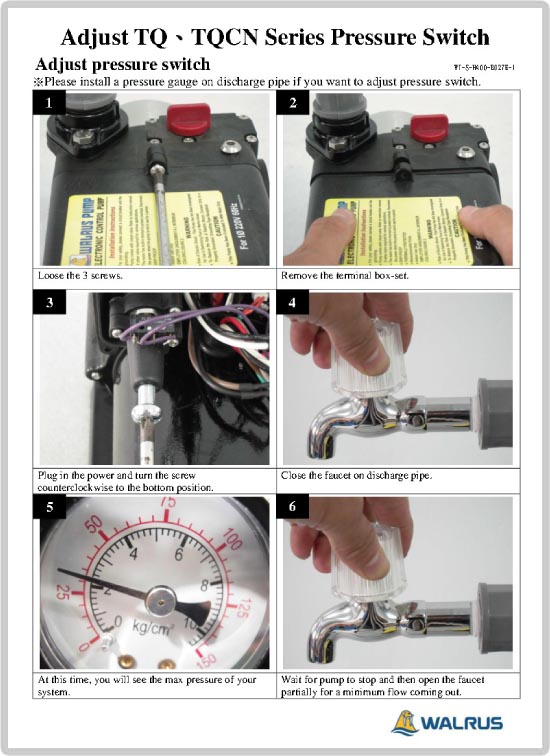

Adjust pressure switch

TQCN Series Hot Water Pump

Updated on 2021/12/20

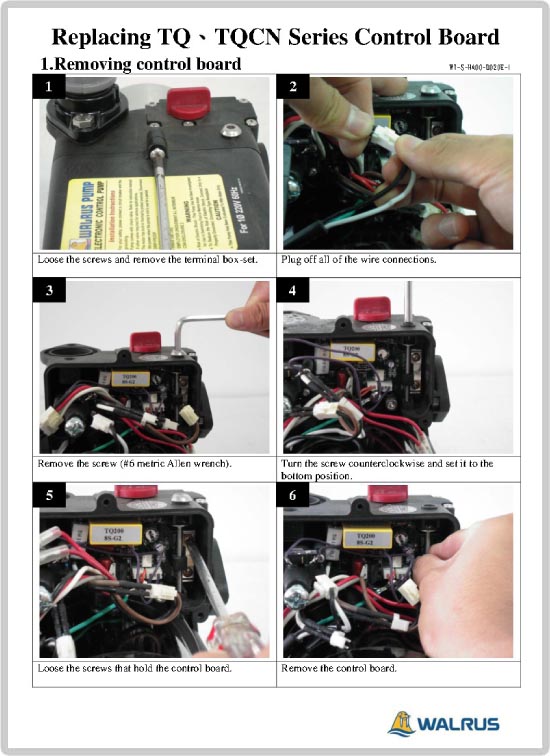

Service Manual

TQCN Series Control Board

Updated on 2021/12/20

Thank you TQCN Series products !
