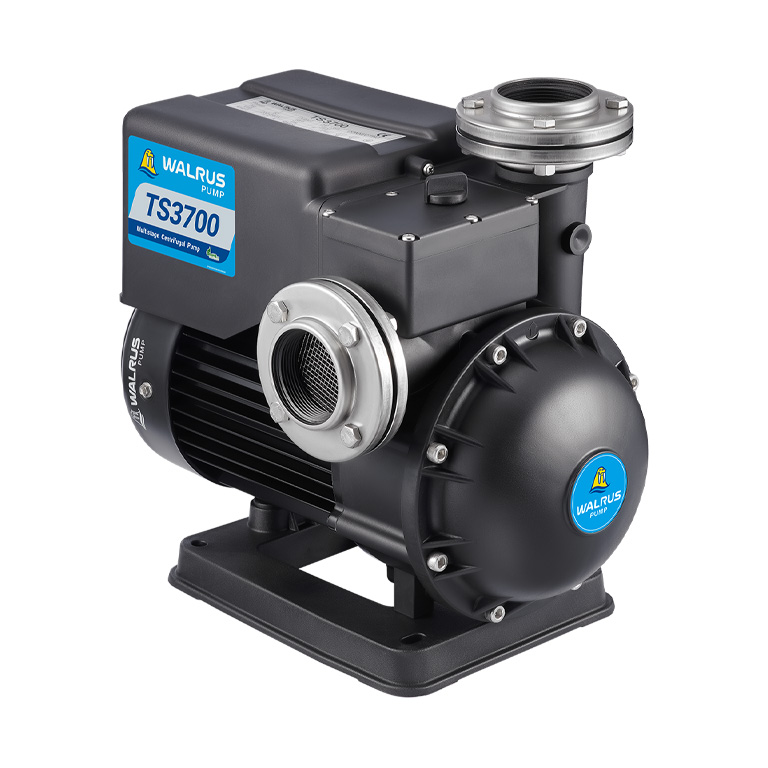

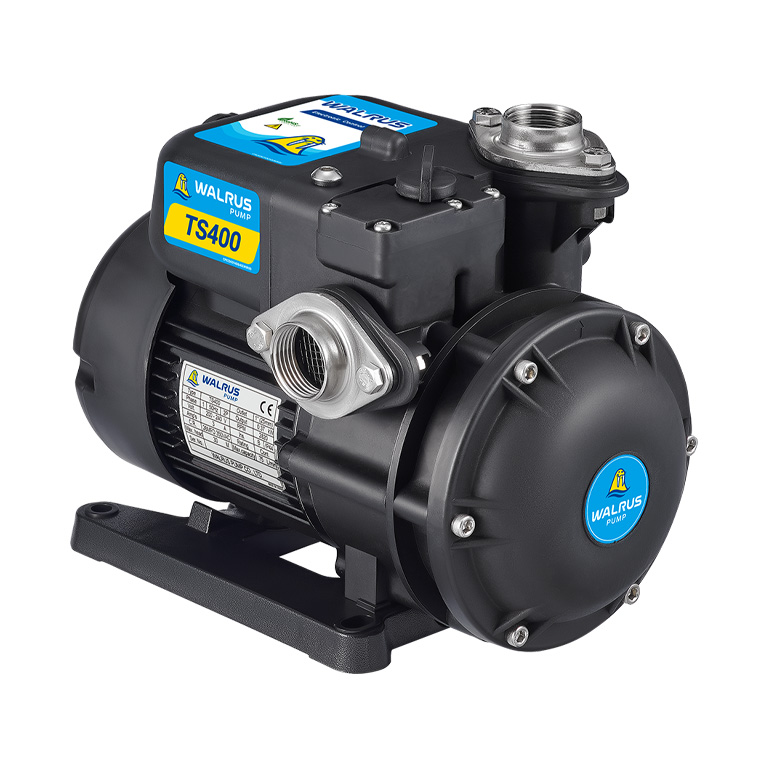

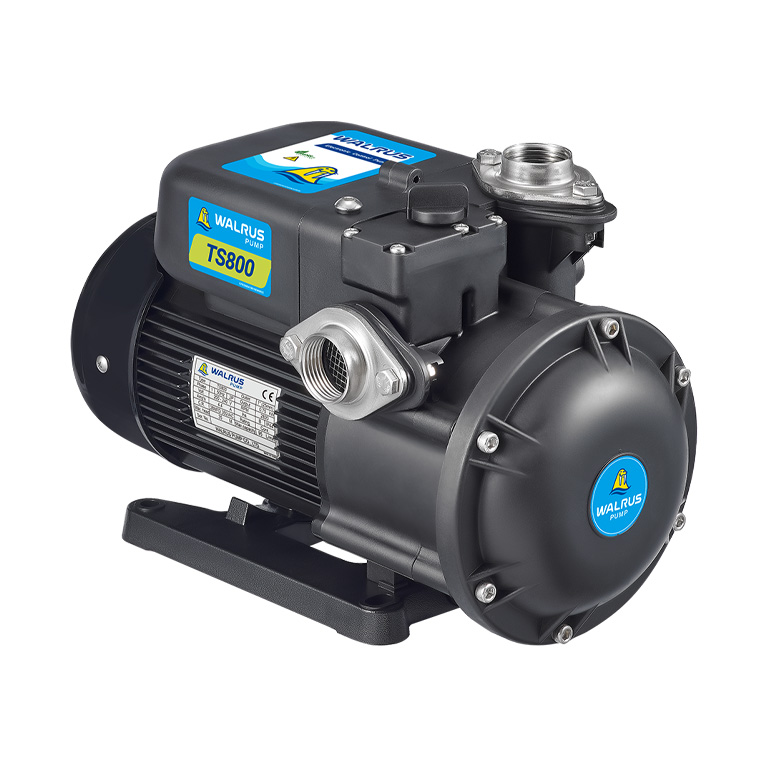

Multistage Centrifugal Pump

Product Feature

Mutistage design provide steady, quiet and vibration-free operation for years of trouble-free service.

Close coupled, space saving design provides easy installation.

Suitable for tansfering plain water.

The pump is installed with thermostat protection switch to protect against dry running. The pump will shut off when water temperature exceeds 130F (55C)(TS400/TQ800 only).

All parts in contact with water are made from corrosion resistant materials

The motor has a built-in thermal overload to protect against high operating temperatures and over current (Single phase motor only)

The pumps will lift water up to 7.6m. with foot valve and pump suction piping

Operating Condition

Ambient temperature:Max. +40°C

Liquid Temperature:+4°C~+40°C

Suction Head:Max. 6 m

System Pressure:Max. 8.5 kg/cm²

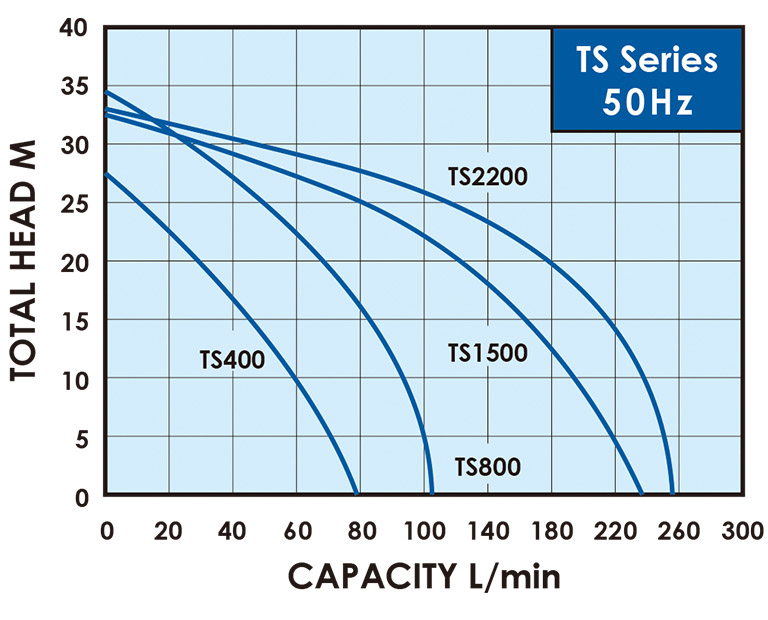

Specification, 50Hz

Compare Products (multiple options available)

Type
TS400
TS800
TS1500
TS2200
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TS400 0.37 1 200 - 240 3.0 1" 1" 30 75 8.1 8.6 45
TS800 0.75 1 200 - 240 4.4 1" 1" 35 100 10.3 10.8 30
TS1500 1.5 133 200 - 240200 - 240380 - 440 7.25.83.3 2"2"2" 2"2"2" 32 230 21.1 23.5 121212
TS2200 2.2 133 200 - 240200 - 240380 - 440 11.19.04.5 2"2"2" 2"2"2" 34 250 22.1 24.5 121212

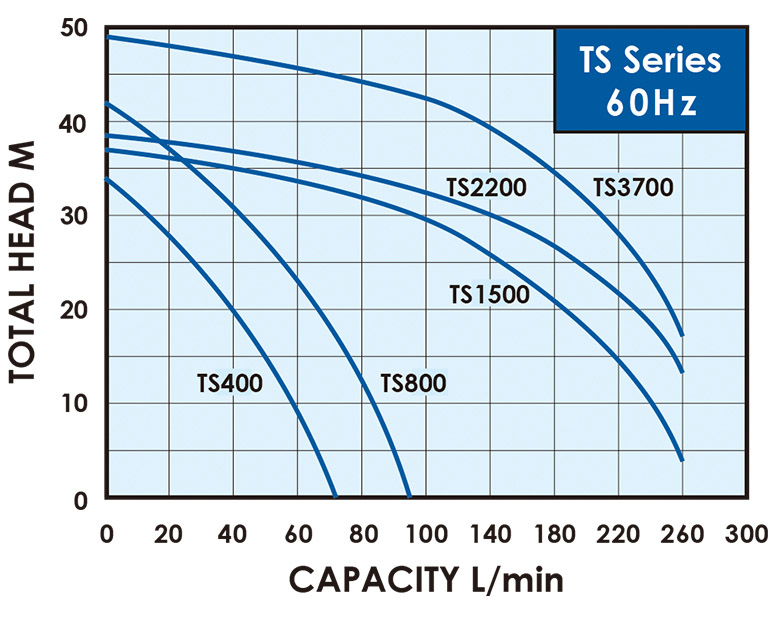

Specification, 60Hz

Compare Products (multiple options available)

Type
TS400
TS800
TS1500
TS2200
TS3700
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TS400 0.37 1 110 or 220 6.0 or 3.0 1" 1" 35 70 8.1 8.6 45
TS800 0.75 1 110 or 220 11.0 or 5.5 1" 1" 42 95 10.6 11.4 30
TS1500 1.5 13 220220 or 380 9.56.5 or 4.2 2" 2" 38 265 21.1 23.4 1212
TS2200 2.2 3 220 or 380 9.5 or 5.2 2" 2" 39 270 22.1 24.4 12
TS3700 3.7 3 220 or 380 13.8 or 6.8 2" 2" 50 270 24.4 26.5 12

Dimensions (mm)

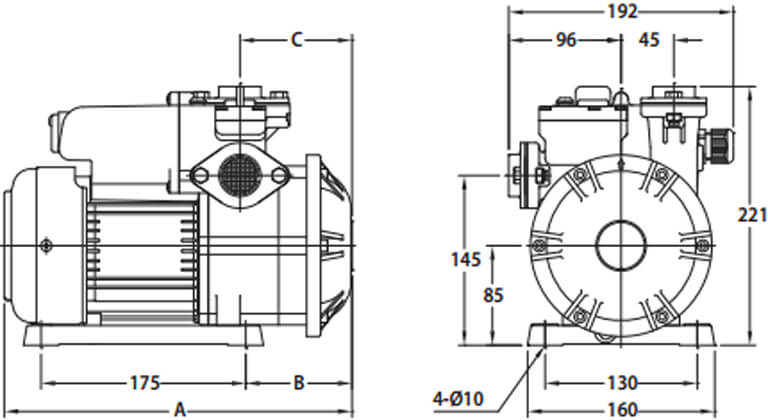

TS400/800
Model Cycle(Hz) Dimensions (mm)
A B C D
TS400 50 305 99 104 181
60 297 91 96 176
TS800 50 / 60 352 99 104 181

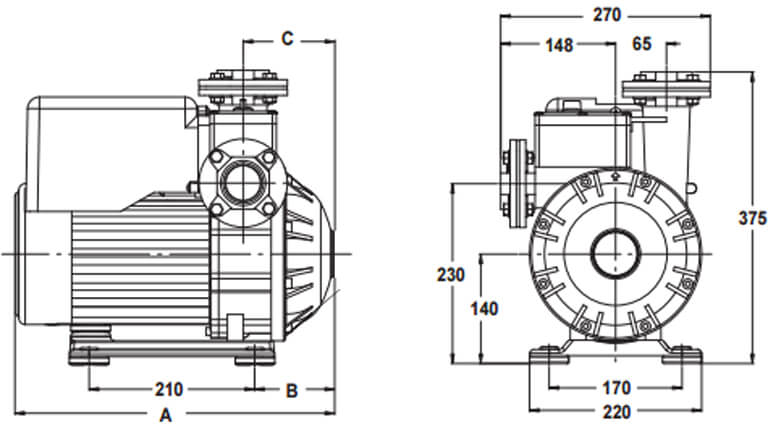

TS1500/2200/3700
Model Cycle (Hz) Dimensions (mm)
A B C
TS1500/2200 50 / 60 405 101 116
TS3700 60 405 101 116


i.Catalog

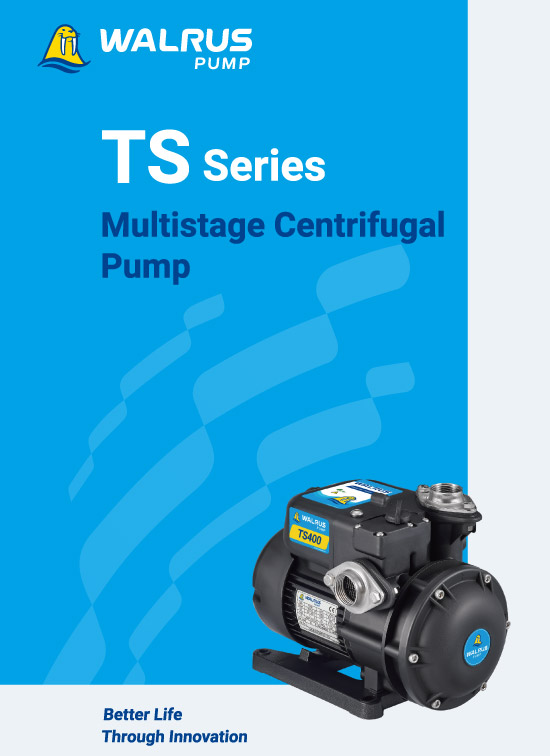

Catalog

TS Series Multistage Centrifugal Pump

Updated on 2023/10/17

ii.Instruction Manual

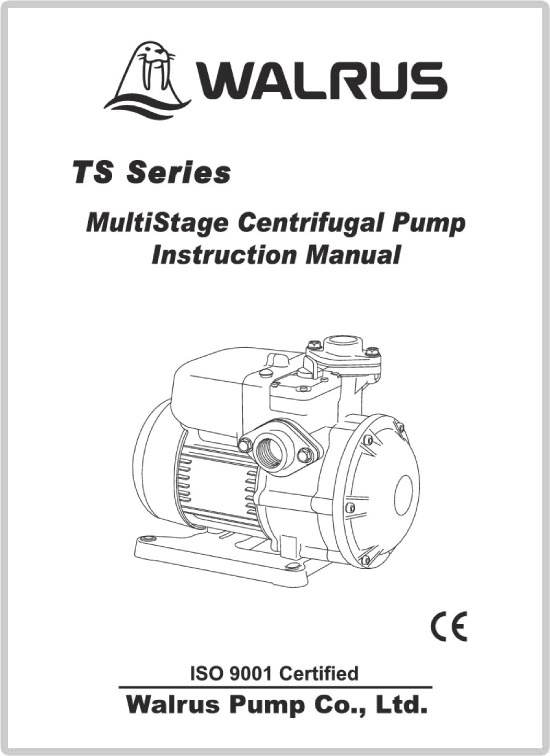

Instruction Manual

TS Series Multistage Centrifugal Pump

Updated on 2021/12/20

iii.Mechanical Seal

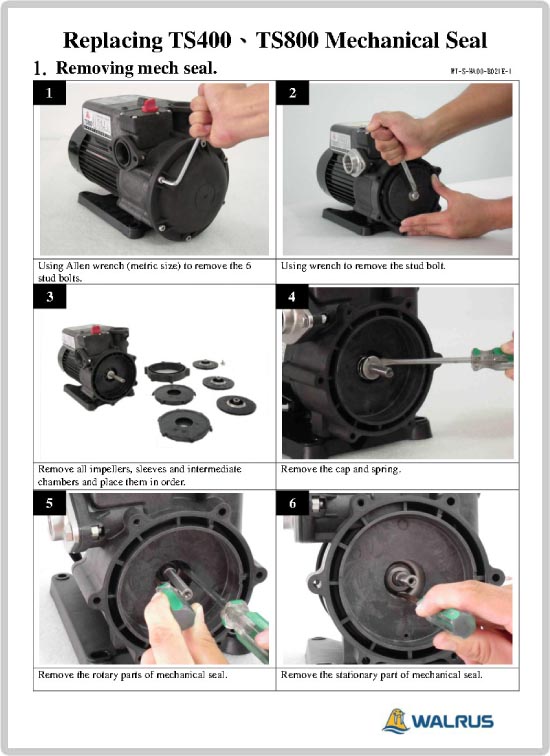

Mechanical Seal

TS400-TS800 Mechanical Seal

Updated on 2021/12/20

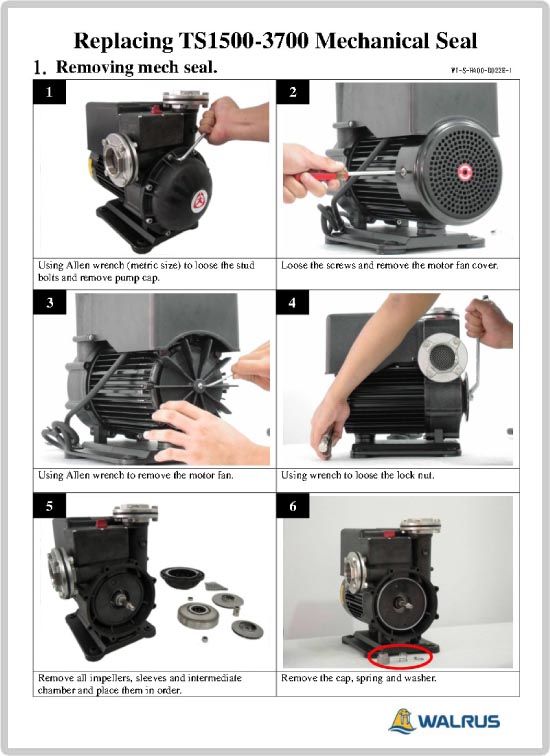

Mechanical Seal

TS1500-TS3700 Mechanical Seal

Updated on 2021/12/20
