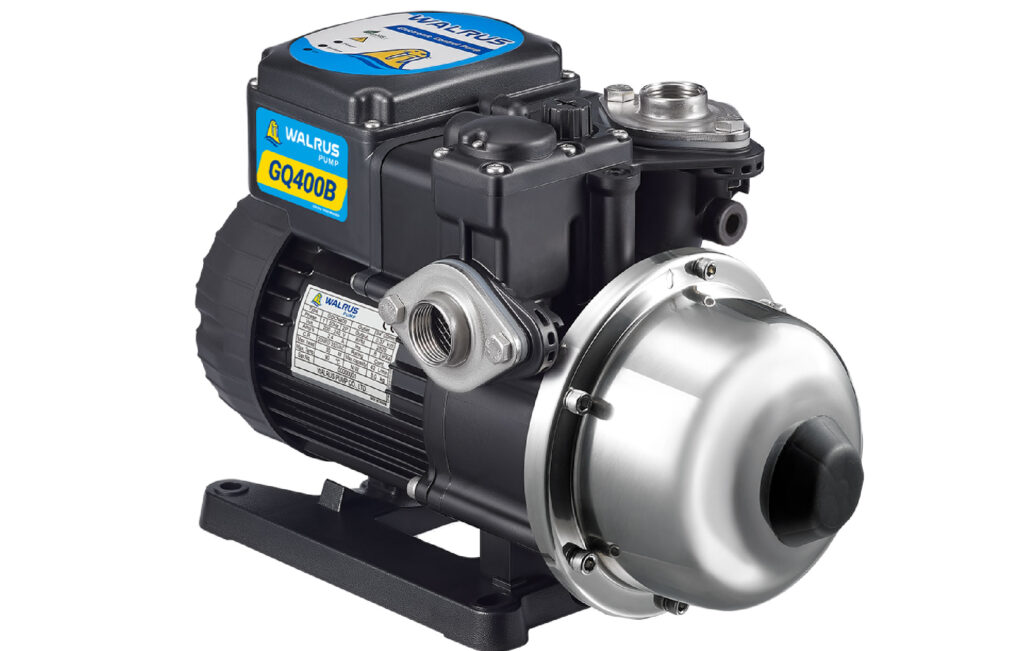

GQ400B(外銷)產品圖
Model | GQ400B

Regenerative Pump

Electronic Control Booster Pump
GQ_B Series

  • An optimized structure combined with gear impellers for outstanding exhaust performance.
  • Electronic program control ensures stable water pressure.
  • Equipped with double dry-running protection.
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 0.75
38
80
60
0.18 - 0.75
38
85

Features

Outstanding Exhaust Performance
An optimized structure combined with gear impellers self-regulates the pressure differential, enabling rapid water return and quick air removal to prevent supply disruption caused by air blockage.
Power Module
Equipped with industrial-grade safety protections, it adapts to various voltage conditions to ensure consistently stable water pressure.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Double Dry-Running Protection
Features a built-in temperature protection switch and a dry-running protection device to prevent overheating caused by operation without water, ensuring safe use.
Rapid Cycling Protection
A design allows for programmable control to delay shutdown by 6 seconds, avoiding frequent pump starts and stops due to low water volume, effectively extending the pump's lifespan.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.
All-In-One
Integrated system that combines the pump, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
System Pressure
Max. 8.5 kg/cm²
Inlet Pressure
Must be less than the pressure switch start value.

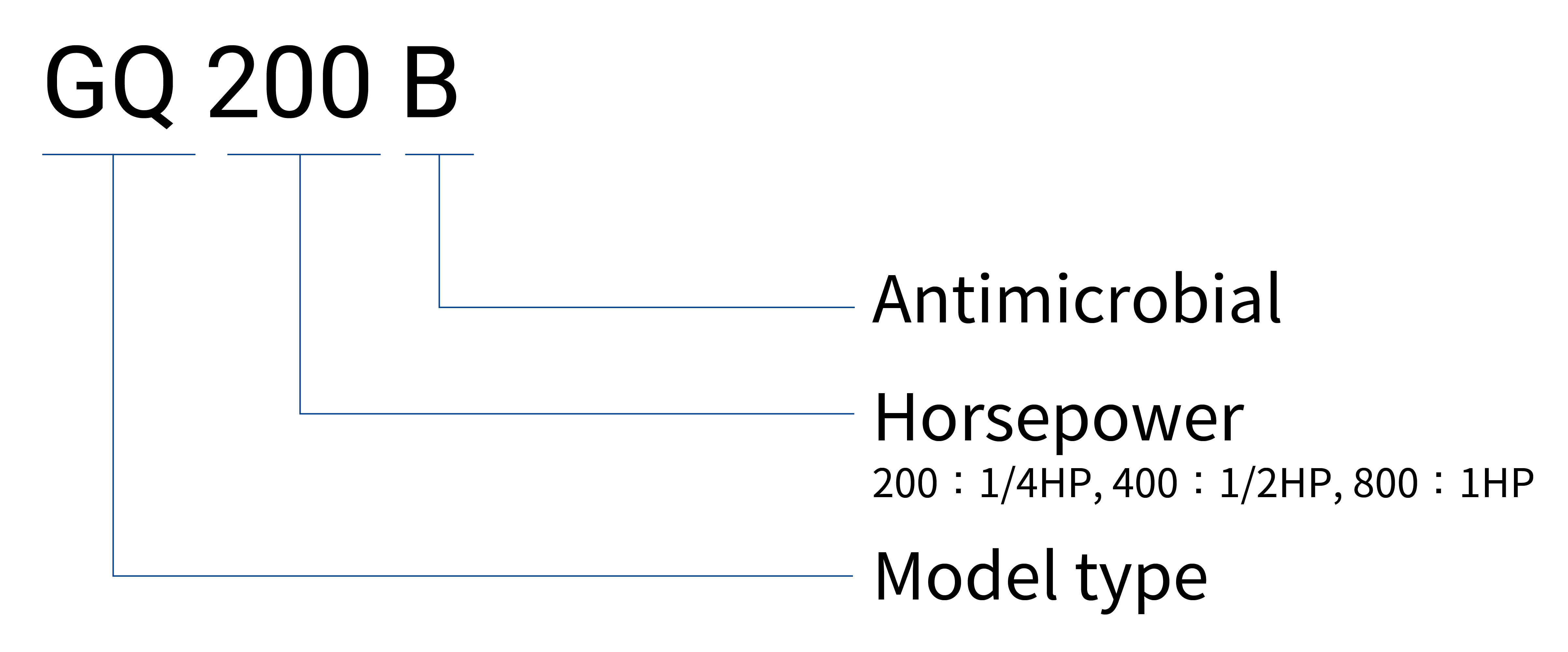

Model code

GQ B 編碼原則(英文)



Frequency

Motor Specifications
Inquiry
Model
Frequency(Hz)
Phase(Ø)
Power(kW)
Voltage(V)
Current(A)
GQ200B
50
1
0.18
200 - 240
1.5
GQ200B
60
1
0.18
110 / 220
4.0 / 2.0
GQ400B
50
1
0.37
200 - 240
2.4
GQ400B
60
1
0.37
110 / 220
6.0 / 3.0
GQ800B
50
1
0.75
200 - 240
4.5
GQ800B
60
1
0.75
110 / 220
11.0 / 5.5

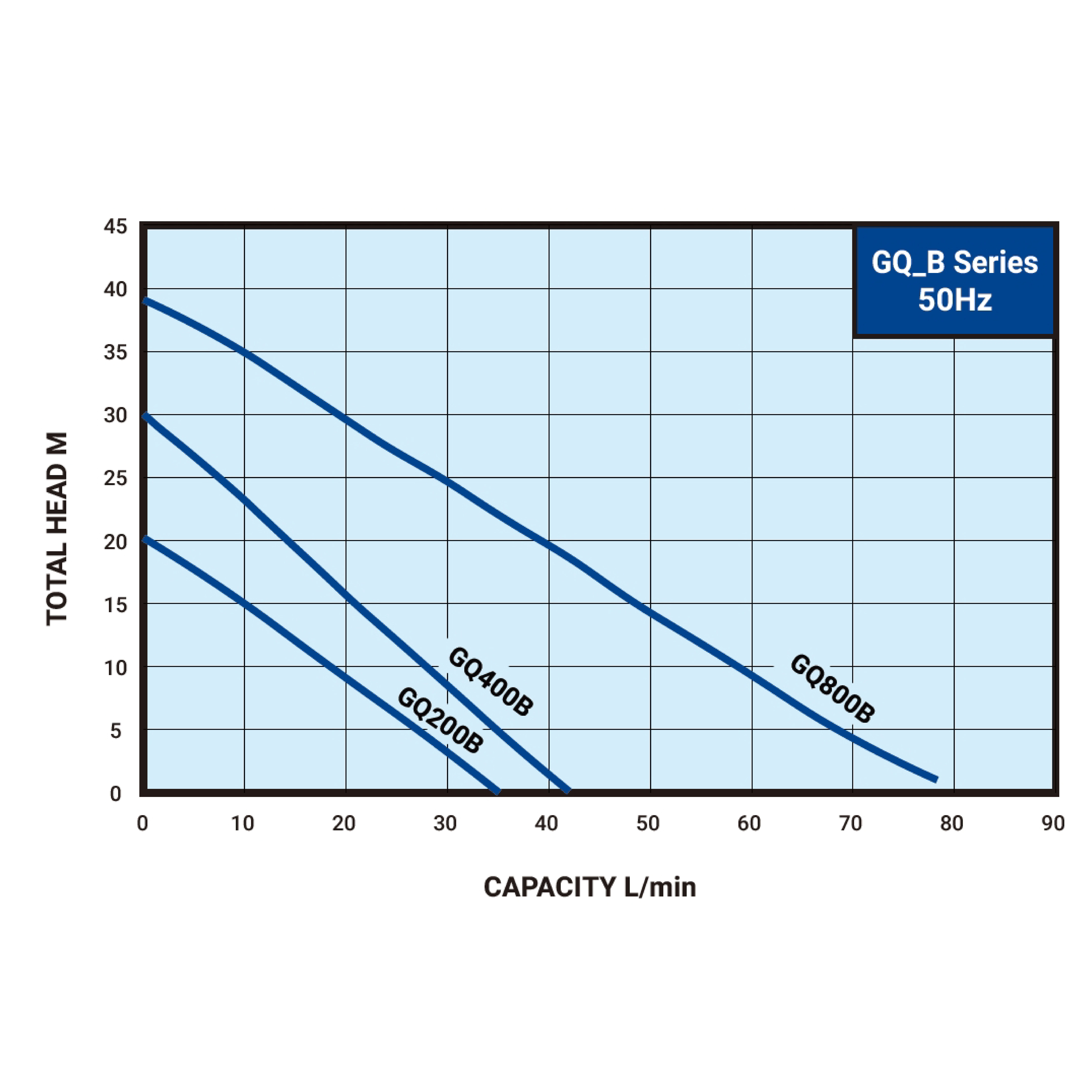

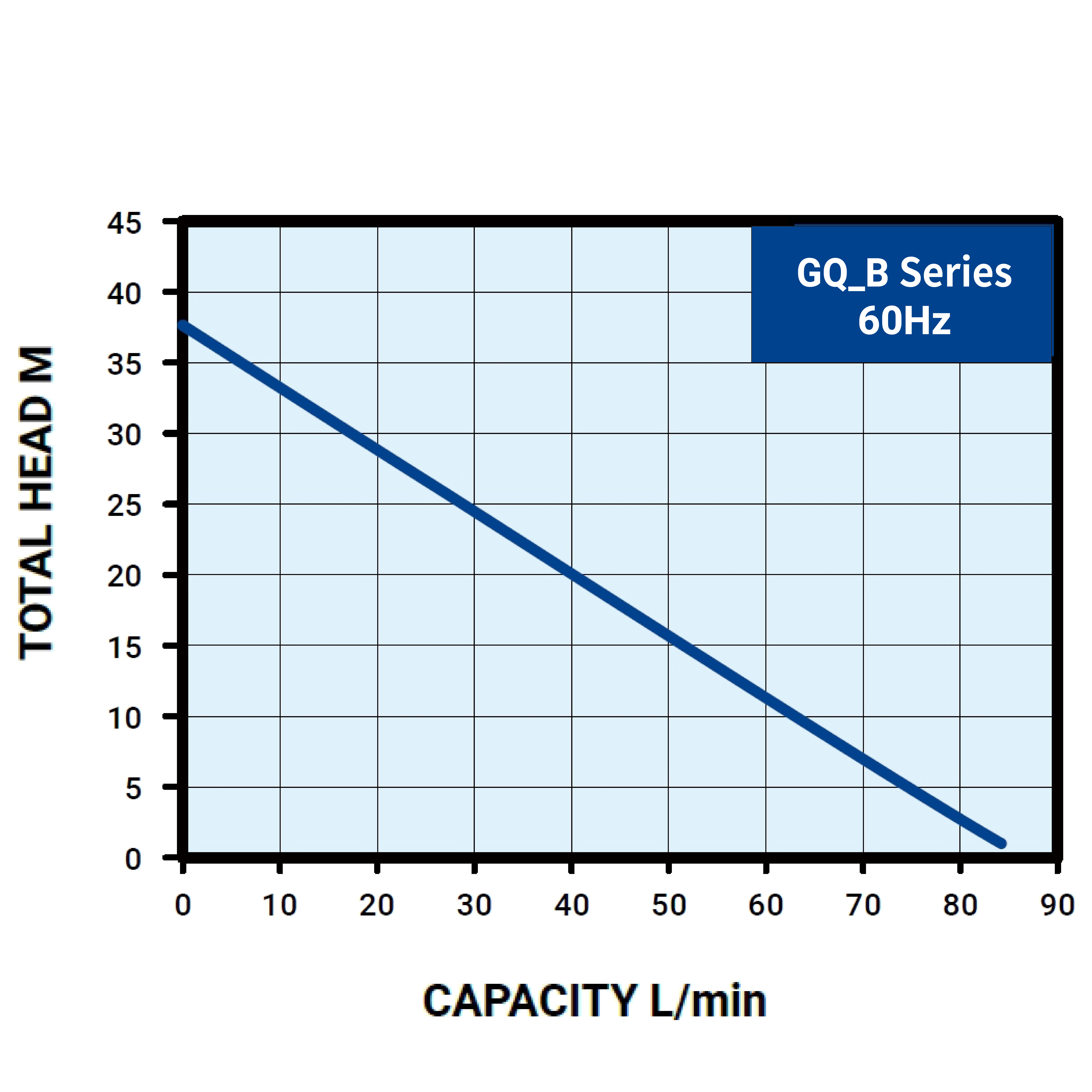

Pump Performance
Graph
Model
Frequency(Hz)
Max. Head(M)
Max. Flow(L/min)
Activation
Pressure
(kg/cm²)
Inlet(in.)
Outlet(in.)
GQ200B
50
20
35
1.6
1"
1"
GQ200B
60
26
42
1.6
1"
1"
GQ400B
50
30
42
2.0
1"
1"
GQ400B
60
35
50
1.8
1"
1"
GQ800B
50
38
80
2.0
1"
1"
GQ800B
60
38
85
2.0
1"
1"

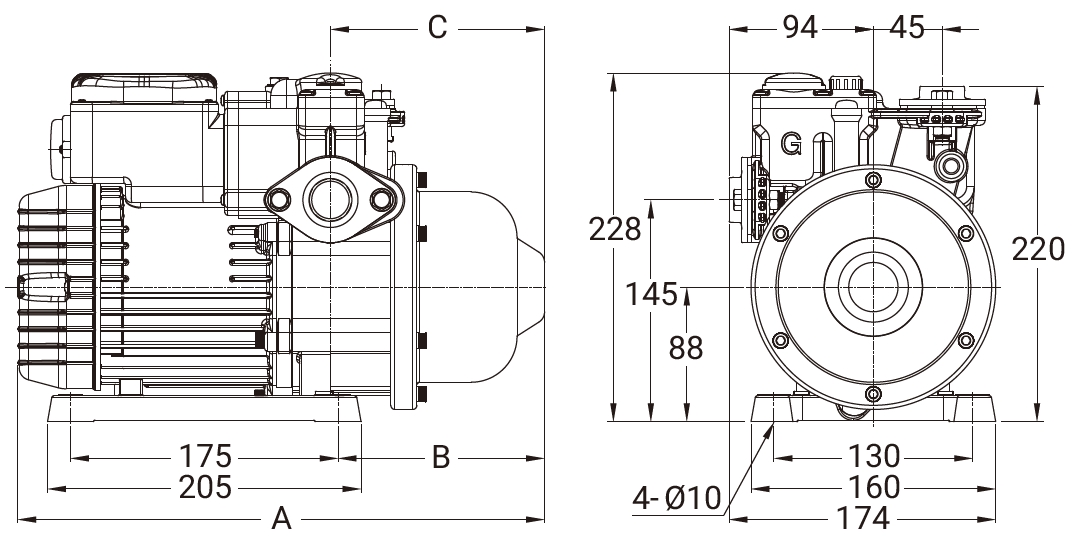

Dimension
Model
Frequency(Hz)
A(mm)
B(mm)
C(mm)
N.W.(kg)
G.W.(kg)
Pallet Loading Qty.(pc)
GQ200B
50
345
135
140
7.8
8.4
36
GQ200B
60
345
135
140
7.0
7.6
36
GQ400B
50
345
135
140
8.8
9.4
36
GQ400B
60
345
135
140
8.0
8.6
36
GQ800B
50
407
152
157
10.8
11.4
36
GQ800B
60
407
152
157
10.6
11.2
36

GQ B材積圖(內.外銷)
GQ B材積圖(內.外銷)

GQ_B Series Applications

shower head with water drops flowing
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
American,Village,With,A,Huge,Ferris,Wheel
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Washing Vegetables And Fruits For Household Hygiene.
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Greenhouse,Watering,System,In,Action
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Water Flow Treatment System From The Water Pump Pipe.Motion Of W
Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
S__31170610_0
Reliably transports clean water from storage to ice machines, ensuring continuous ice production. Compatible with filters, water purification systems, or RO systems.
S 31170609 0
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
其他服務 一般民生用水
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
GQ B EN000 202402新識別

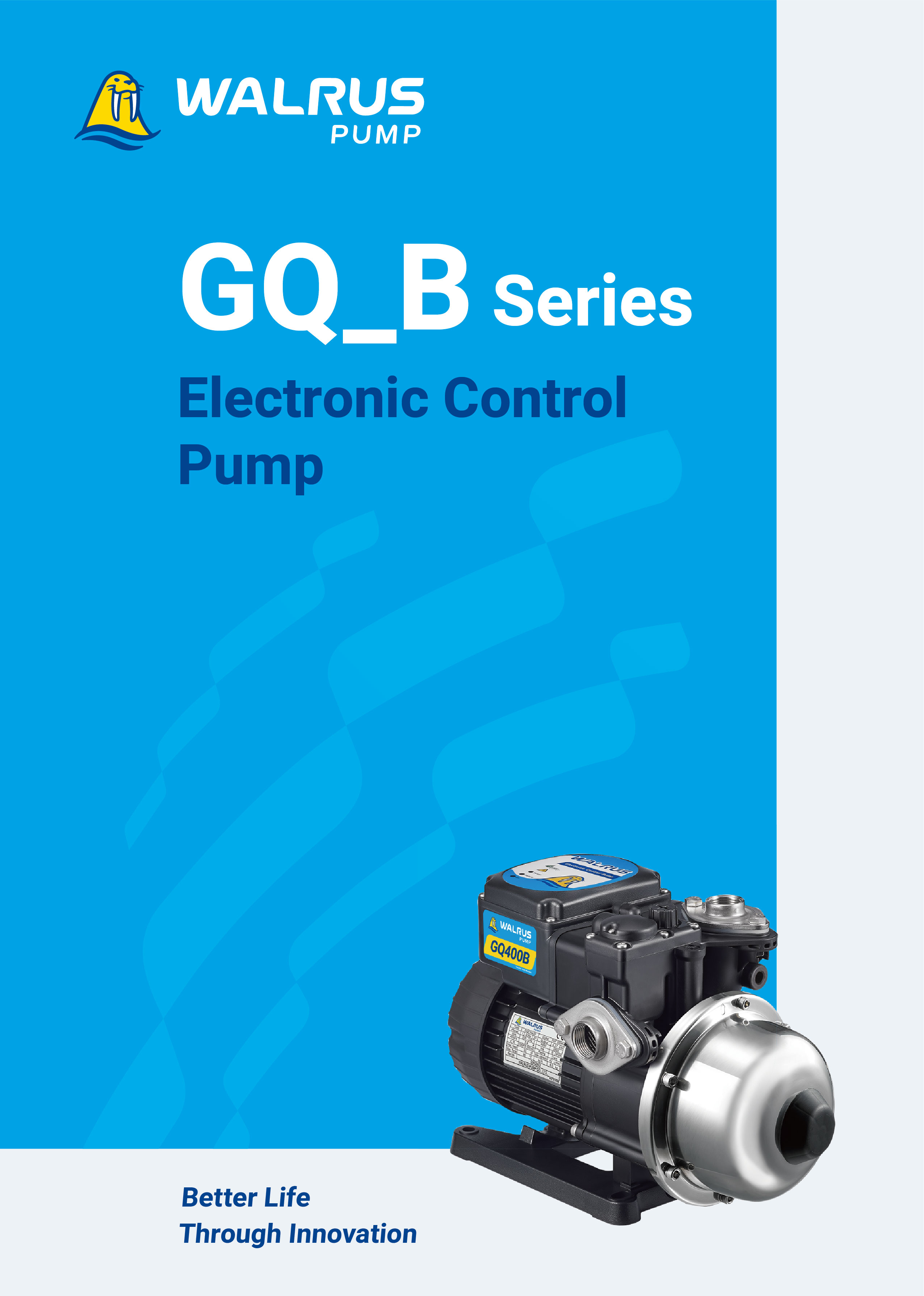

GQ_B Product Catalogue
Update2025-08-16
Size6.99 MB
GQ(CN),GS EW 使用說明書

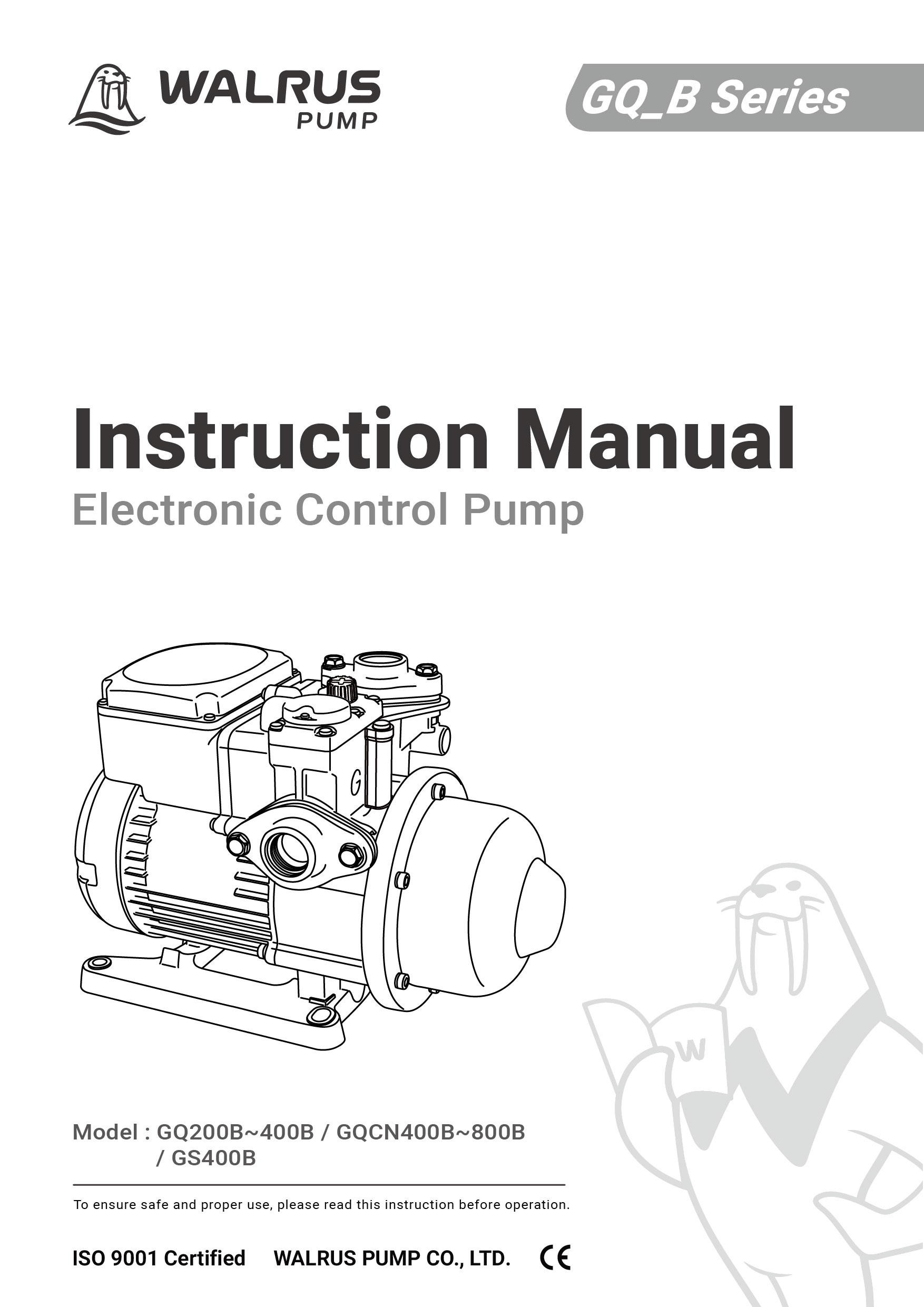

GQ_B Instruction Manual
