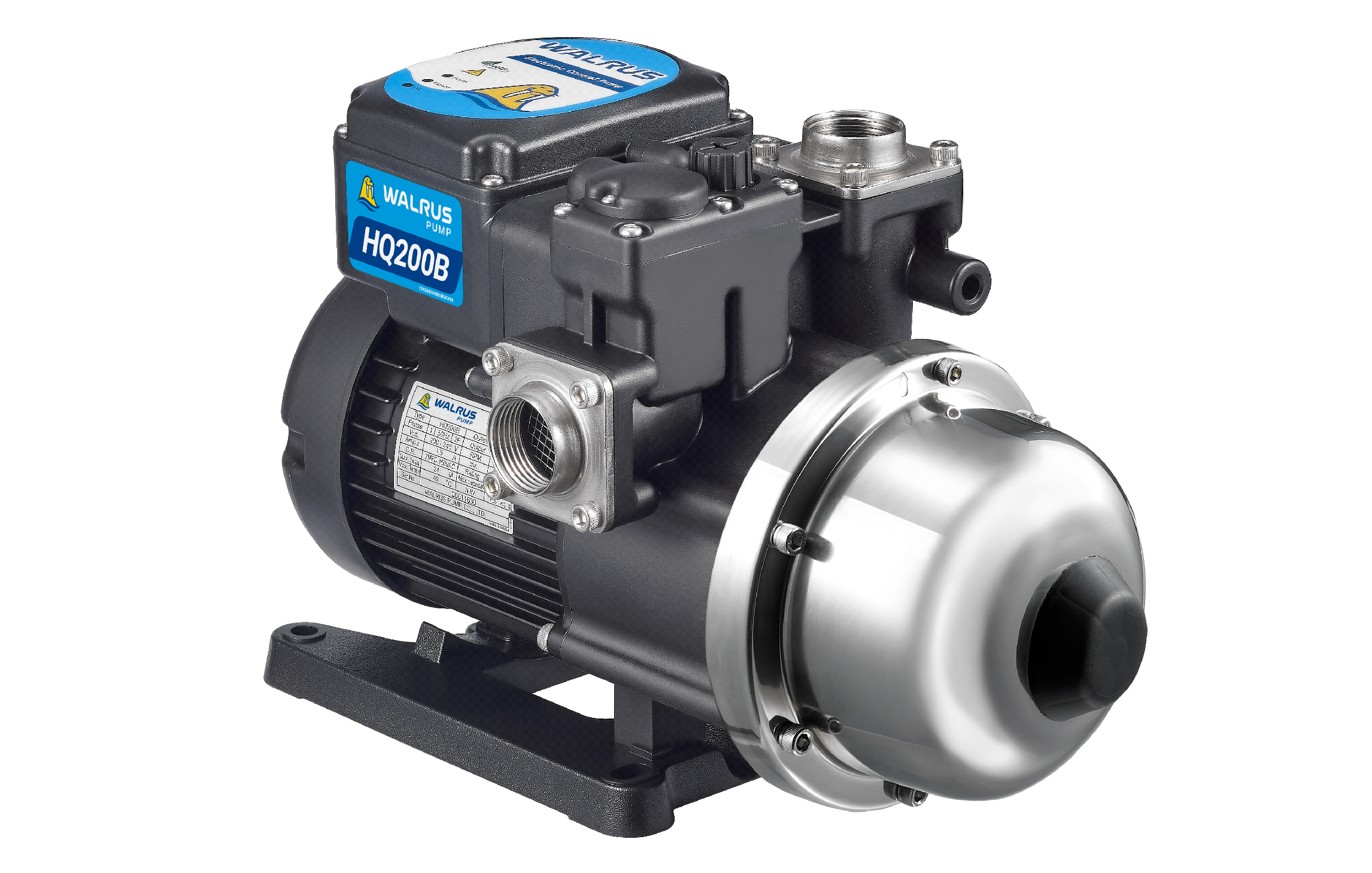

HQ200B (外銷)產品圖
Model | HQ200B

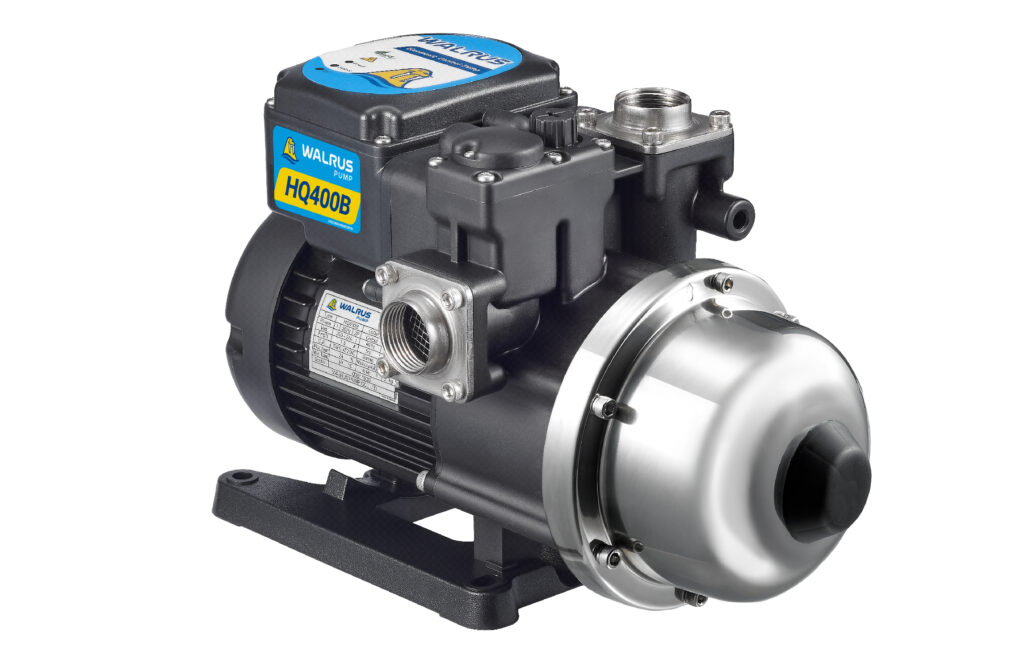

HQ400B (外銷)產品圖
Model | HQ400B

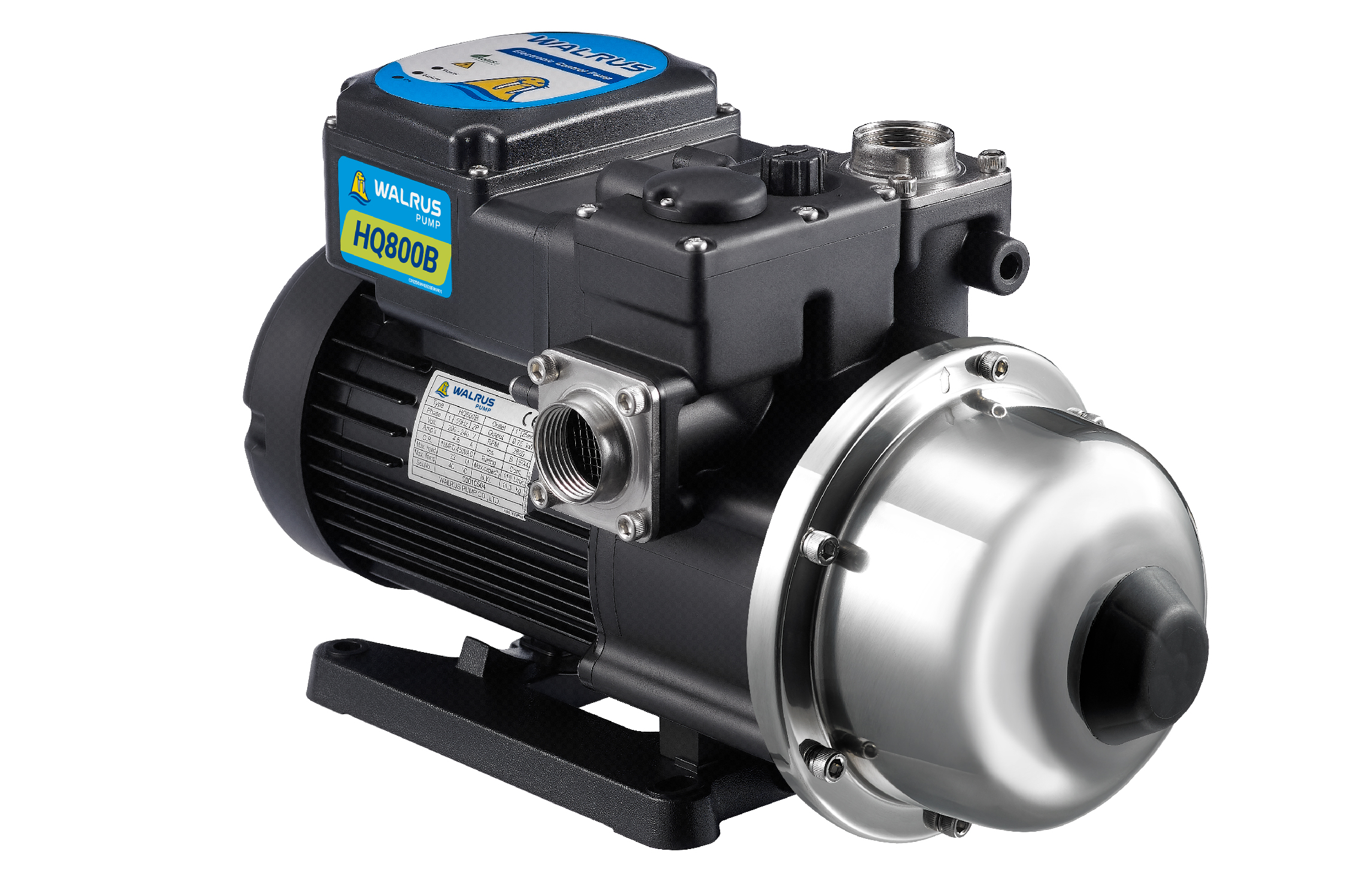

HQ800B (外銷)產品圖
Model | HQ800B

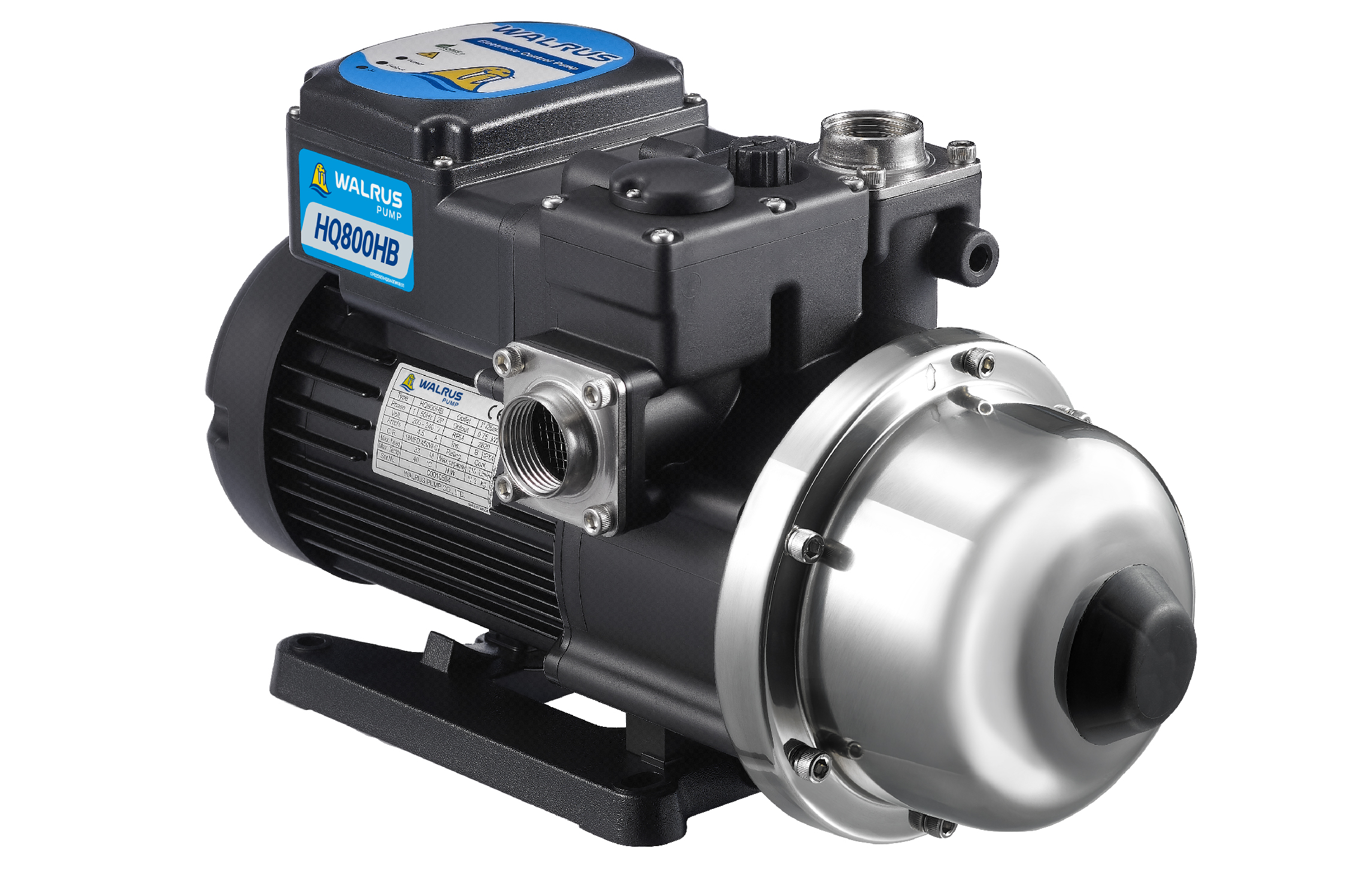

HQ800HB (外銷)產品圖
Model | HQ800HB

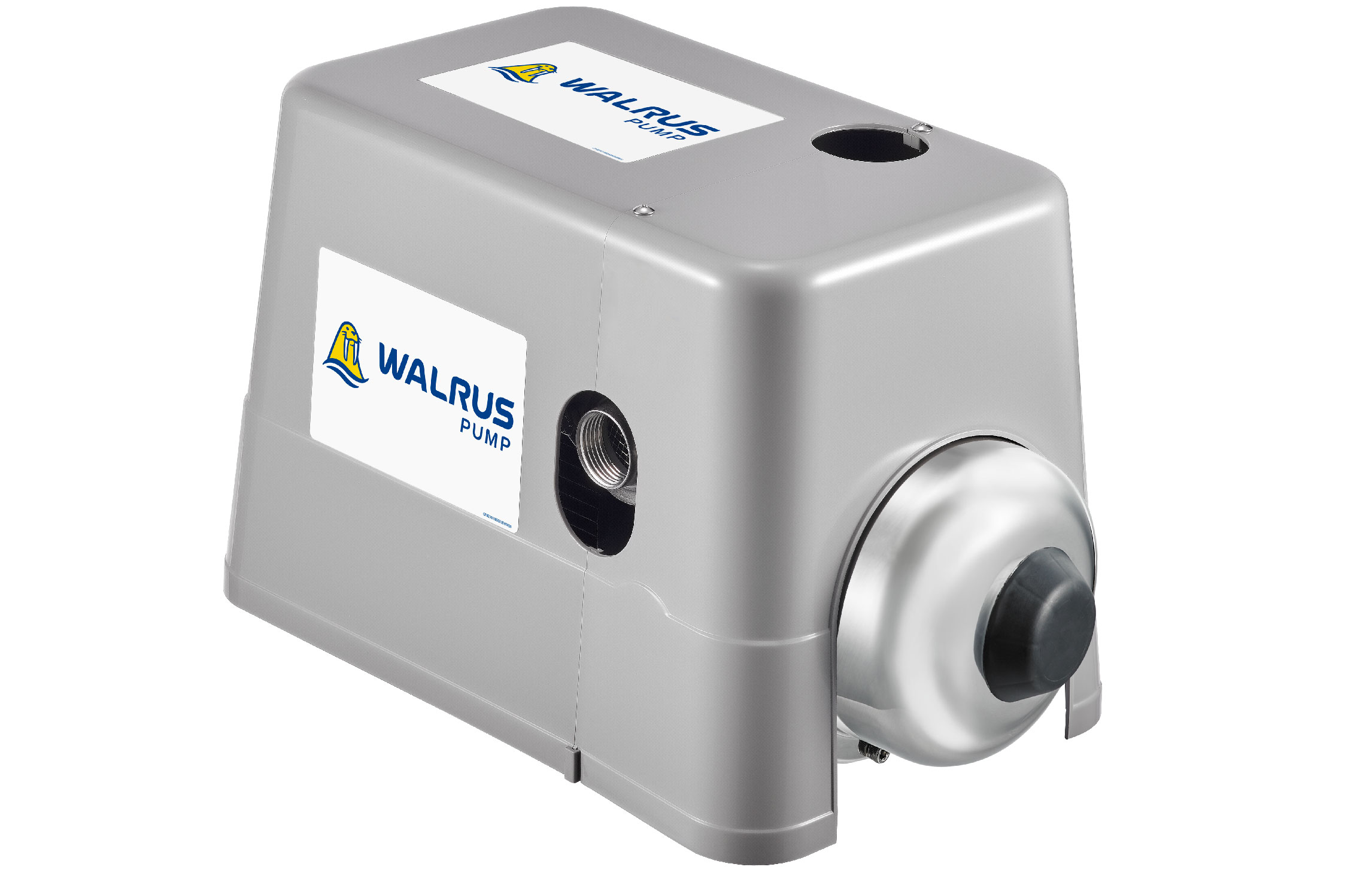

HQ_B保護罩_產品圖
Model | HQ_B保護罩

Horizontal Centrifugal Pump

Electronic Control Booster Pump
HQ_B Series

  • Using SUS304 stainless steel centrifugal impellers, quiet and durable.
  • Equipped with double dry-running protection
  • Electronic program control ensures stable water pressure.
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 0.75
Up to 33
Up to 110
60
0.18 - 0.75
Up to 45
Up to 120

Features

Power Module
Equipped with industrial-grade safety protections, it adapts to various voltage conditions to ensure consistently stable water pressure.
Quiet and Durable
The impeller is made of SUS304 stainless steel to ensure quite operation and strength.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Double Dry-Running Protection
Features a built-in temperature protection switch and a dry-running protection device to prevent overheating caused by operation without water, ensuring safe use.
Rapid Cycling Protection
A design allows for programmable control to delay shutdown by 6 seconds, avoiding frequent pump starts and stops due to low water volume, effectively extending the pump's lifespan.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.
All-In-One
Integrated system that combines the pump, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Relative Humidity
Max. 85%(RH)
System Pressure
Max. 8.5 kg/cm²
Inlet Pressure
Must be less than the pressure switch start value.

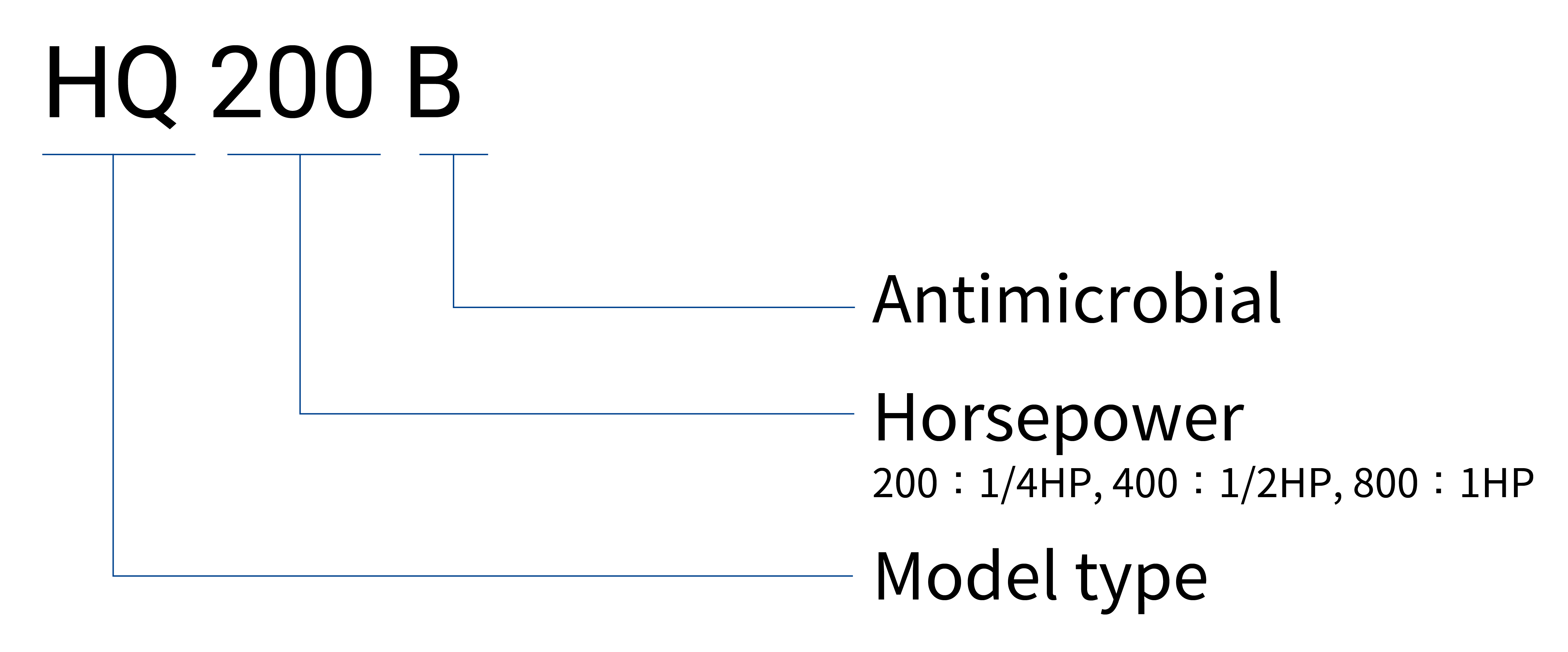

Model code

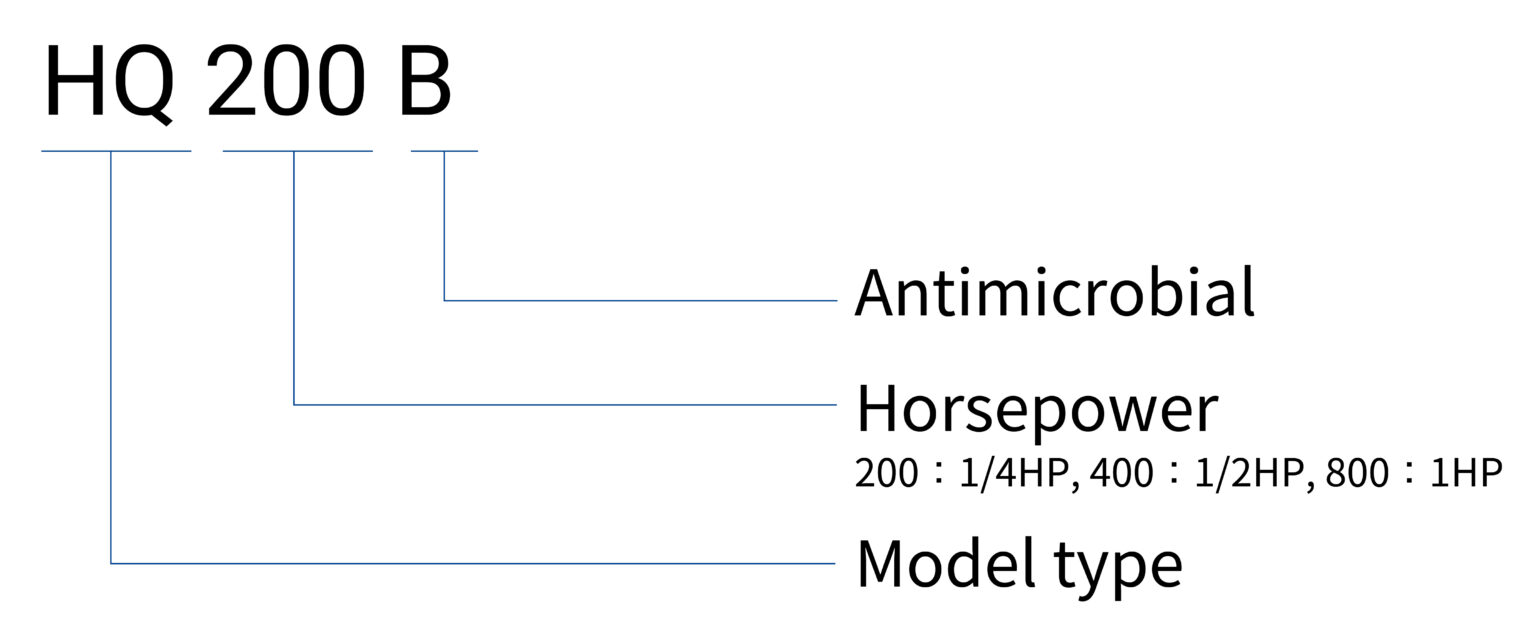

HQ B 編碼原則(英)

Frequency

Motor Specifications
Inquiry
Model
Frequency(Hz)
Phase(Ø)
Power(kW)
Voltage(V)
Current(A)
HQ200B
50
1
0.18
200 - 240
1.5
HQ200B
60
1
0.18
110 / 220
4.0 / 2.0
HQ400B
50
1
0.37
200 - 240
2.8
HQ400B
60
1
0.37
110 / 220
6.0 / 3.0
HQ800B
50
1
0.75
200 - 240
4.5
HQ800B
60
1
0.75
110 / 220
10.0 / 5.0
HQ800HB
60
1
0.75
110 / 220
10.0 / 5.0

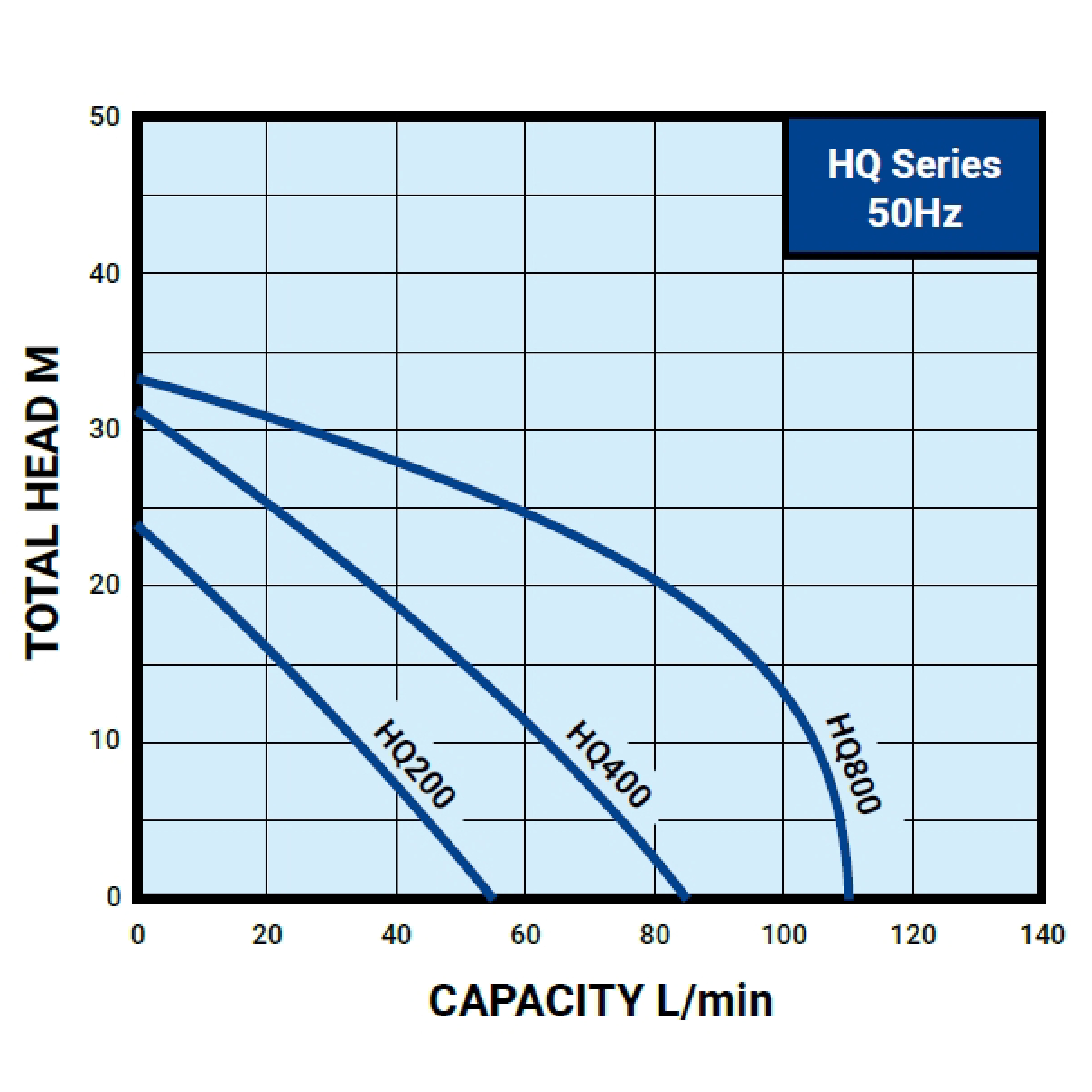

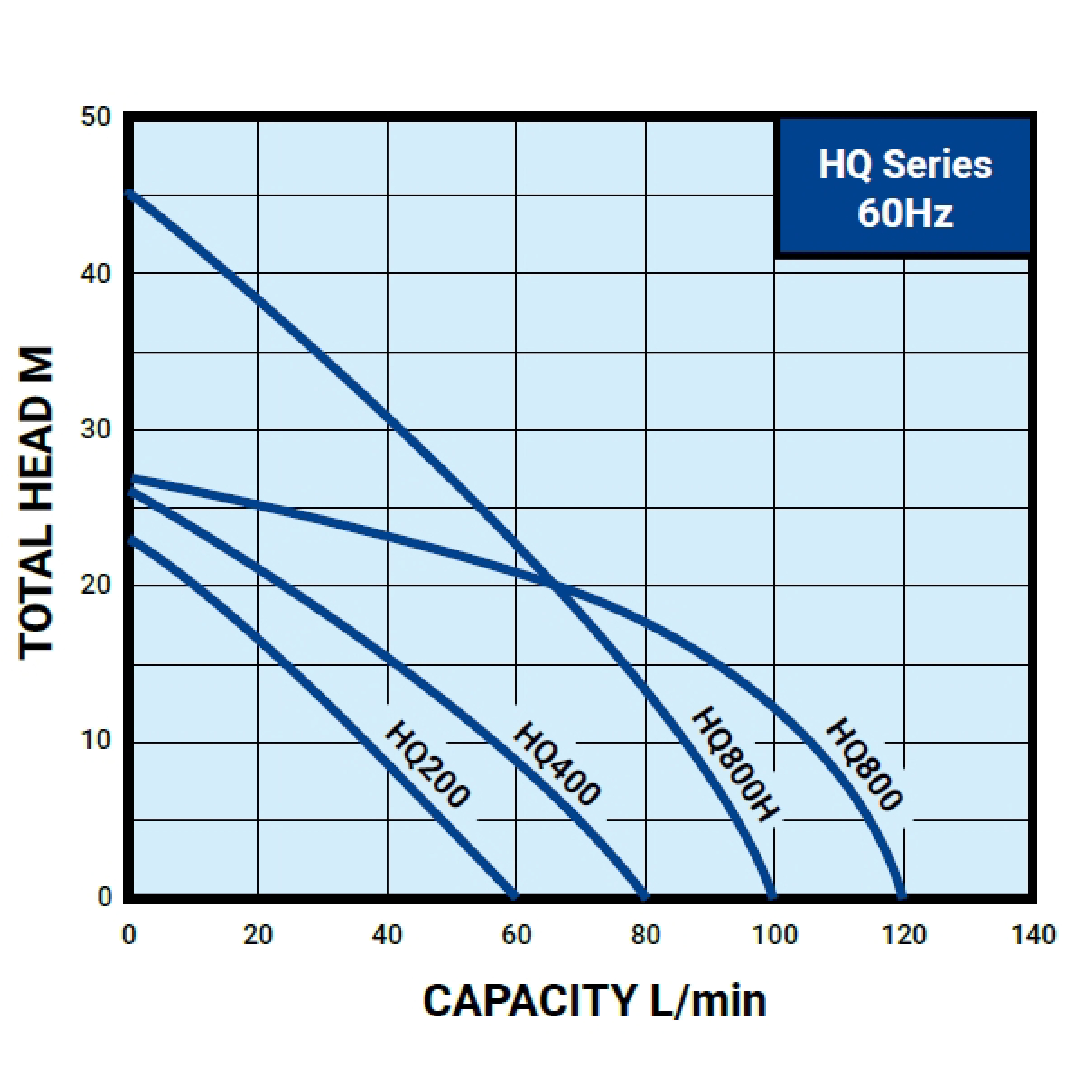

Pump Performance
Graph
Model
Frequency(Hz)
Max. Head(M)
Max. Flow(L/min)
Activation
Pressure
(kg/cm²)
Inlet(in.)
Outlet(in.)
HQ200B
50
24
55
1.6
1"
1"
HQ200B
60
23
60
1.6
1"
1"
HQ400B
50
31
85
2.0
1"
1"
HQ400B
60
26
80
1.8
1"
1"
HQ800B
50
33
110
2.0
1"
1"
HQ800B
60
27
120
2.0
1"
1"
HQ800HB
60
45
100
2.5
1"
1"

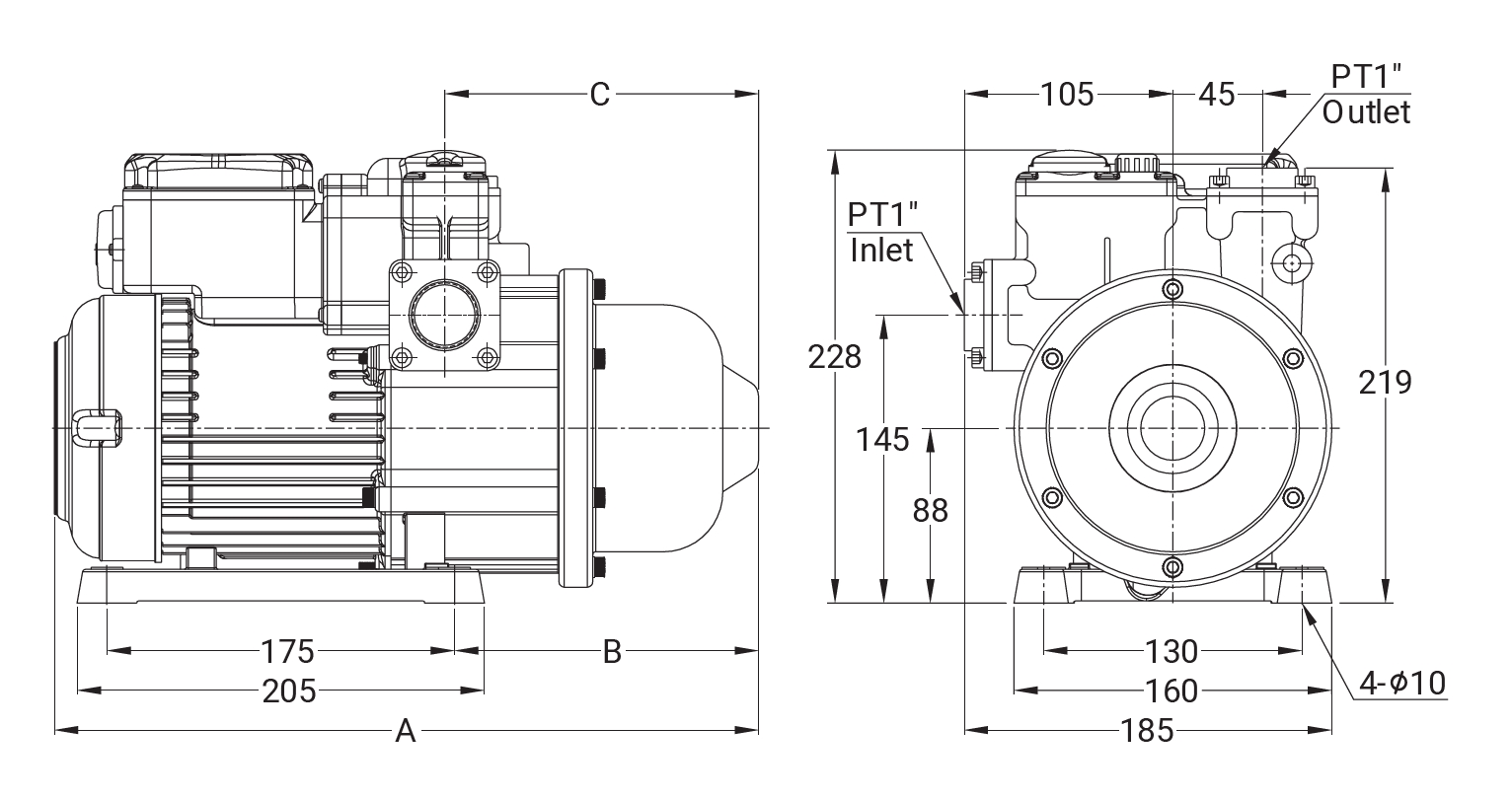

Dimension
Model
Frequency(Hz)
A(mm)
B(mm)
C(mm)
N.W.(kg)
G.W.(kg)
Pallet Loading Qty.(pc)
HQ200B
50
355
153
158
7.4
8.0
36
HQ200B
60
355
153
158
7.3
7.9
36
HQ400B
50
355
153
158
8.4
9.0
36
HQ400B
60
355
153
158
8.3
8.9
36
HQ800B
50
410
162
167
10.8
11.4
36
HQ800B
60
410
162
167
10.7
11.3
36
HQ800HB
60
410
162
167
10.9
11.5
36

HQ B材積圖(外銷)
HQ B材積圖(外銷)

HQ_B Series Applications

shower head with water drops flowing
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
American,Village,With,A,Huge,Ferris,Wheel
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Washing Vegetables And Fruits For Household Hygiene.
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Greenhouse,Watering,System,In,Action
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Greenhouse,Watering,System,In,Action
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Water Flow Treatment System From The Water Pump Pipe.Motion Of W
Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
S__31170610_0
Reliably transports clean water from storage to ice machines, ensuring continuous ice production. Compatible with filters, water purification systems, or RO systems.
S 31170609 0
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
其他服務 一般民生用水
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
HQ B EN000a 202309新識別
HQ_B Product Catalogue
Update2025-08-16
Size933.81 KB
HQ B EW 使用說明書

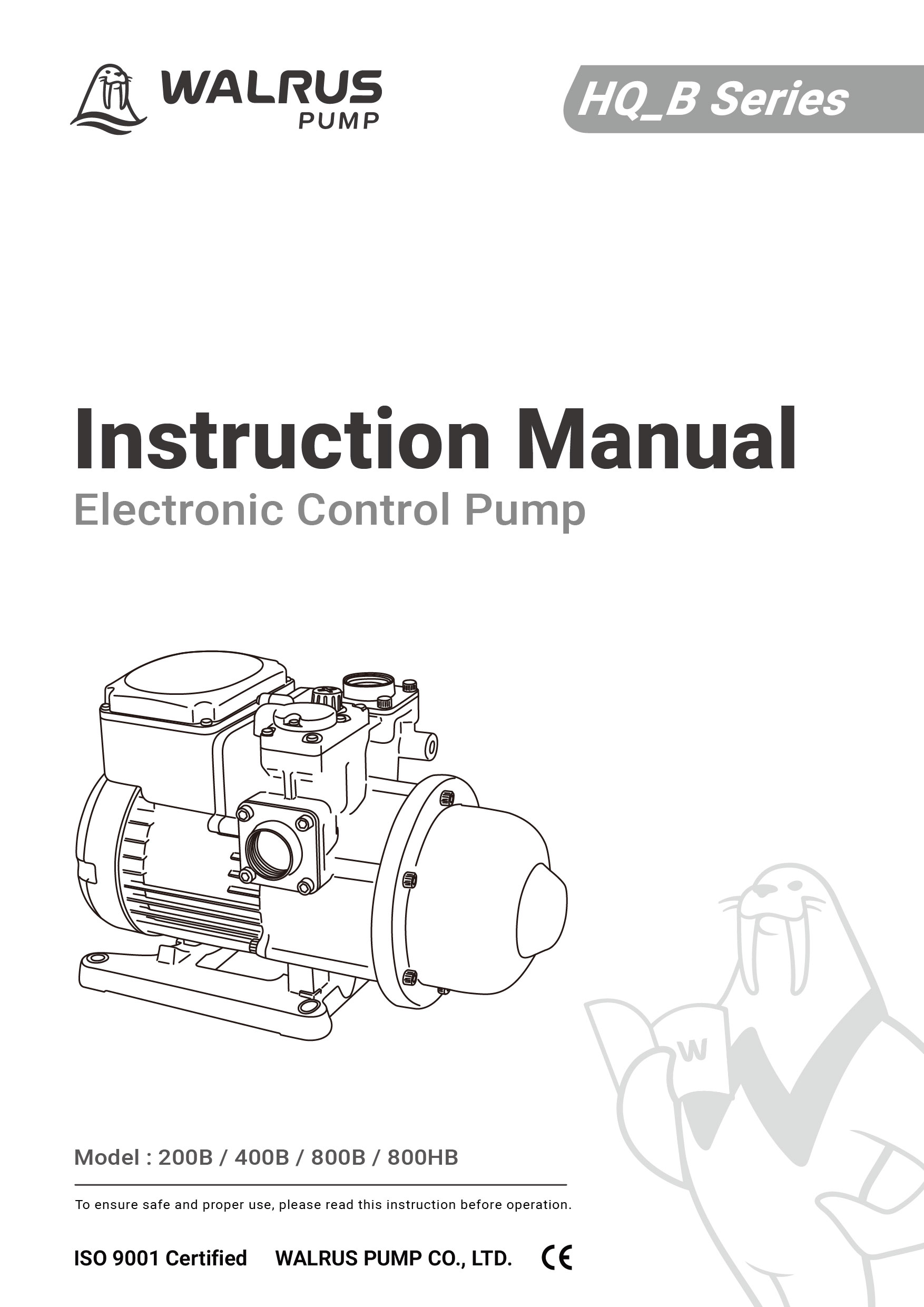

HQ_B Instruction Manual
