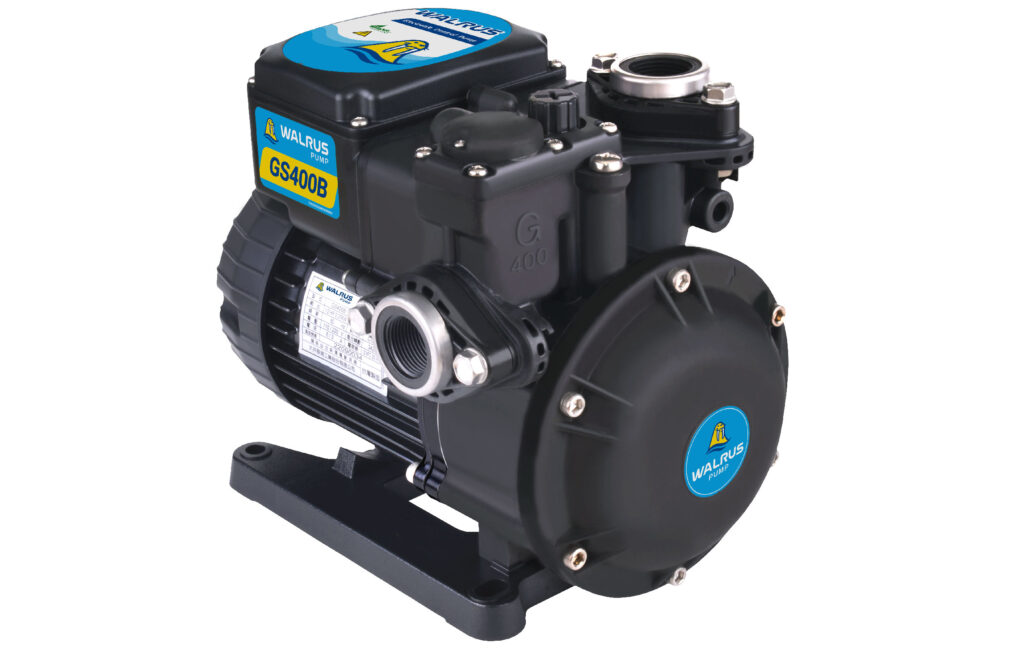

GS 400B(內銷)產品圖
Model | GS400B
GS 400B(內銷)產品圖

Regenerative Pump

Direct-Drive Water Pump
GS_B Series

  • An optimized structure combined with gear impellers for outstanding exhaust performance.
  • Equipped with dry-run protection. Your Safety, Our Priority.
  • Thermal overload protection to prevent burnout.
Construction Industry Construction Industry Enterainment Entertainment & Leisure Industry Accommodation Accommodation & Food Service Industry Agriculture Agriculture, Forestry, Fishery and Animal Husbandry Wholwasle Wholesale & Retail Trade Service Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37
30
42
60
0.37
35
50

Features

Outstanding Exhaust Performance
An optimized structure combined with gear impellers self-regulates the pressure differential, enabling rapid water return and quick air removal to prevent supply disruption caused by air blockage.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Dry-Running Protection
Built-in temperature protection switch automatically stops operation when the internal water temperature exceeds 55°C due to dry running.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Suction Head
Max. 6 m
System Pressure
Max. 8.5 kg/cm²

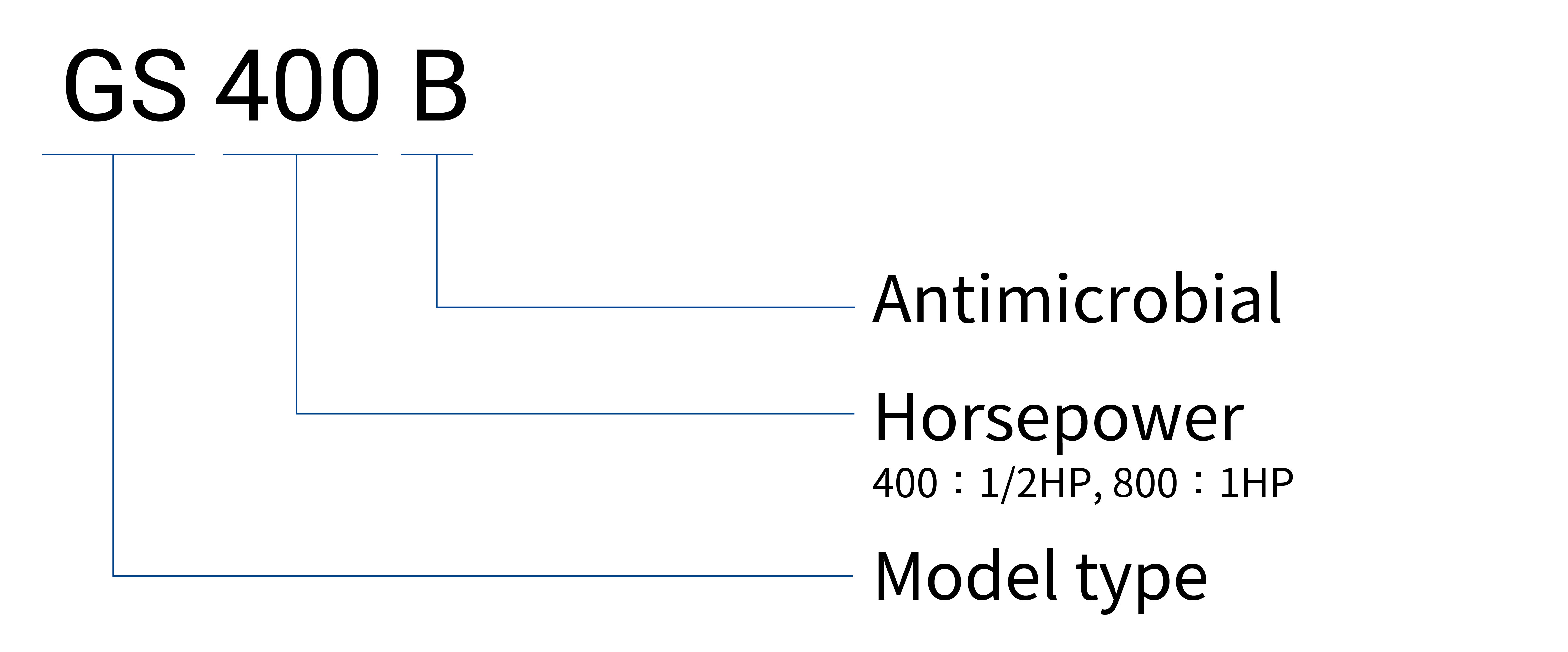

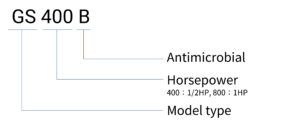

Model code

GS B 編碼原則(英文)

Frequency

Motor Specifications
Inquiry
Model
Frequency(Hz)
Phase(Ø)
Power(kW)
Voltage(V)
Current(A)
GS400B
50
1
0.37
200 - 240
2.4
GS400B
60
1
0.37
110 / 220
6.0 / 3.0
Pump Performance
Graph
Model
Frequency(Hz)
Max. Head(M)
Max. Flow(L/min)
Inlet(in.)
Outlet(in.)
GS400B
50
30
42
1"
1"

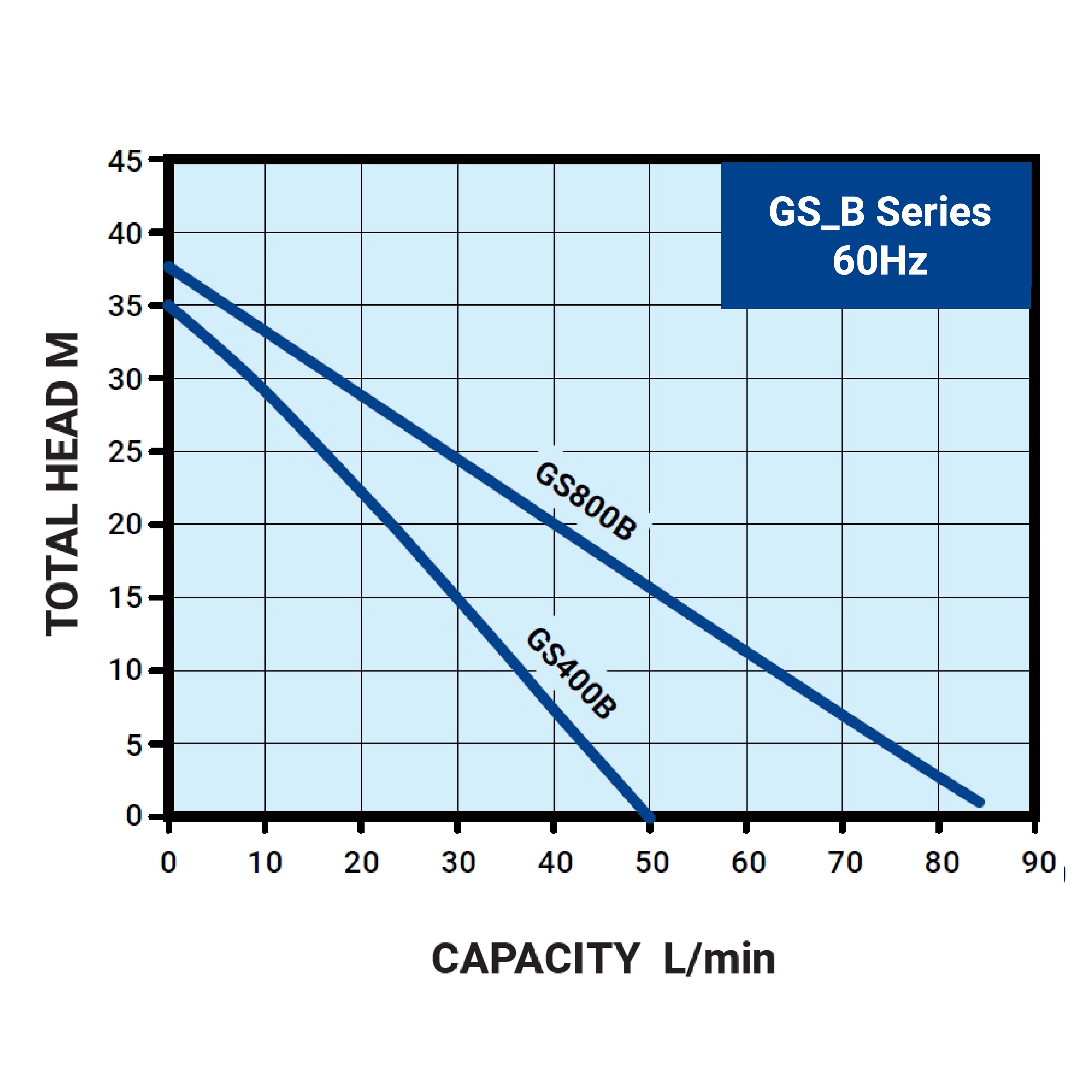

GS B 60Hz曲線圖(外銷)
GS400B
60
35
50
1"
1"

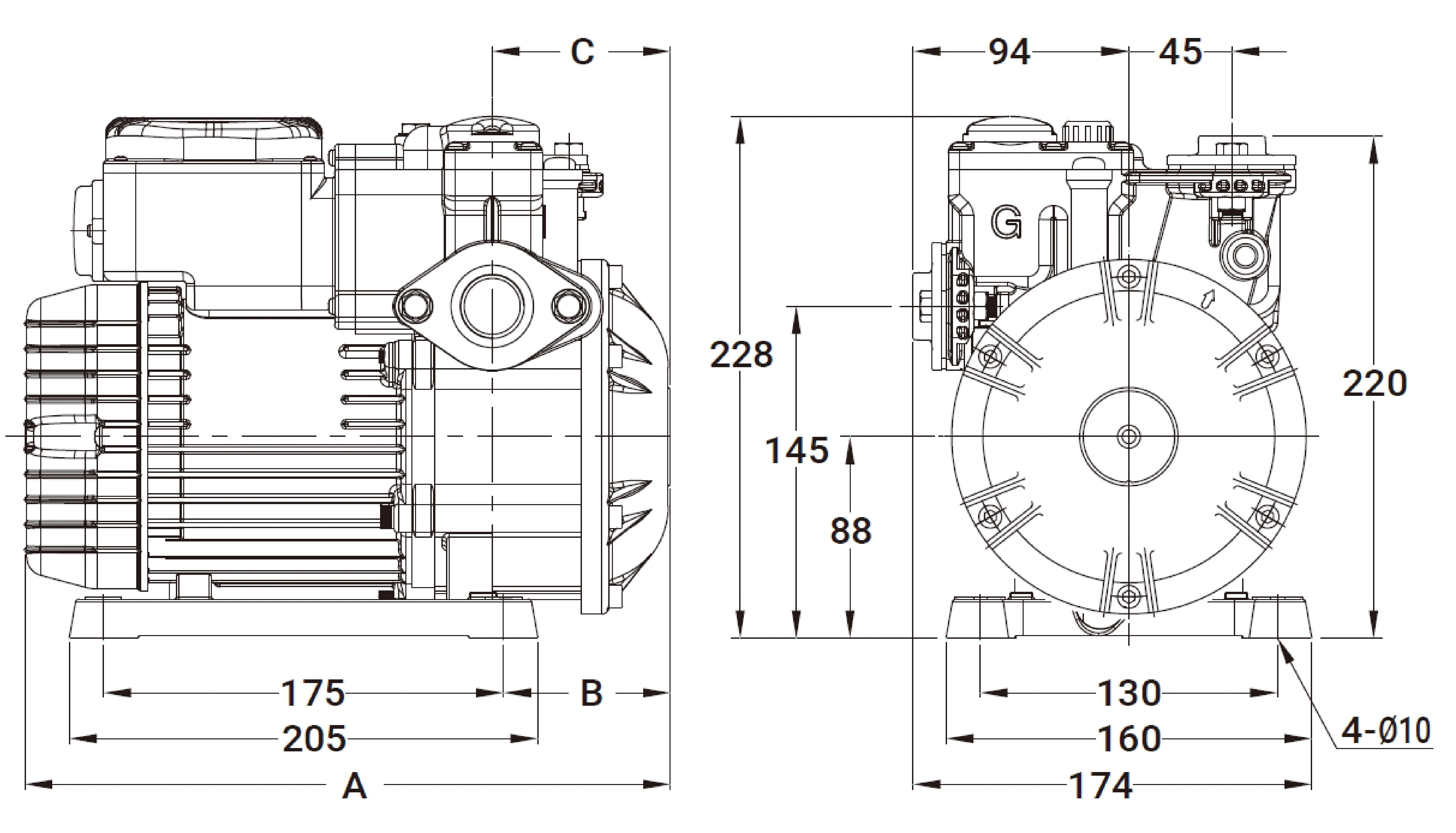

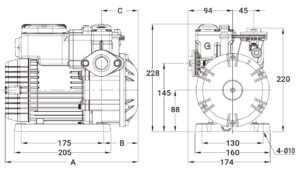

Dimension
Model
Frequency(Hz)
A(mm)
B(mm)
C(mm)
N.W.(kg)
G.W.(kg)
Pallet Loading Qty.(pc)
GS400B
50
283
73
78
36
GS400B
60
283
73
78
7.0
7.8
36

GS B材積圖(內.外銷)
GS B材積圖(內.外銷)

GS_B Series Applications

shower head with water drops flowing
Construction Industry
Domestic Water Supply
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
營造 景觀池水循環
Construction Industry
Landscape Pond Water Recirculation
Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.
American,Village,With,A,Huge,Ferris,Wheel
Entertainment & Leisure Industry
Commercial Water Supply
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Beautiful,Fountain,In,Tsaritsyno,Park,In,Moscow,,Russia
Entertainment & Leisure Industry
Landscape Pond Water Circulation
Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.
Washing Vegetables And Fruits For Household Hygiene.
Accommodation & Food Service Industry
Commercial Water Supply
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Greenhouse,Watering,System,In,Action
Agriculture, Forestry, Fishery and Animal Husbandry
Irrigation
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Water Flow Treatment System From The Water Pump Pipe.Motion Of W
Agriculture, Forestry, Fishery and Animal Husbandry
Water Supply for Animal Husbandry and Aquaculture
Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
S__31170610_0
Wholesale & Retail Trade
Ice Machine Water Supply
Reliably transports clean water from storage to ice machines, ensuring continuous ice production. Compatible with filters, water purification systems, or RO systems.
S 31170609 0
Wholesale & Retail Trade
Commercial Water Supply
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
其他服務 一般民生用水
Service Industry
Domestic Water Supply
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.

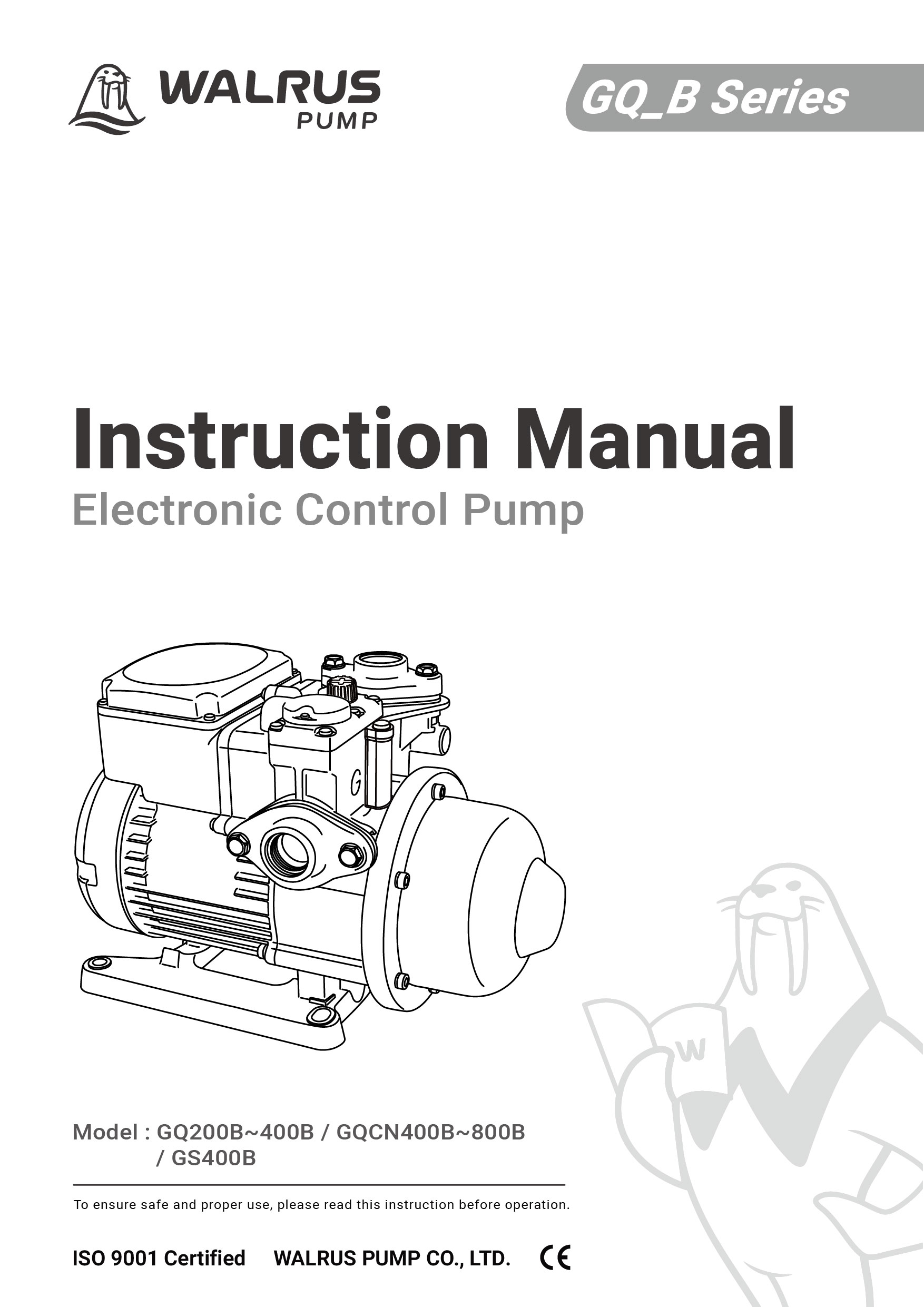

GQ(CN),GS EW 使用說明書
GS_B Instruction Manual
Update2025-08-18
Size1.19 MB
Download ({{ selectedDownloadIds.length }})

Related Products

TS400B(外銷)列表圖
Horizontal Centrifugal Pump
TS_B Series

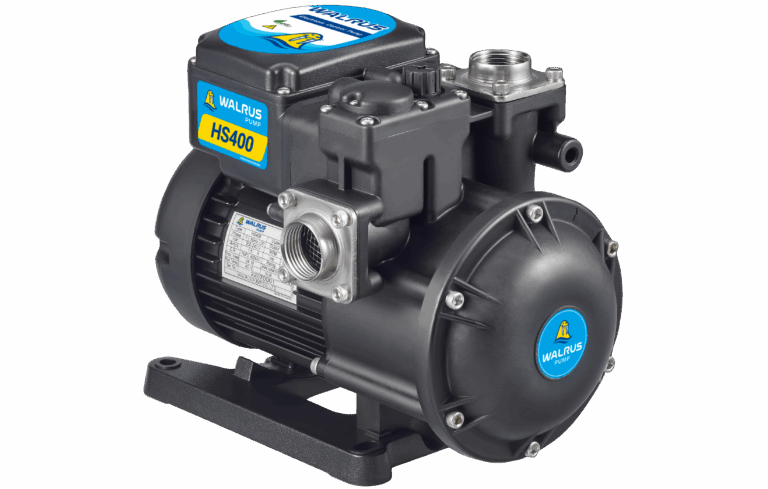

HS400B(外銷)列表圖
