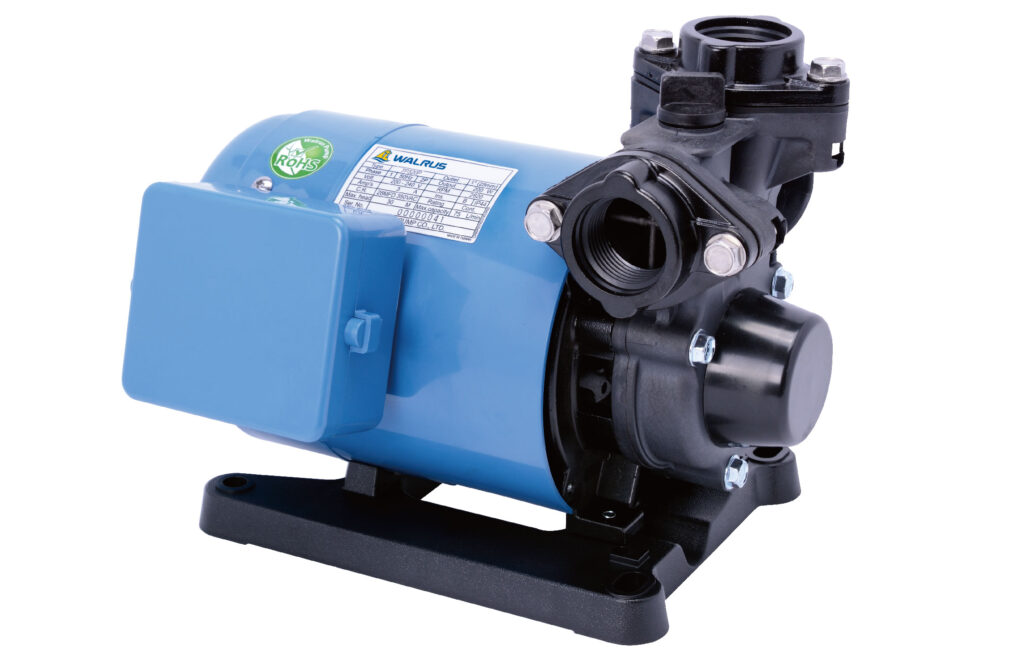

TP3 (外銷)產品圖
Model | TP320PTB
TP3 (外銷)產品圖

Regenerative Pump

Direct-Drive Water Pump
TP3_PTB Series

  • High head performance and air removal capability with gear impeller.
  • Designed with motor overload and dry-run protection to ensure reliable and safe operation.
  • Compact design with easy maintenance.
Construction Industry Construction Industry Enterainment Entertainment & Leisure Industry Accommodation Accommodation & Food Service Industry Agriculture Agriculture, Forestry, Fishery and Animal Husbandry Wholwasle Wholesale & Retail Trade Service Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.37
35
35
60
0.37
40
42

Features

Excellent Head Performance
The regenerative pump design with a gear impeller provides high head performance and air removal capability.
Thermal Overload Protection
The motor is equipped with thermal overload protection, effectively preventing motor damage due to overheating for reliable safety.
Dry-Run Protection
Built-in temperature protection switch automatically stops operation when the internal water temperature exceeds 55°C due to dry running.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Suction Head
Max. 6 m
System Pressure
應該要有，要問研發

Frequency

Motor Specifications
Inquiry
Model
Frequency(Hz)
Phase(Ø)
Power(kW)
Voltage(V)
Current(A)
TP320P(T)B
50
1
0.37
200 - 240
2.7
TP320P(T)B
60
1
0.37
110 / 220
5.2 / 2.6
TP325P(T)B
50
1
0.37
200 - 240
2.7
TP325P(T)B
60
1
0.37
110 / 220
5.2 / 2.6

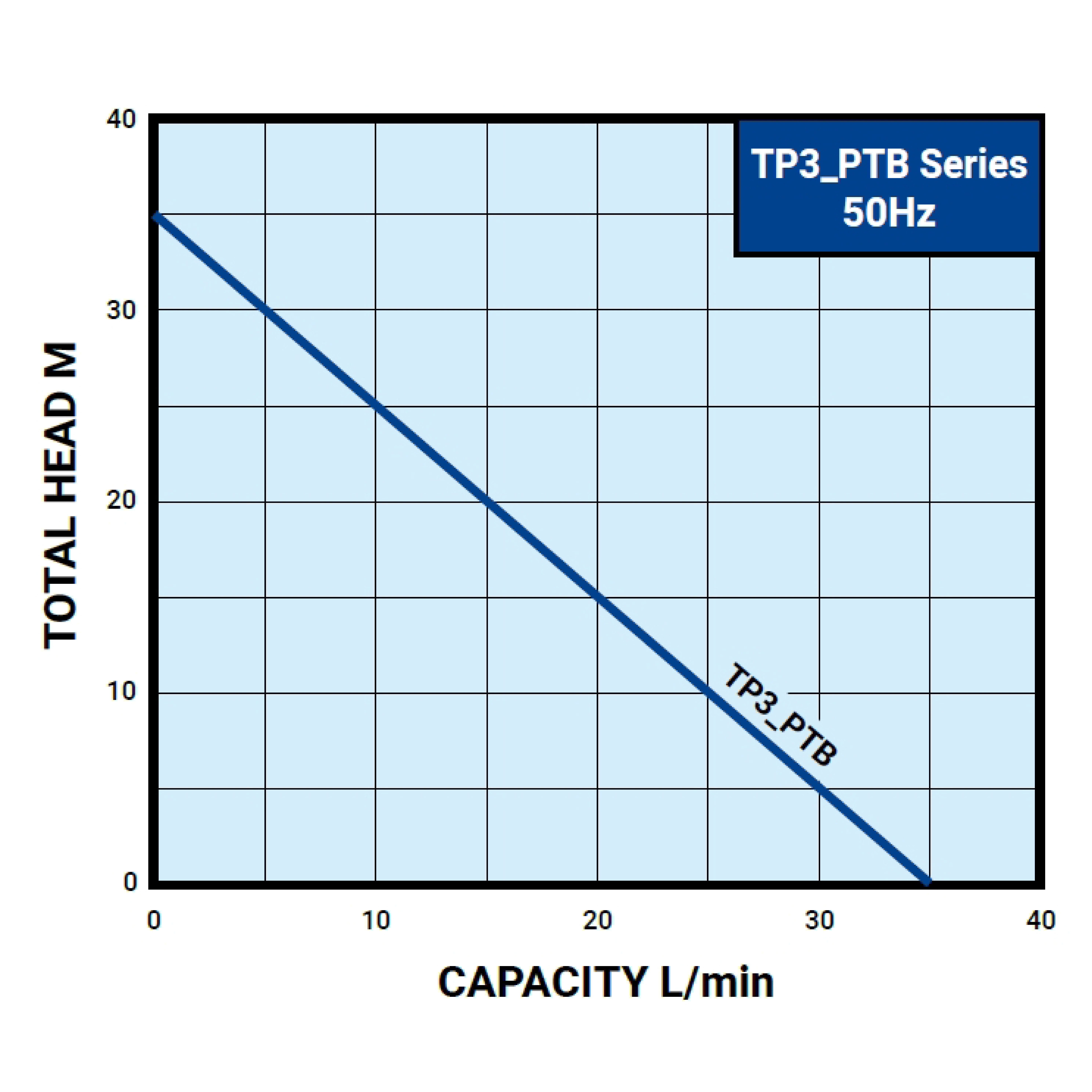

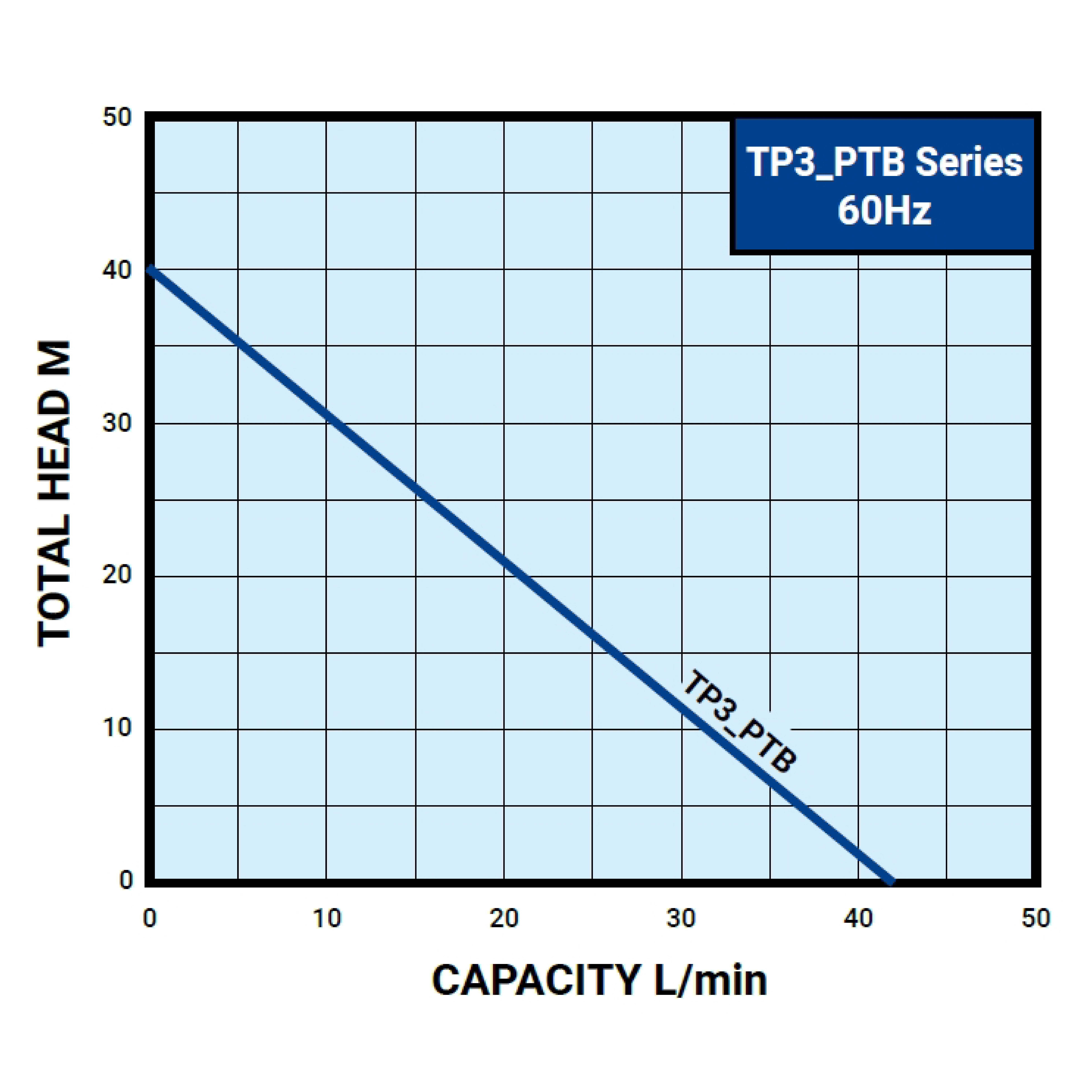

Pump Performance
Graph
Model
Frequency(Hz)
Max. Head(M)
Max. Flow(L/min)
Inlet(in.)
Outlet(in.)
TP320P(T)B
50
35
35
¾"
¾"
TP320P(T)B
60
40
42
¾"
¾"
TP325P(T)B
50
35
35
1"
1"
TP325P(T)B
60
40
42
1"
1"

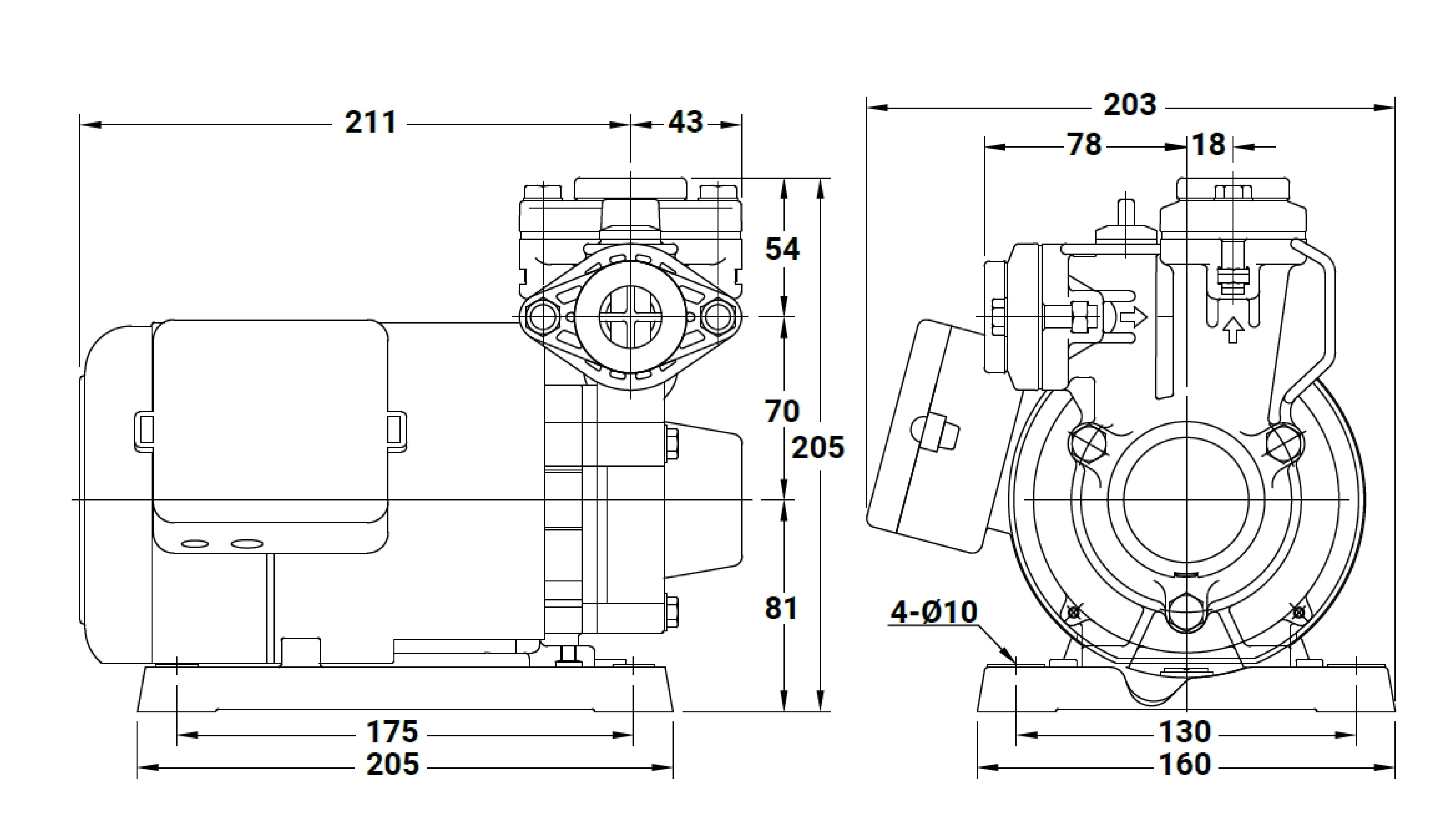

Dimension
Model
Frequency(Hz)
Length(mm)
Width(mm)
Height(mm)
N.W.(kg)
G.W.(kg)
Pallet Loading Qty.(pc)
TP320P(T)B
50
254
203
205
6.3
6.7
72
TP320P(T)B
60
254
203
205
6.3
6.7
72
TP325P(T)B
50
254
203
205
6.3
6.7
72
TP325P(T)B
60
254
203
205
6.3
6.7
72

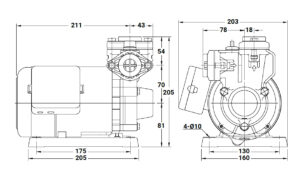

TP3 材積圖(外銷)
TP3 材積圖(外銷)

TP3_PTB Series Applications

shower head with water drops flowing
Construction Industry
Domestic Water Supply
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
營造 景觀池水循環
Construction Industry
Landscape Pond Water Recirculation
Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.
American,Village,With,A,Huge,Ferris,Wheel
Entertainment & Leisure Industry
Commercial Water Supply
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Beautiful,Fountain,In,Tsaritsyno,Park,In,Moscow,,Russia
Entertainment & Leisure Industry
Landscape Pond Water Circulation
Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.
Washing Vegetables And Fruits For Household Hygiene.
Accommodation & Food Service Industry
Commercial Water Supply
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Greenhouse,Watering,System,In,Action
Agriculture, Forestry, Fishery and Animal Husbandry
Irrigation
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Greenhouse,Watering,System,In,Action
Agriculture, Forestry, Fishery and Animal Husbandry
Irrigation
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Water Flow Treatment System From The Water Pump Pipe.Motion Of W
Agriculture, Forestry, Fishery and Animal Husbandry
Water Supply for Animal Husbandry and Aquaculture
Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
S__31170610_0
Wholesale & Retail Trade
Ice Machine Water Supply
Reliably transports clean water from storage to ice machines, ensuring continuous ice production. Compatible with filters, water purification systems, or RO systems.
S 31170609 0
Wholesale & Retail Trade
Commercial Water Supply
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
其他服務 一般民生用水
Service Industry
Domestic Water Supply
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
TP3PTB EN000b 202309新識別

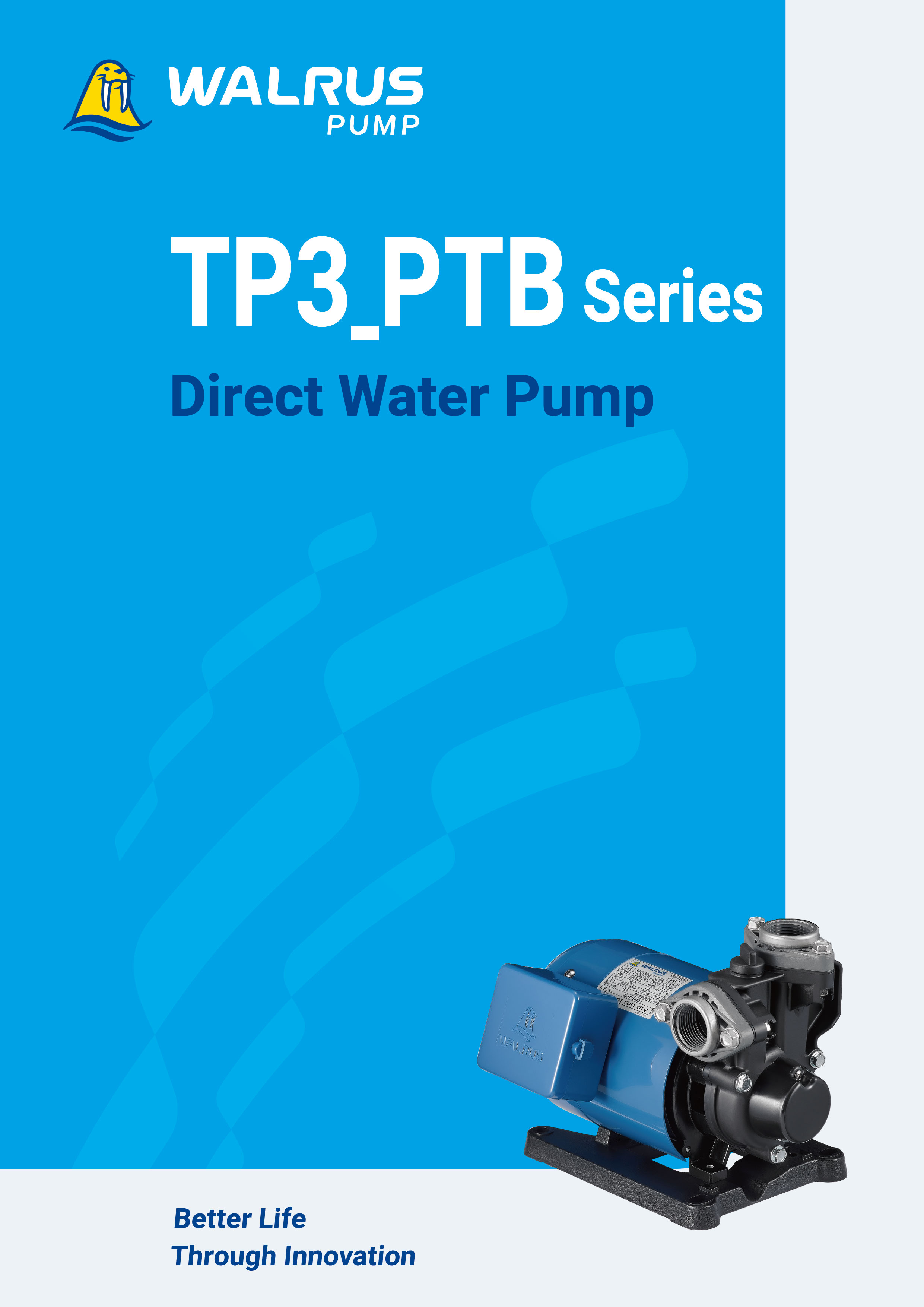

TP3_PTB Product Catalogue
Update2025-08-16
Size857.29 KB
TP3 P B EW 使用說明書

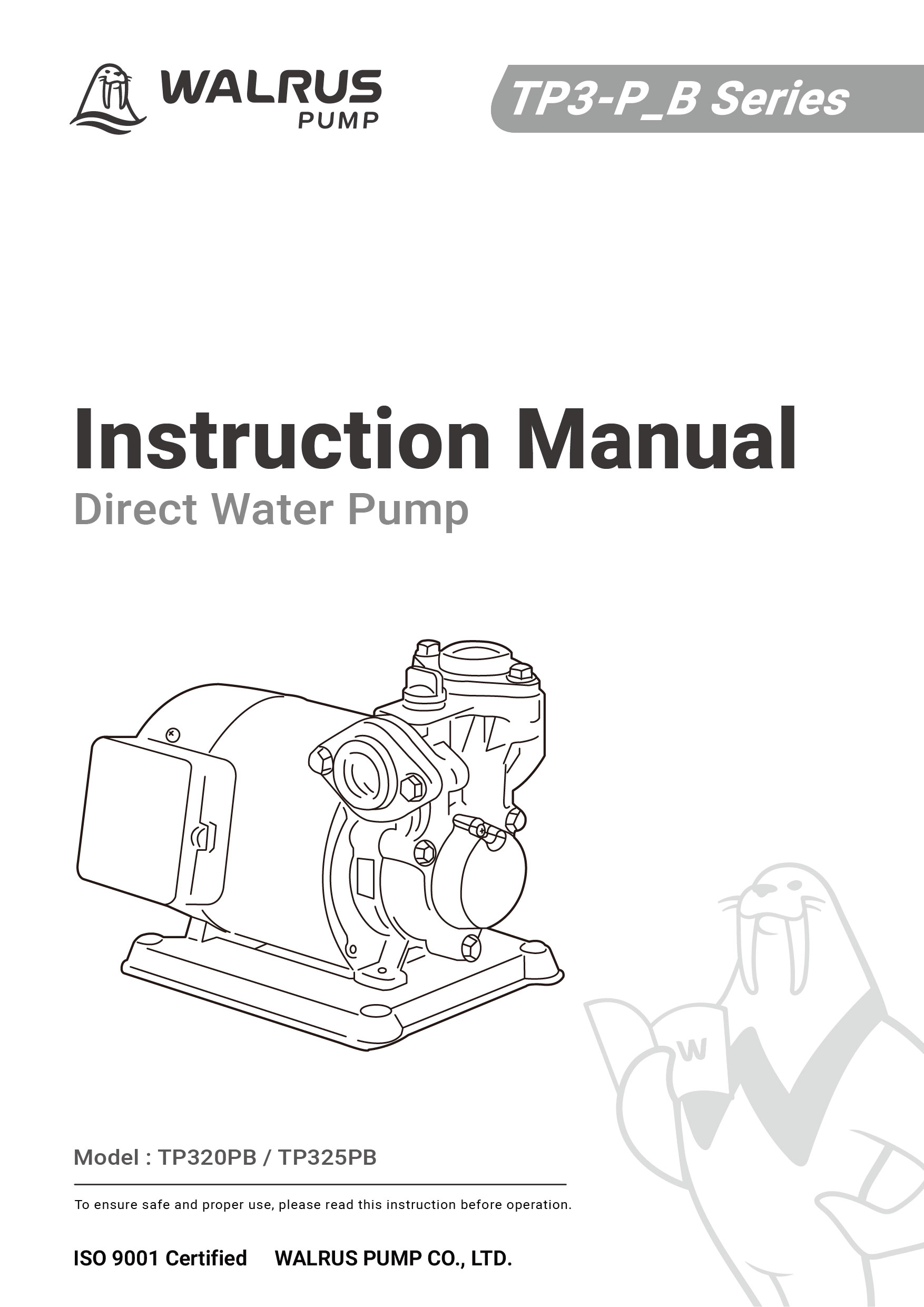

TP3_PTB Instruction Manual
Update2025-08-16
Size1.17 MB
