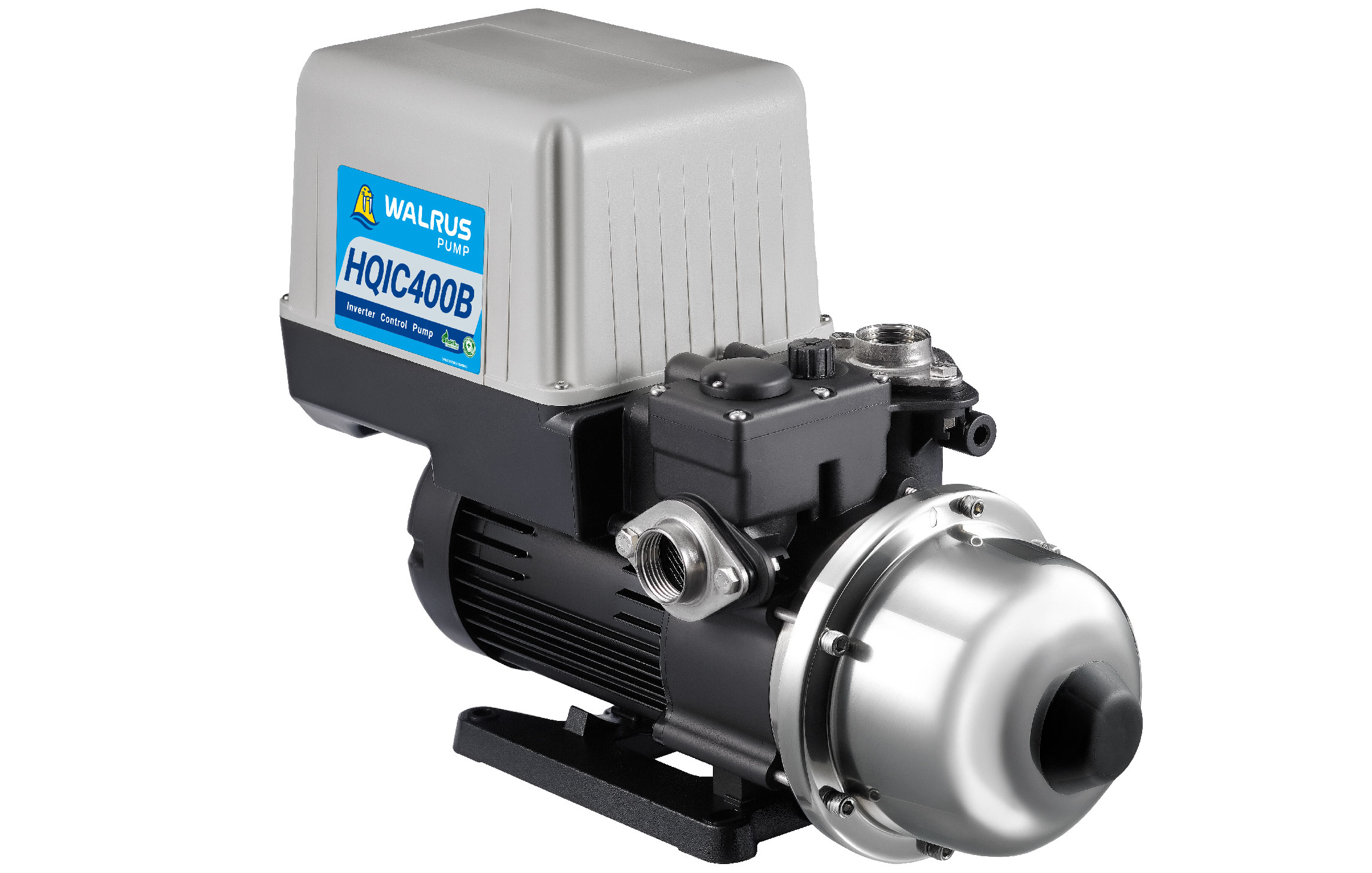

HQIC 400B(內.外銷)產品圖
Model | HQIC400B

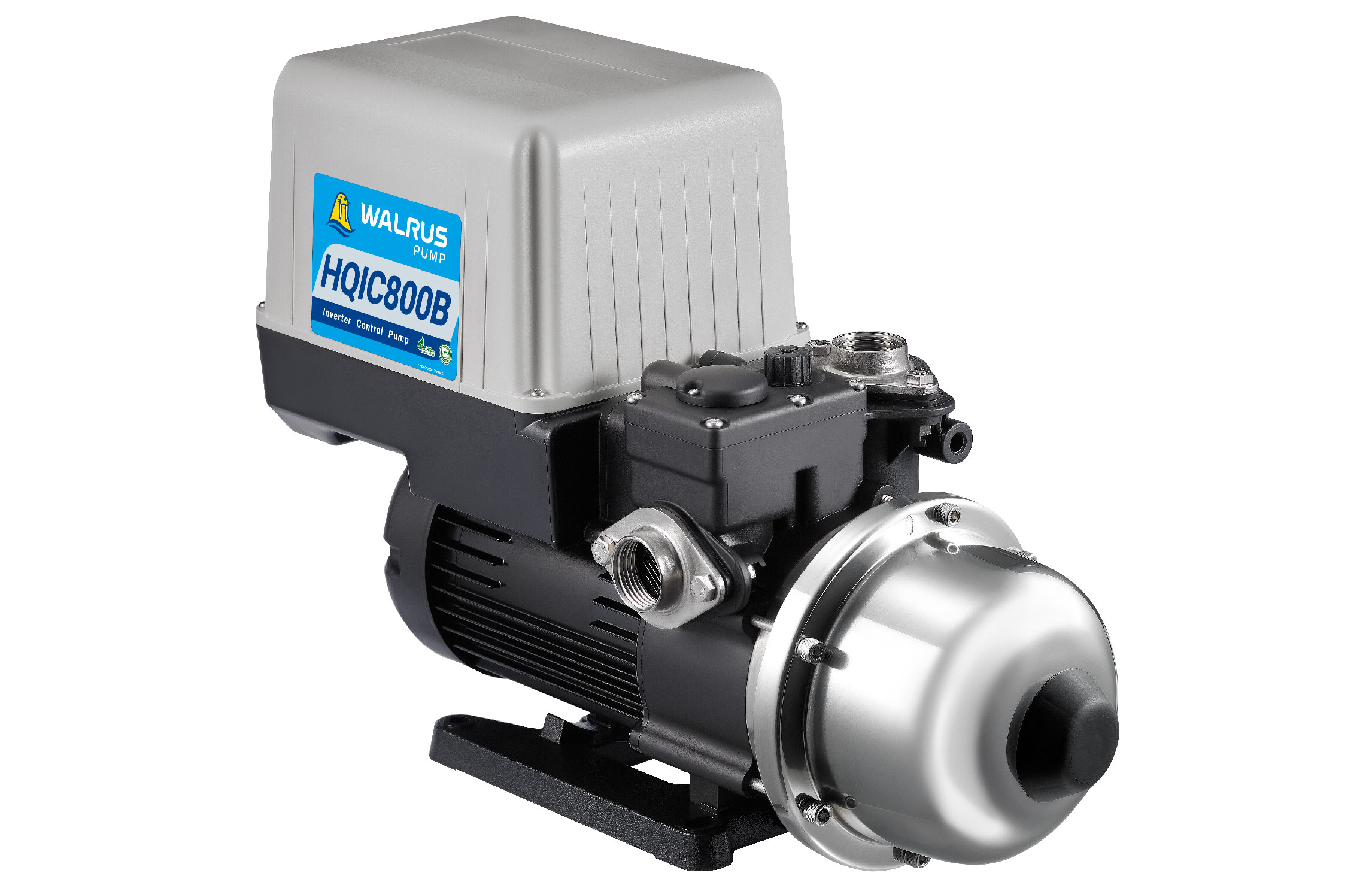

HQIC 800B(內.外銷)產品圖
Model | HQIC800B

Constant Pressure Inverter Control System

Constant Pressure Inverter Control Pump
HQIC_B Series

  • Inverter controller can continuously adjust the motor speed to meet constant pressure water supply requirements.
  • Intelligently adjusts based on water usage conditions to achieve high efficiency and energy savings.
  • Using SUS304 stainless steel centrifugal impellers, quiet and durable.
Power (kW)
Pre-set Pressure (kg/cm²)
Nominal Set Flow (L/min)
0.37 - 0.75
Up to 3.0
Up to 40

Features

Inverter controller
The motor starts smoothly during water usage, with the inverter controller continuously adjusting the motor speed via pressure sensor feedback to maintain stable pressure at the preset value.
Smart and Energy-Saving
The pump will maintain a constant operating pressure at the pressure setting, ensuring a stable water supply even though occasionally the output flow is over the capacity.
Dry-Run Protection
Auto shutoff after 1 minute of dry run; restarts hourly until water is restored.
Auto Stop Upon Flow Interruption
The pump will automatically cycle down as water usage decreases
Pressure Compensation
Automatically detects pressure loss and operates the pump to maintain the pressure setting if there is leakage or dripping in the piping system.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Quiet and Durable
The impeller is made of SUS304 stainless steel to ensure quite operation, high water quality and strength.
All-In-One
Integrated system that combines the pump, Inverter, motor, pressure tank, and electronic controller for a stable and enduring water supply environment for household use.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Relative Humidity
Max. 85%(RH)
System Pressure
Max. 8.5 kg/cm²
Inlet Pressure
Must be less than the pressure switch start value.

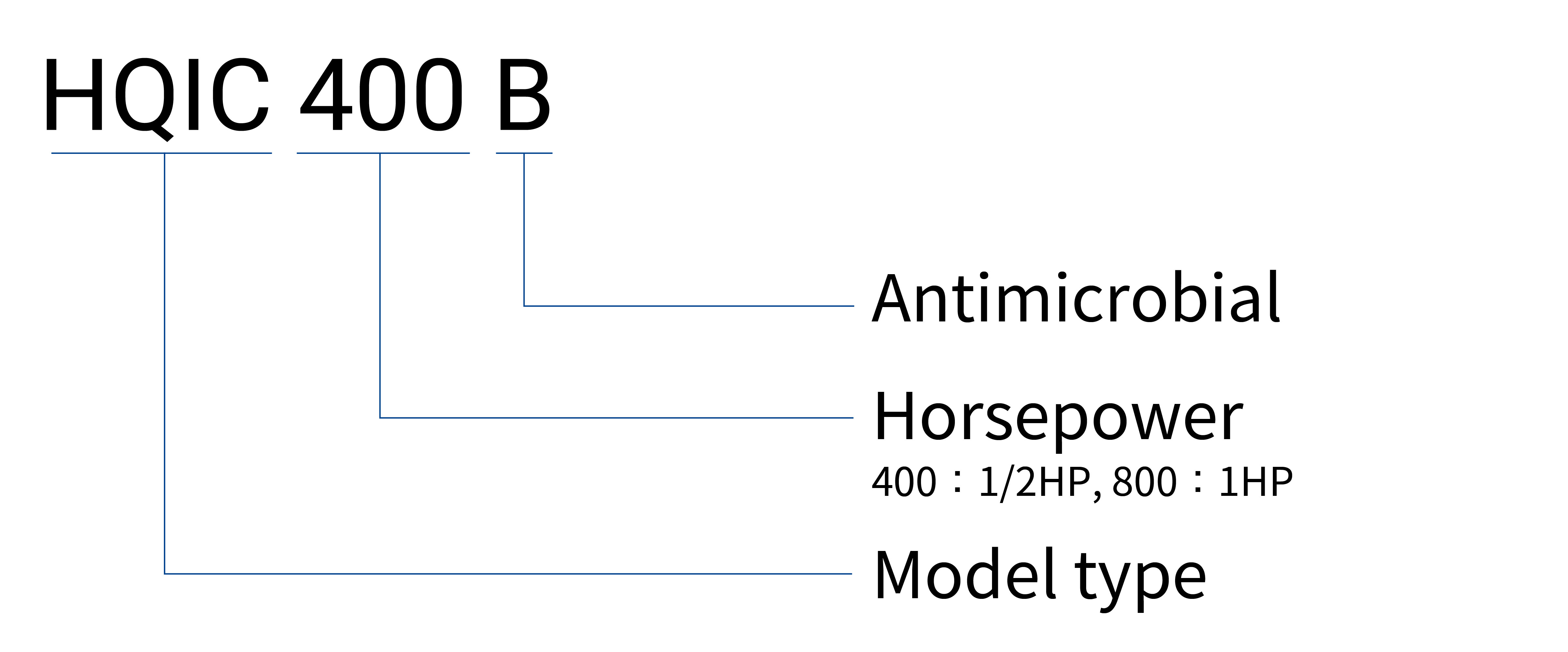

Model code

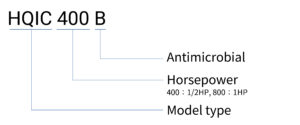

HQIC B 編碼原則(英文)

Frequency

Motor Specifications
Inquiry
Model
Phase(Ø)
Power(kW)
Voltage(V)
Current(A)
HQIC400B
1
0.37
110
8.0
HQIC400B
1
0.37
220
4.0
HQIC800B
1
0.75
110
12.6
HQIC800B
1
0.75
220
6.3

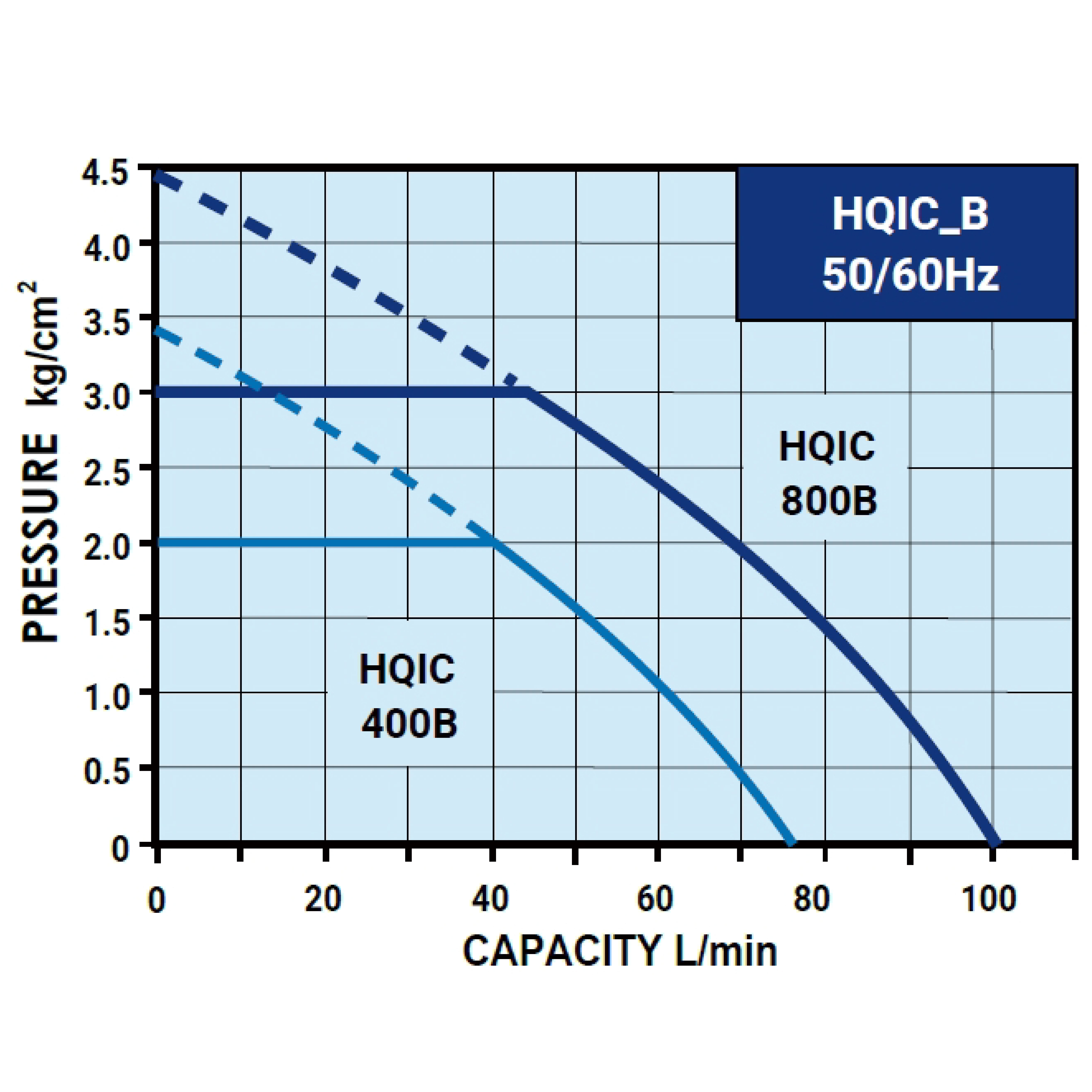

Pump Performance
Graph
Model
Pre-Set
Pressure
(kg/cm²)
Nominal
Set Flow
(L/min)
Inlet(in.)
Outlet(in.)
HQIC400B
2.0
40
1"
1"
HQIC800B
3.0
40
1"
1"

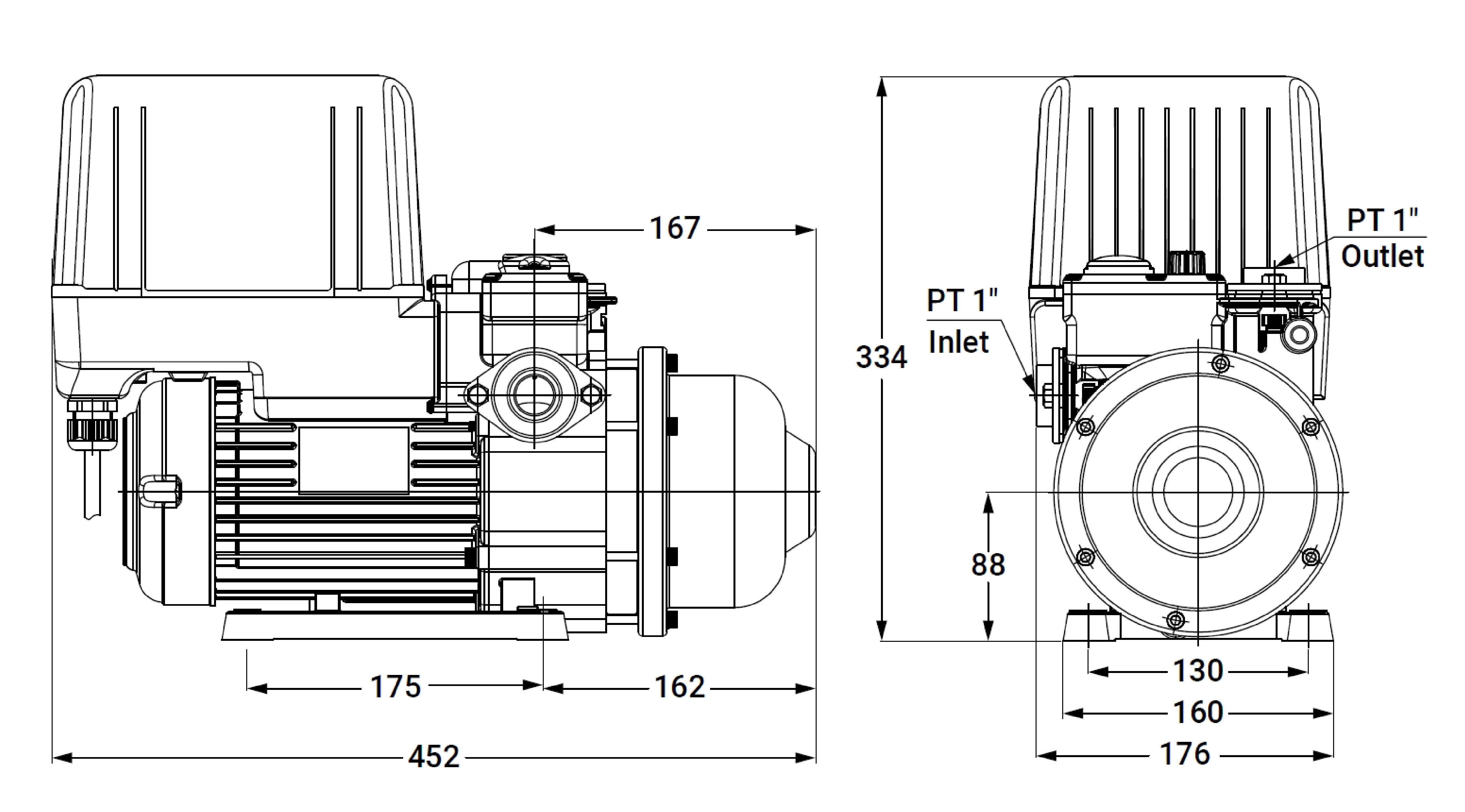

Dimension
Model
L(mm)
W(mm)
H(mm)
N.W.(kg)
G.W.(kg)
HQIC400B
452
176
334
11.0
12.8
HQIC800B
452
176
334
13.0
14.3

HQIC B 材積圖(內.外銷)

HQIC_B Series Applications

shower head with water drops flowing
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
American,Village,With,A,Huge,Ferris,Wheel
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Water,Park,,Bright,Multi-colored,Slides,With,A,Pool.,A,Water
Provides water circulation, pressure regulation, and filtration support, and is integrated with VFDs to optimize energy usage.
住宿及餐飲 大型淋浴系統
The pump with inverter system addresses issues such as low water pressure, uneven water flow, and temperature fluctuations during peak times.
Washing Vegetables And Fruits For Household Hygiene.
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
Greenhouse,Watering,System,In,Action
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Greenhouse,Watering,System,In,Action
Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.
Water Flow Treatment System From The Water Pump Pipe.Motion Of W
Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
S 31170609 0
Provides water extraction, storage, and stable distribution to kitchens, restrooms, and other commercial applications, ensuring uninterrupted water supply.
其他服務 一般民生用水
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
