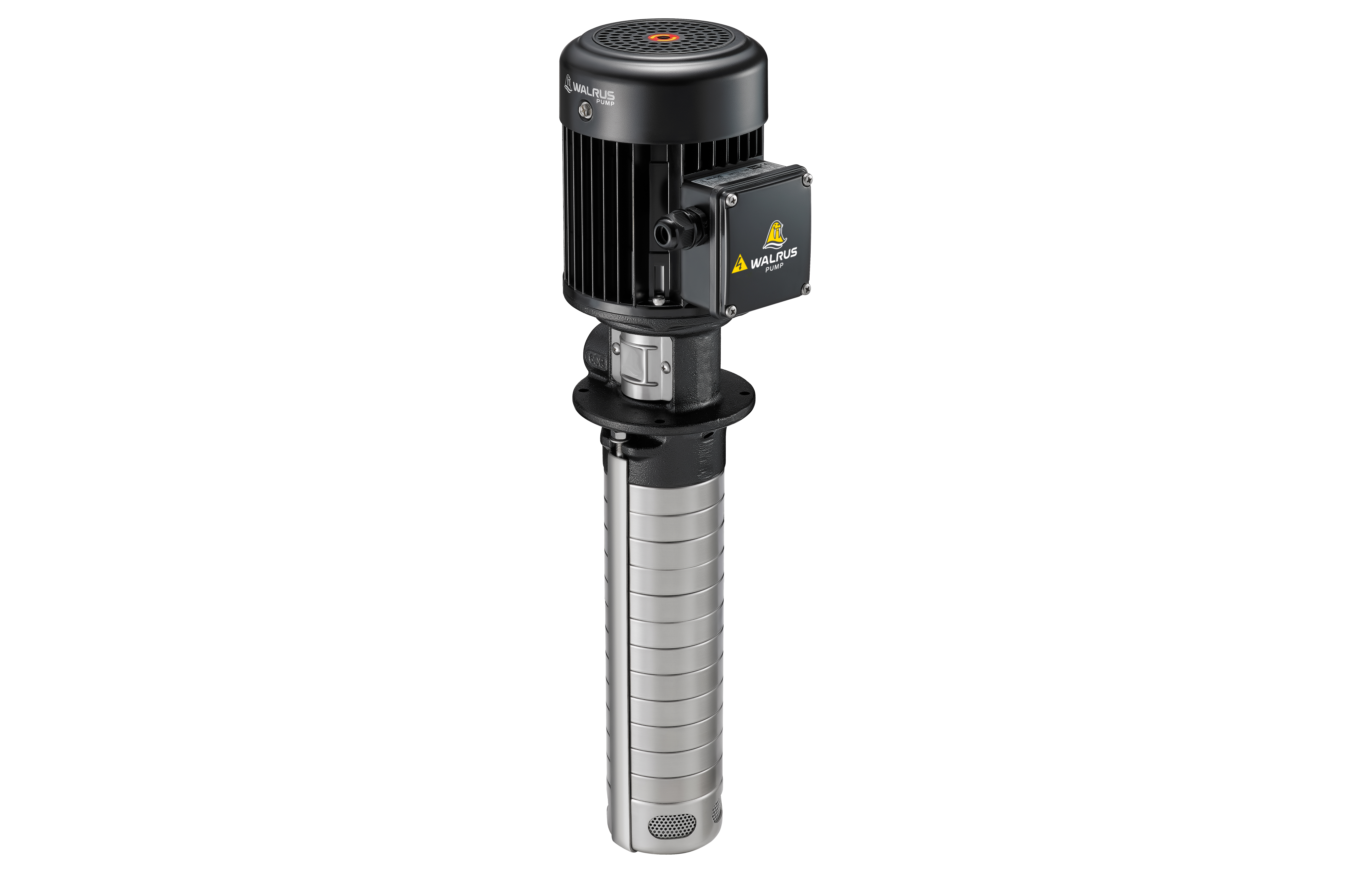

Immersible Centrifugal Pump

Multi-Stage Immersible Pump
TPK Series

Adjustable Stages for Deep Tank Applications.
Coupling design for easy maintenance.
Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.

Manufacturing Industry

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

0.22 - 1.30

Up to 70

Up to 90

0.28 - 1.58

Up to 100

Features

Stability and Reliability

A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.

Ideal for Deep Tank

Designed with adjustable stages to suit various depths in deep tank applications.

Coupling Design

Coupling design enables easy shaft seal replacement, improving maintenance and lowering costs.

Low-Noise Operation

The immersible multistage centrifugal pump features low operational noise.

Seal Material Selection

Various seal material options are offered for different liquid applications.

Ideal for the Machine Tool

Designed for industrial use, especially for machine tools. It is suitable for carrying fluids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+0°C ~ +90°C

Operating Pressure

Max. 10 kg/cm²

Submerged Depth

Min. 40 mm

Motor

Frequency

50 / 60 Hz

Nominal Speed

2900 / 3500 rpm

Enclosure Protection Class

IP54

Insulation Class

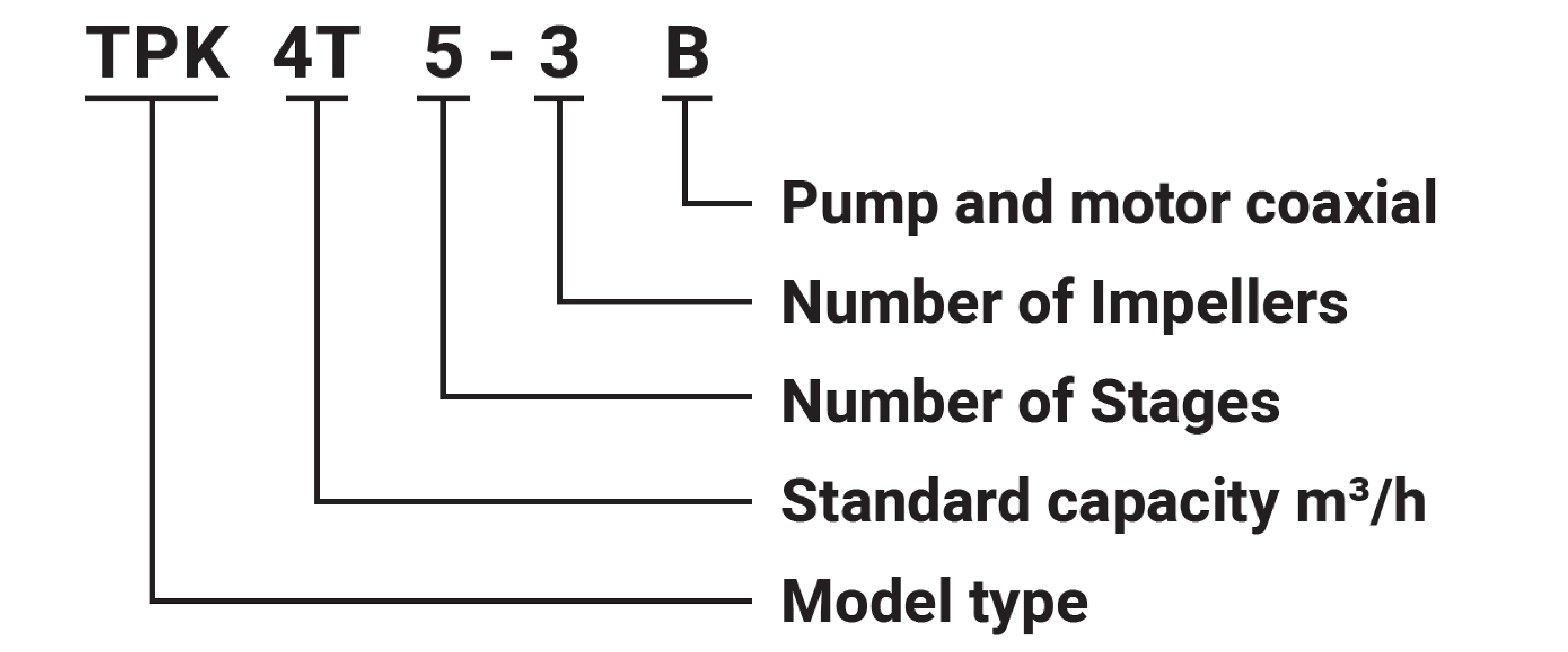

Model code

Frequency

50 Hz

60 Hz

TPK2T

TPK4T

Motor Specifications

Inquiry

Model

Frequency(Hz)

50 & 60 Hz
Compatible(Y/N)

Phase(Ø)

Input(kW)

Output Power(kW)

Voltage(V)

Current
Imax(A)

TPK4T3-1B

0.25

0.17

200-255 / 380-440

1.0 / 0.6

TPK4T3-1B

0.30

0.20

200-255 / 380-480

1.0 / 0.6

TPK4T3-3B

0.43

0.29

200-255 / 380-440

2.8 / 1.4

TPK4T3-3B

0.55

0.38

200-255 / 380-480

2.2 / 1.2

TPK4T5-5

0.58

0.40

200-255 / 380-440

2.9 / 1.7

TPK4T5-5

0.90

0.61

200-255 / 380-480

2.7 / 1.6

TPK4T7-7

0.68

0.46

200-255 / 380-440

3.2 / 1.8

TPK4T7-7

1.00

0.68

200-255 / 380-480

3.4 / 1.9

TPK4T8-8

0.75

0.51

200-255 / 380-440

3.5 / 1.9

TPK4T8-8

1.16

0.79

200-255 / 380-480

3.6 / 2.0

TPK4T10-10

0.90

0.61

200-255 / 380-440

4.7 / 2.6

TPK4T10-10

1.42

0.97

200-255 / 380-480

4.7 / 2.6

TPK4T11-11

0.95

0.65

200-240 / 380-415

3.6 / 2.1

TPK4T11-11

1.45

0.99

200-240 / 380-440

5.0 / 2.7

TPK4T12-12

1.05

0.72

200-240 / 380-415

3.9 / 2.3

TPK4T12-12

1.58

1.08

200-240 / 380-440

5.3 / 2.9

TPK4T15-15

1.30

0.89

200-255 / 380-440

4.4 / 2.8

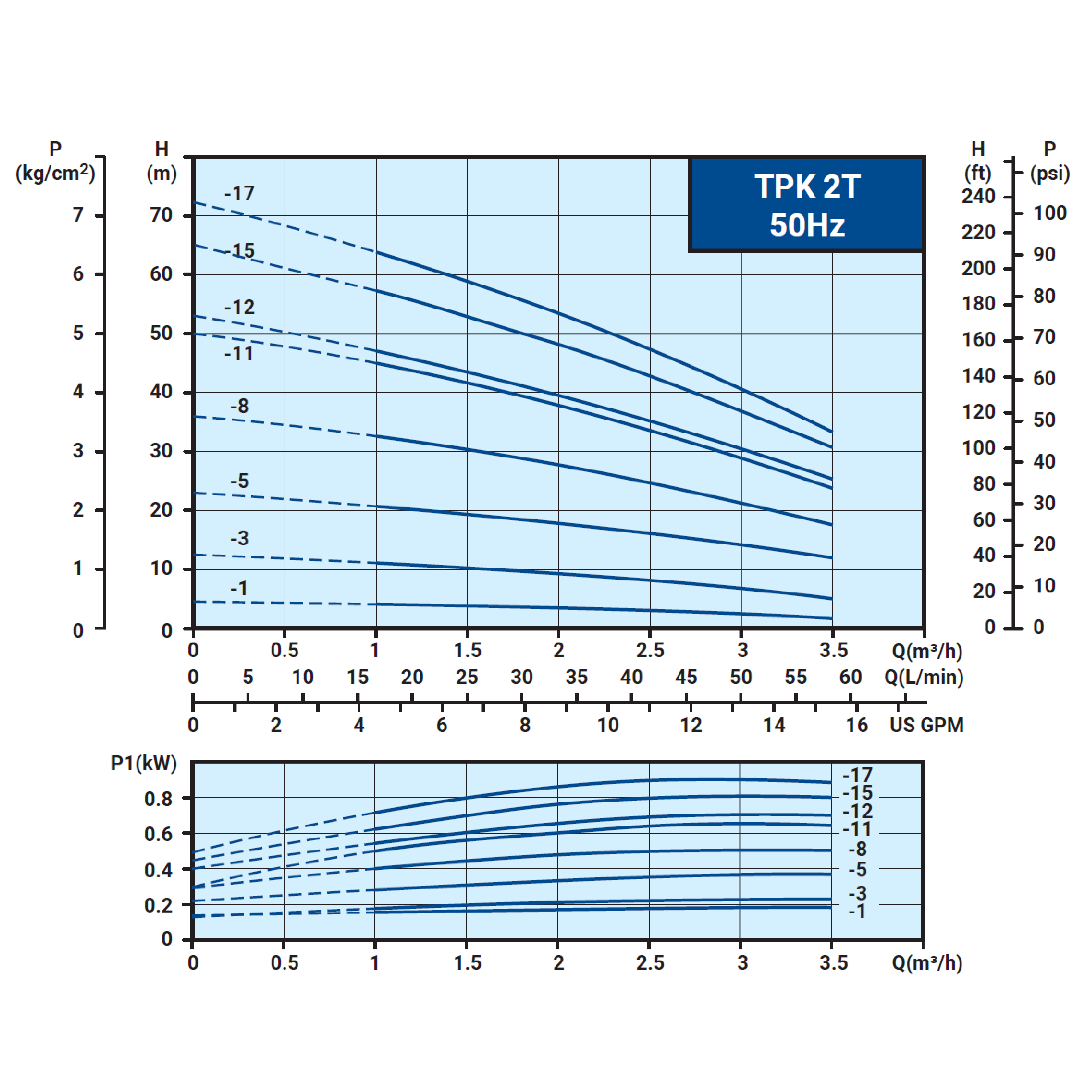

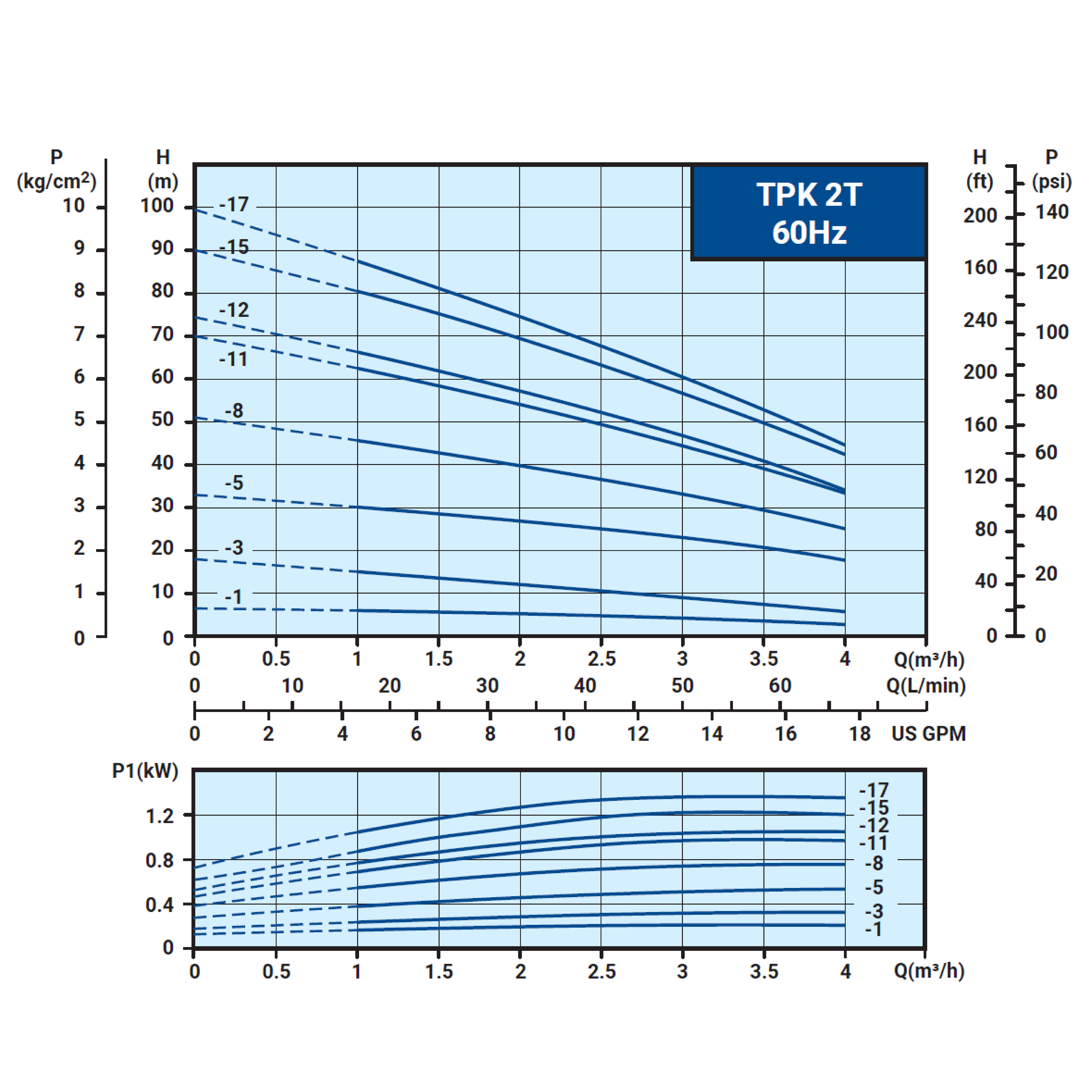

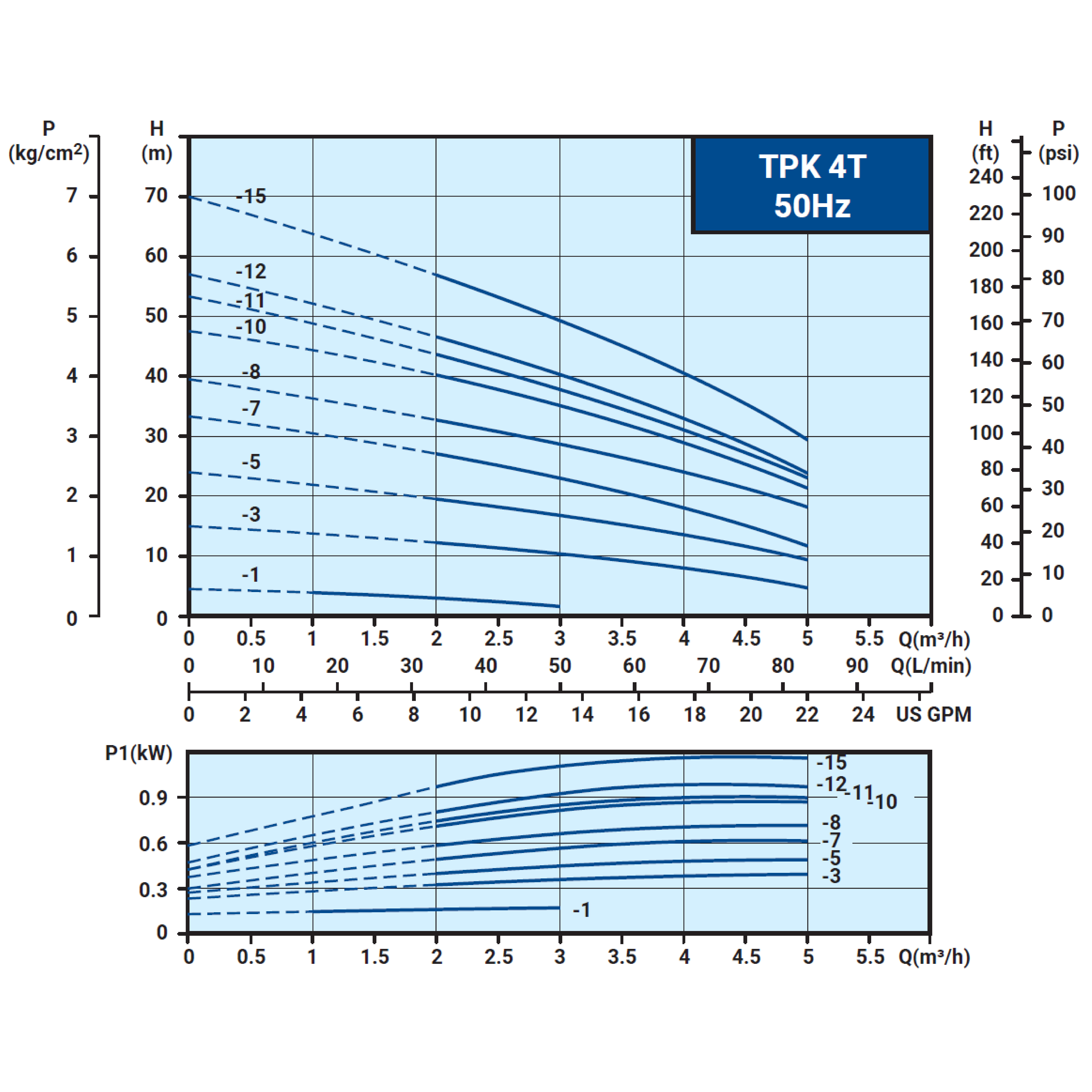

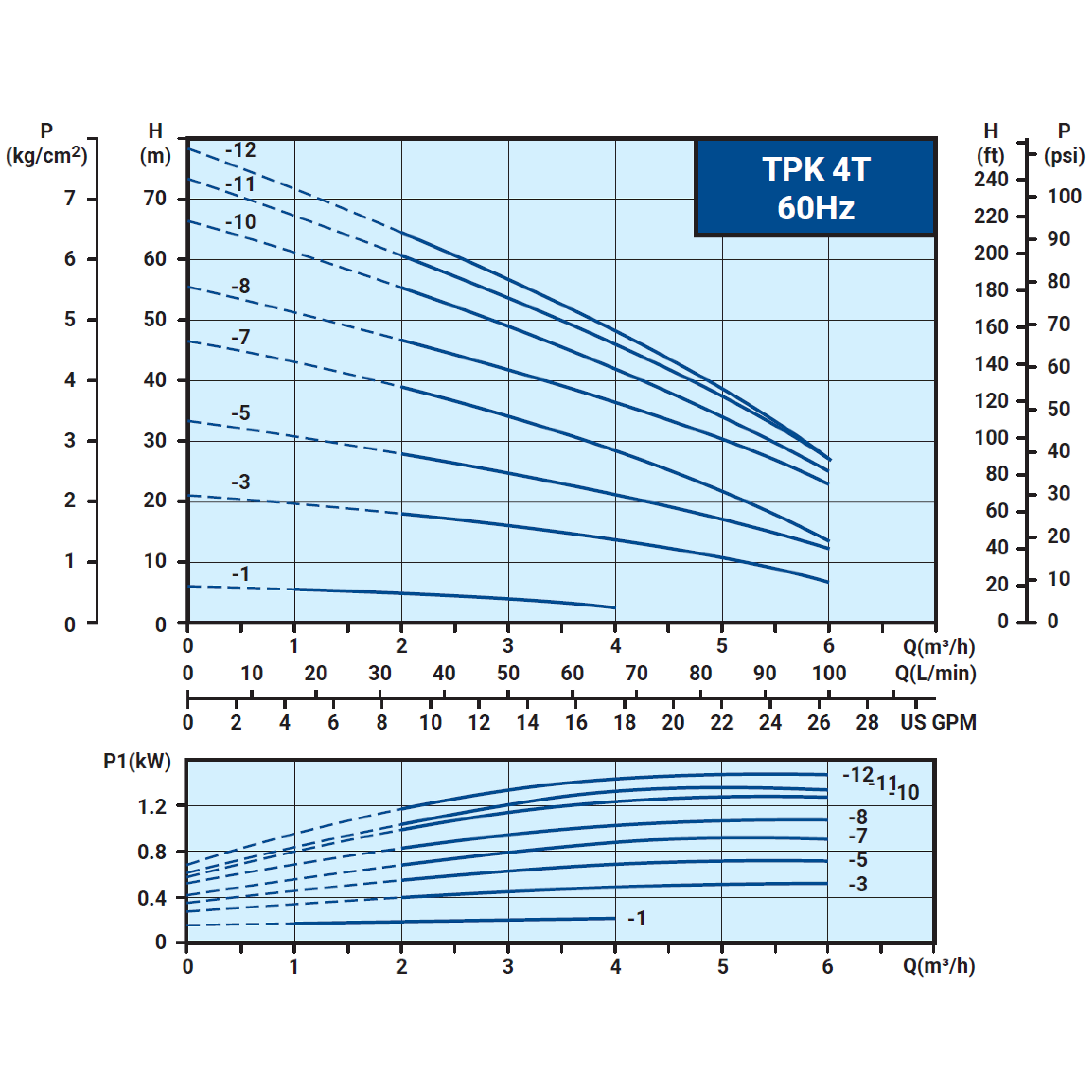

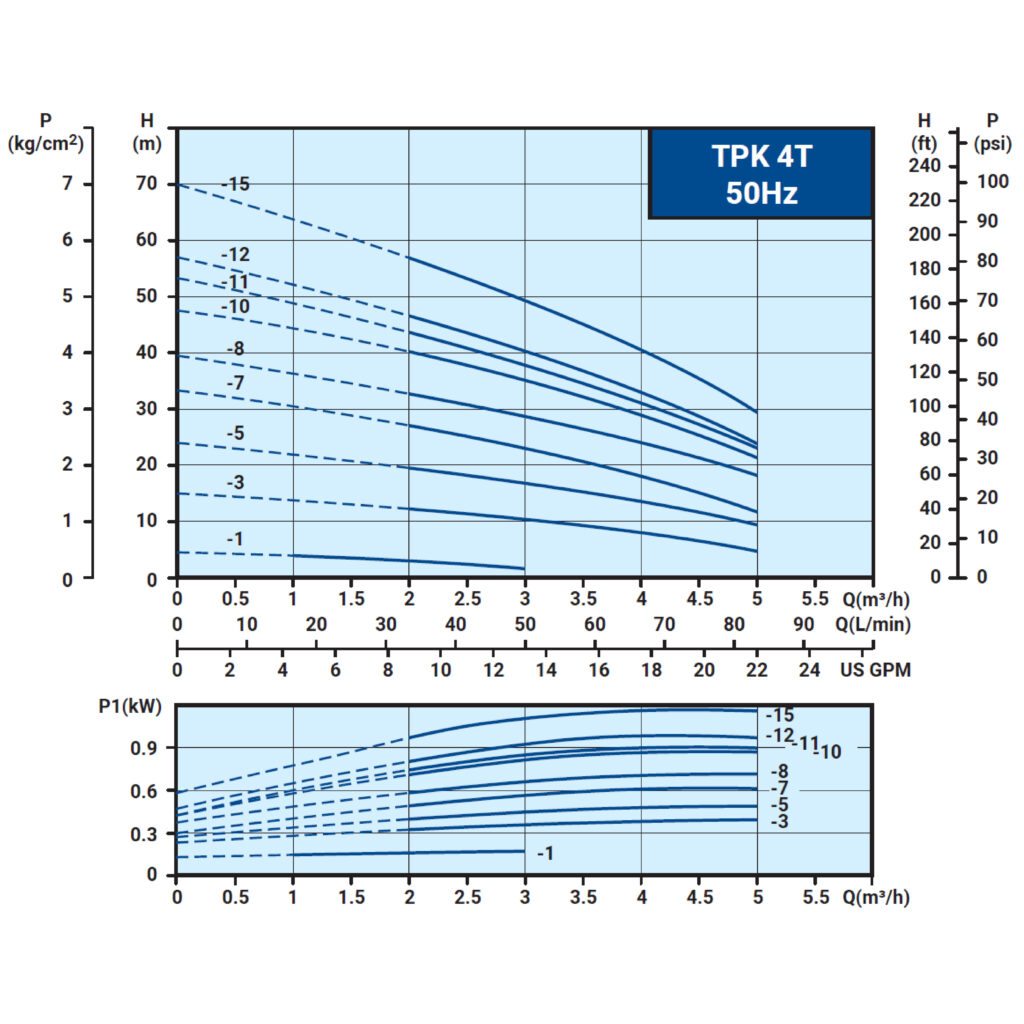

Pump Performance

Graph

Model

Frequency(Hz)

Rate Head(m)

Rate Flow(L/min)

Outlet(in.)

TPK4T3-1B

Rp ¾"

TPK4T3-1B

Rp ¾"

TPK4T3-3B

Rp ¾"

TPK4T3-3B

Rp ¾"

TPK4T5-5

Rp ¾"

TPK4T5-5

Rp ¾"

TPK4T7-7

Rp ¾"

TPK4T7-7

Rp ¾"

TPK4T8-8

Rp ¾"

TPK4T8-8

Rp ¾"

TPK4T10-10

Rp ¾"

TPK4T10-10

Rp ¾"

TPK4T11-11

Rp ¾"

TPK4T11-11

Rp ¾"

TPK4T12-12

Rp ¾"

TPK4T12-12

Rp ¾"

TPK4T15-15

Rp ¾"

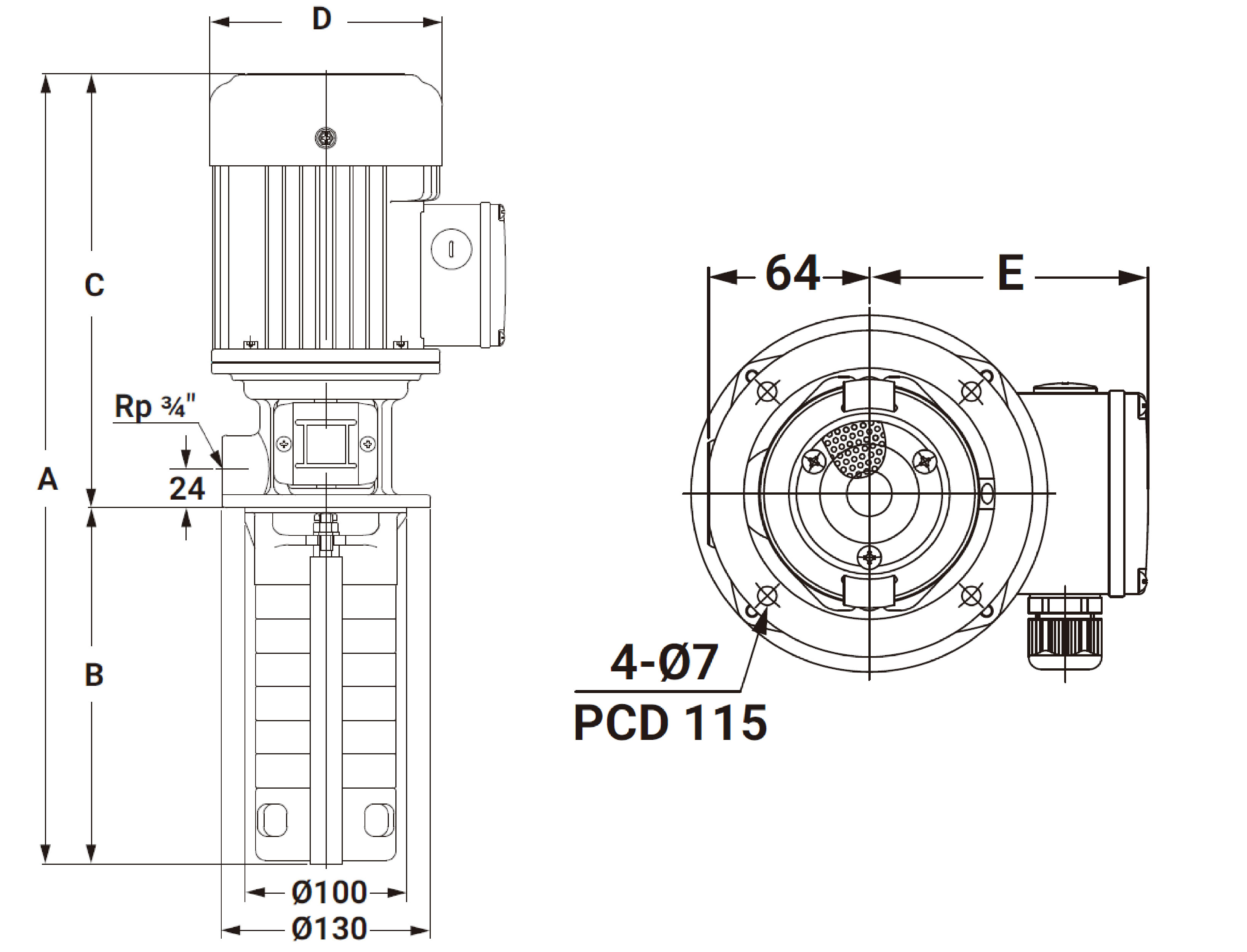

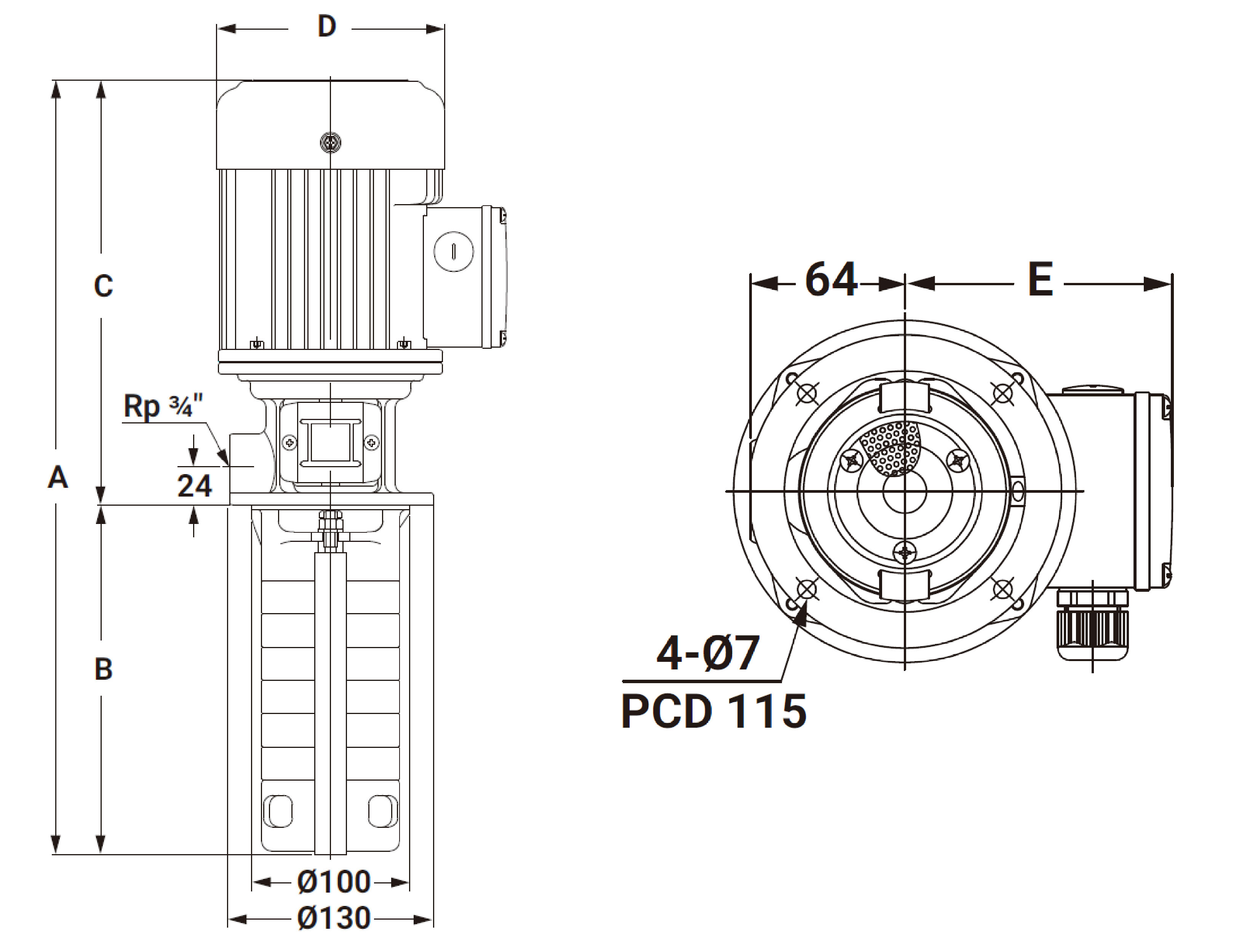

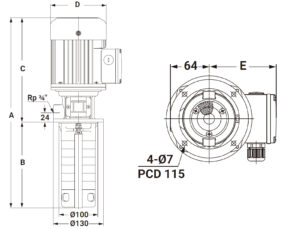

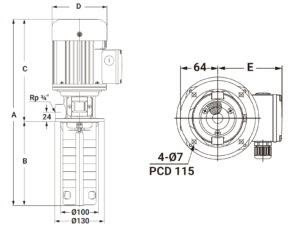

Dimension

Model

Frequency(Hz)

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

N.W.(kg)

Pallet Loading Qty.(pc)

TPK4T3-1B

405

179

226

123

101

8.4

TPK4T3-1B

405

179

226

123

101

8.4

TPK4T3-3B

449

179

270

144.5

111

11.8

TPK4T3-3B

449

179

270

144.5

111

11.8

TPK4T5-5

491

221

270

144.5

111

12.1

TPK4T5-5

491

221

270

144.5

111

12.1

TPK4T7-7

573

263

310

144.5

111

13.7

TPK4T7-7

573

263

310

144.5

111

13.7

TPK4T8-8

594

284

310

144.5

111

13.8

TPK4T8-8

594

284

310

144.5

111

13.8

TPK4T10-10

636

326

310

144.5

111

14.1

TPK4T10-10

636

326

310

144.5

111

14.1

TPK4T11-11

657

347

310

144.5

111

14.3

TPK4T11-11

657

347

310

144.5

111

14.3

TPK4T12-12

678

368

310

144.5

111

14.4

TPK4T12-12

678

368

310

144.5

111

14.4

TPK4T15-15

741

431

310

144.5

111

15.0

TPK Series Applications

Manufacturing Industry

Industrial Process Cooling

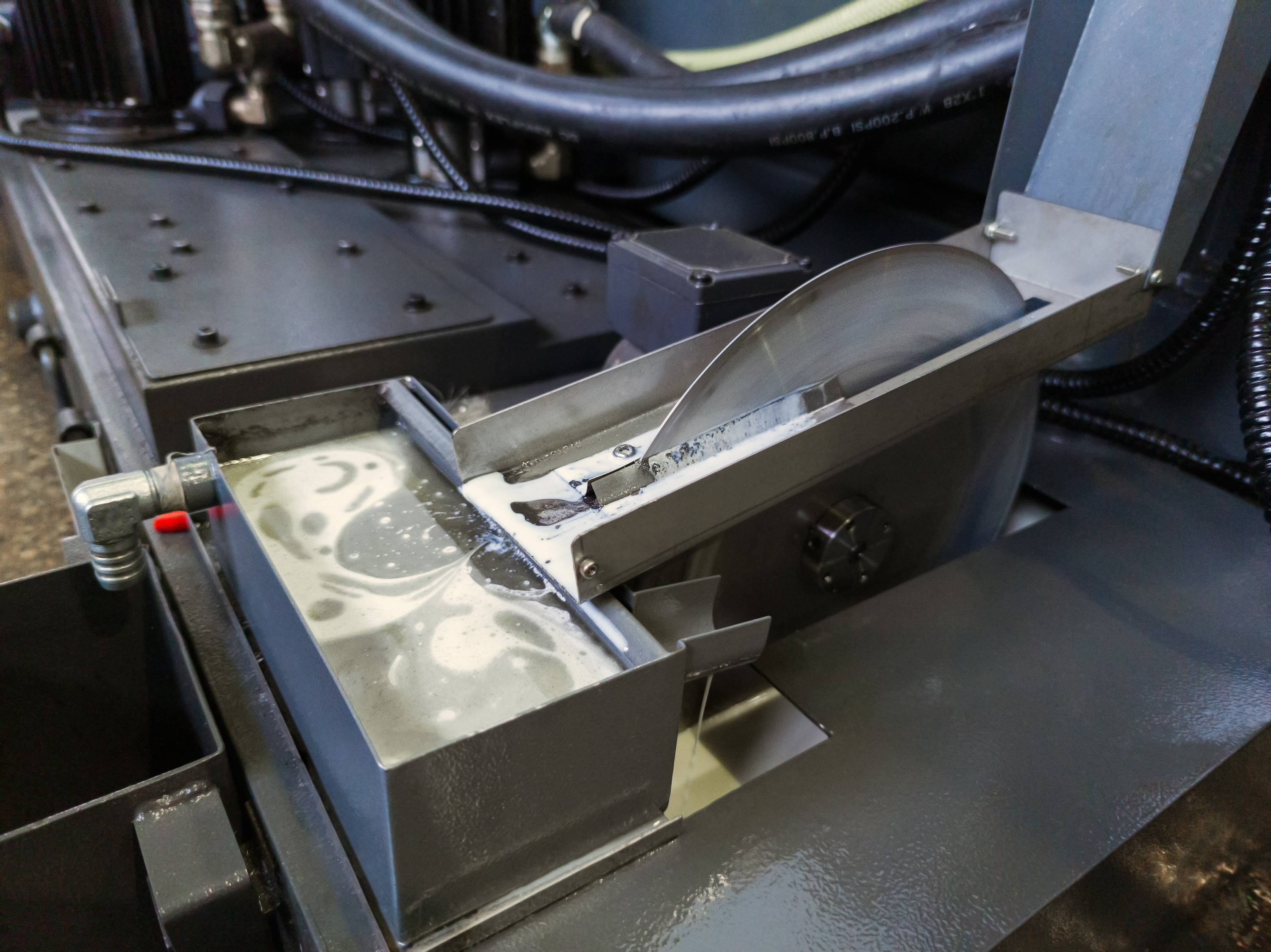

A key solution for stable precision manufacturing, suitable for cooling, chip removal, flushing, and lubrication.

Manufacturing Industry

Industrial Process Flushing

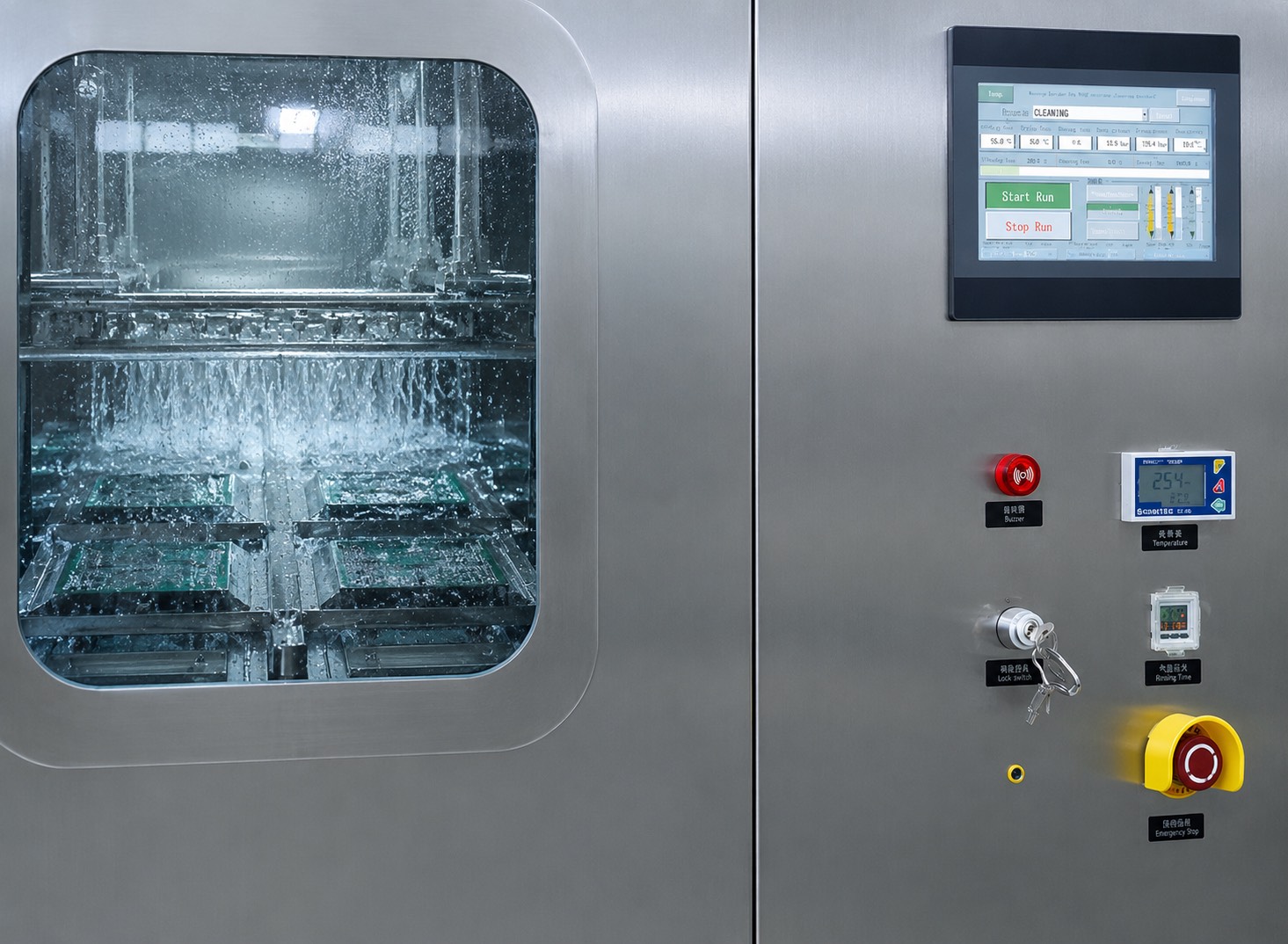

Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants.
