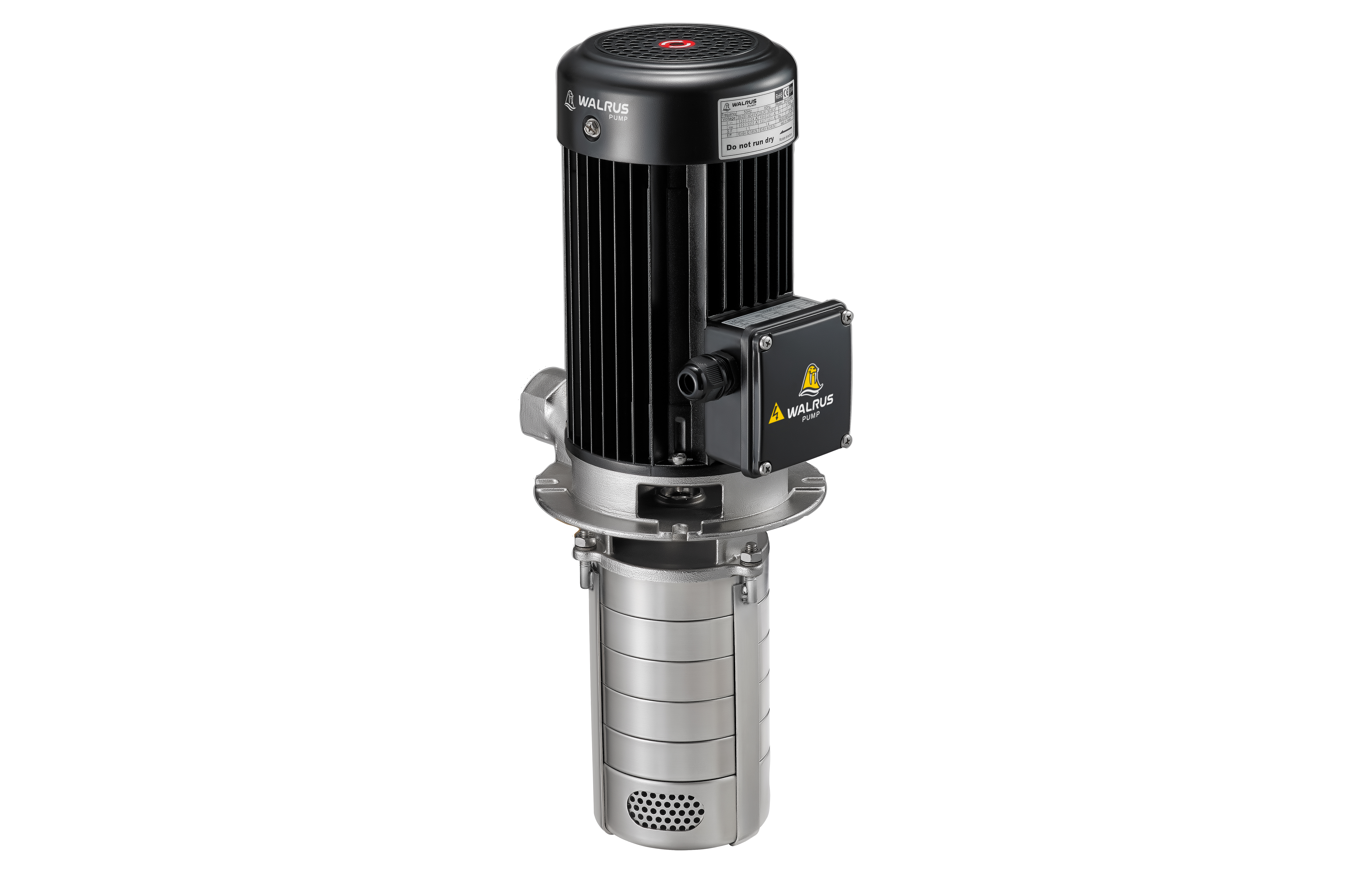

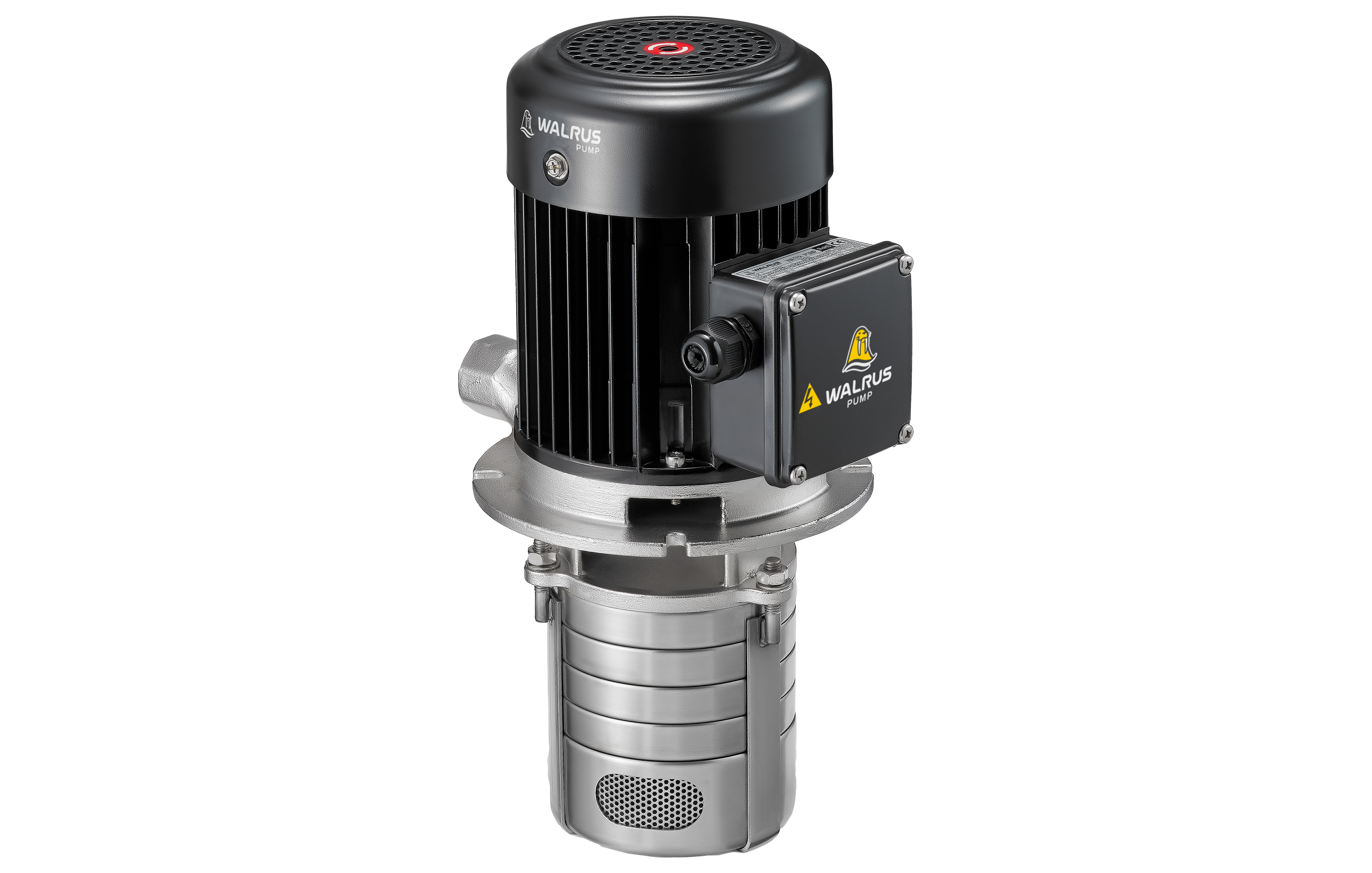

Immersible Centrifugal Pump

Multi-Stage Immersible Pump
TPHK Series

Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.
Different material options are available for pump casings and seals depending on the application.

Manufacturing Industry

Electricity & New Energy Industry

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

0.37 - 3.4

Up to 65

Up to 280

0.37 - 3.7

Up to 90

Up to 280

Features

Stability and Reliability

A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.

Flexible Configuration

The number of impeller segments can be adjusted to suit different application requirements

Energy Efficient

Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.

Low-Noise Operation

The immersible multistage centrifugal pump features low operational noise.

Material Selection

Different material selections are offered for pump casings and seals for various liquid applications.

Ideal for the Machine Tool

Designed for industrial use, especially for machine tools. It is suitable for carrying fluids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+0°C ~ +90°C

Operating Pressure

Max. 10 kg/cm²

Submerged Depth

Min. 40 mm

Motor

Frequency Range

50 / 60 Hz

Nominal Speed

2900 / 3500 rpm

Enclosure Protection Class

IP54

Insulation Class

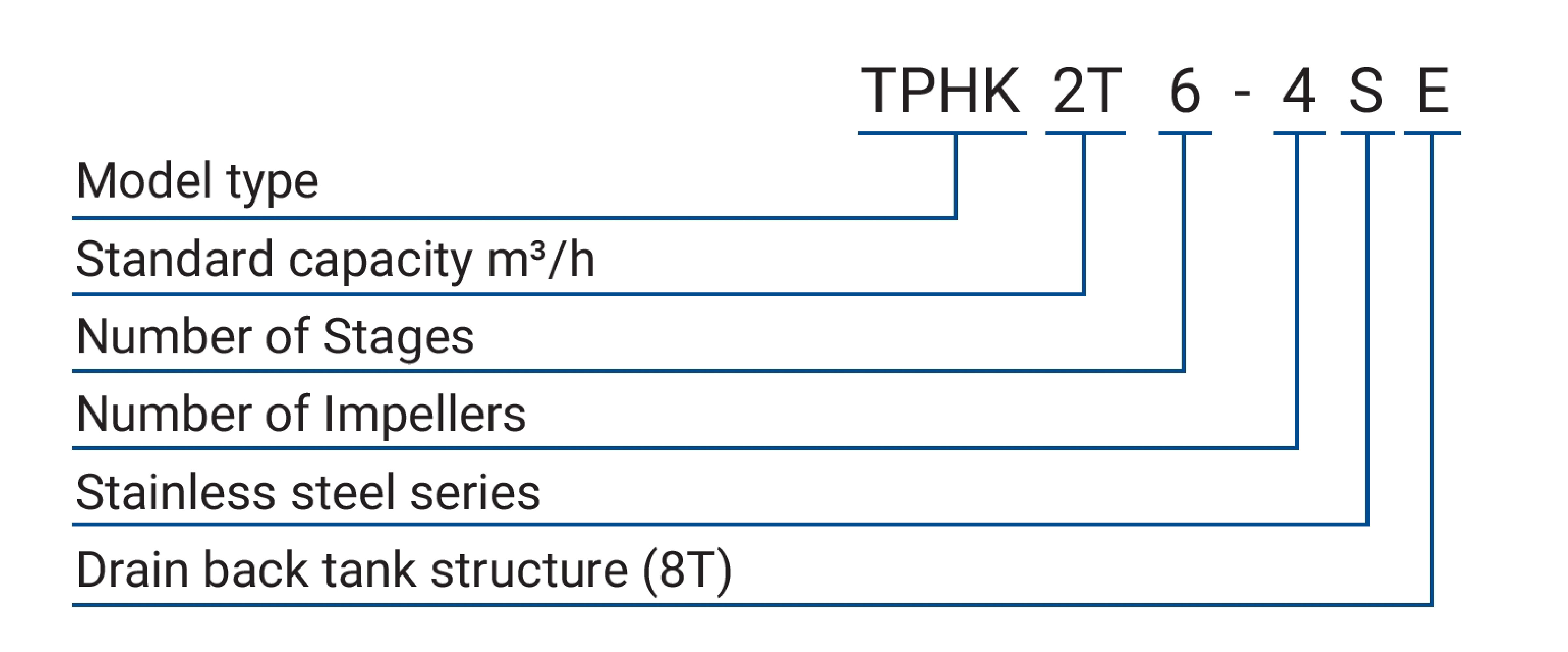

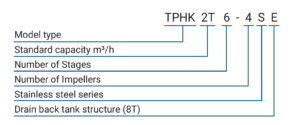

Model code

Frequency

50 Hz

60 Hz

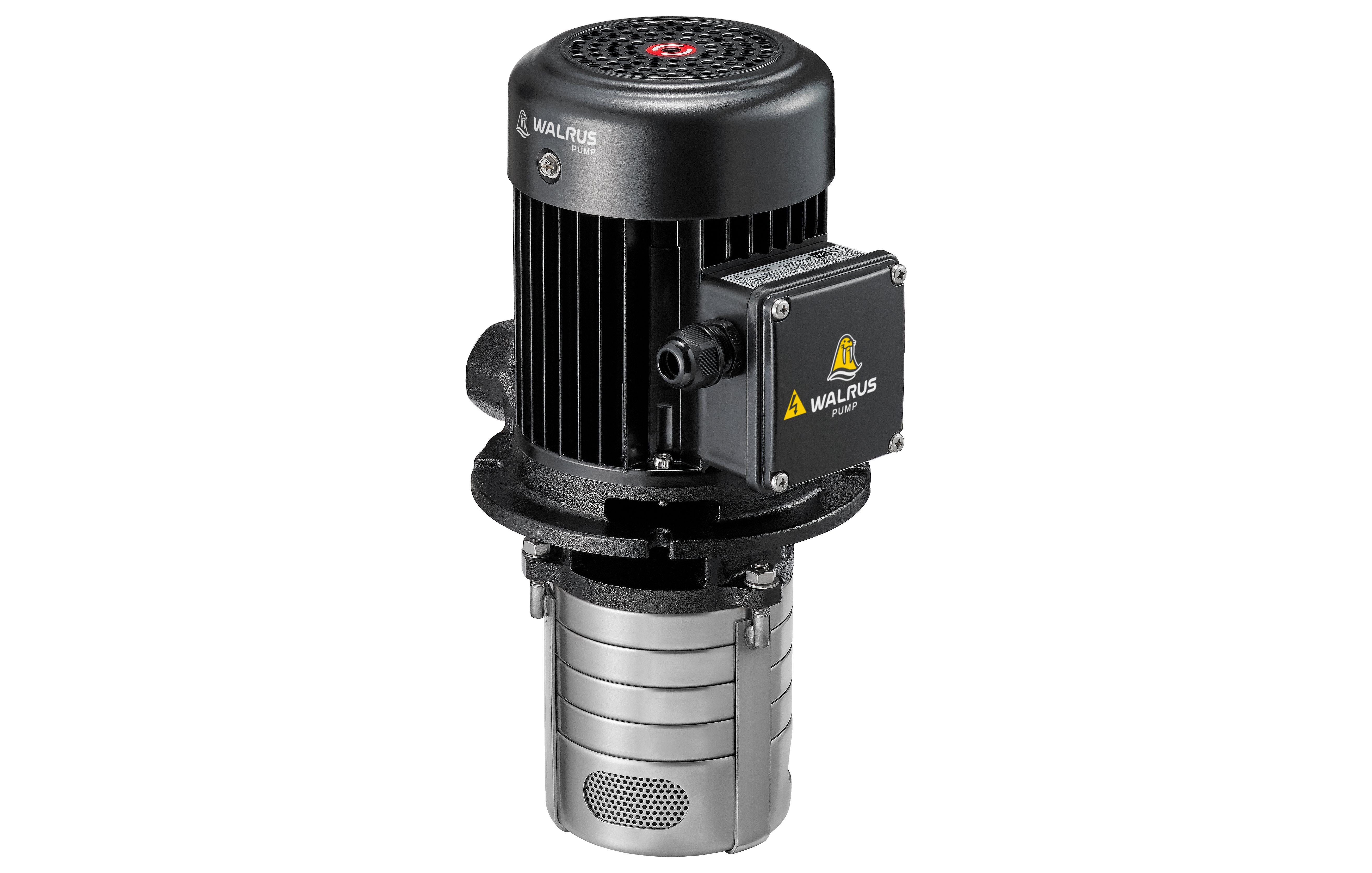

TPHK2T

Motor Specifications

Inquiry

Model

Frequency(Hz)

50 & 60 Hz
Compatible(Y/N)

Phase(Ø)

Output (P2)(kW)

Voltage(V)

Current
I1/1(A)

Current
Imax(A)

TPHK2T3-1(S)

0.37

200-240 / 342-415

1.8-2.0 / 1.1-1.2

2.0-2.1 / 1.1-1.2

TPHK2T3-1(S)

0.37

200-255 / 342-480

1.8-1.7 / 1.0-1.0

2.3-2.1 / 1.3-1.2

TPHK2T3-2(S)

0.37

200-240 / 342-415

1.8-2.0 / 1.1-1.2

2.0-2.1 / 1.1-1.2

TPHK2T3-2(S)

0.37

200-255 / 342-480

1.8-1.7 / 1.0-1.0

2.3-2.1 / 1.3-1.2

TPHK2T3-3(S)

0.37

200-240 / 342-415

1.8-2.0 / 1.1-1.2

2.0-2.1 / 1.1-1.2

TPHK2T3-3(S)

0.37

200-255 / 342-480

1.8-1.7 / 1.0-1.0

2.3-2.1 / 1.3-1.2

TPHK2T4-4(S)

0.55

200-230 / 342-415

2.5-2.4 / 1.5-1.4

2.7-2.6 / 1.6-1.5

TPHK2T4-4(S)

0.55

220-240 / 380-480

2.3-2.2 / 1.3-1.3

3.2-3.0 / 1.9-1.6

TPHK2T5-5(S)

0.75

200-230 / 342-415

3.5-3.6 / 2.0-2.2

3.8-3.8 / 2.2-2.3

TPHK2T5-5(S)

0.75

220-240 / 380-480

3.1-3.1 / 1.8-1.9

4.1-3.9 / 2.3-2.3

TPHK2T6-6(S)

0.75

200-230 / 342-415

3.5-3.6 / 2.0-2.2

3.8-3.8 / 2.2-2.3

TPHK2T6-6(S)

0.75

220-240 / 380-480

3.1-3.1 / 1.8-1.9

4.1-3.9 / 2.3-2.3

TPHK2T7-7(S)

1.1

200-230 / 342-415

5.2-5.4 / 3.1-3.4

5.5-5.7 / 3.3-3.5

TPHK2T7-7(S)

1.1

220-240 / 380-480

4.6-4.6 / 2.8-3.1

6.2-5.7 / 3.6-3.5

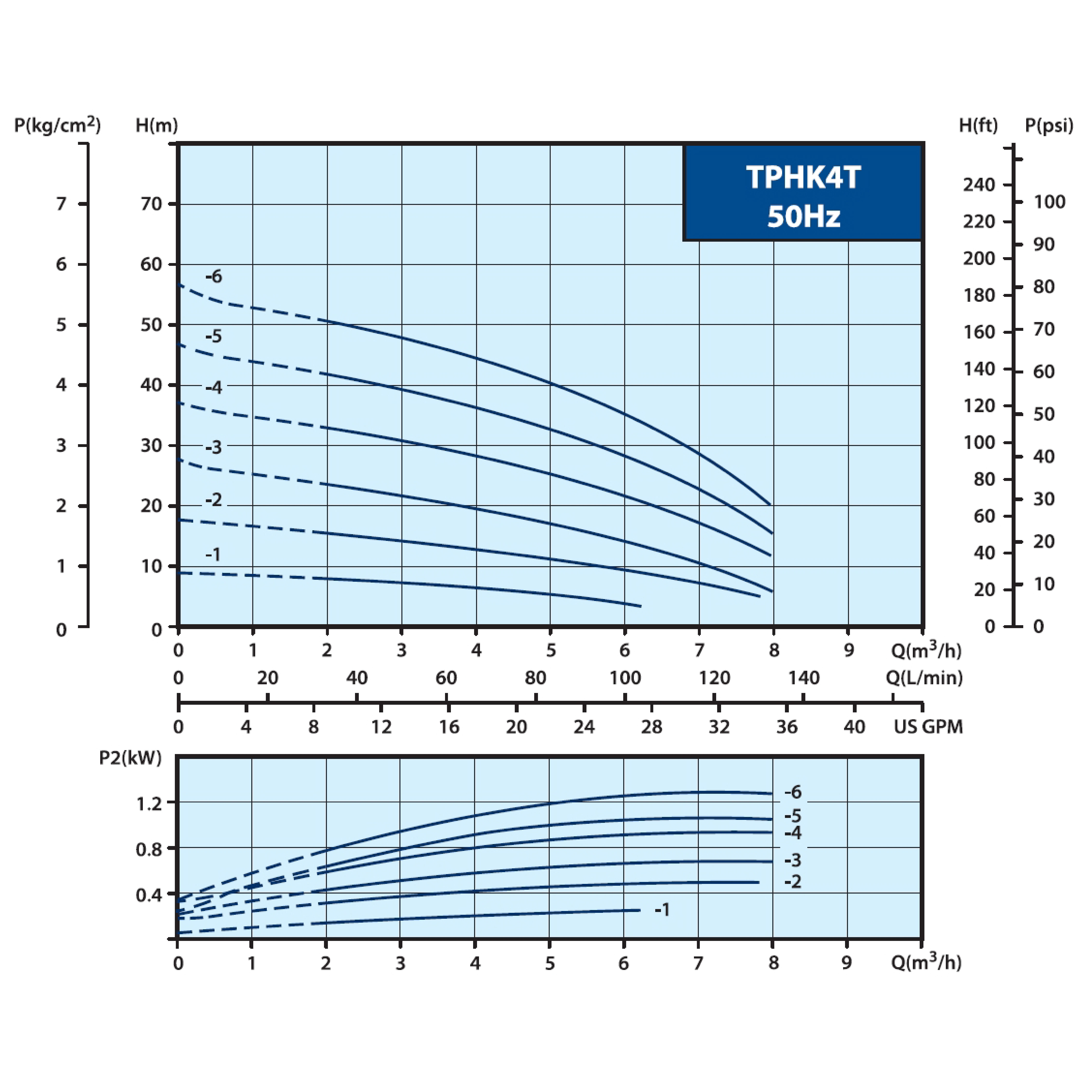

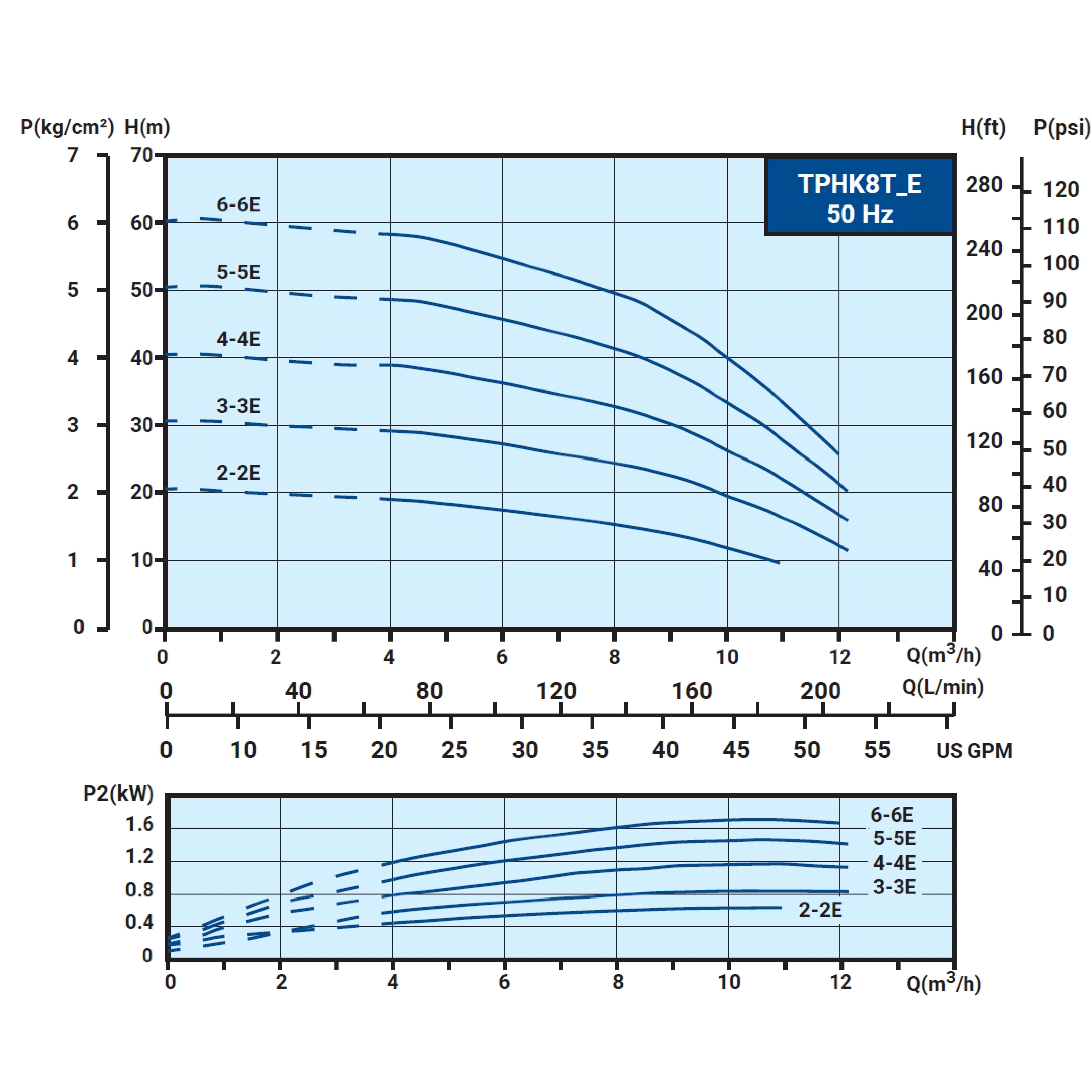

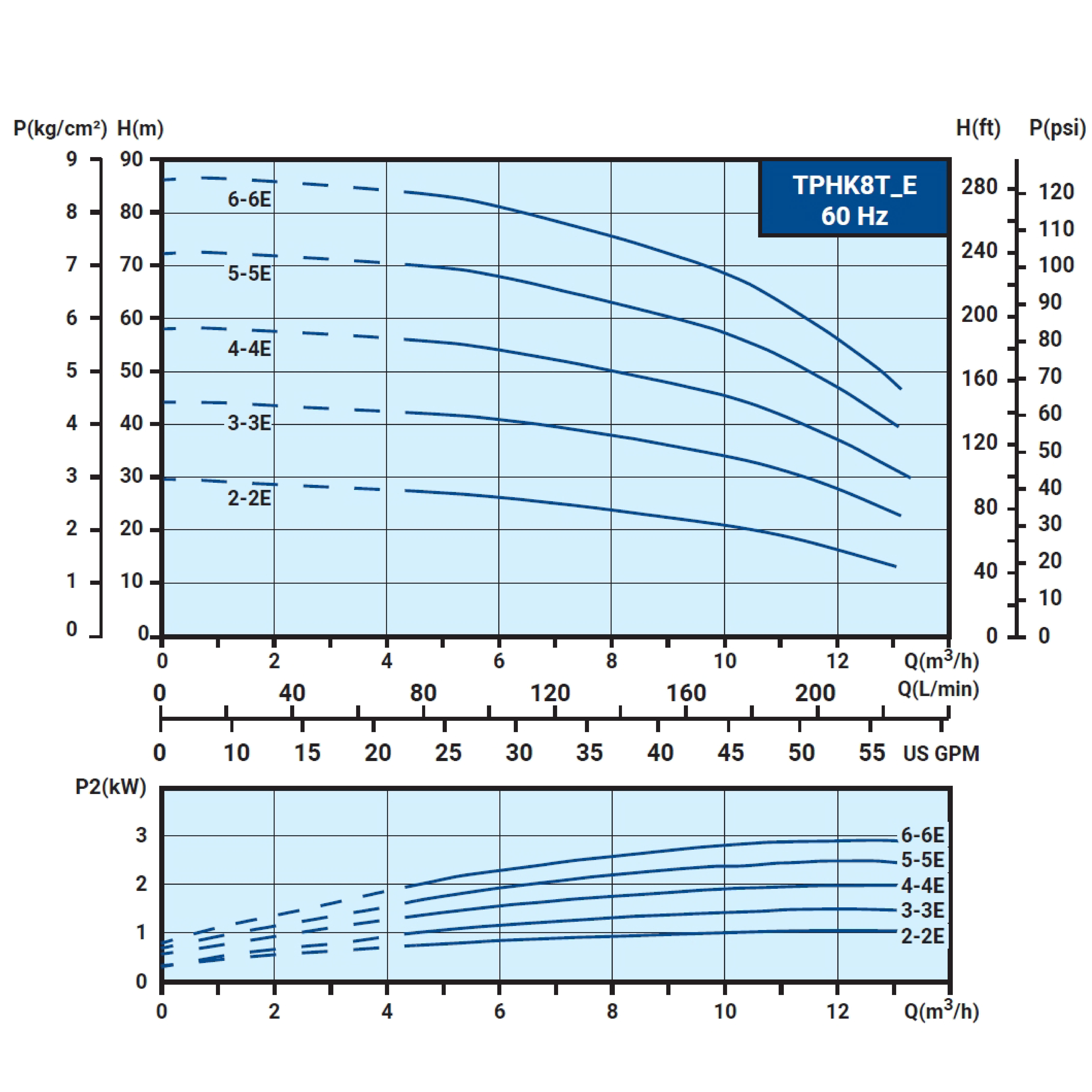

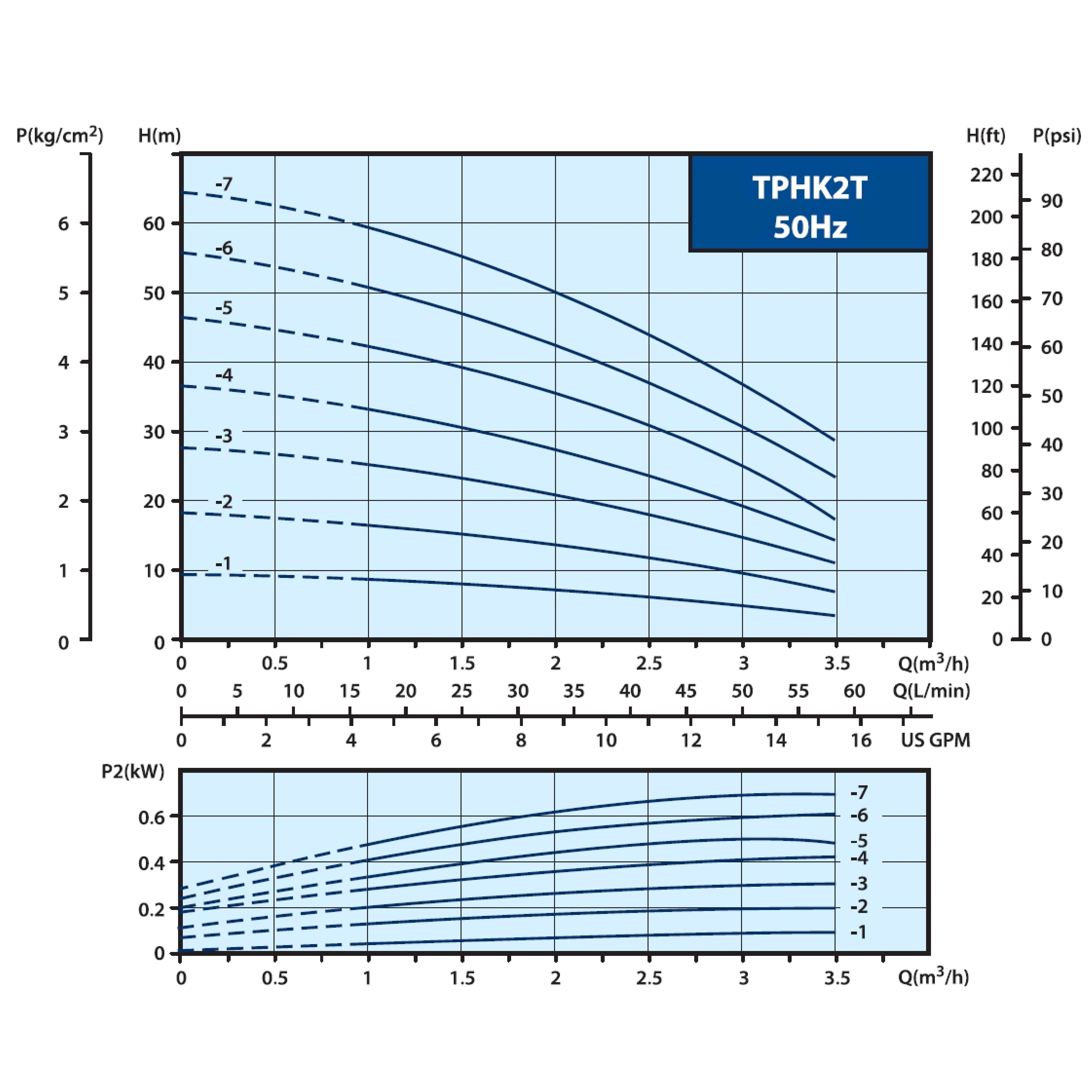

Pump Performance

Graph

Model

Frequency(Hz)

Rate Head(m)

Rate Flow(L/min)

Outlet(in.)

TPHK2T3-1(S)

Rp ¾"

TPHK2T3-1(S)

Rp ¾"

TPHK2T3-2(S)

Rp ¾"

TPHK2T3-2(S)

Rp ¾"

TPHK2T3-3(S)

Rp ¾"

TPHK2T3-3(S)

Rp ¾"

TPHK2T4-4(S)

Rp ¾"

TPHK2T4-4(S)

Rp ¾"

TPHK2T5-5(S)

Rp ¾"

TPHK2T5-5(S)

Rp ¾"

TPHK2T6-6(S)

Rp ¾"

TPHK2T6-6(S)

Rp ¾"

TPHK2T7-7(S)

Rp ¾"

TPHK2T7-7(S)

Rp ¾"

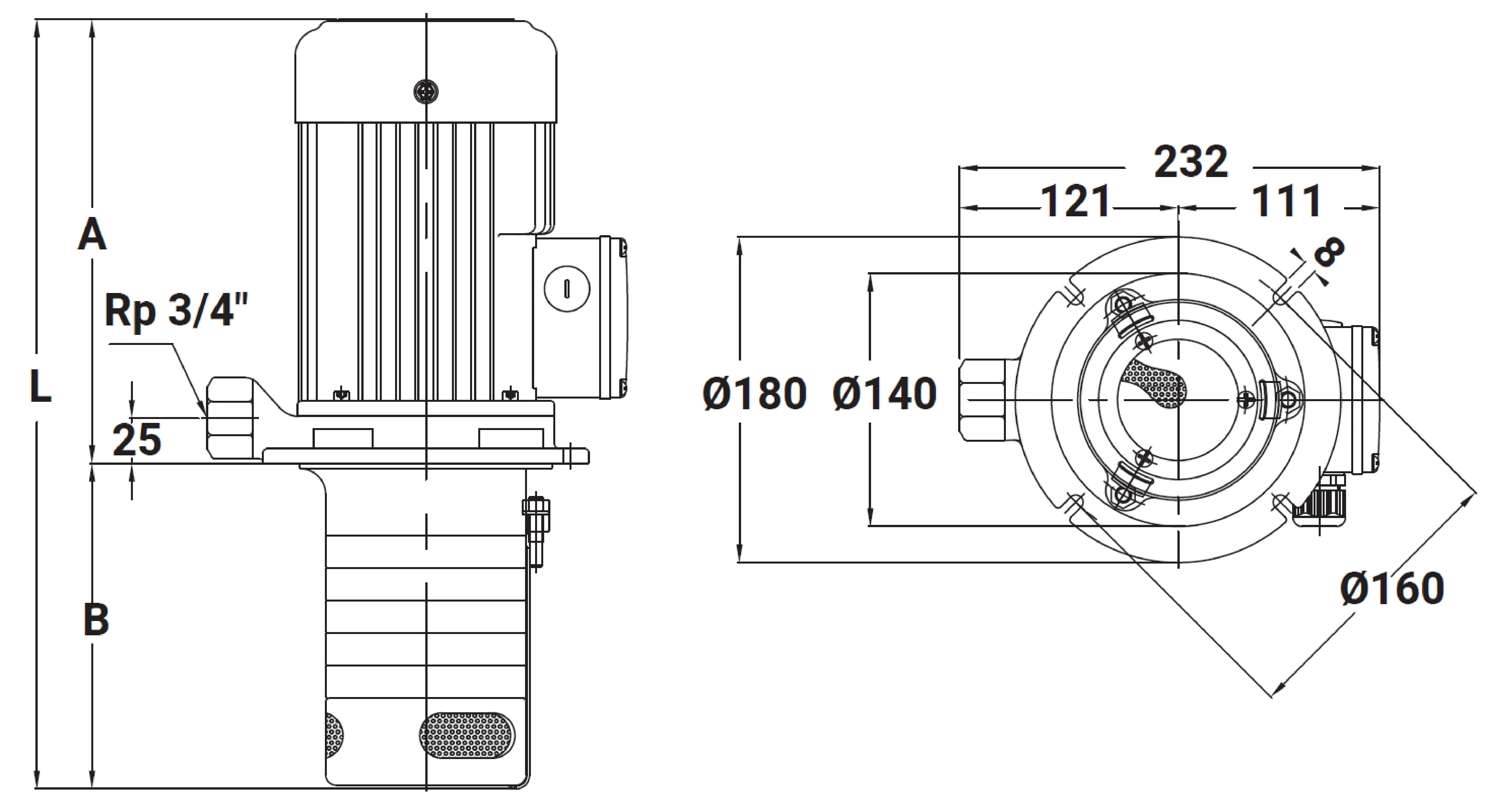

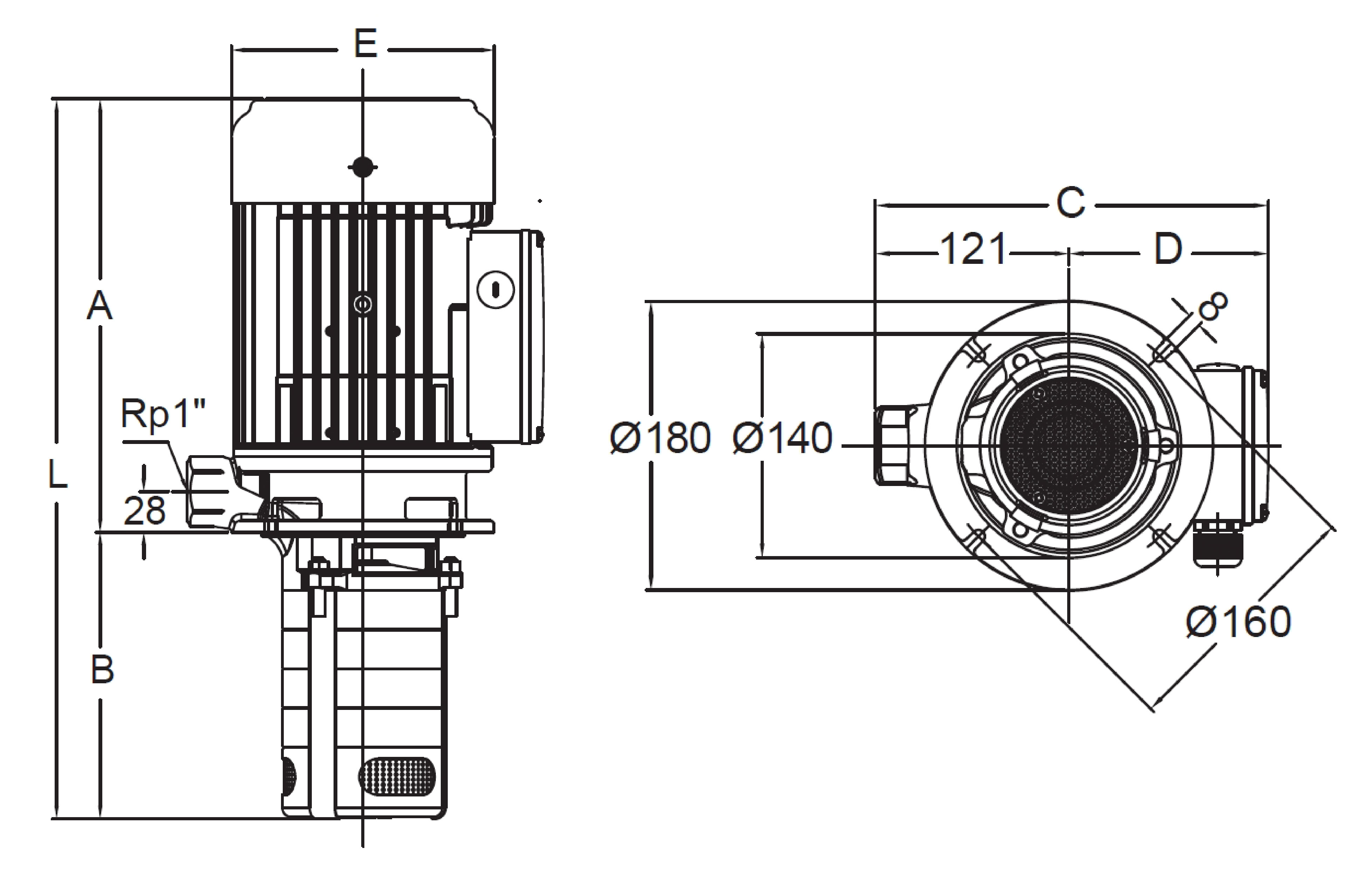

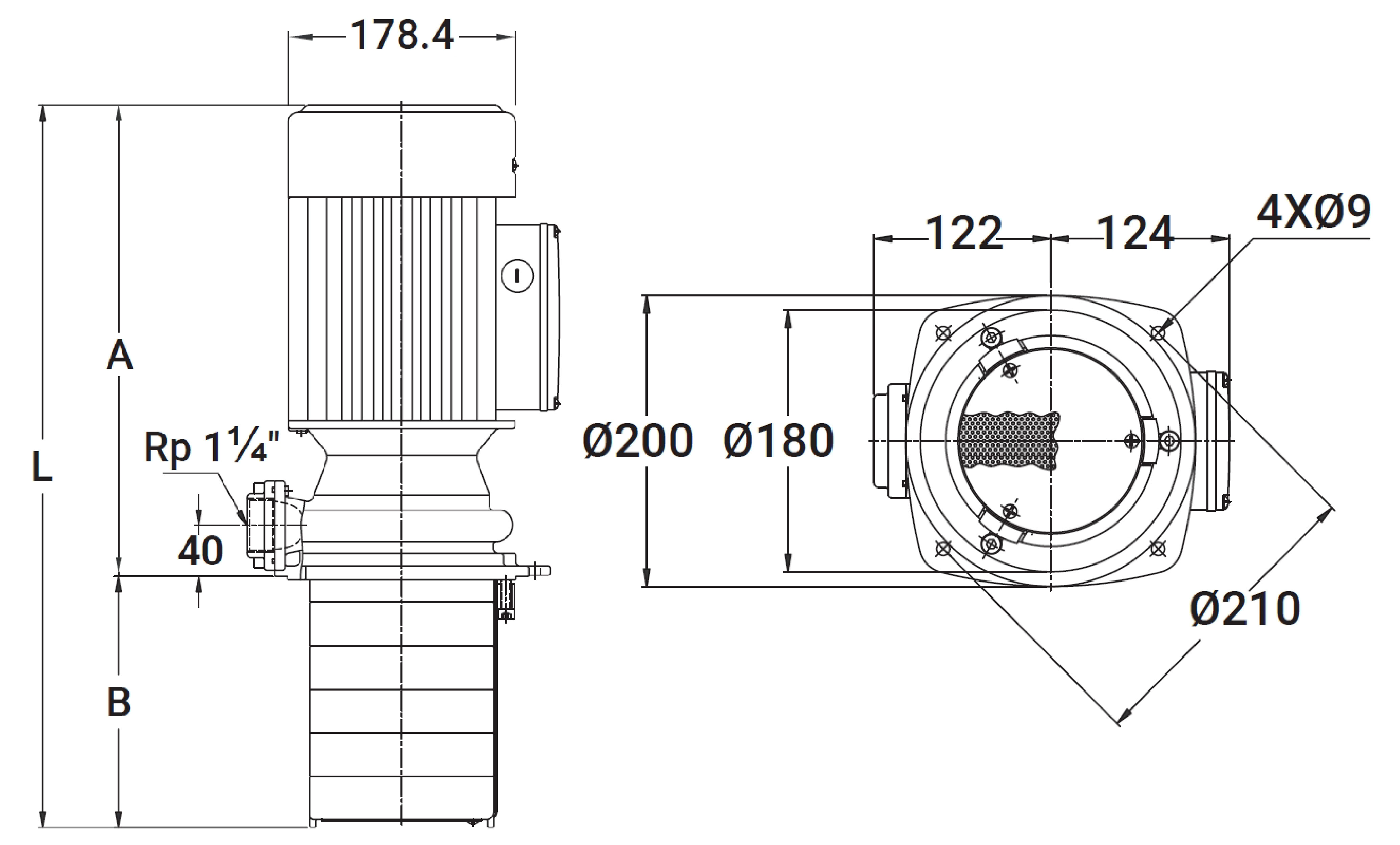

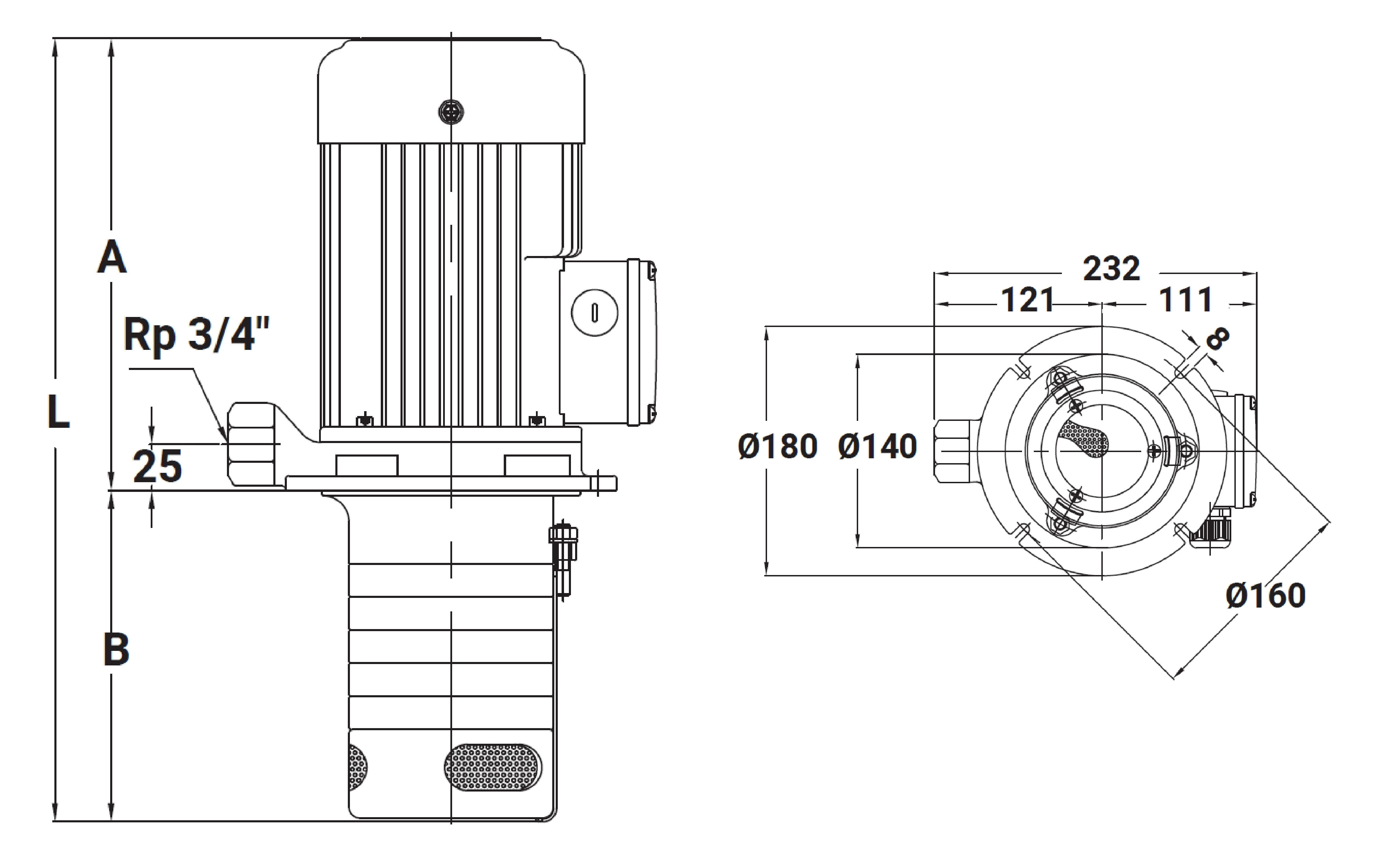

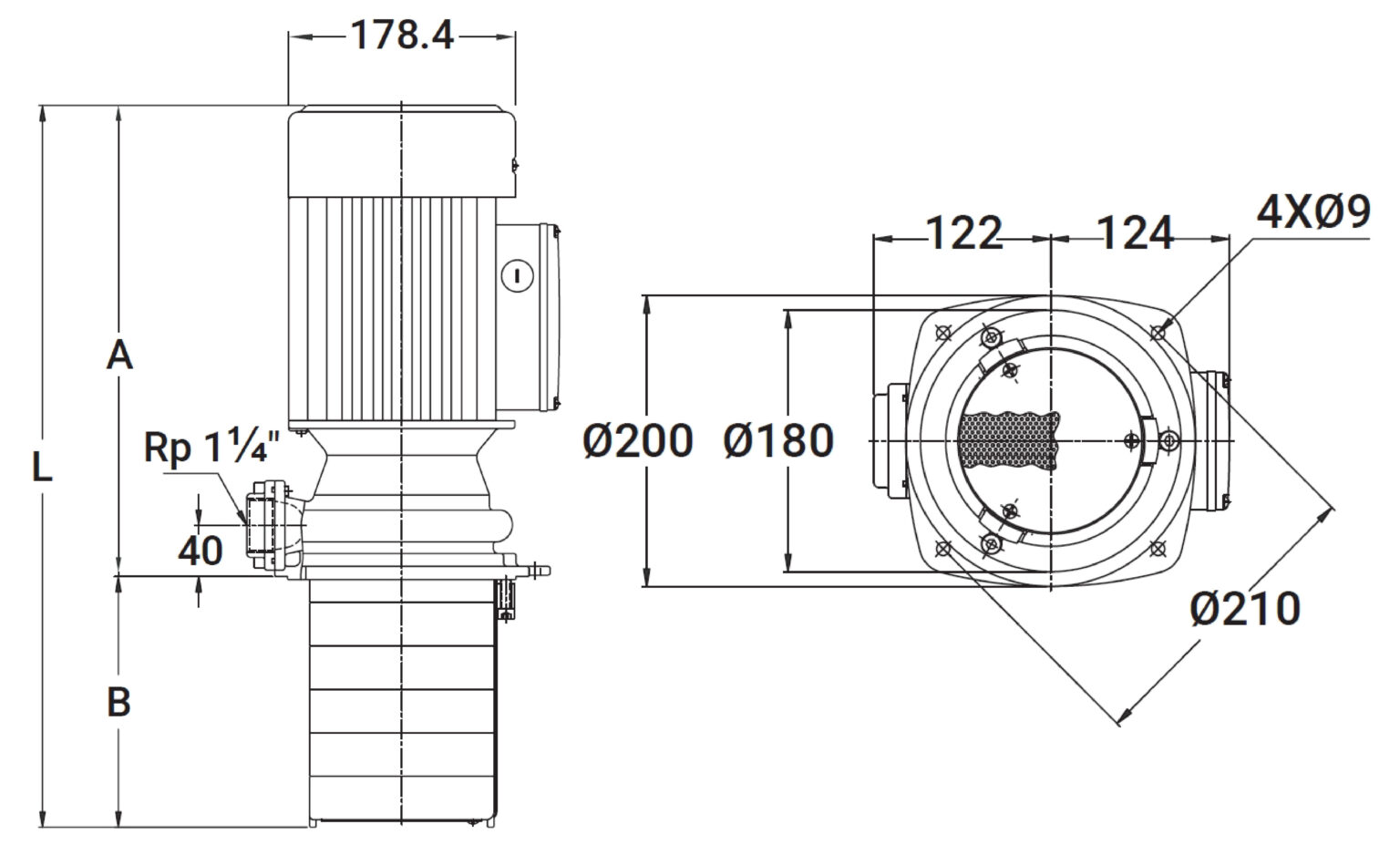

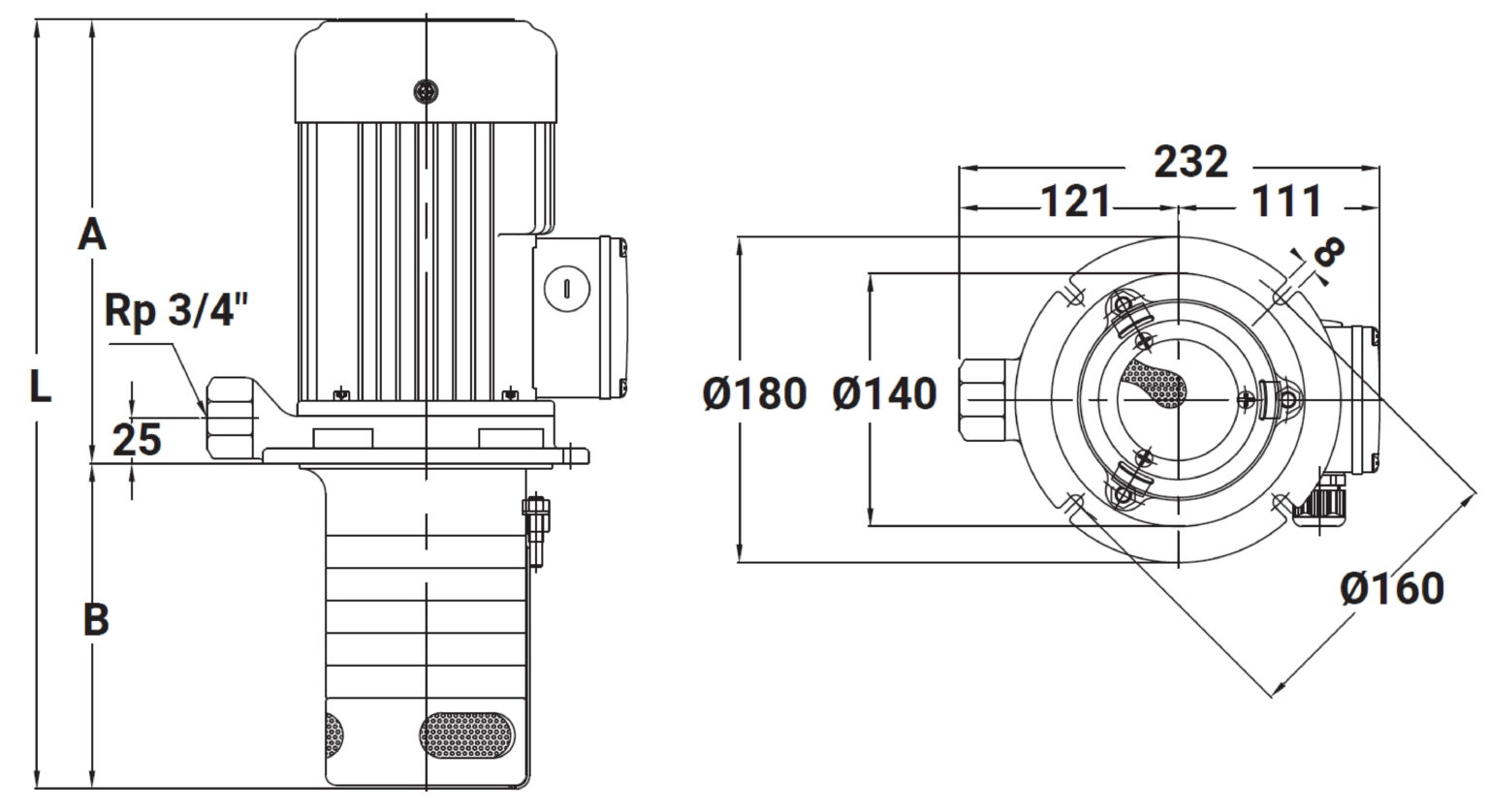

Dimension

Model

Frequency(Hz)

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

L(mm)

N.W.(kg)

Pallet Loading Qty.(pc)

TPHK2T3-1(S)

185.5

144

329.5

9.7

TPHK2T3-1(S)

185.5

144

329.5

9.7

TPHK2T3-2(S)

185.5

144

329.5

9.7

TPHK2T3-2(S)

185.5

144

329.5

9.7

TPHK2T3-3(S)

185.5

144

329.5

9.7

TPHK2T3-3(S)

185.5

144

329.5

9.7

TPHK2T4-4(S)

245.5

162

407.5

12.2

TPHK2T4-4(S)

245.5

162

407.5

12.2

TPHK2T5-5(S)

253.5

180

433.5

13.2

TPHK2T5-5(S)

253.5

180

433.5

13.2

TPHK2T6-6(S)

253.5

198

451.5

13.5

TPHK2T6-6(S)

253.5

198

451.5

13.5

TPHK2T7-7(S)

284

216

500

16.5

TPHK2T7-7(S)

284

216

500

16.5

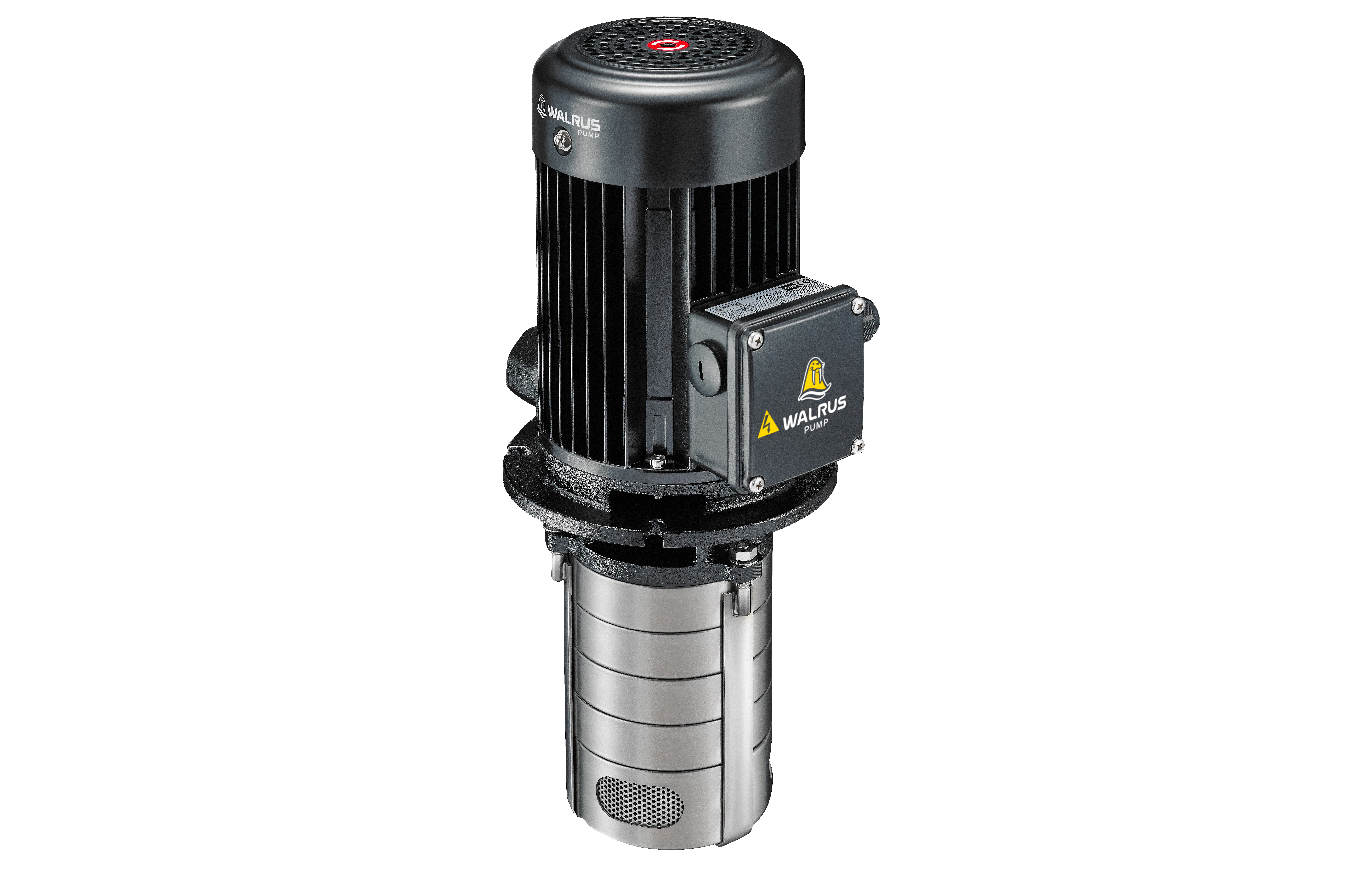

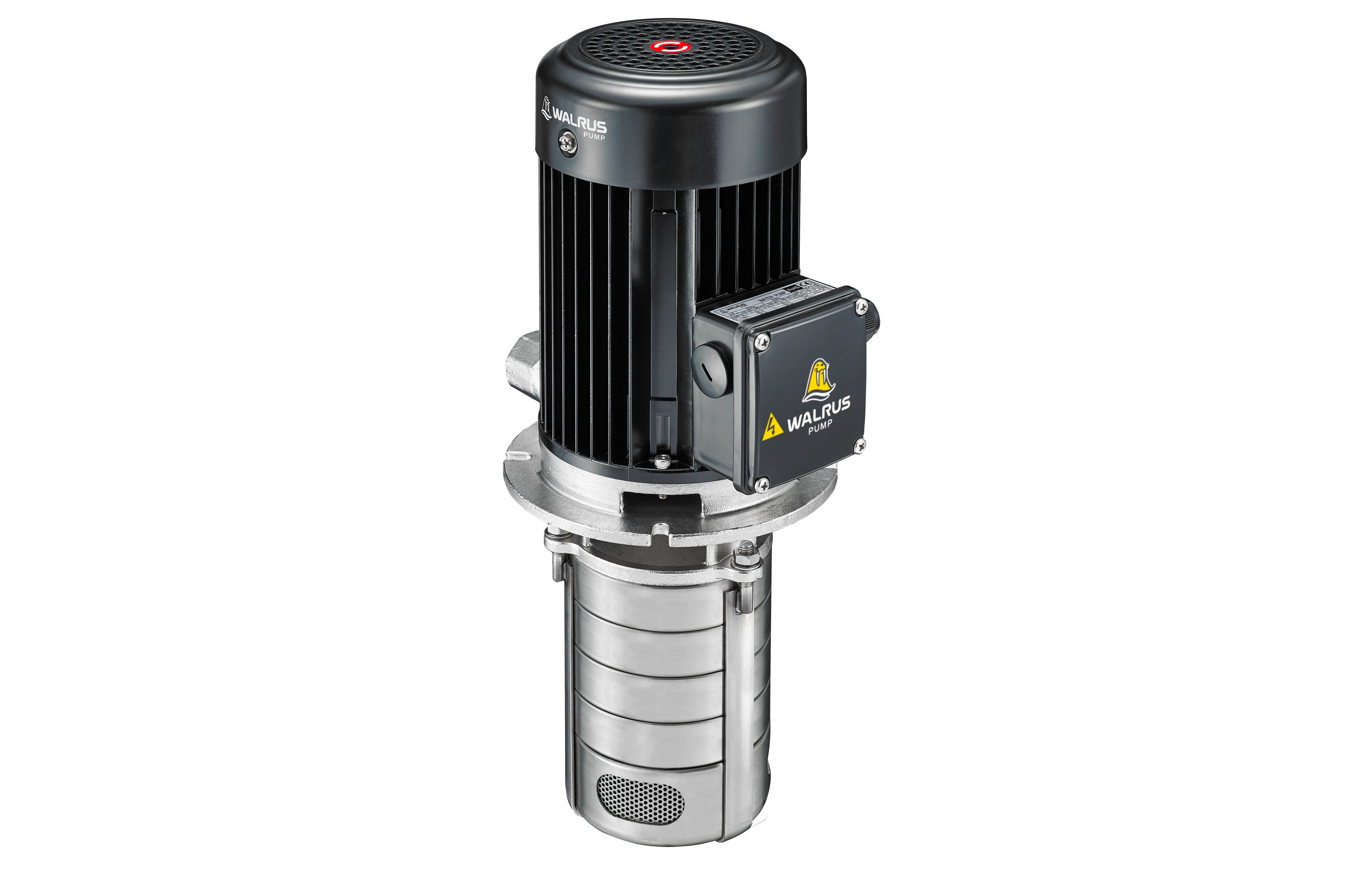

TPHK4T

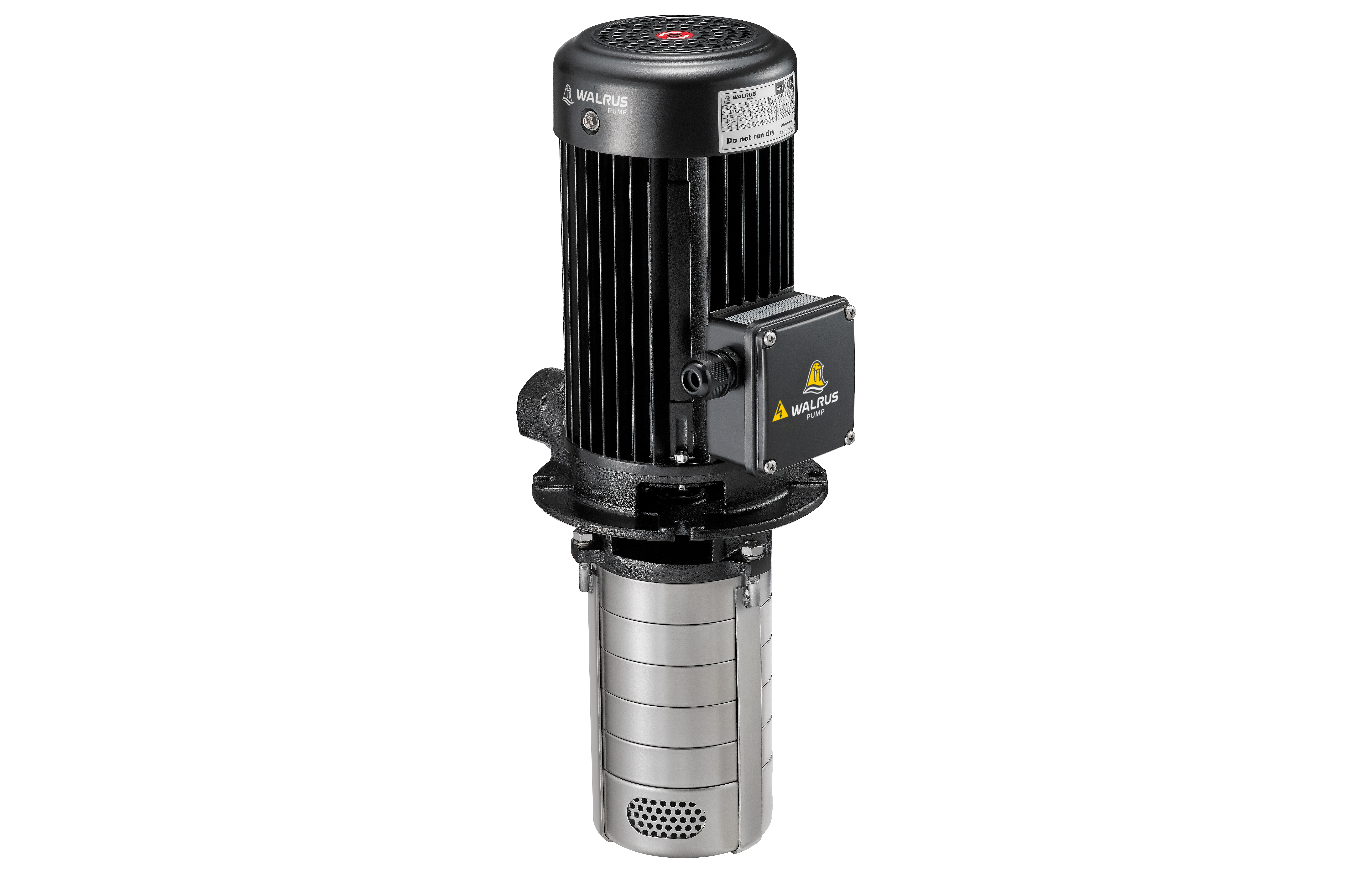

TPHK8T

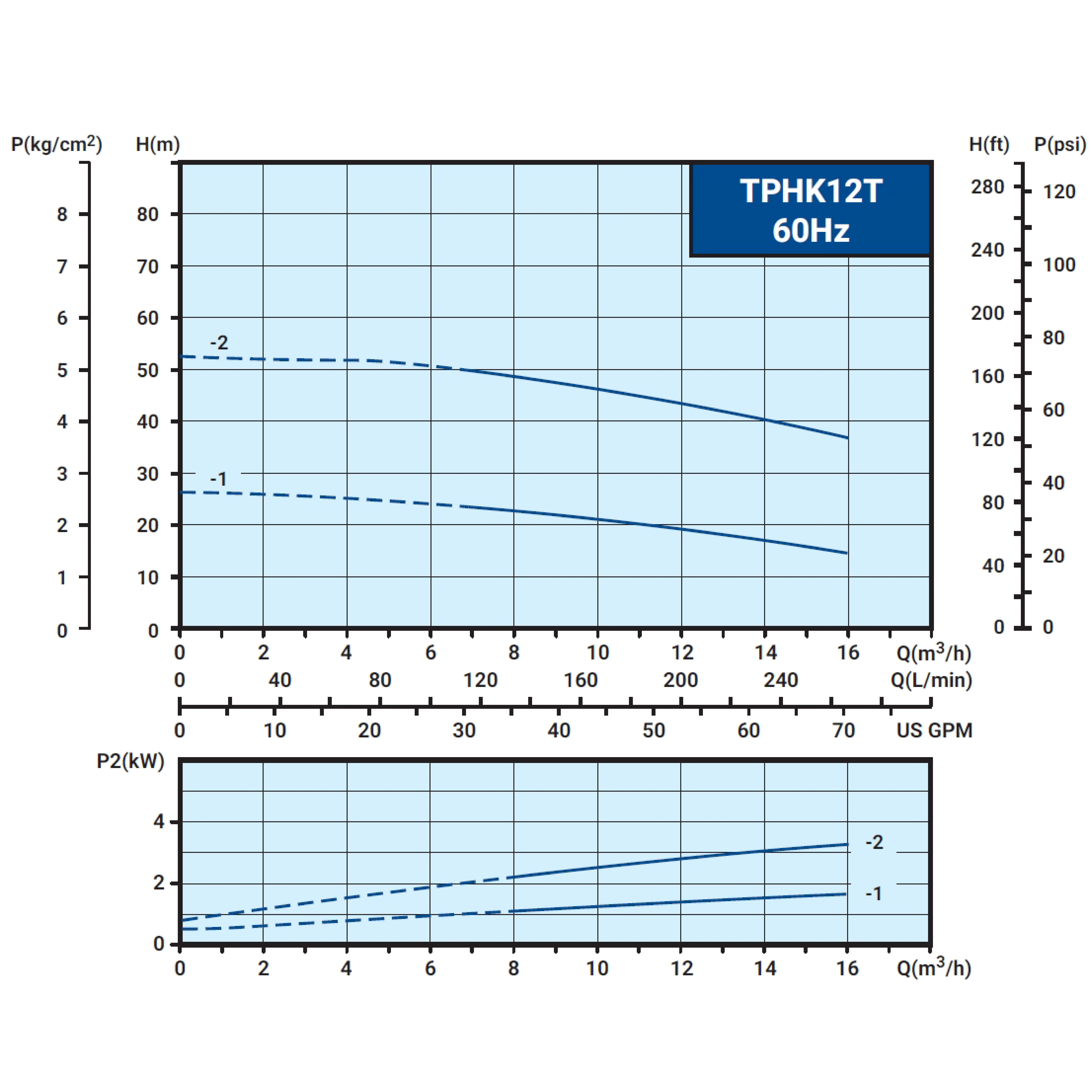

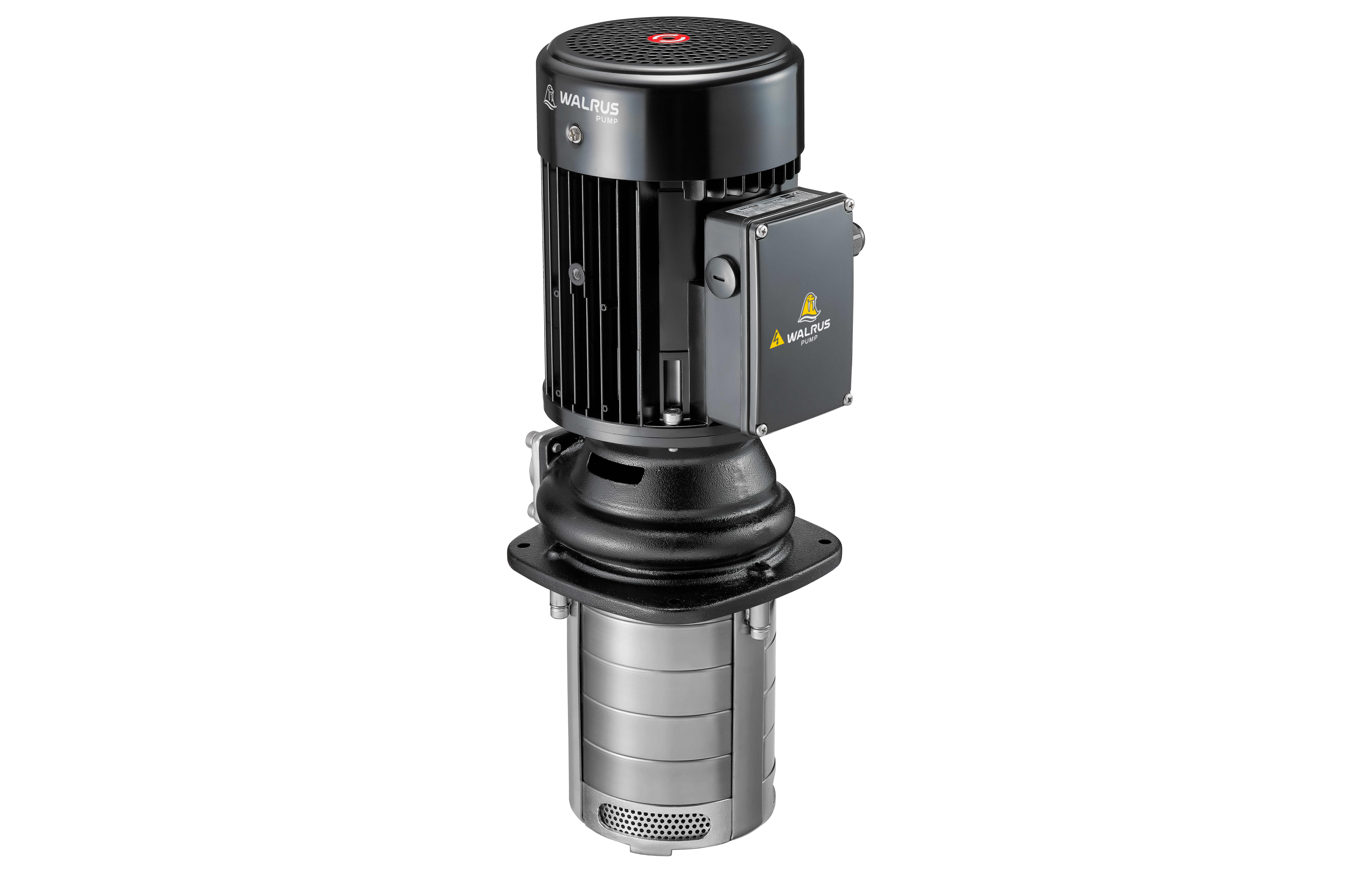

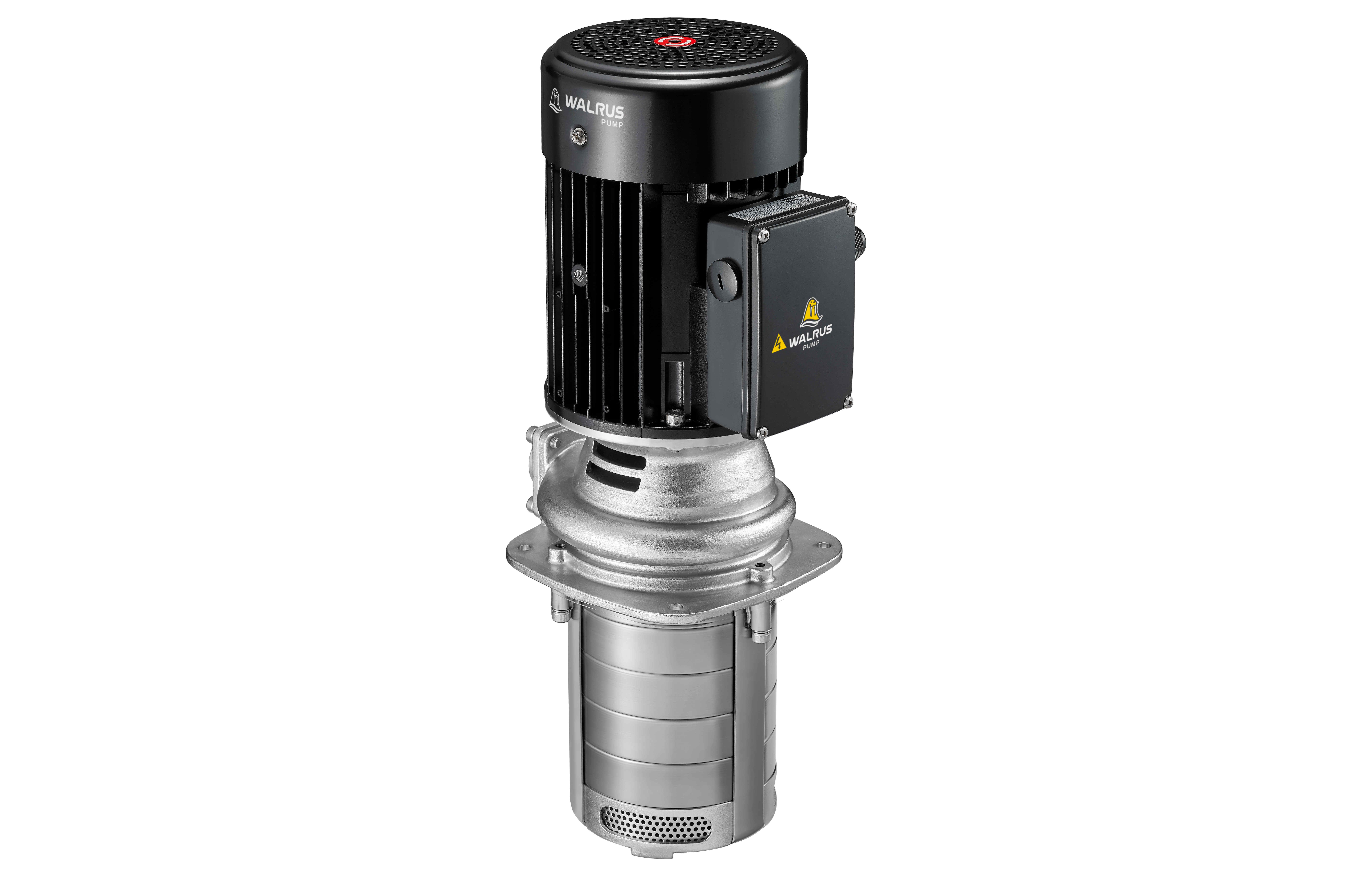

TPHK12T

TPHK Series Applications

Manufacturing Industry

Industrial Process Cooling

A key solution for stable precision manufacturing, suitable for cooling, chip removal, flushing, and lubrication.

The,Interior,Of,An,Industrial,Boiler,Room,With,Three,Large

Manufacturing Industry

Hot and Cold Liquid Transfer

Meeting the needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas

Manufacturing Industry

Industrial Process Flushing

Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants.

Disk,Type,Oil,Skimmer,For,Liquid,Flood,Coolant,In,Modern

Manufacturing Industry

Industrial Filtration

Integration with filtration and recycling systems enables transfer to storage tanks or subsequent processing stages, ensuring continuous operation and consistent quality.
