RoHS2.0

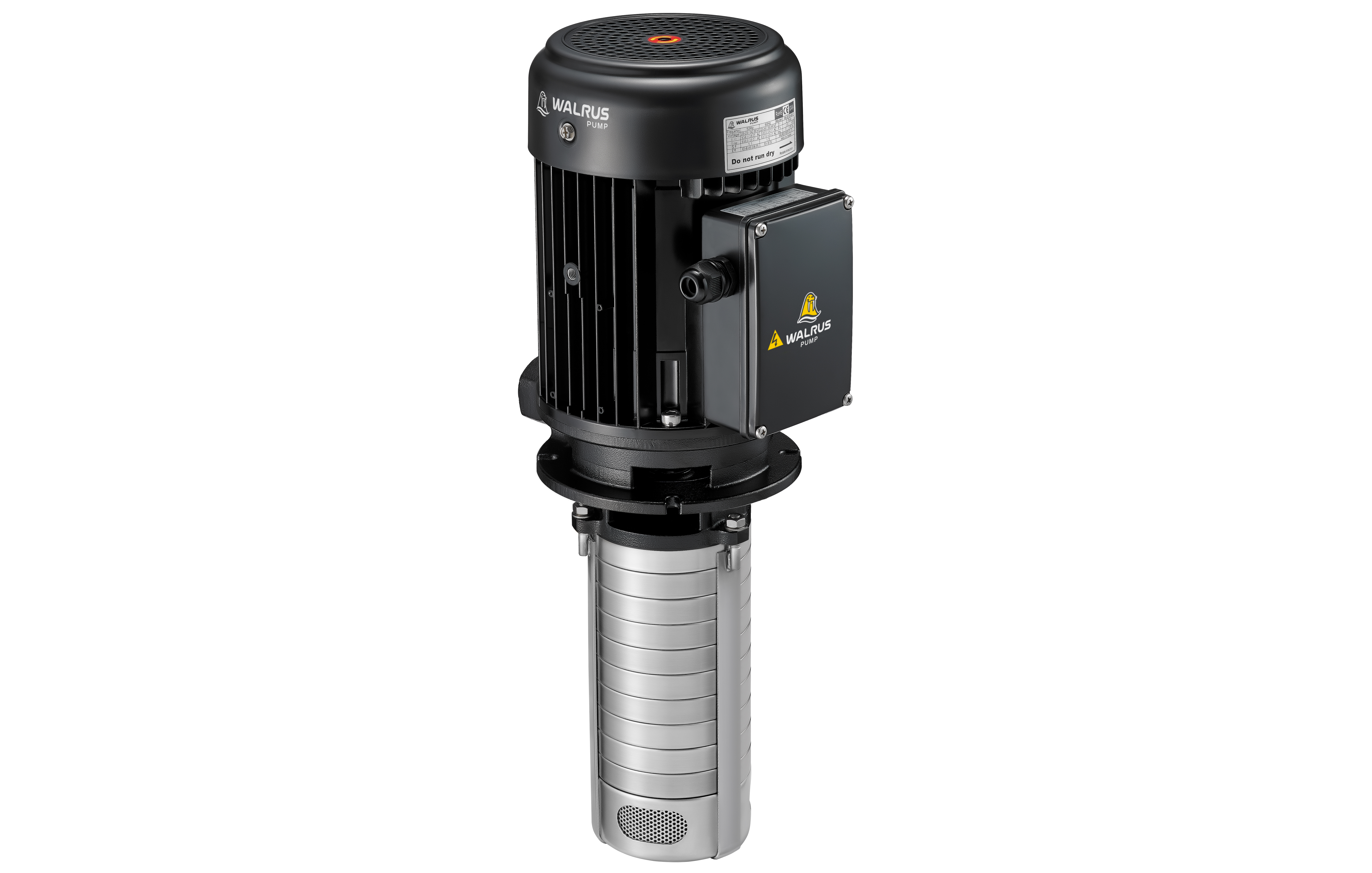

TPMK1T10 10
Model | TPMK1T10-10

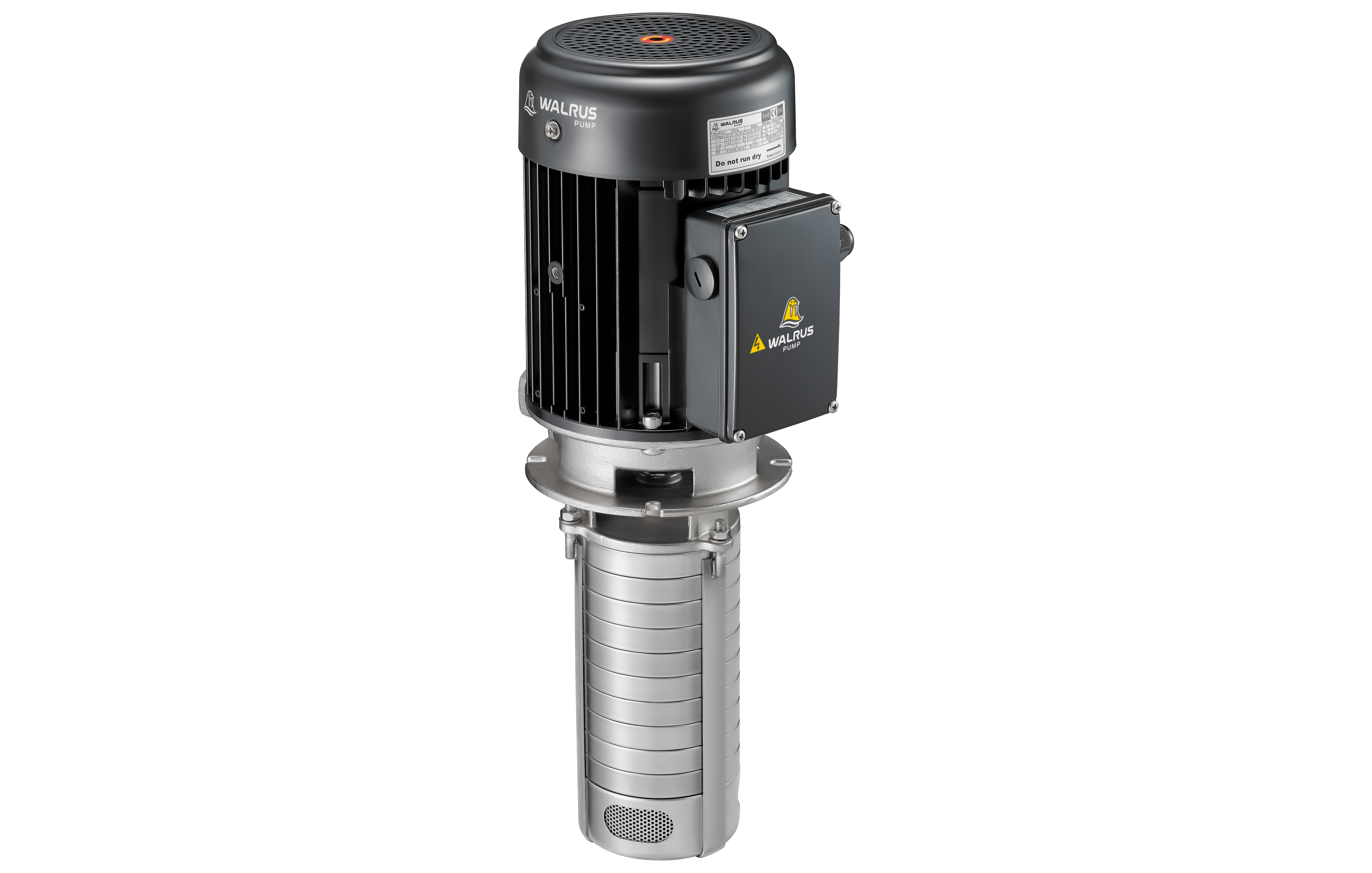

TPMK1T10 10S
Model | TPMK1T10-10S

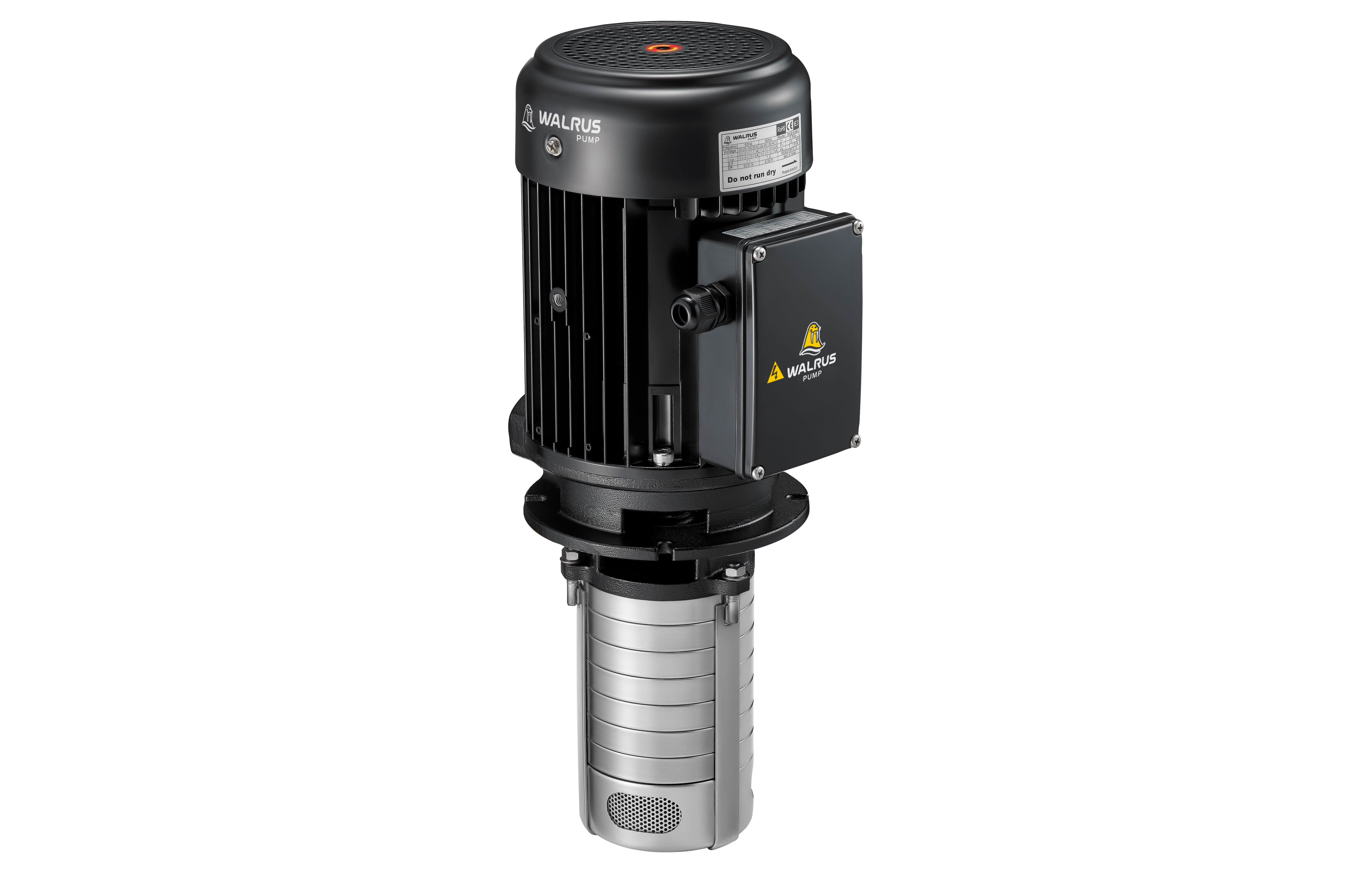

TPMK5T7 7
Model | TPMK5T7-7

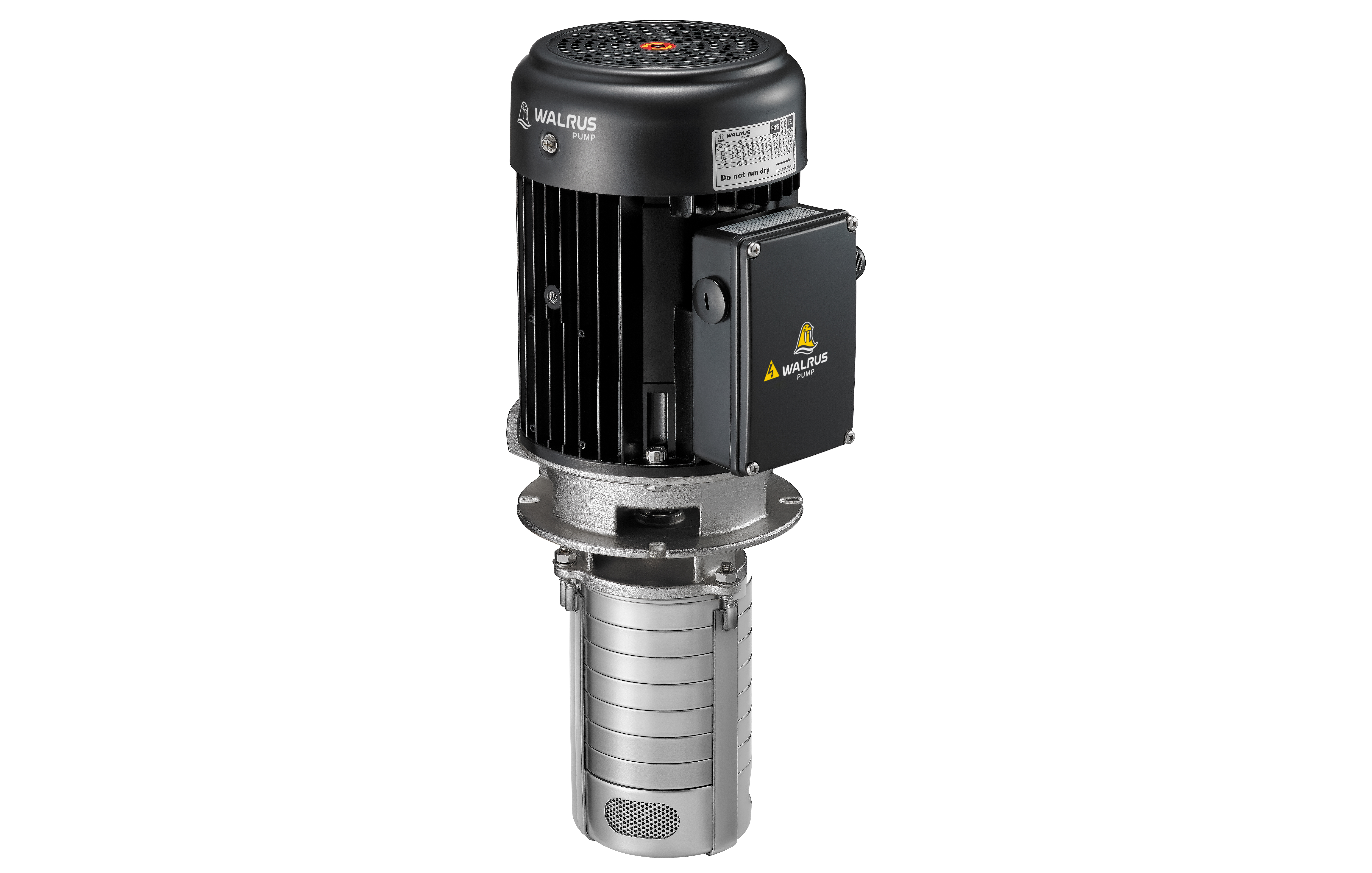

TPMK5T7 7S
Model | TPMK5T7-7S

Immersible Centrifugal Pump

Multi-Stage Immersible Pump
TPMK Series

  • Meeting water pressure requirements ranging from 8 to 12 bar.
  • Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
  • In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.

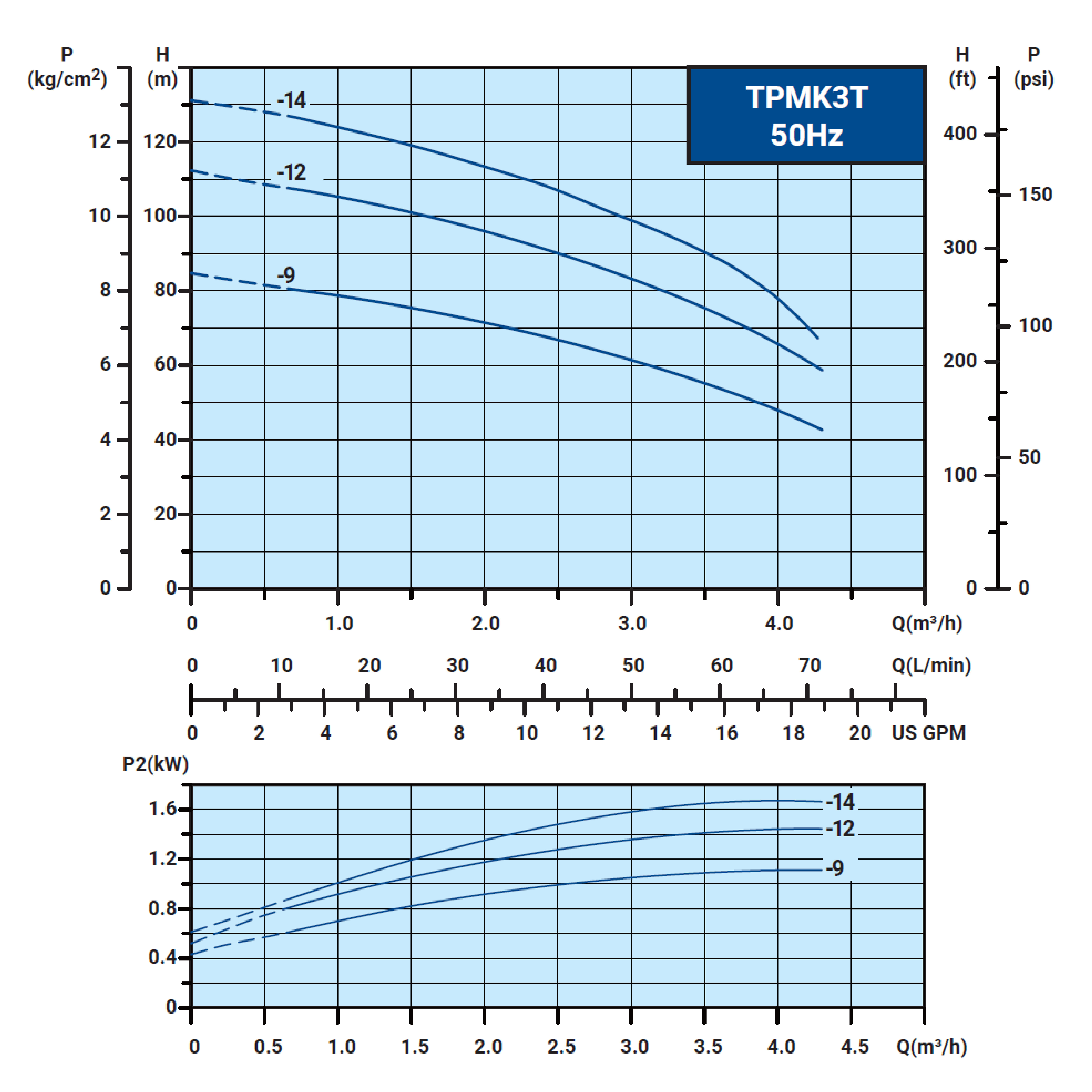

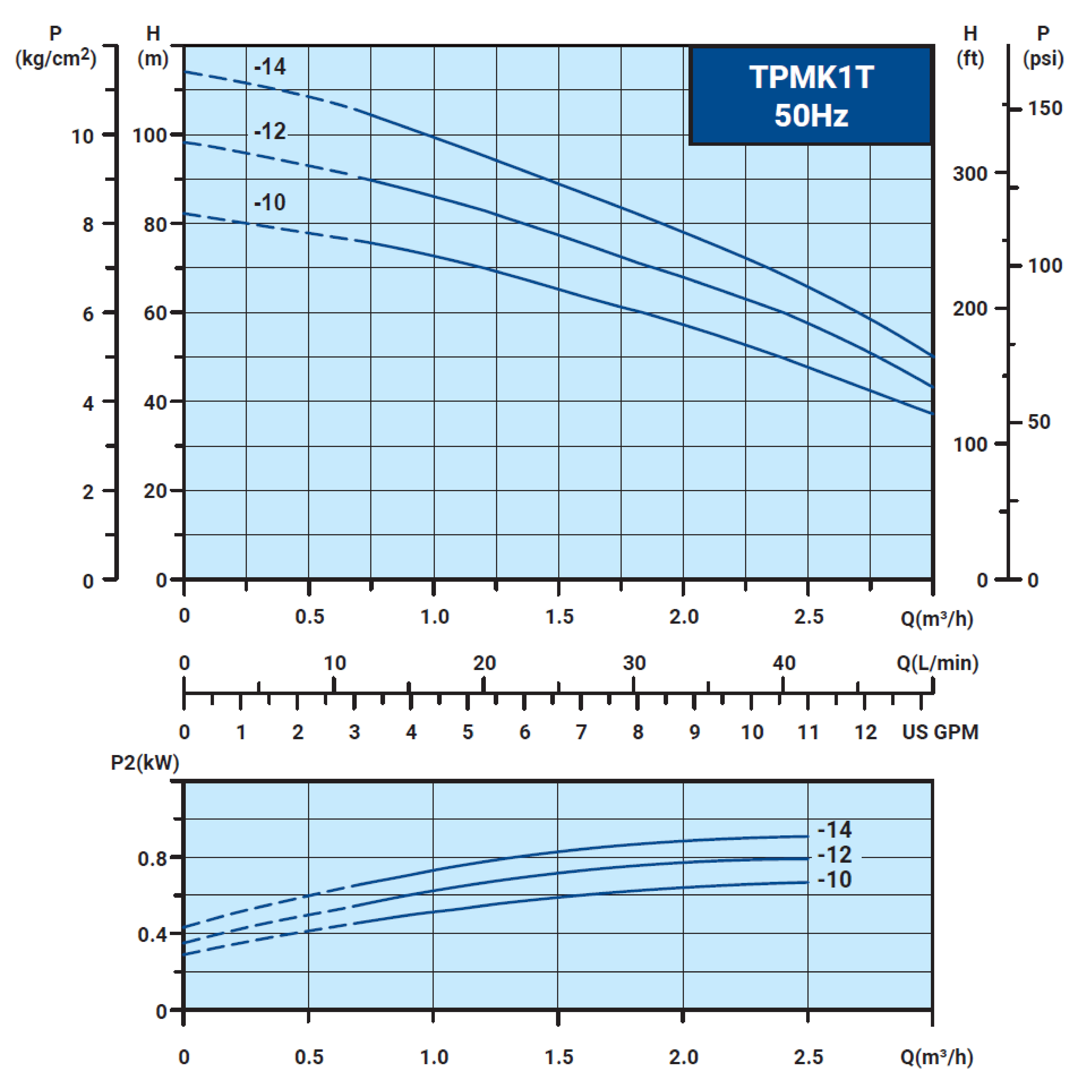

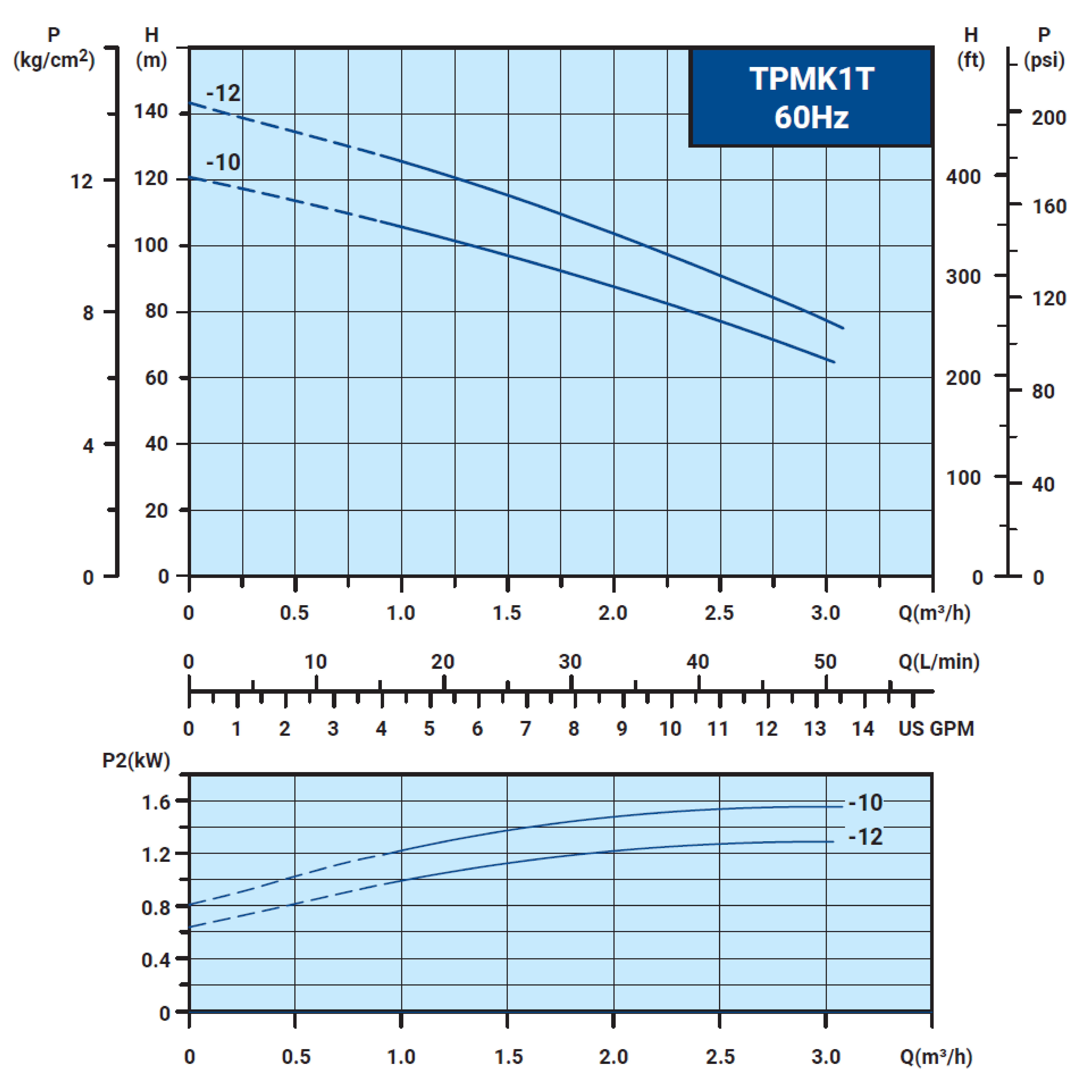

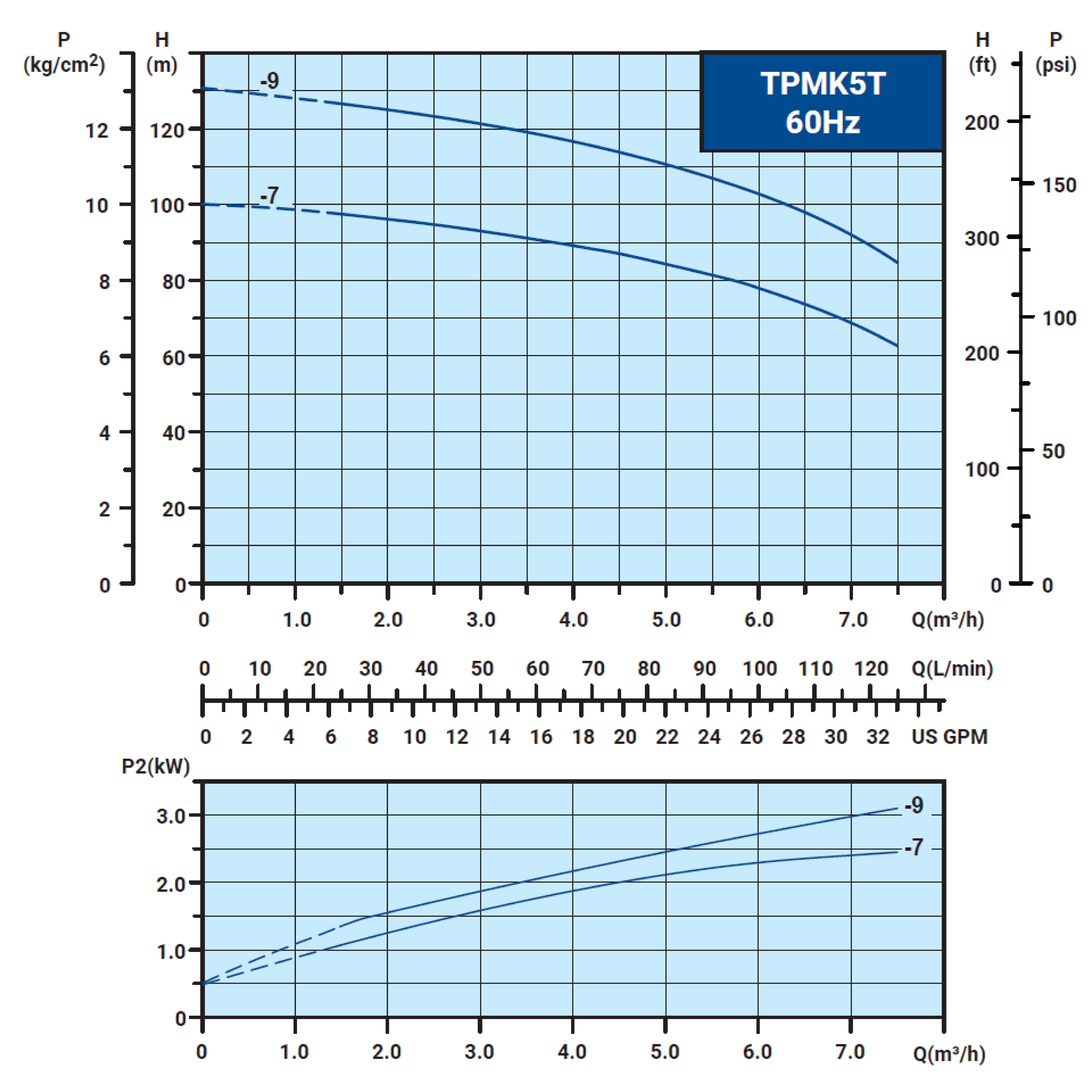

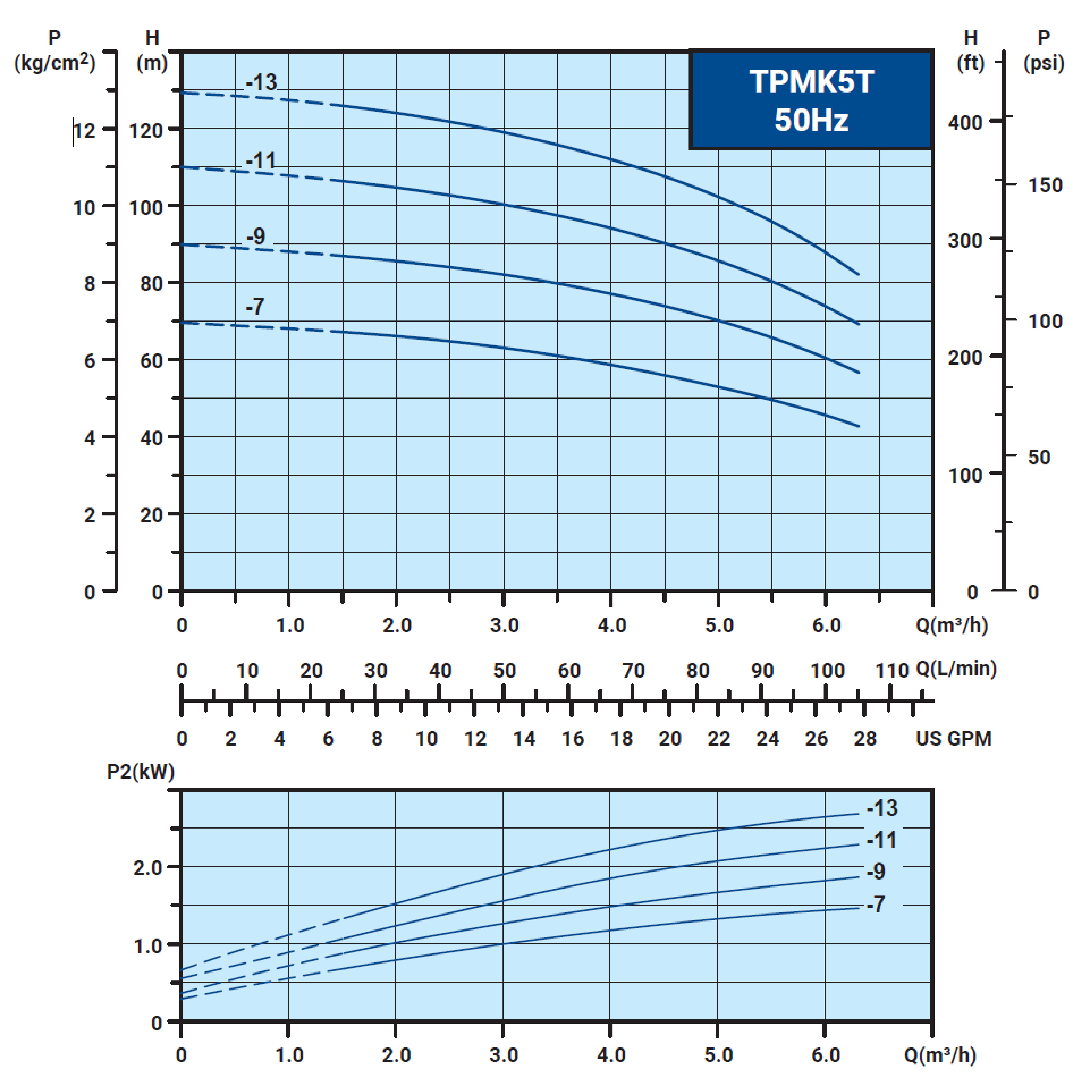

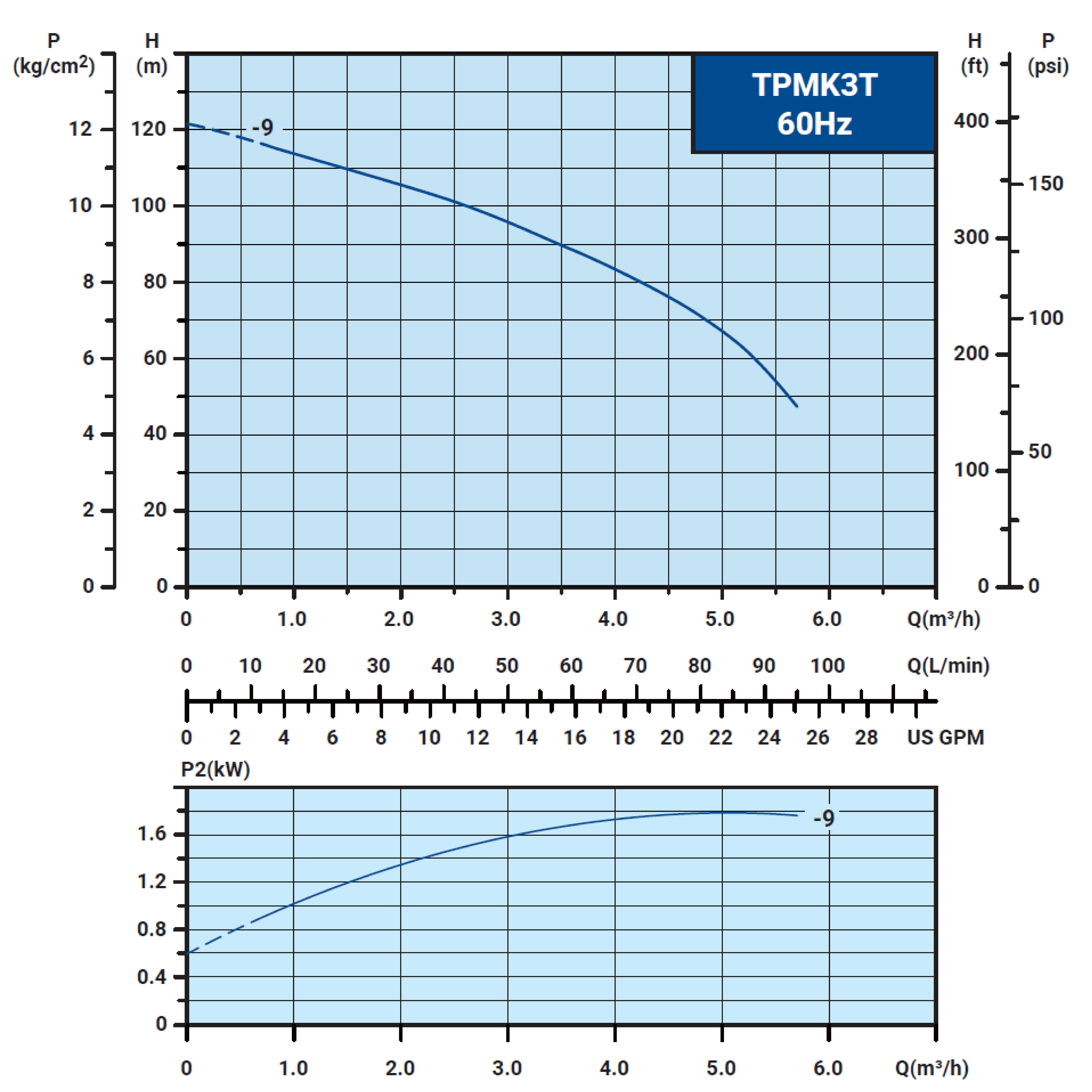

Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
1.1 - 3.0
Up to 130
Up to 150
60
1.1 - 3.7
Up to 140
Up to 160

Features

Optimized for Medium to High Water Pressure
It is designed to meet water pressure requirements ranging from 8 to 12 bar.
Stability and Reliability
A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.
Flexible Configuration
The number of impeller segments can be adjusted to suit different application requirements
Energy Efficient
Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.
Low-Noise Operation
The immersible multistage centrifugal pump features low operational noise.
Seal Material Selection
Various seal material options are offered for different liquid applications.
Ideal for the Machine Tool
Designed for industrial use, especially for machine tools. It is suitable for carrying fluids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+0°C ~ +90°C
Operating pressure
Max. 15 kg/cm²
Submerged Depth
Min. 40 mm

Motor

Frequency
50 / 60 Hz
Nominal Speed
2900 / 3500 rpm
Enclosure Protection Class
IP54
Insulation Class
F

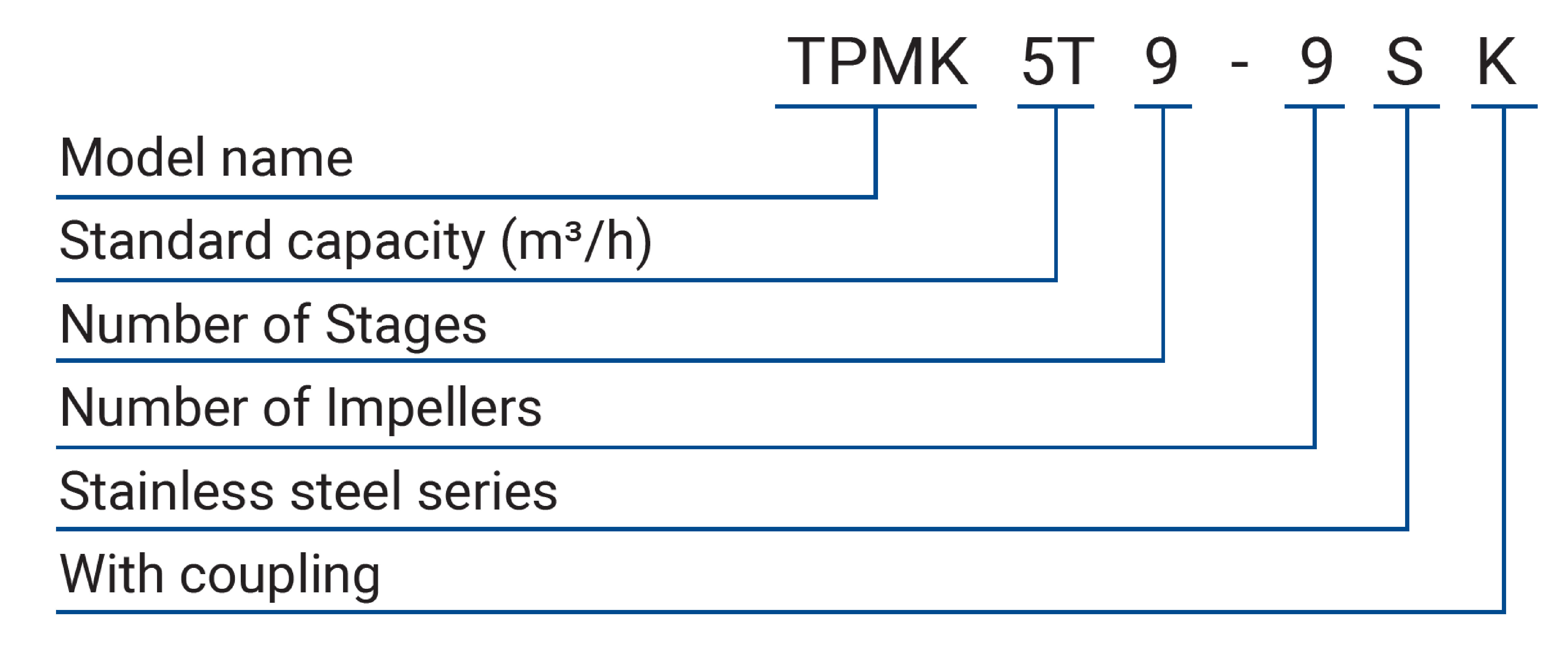

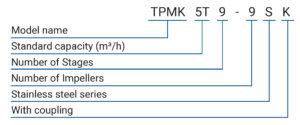

Model code

TPMK_編碼原則(英文)

Frequency

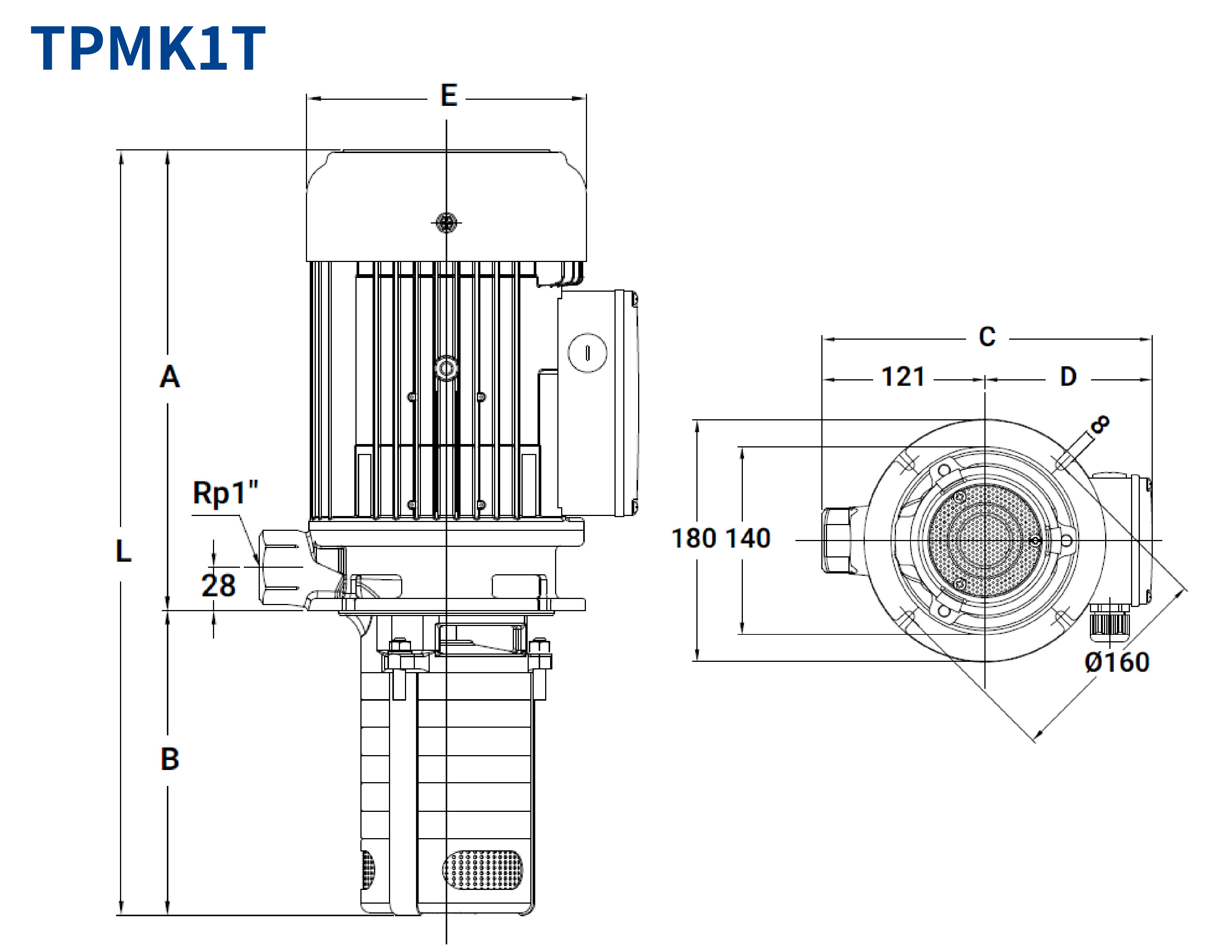

TPMK1T

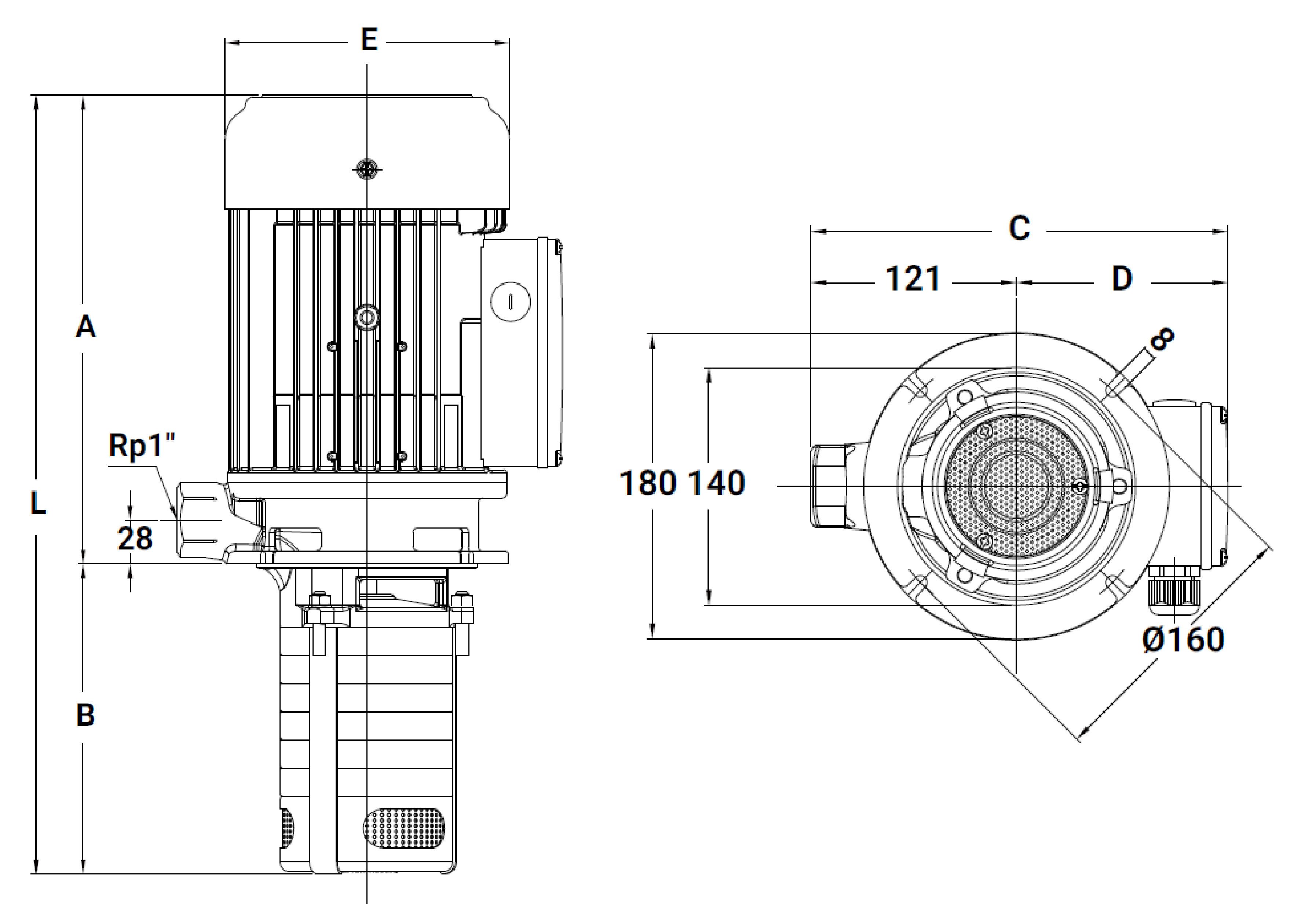

TPMK3T
TPMK5T

TPMK Series Applications

CNC At Work
A key solution for stable precision manufacturing, suitable for cooling, chip removal, flushing, and lubrication.
The,Interior,Of,An,Industrial,Boiler,Room,With,Three,Large
Meeting the needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas
S__31170608_0
Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants.
Disk,Type,Oil,Skimmer,For,Liquid,Flood,Coolant,In,Modern
Integration with filtration and recycling systems enables transfer to storage tanks or subsequent processing stages, ensuring continuous operation and consistent quality.
TPMK IE3 EN002a 202308新識別
TPMK_Product Catalogue
Update2025-09-09
Size1.61 MB
TPMK EW

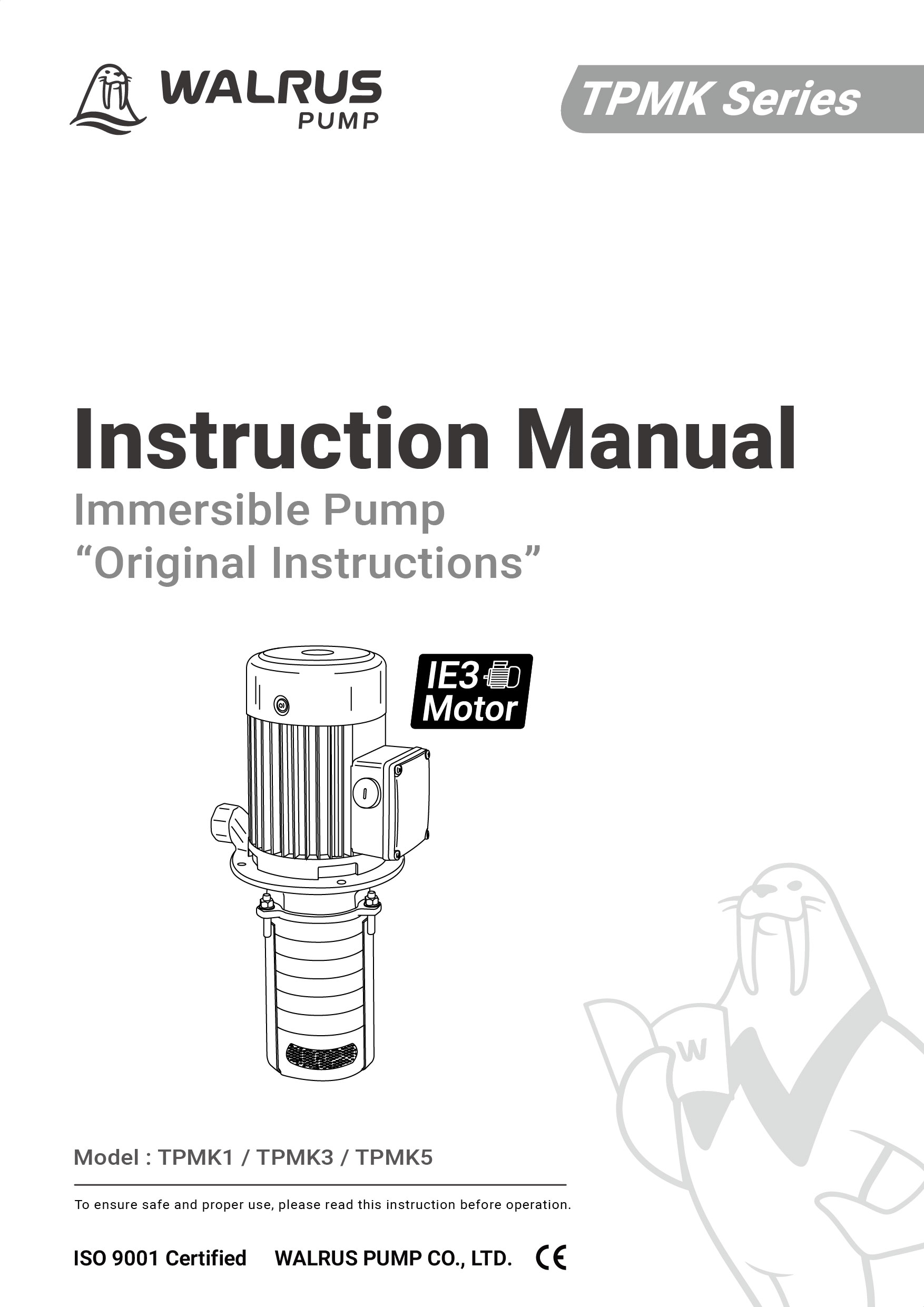

TPMK_Instruction Manual
Update2025-09-09
Size567.42 KB
