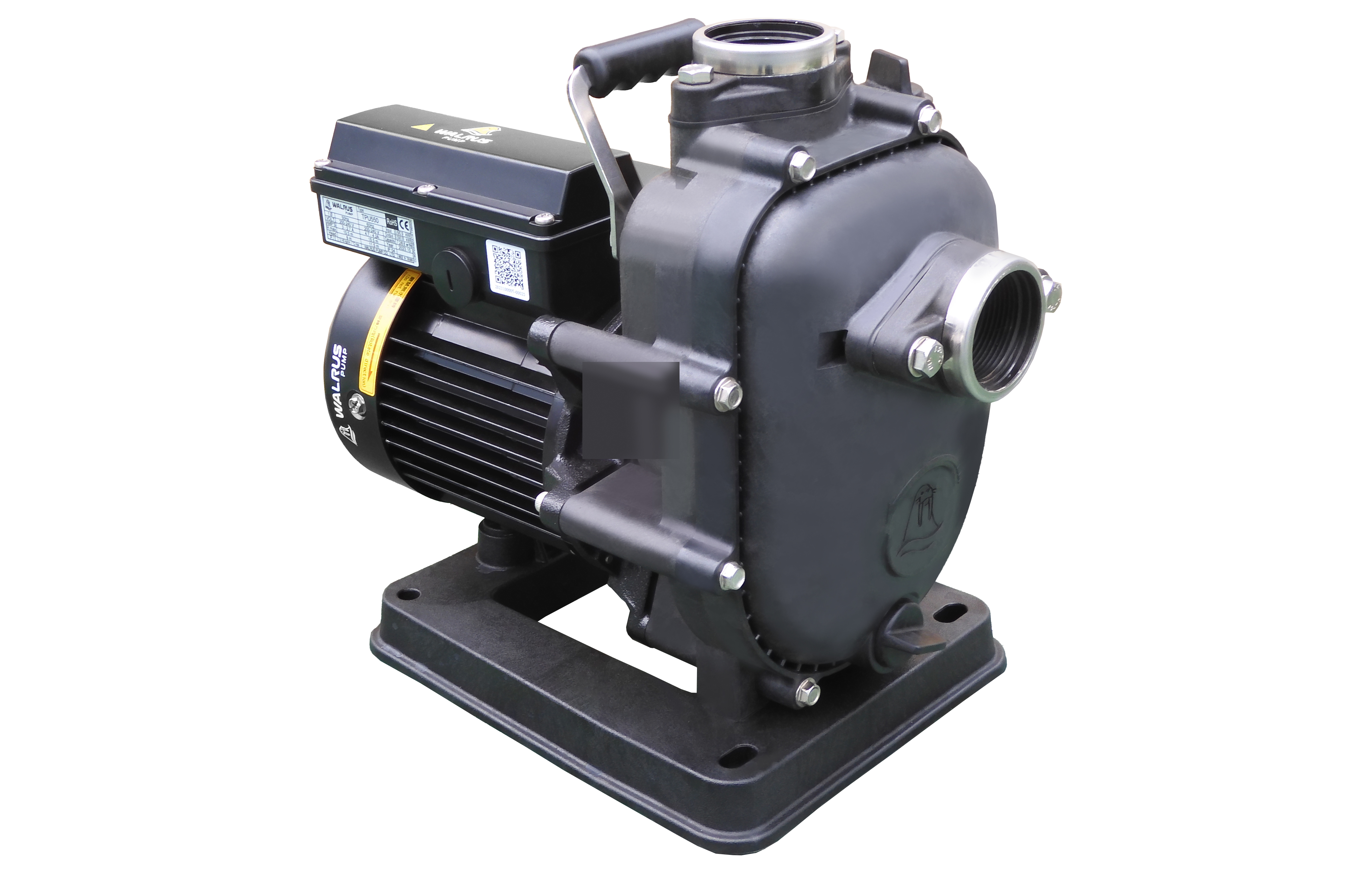

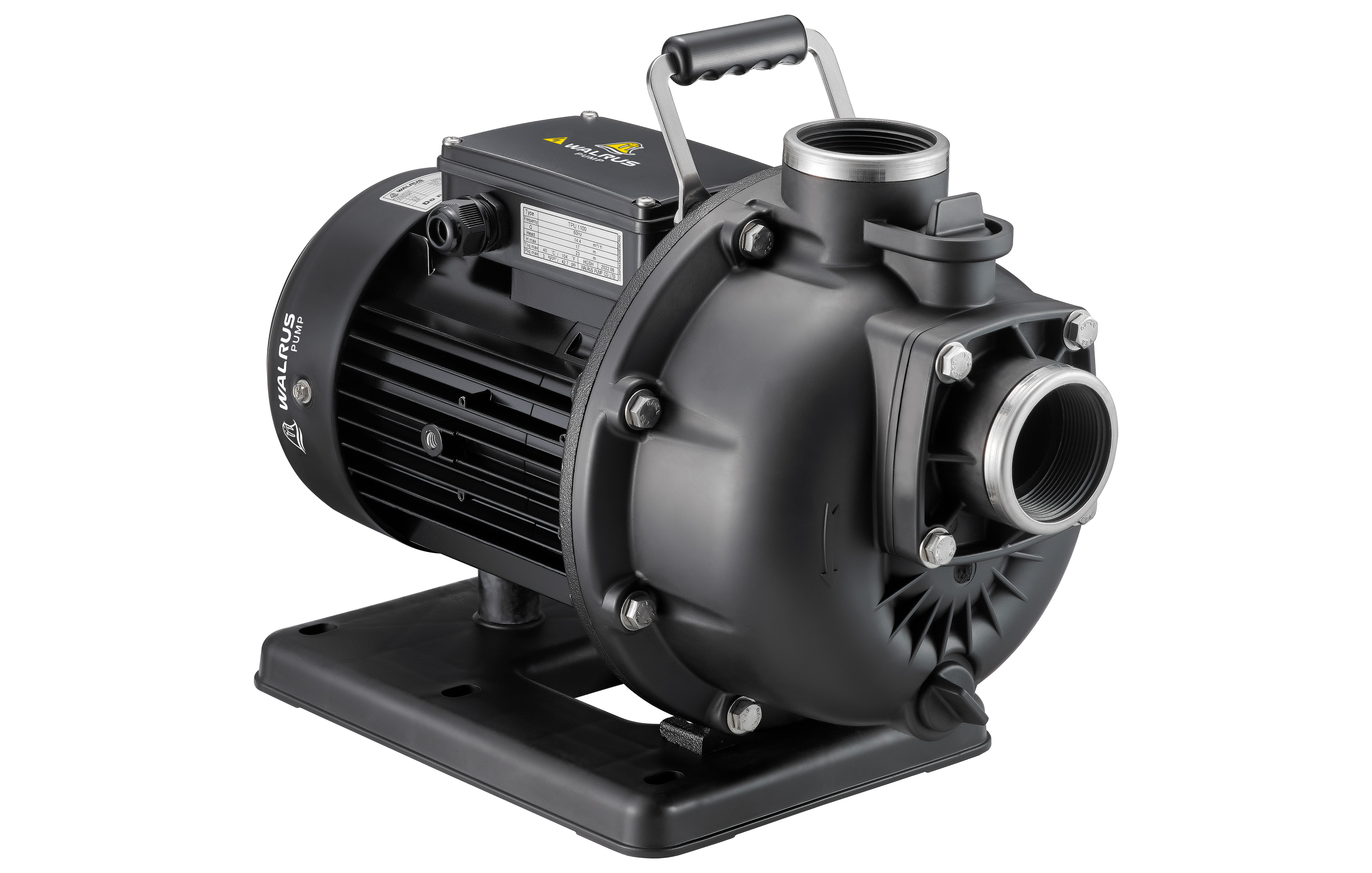

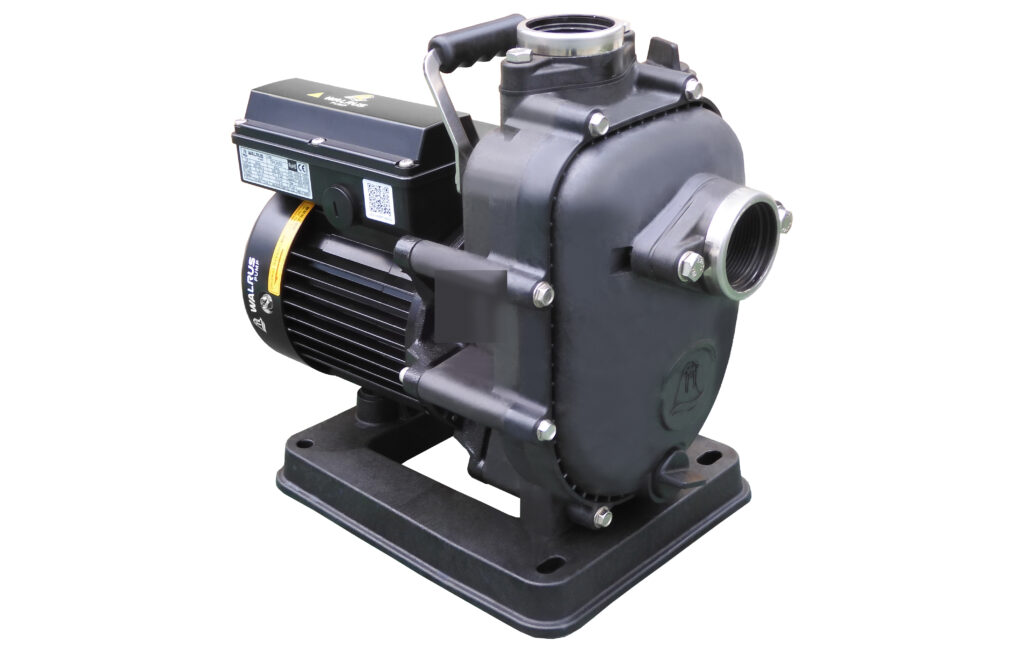

Horizontal Centrifugal Pump

Self Priming Pump
TPU Series

Features excellent self-priming capability and superior air evacuation performance.
Semi-open impeller design, suitable for high flow delivery.
It is ideal for salty environments.

Agriculture, Forestry, Fishery and Animal Husbandry

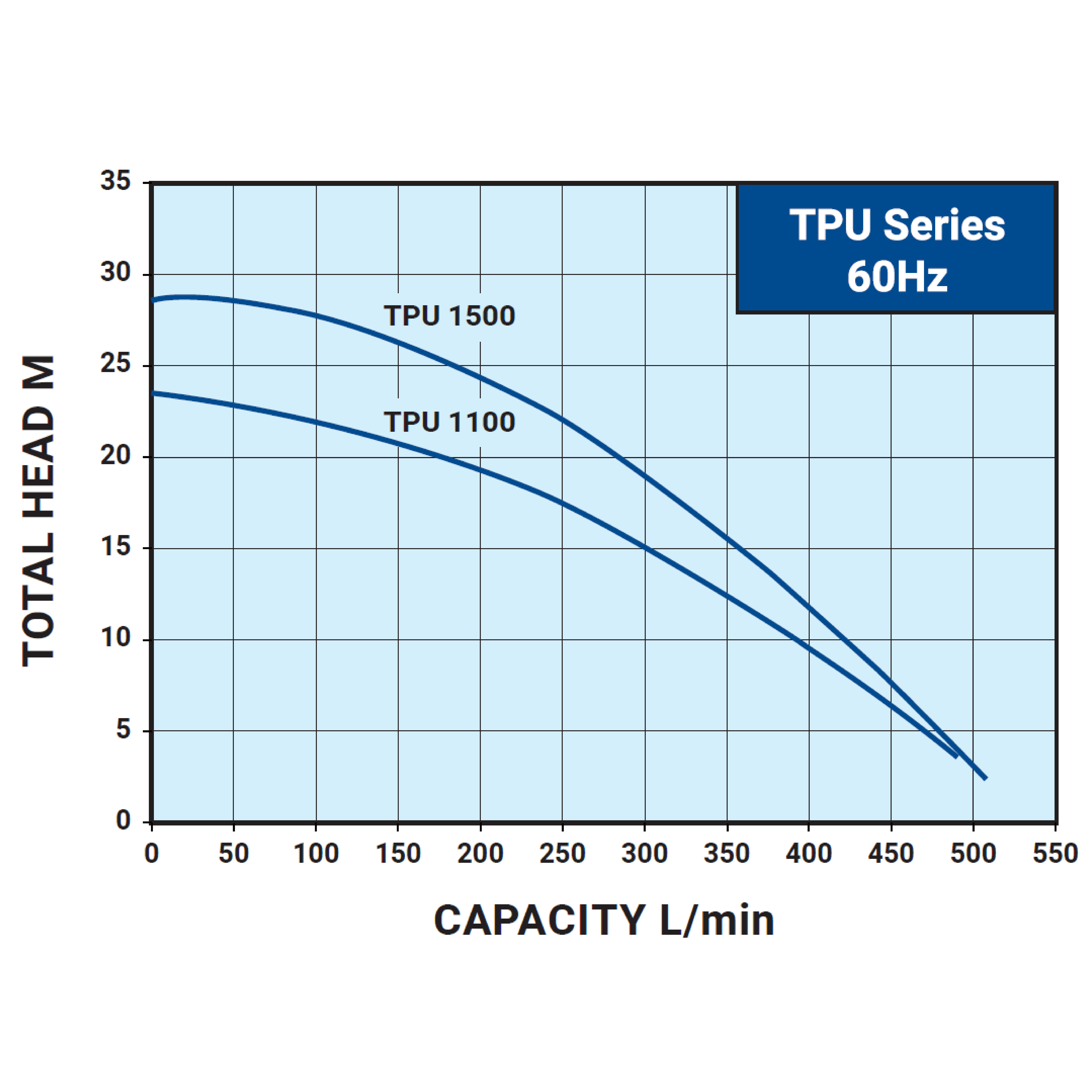

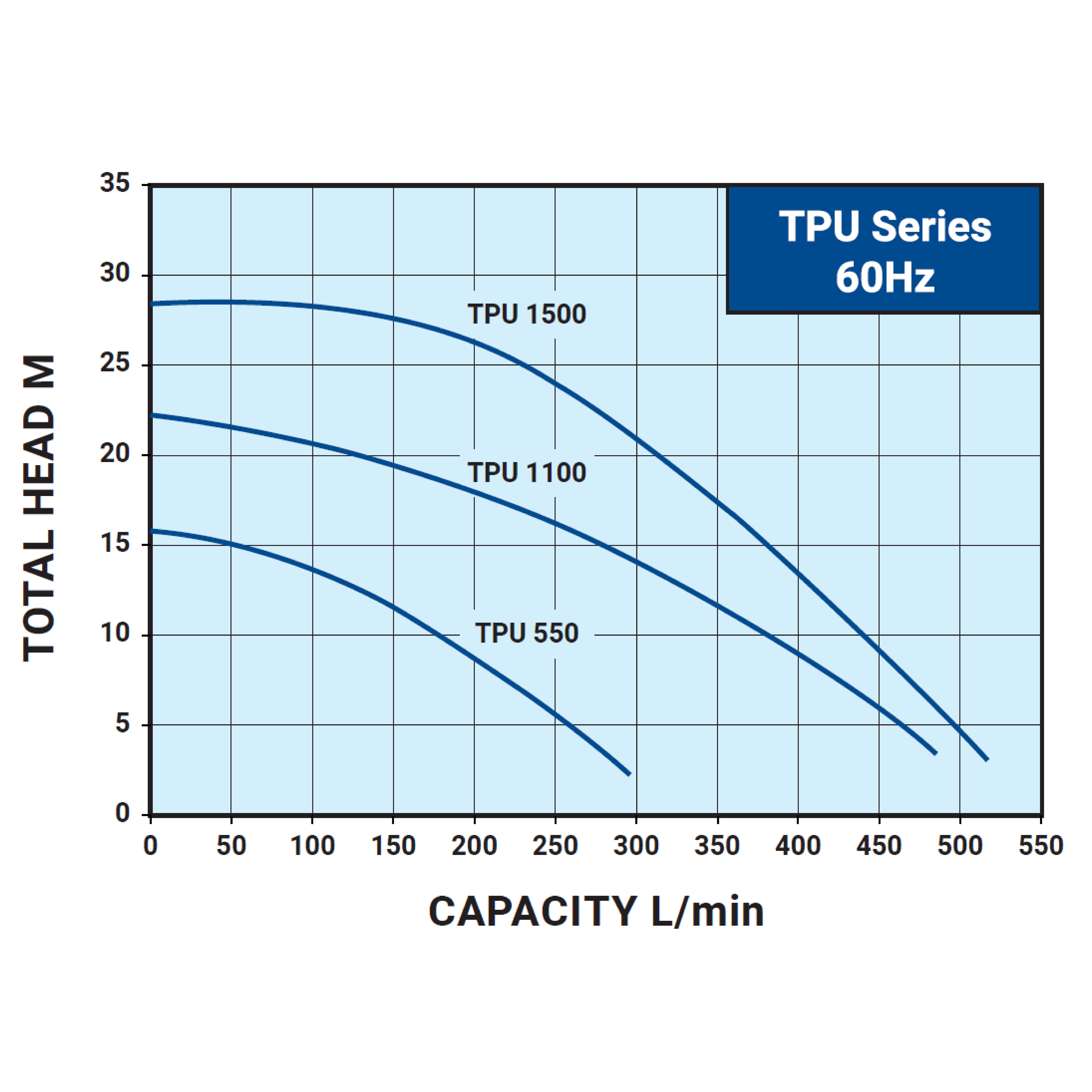

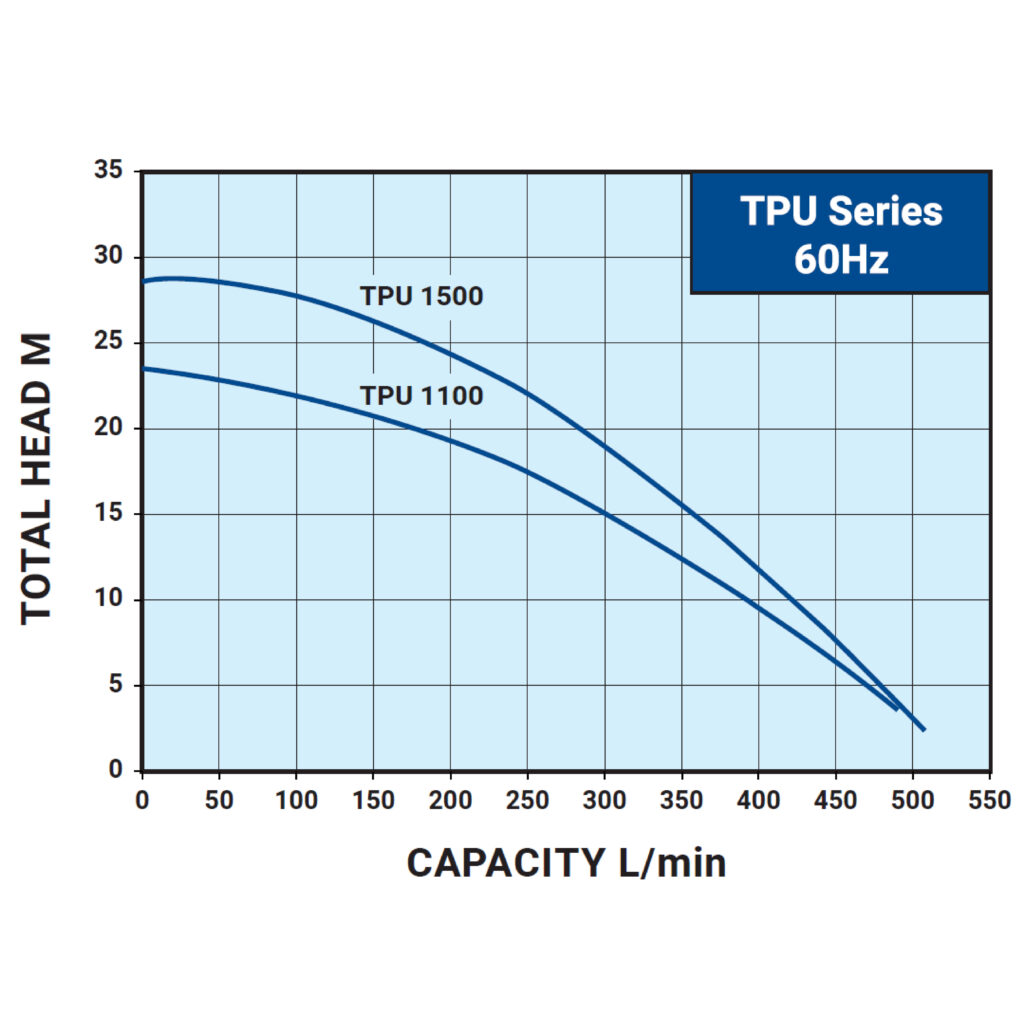

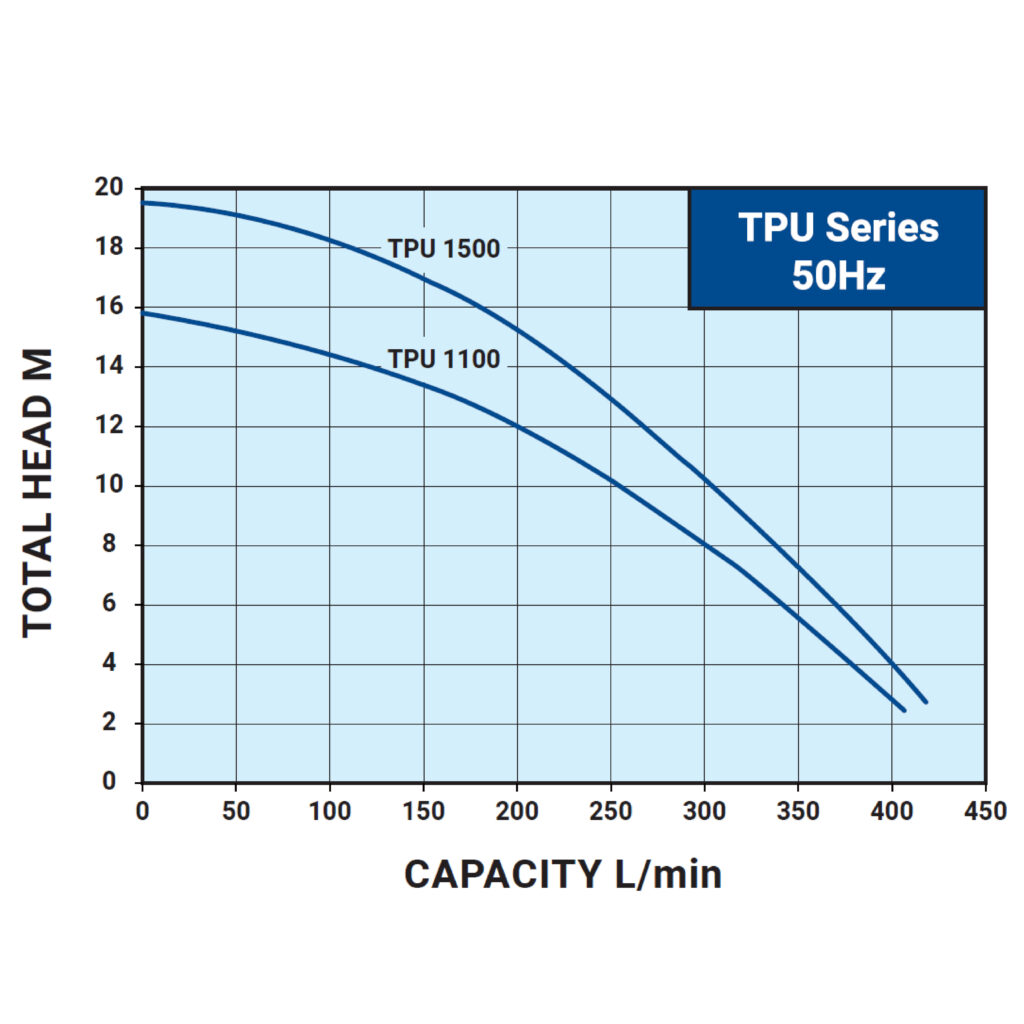

Frenquency (Hz)

Power (kW)

Head (M)

Flow (L / min)

1.1 - 1.5

Up to 19

Up to 415

0.55 - 1.5

Up to 28

Up to 510

Features

Self-Priming Capacity

Horizontal single-stage centrifugal pump, excellent self-priming capacity.

Suitable for salty environments

The pump is made from high-performance composite materials, making it particularly wellsuited for salty environments.

Designed for large-volume water transportation

The semi-open impeller design helps prevent blockages from suspended solids in the fluid being transported, making it well-suited for highvolume water transfer.

Energy Efficient

Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption

Operating Conditions

Ambient Temperature

Max. +40°C

Liquids Temperature

+4°C ~ +40°C

System Pressure

Max. 3 kg/cm²

Inlet Pressure

Max. 0 kg/cm²

Max. Suction Depth

6 m

Kinematical Viscosity

1 cst (mm²/s)

Particle Size

1mm

Motor

Frequency range

50 / 60 Hz

Nominal Speed

2900 / 3500 rpm

Enclosure Protection Class

IP54

Insulation Class

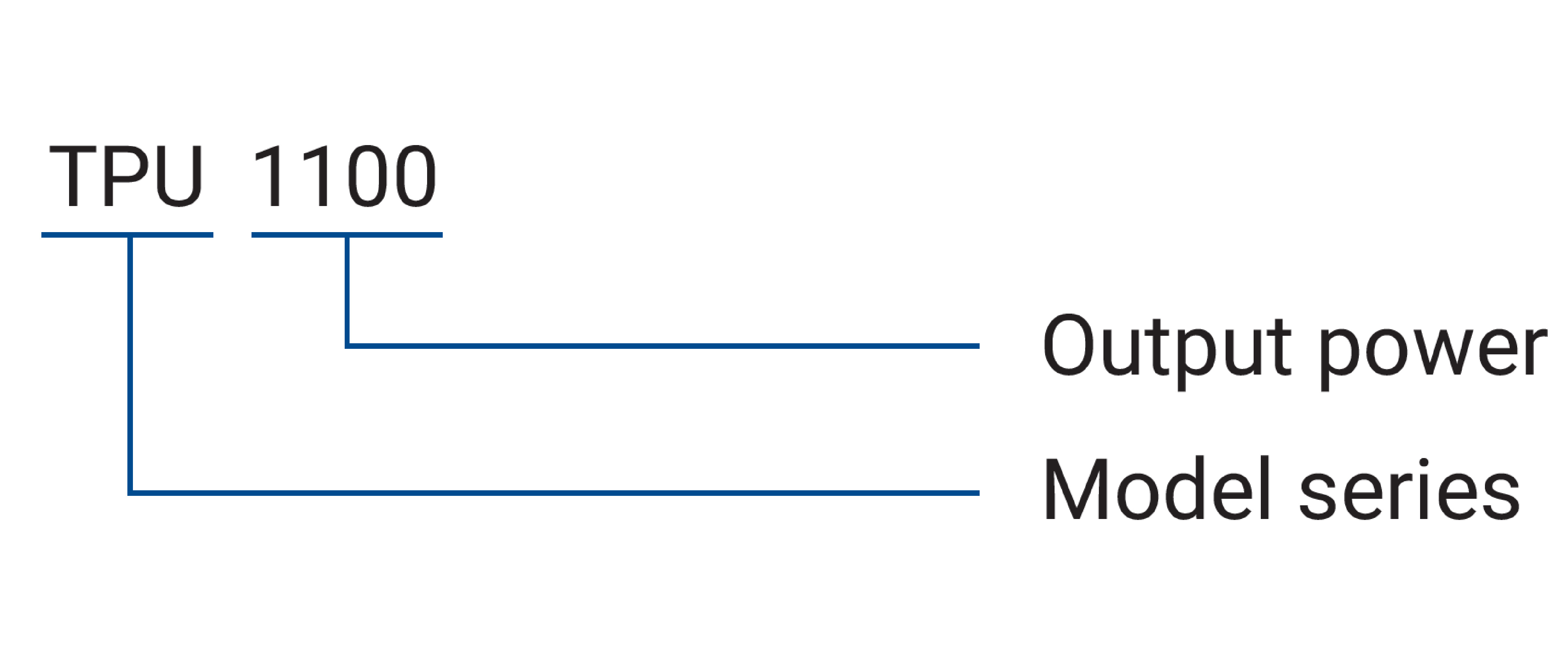

Model code

Frequency

50 Hz

60 Hz

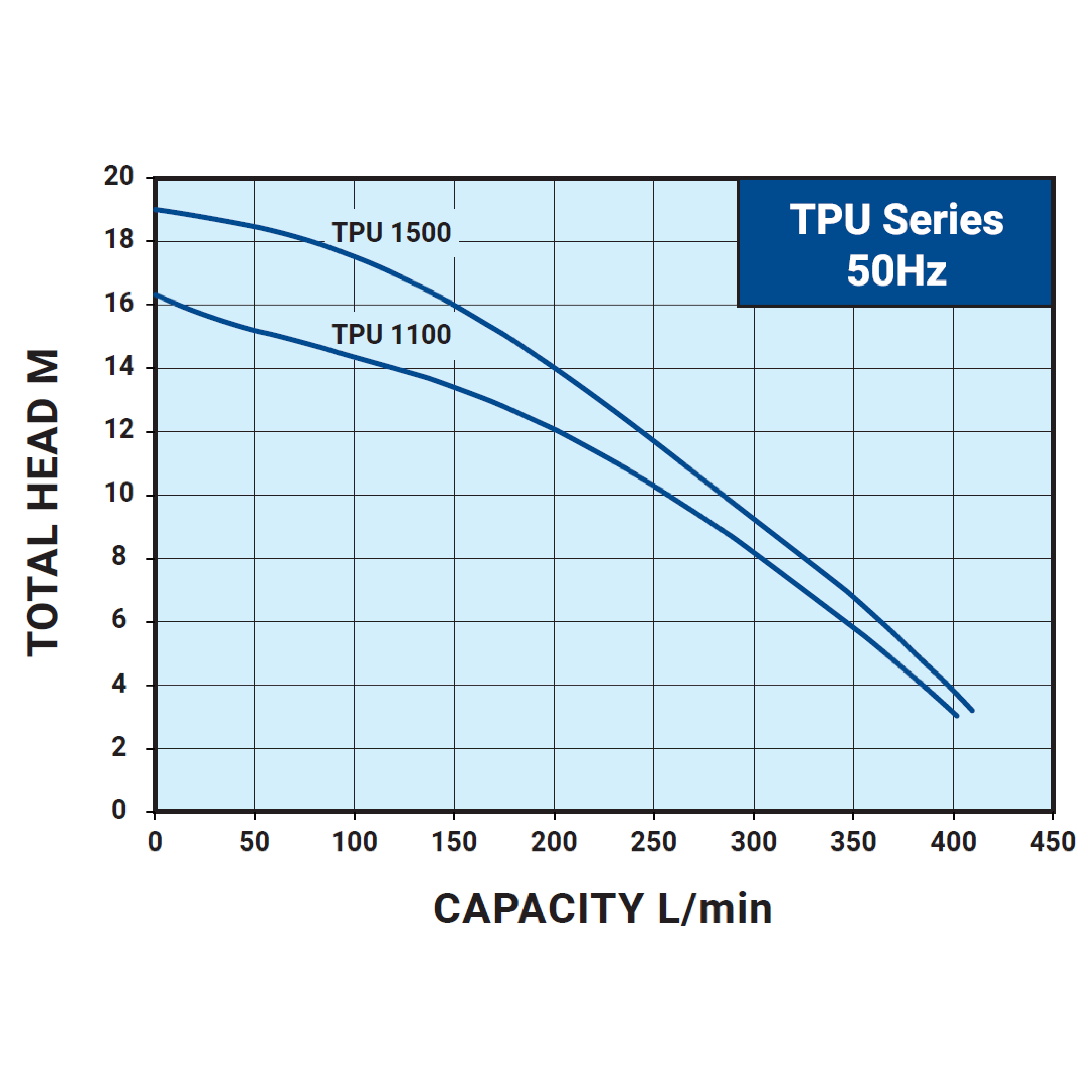

TPU (Single Phase)

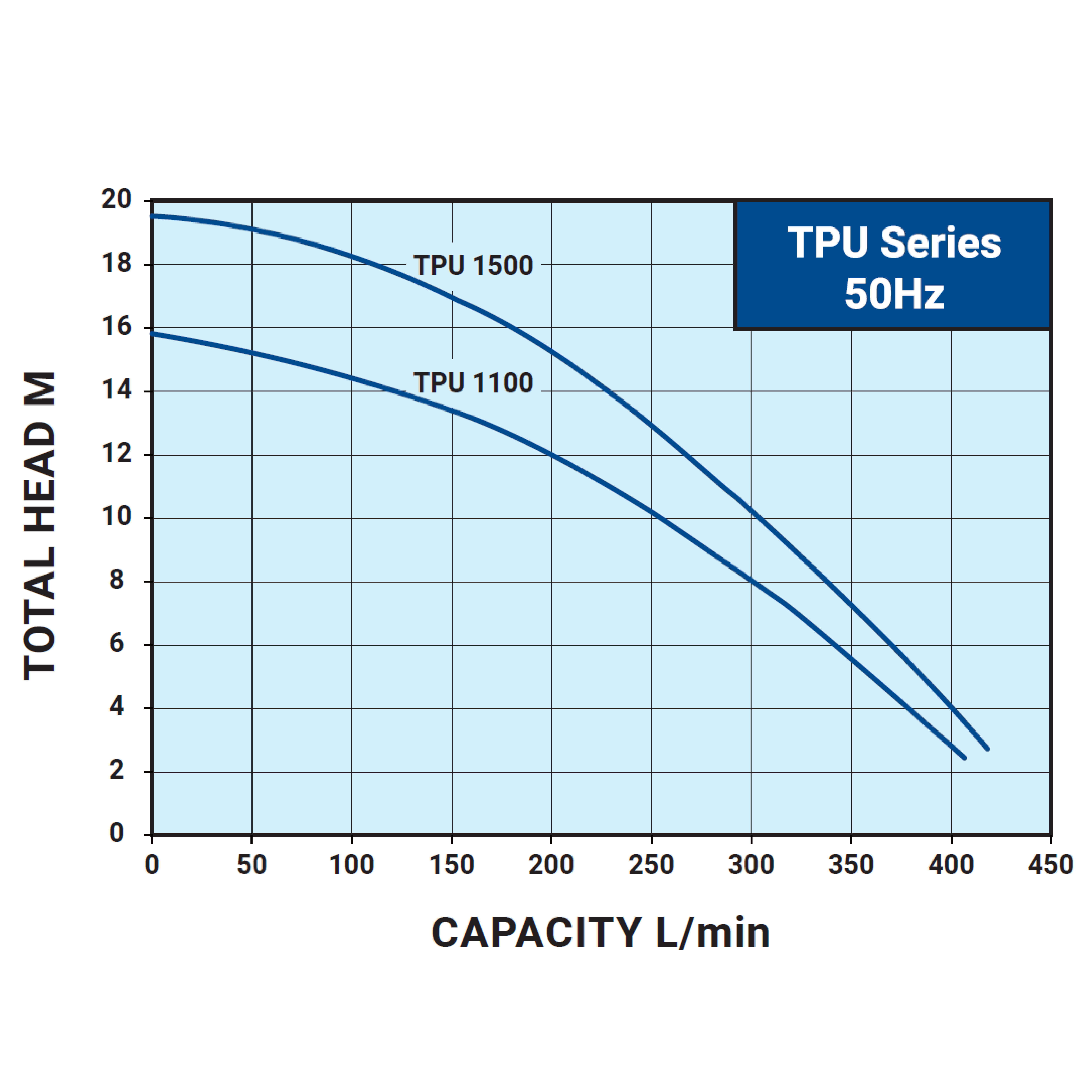

TPU (Three Phase)

TPU Series Applications

Agriculture, Forestry, Fishery and Animal Husbandry

Irrigation

Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.

Agriculture, Forestry, Fishery and Animal Husbandry

Irrigation

Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.

Water Flow Treatment System From The Water Pump Pipe.Motion Of W

Agriculture, Forestry, Fishery and Animal Husbandry

Water Supply for Animal Husbandry and Aquaculture

Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.
