Horizontal Centrifugal Pump

Multi-Stage Horizontal Pump
TPM Series

Meets the demands for high head and high-flow.
Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.
Flexible adjustment of Iimpeller stages based on configuration requirements.

Construction Industry

Manufacturing Industry

Electricity & New Energy Industry

Entertainment & Leisure Industry

Accommodation & Food Service Industry

Wholesale & Retail Trade

Water Supply & Pollution Control

Service Industry

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

2.2 - 7.5

Up to 70

Up to 1,200

1.5 - 7.5

Up to 77

Up to 1,500

Features

The Ideal Choice for Large-Scale

High-flow, high-head single pump ideal for largescale factory operations.

Stability and Reliability

A centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.

Flexible Configuration

The number of impeller segments can be adjusted to suit different application requirements.

Energy Efficient

Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.

Compact Structure

Structural optimization design provides the most appropriate water source transportation.

Damage Prevention

Featured drainage ports to prevent condensation.water buildup and protect the motor burnout.

Low-Noise Operation

The horizontal multistage centrifugal pump features low operational noise.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+0°C ~ +90°C

Operating Pressure

Max. 10 kg/cm²

Inlet Pressure

Max. 6 kg/cm²

Motor

Frequency Range

50 / 60 Hz

Nominal Speed

2900 / 3500 rpm

Enclosure Protection Class

IP54

Insulation Class

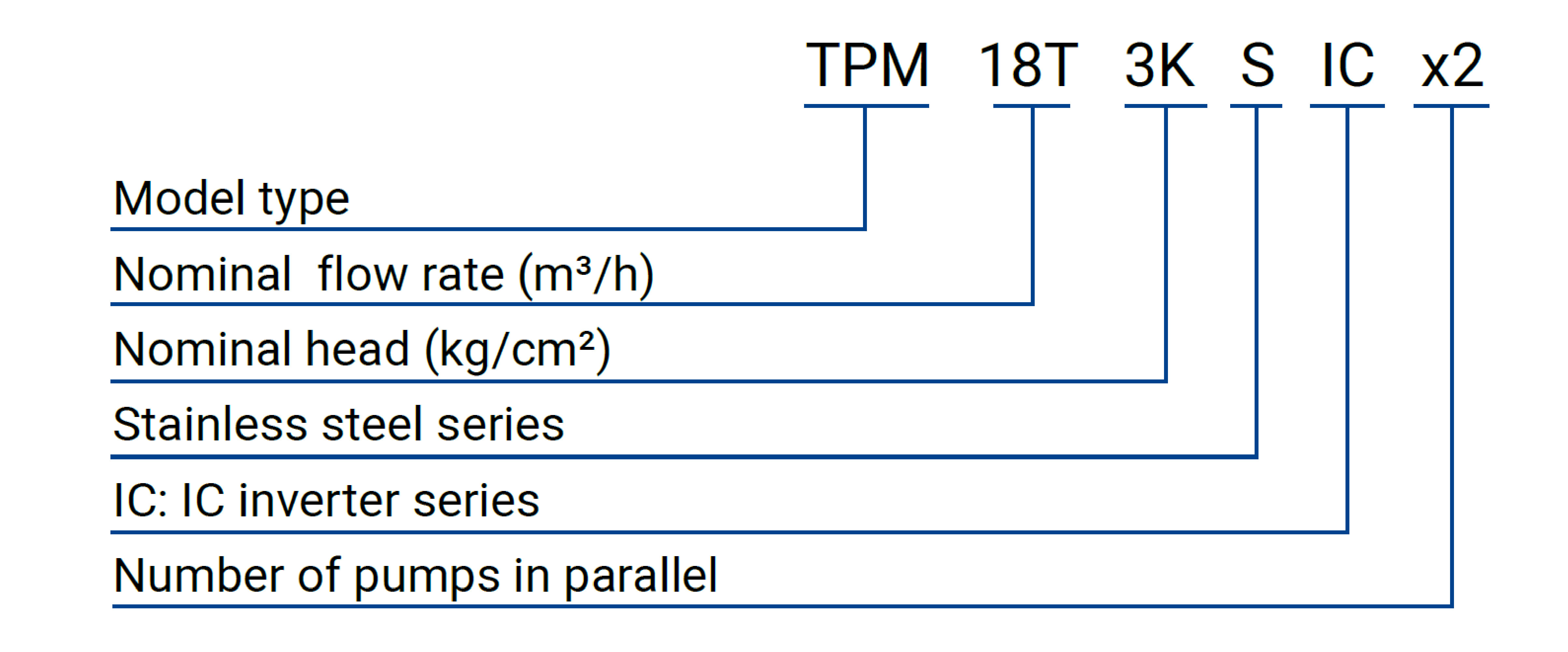

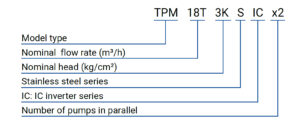

Model code

Frequency

50 Hz

60 Hz

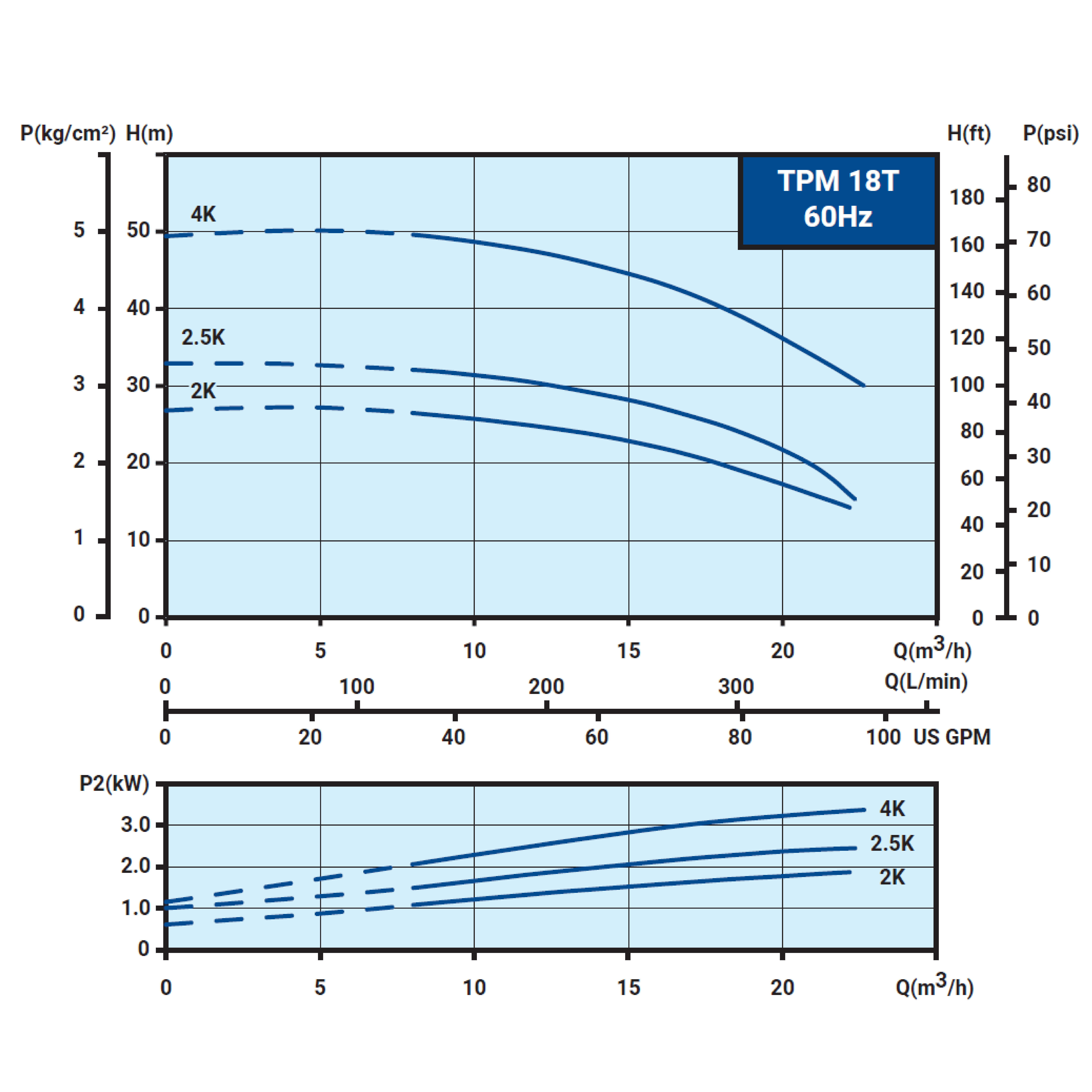

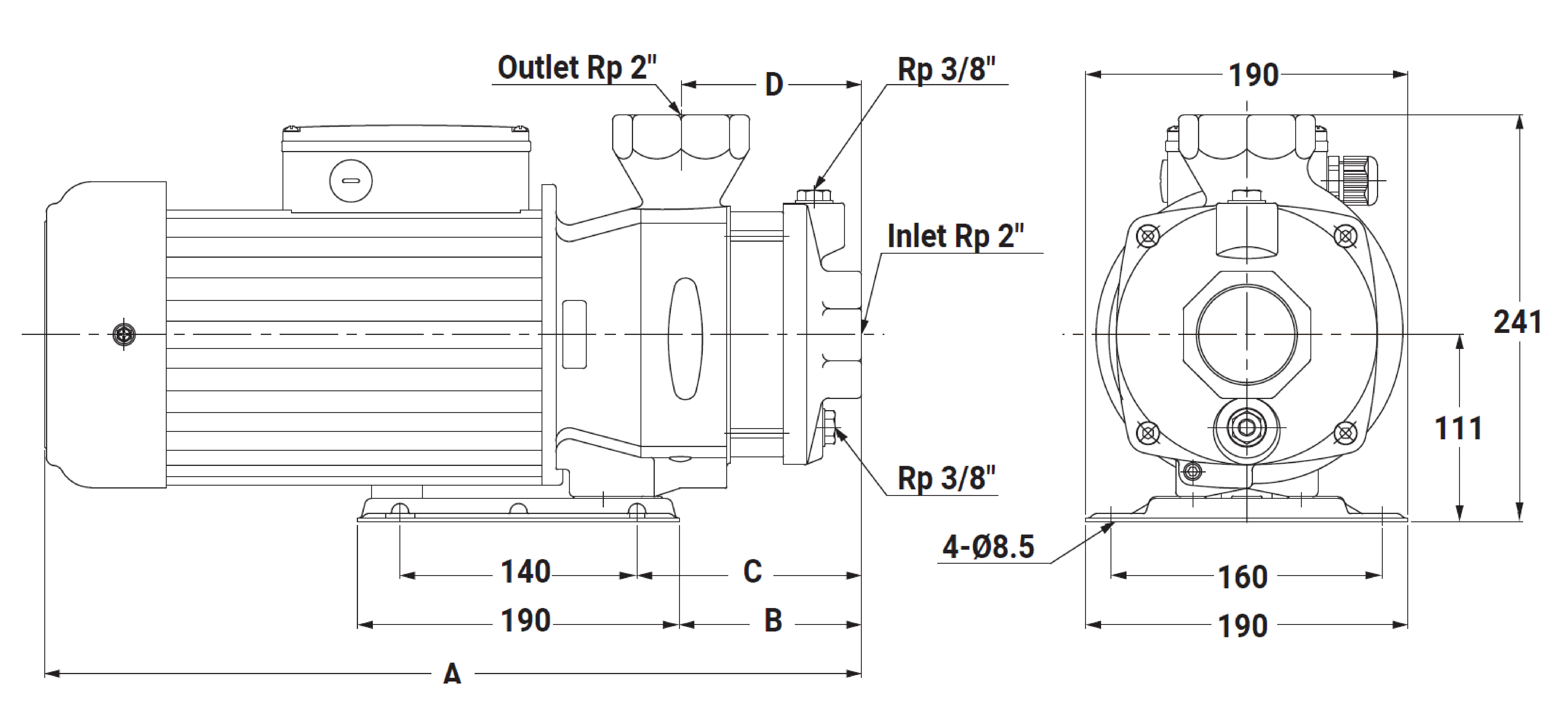

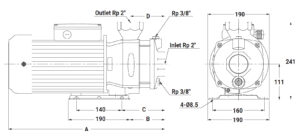

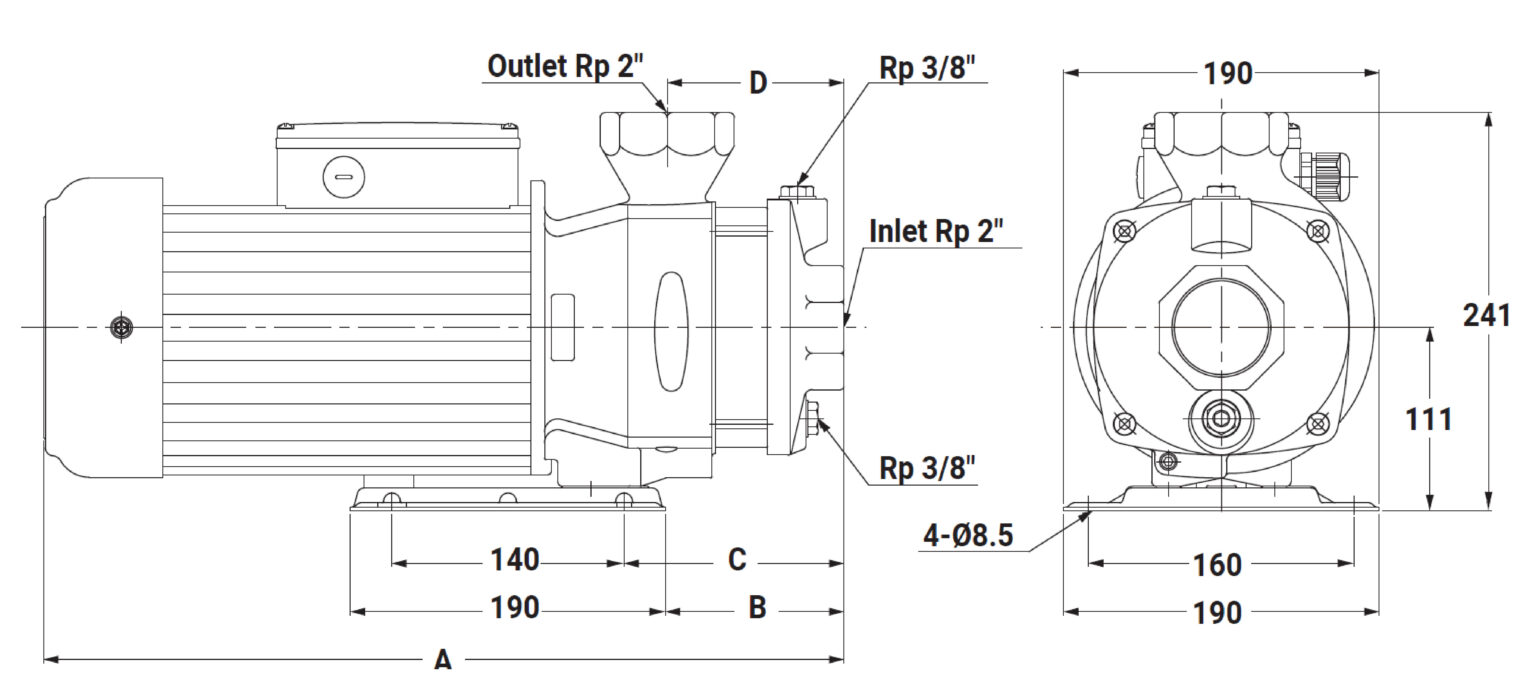

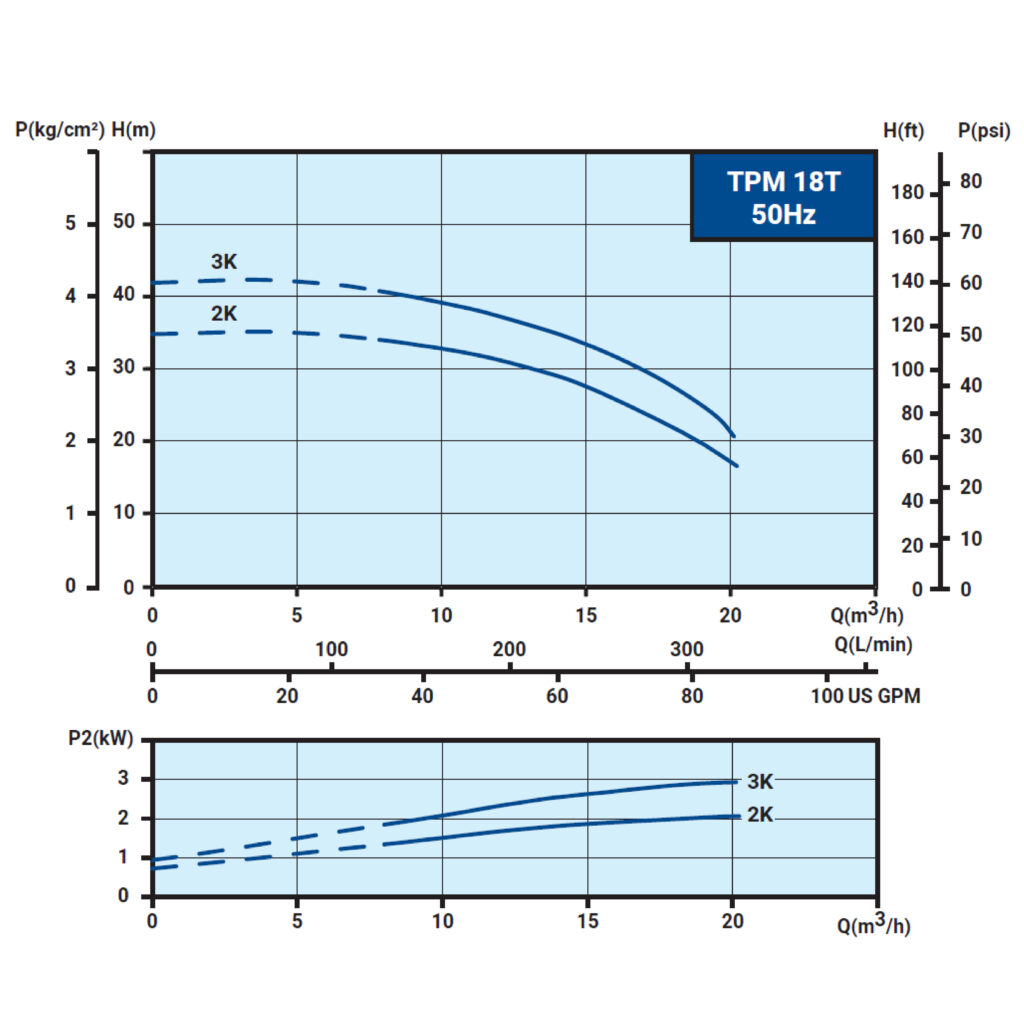

TPM18T

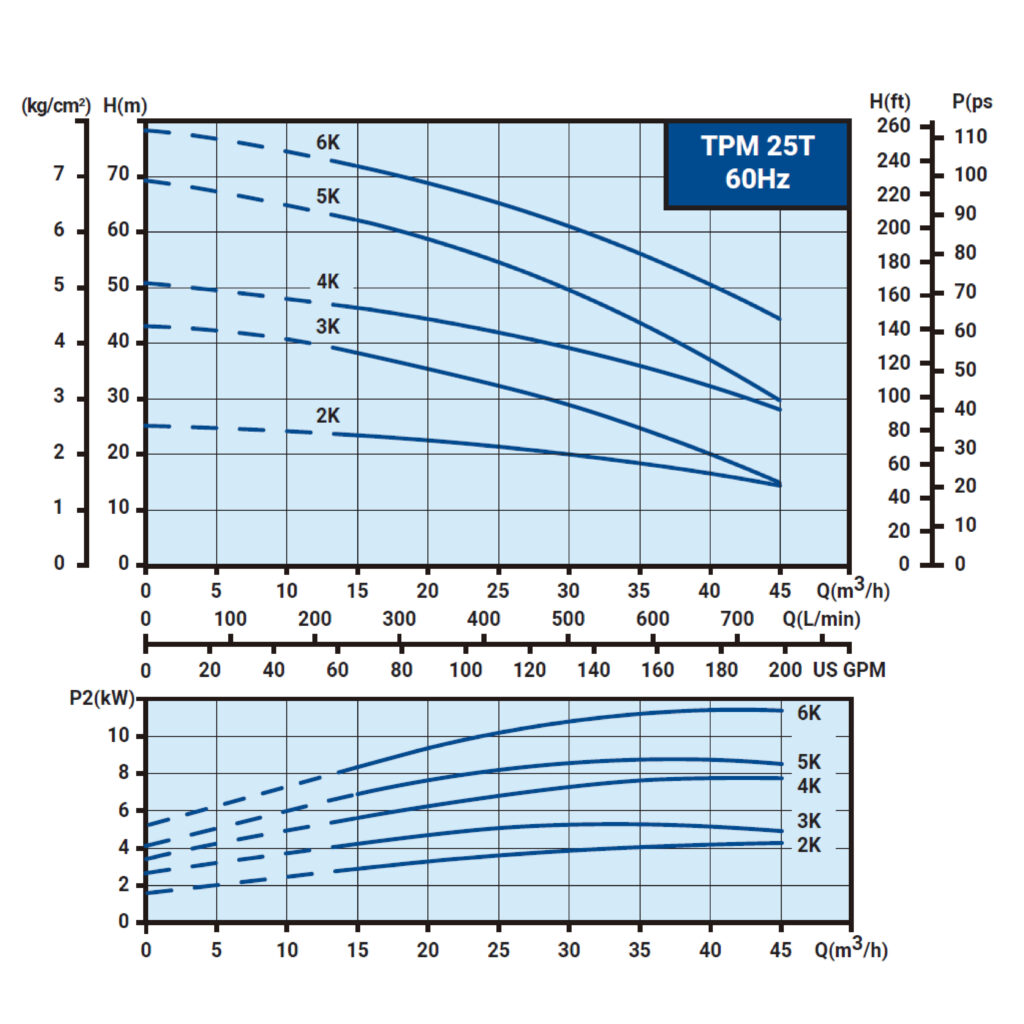

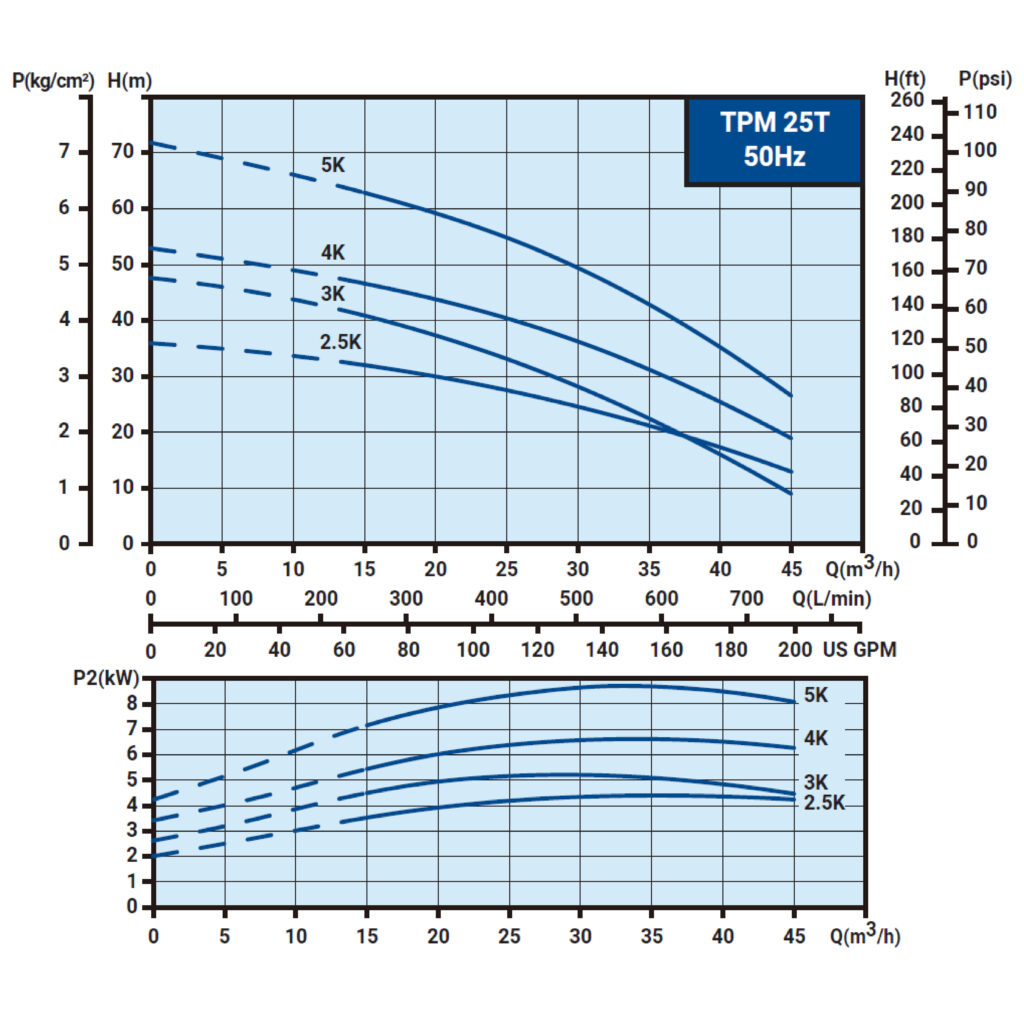

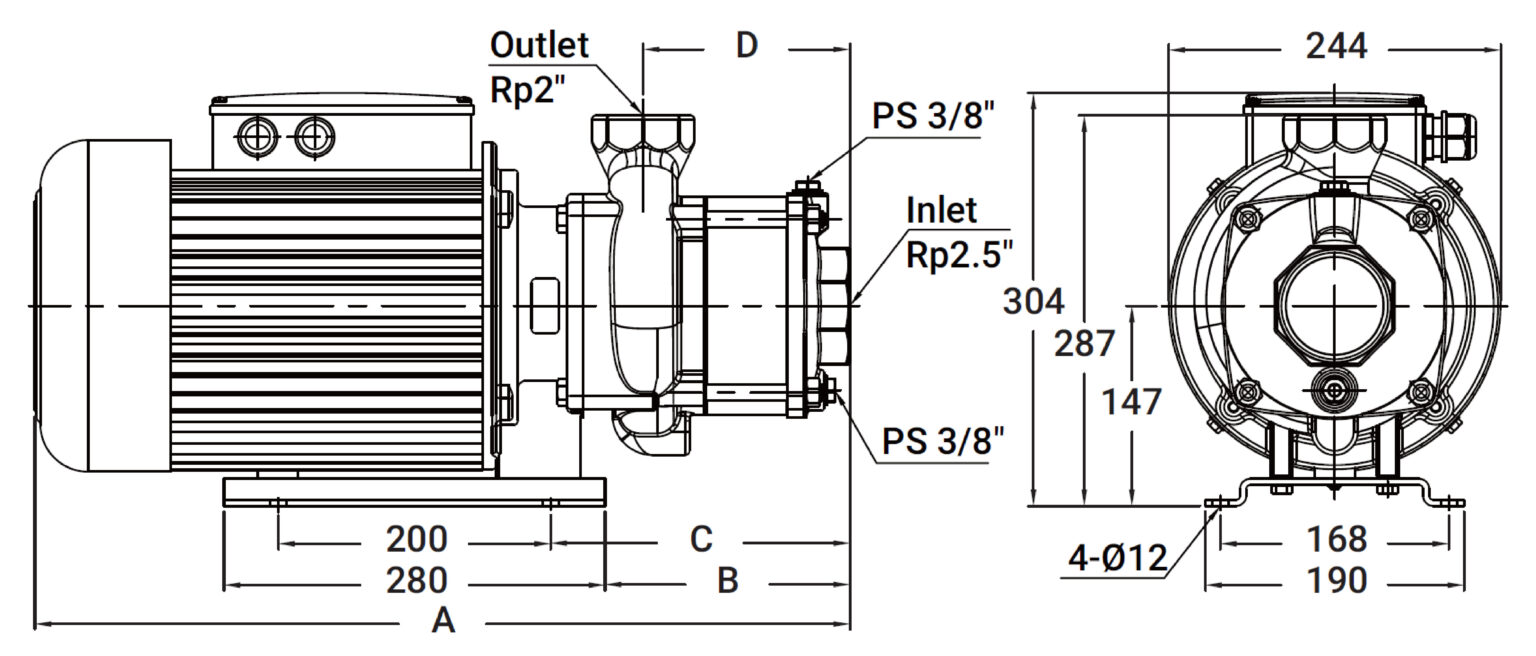

TPM25T(Threaded)

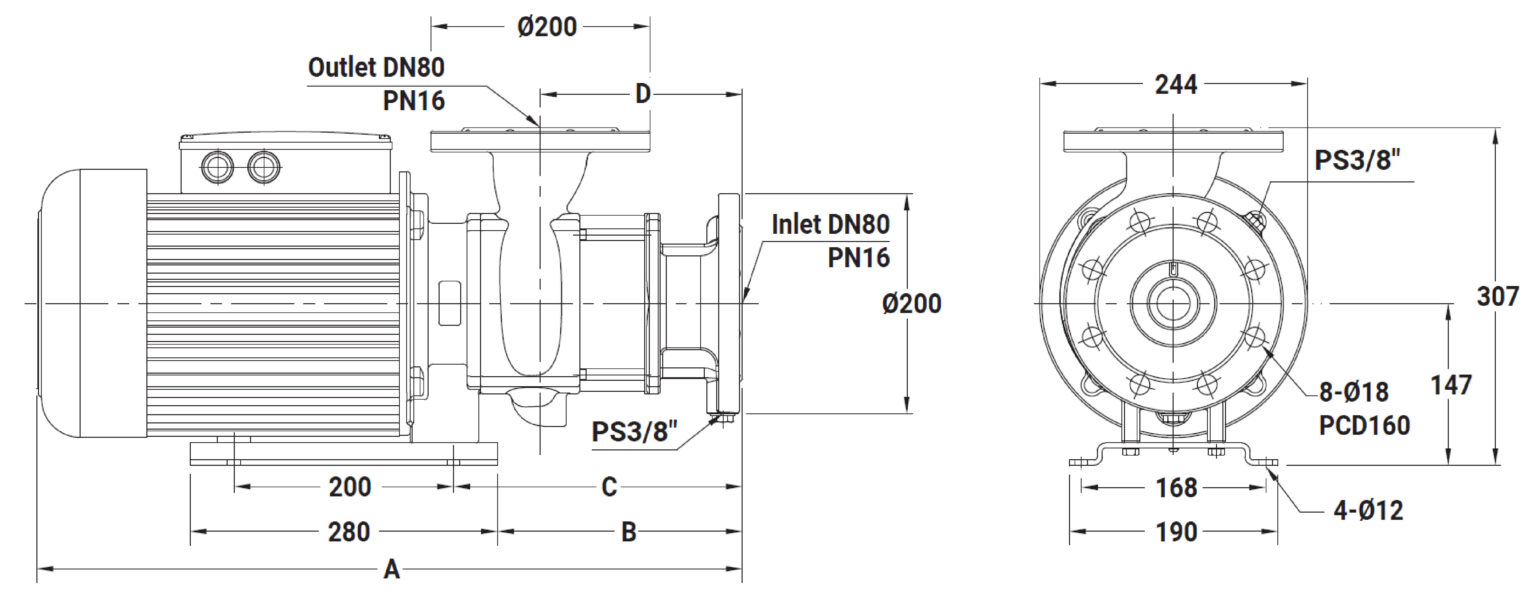

TPM25T(Flange)

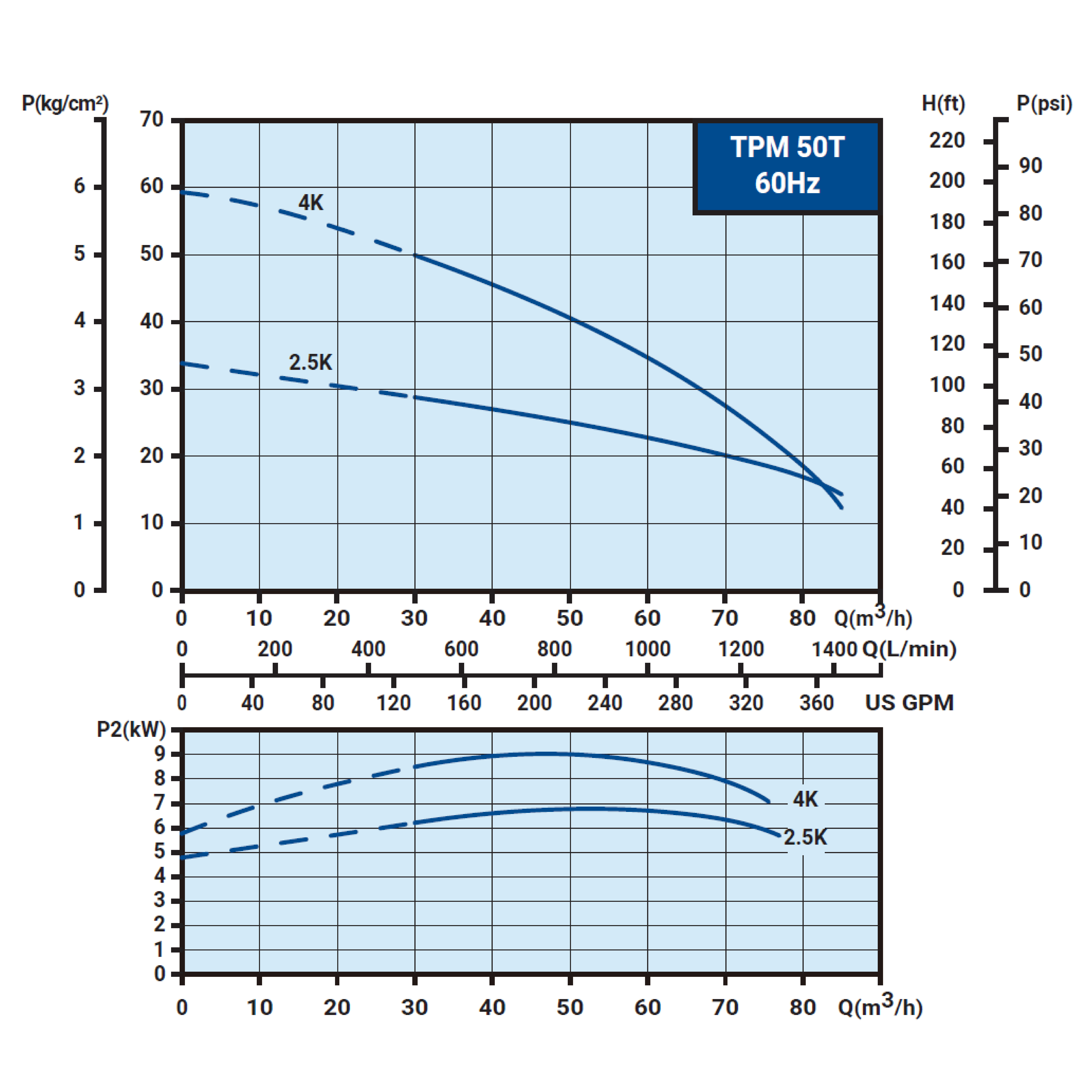

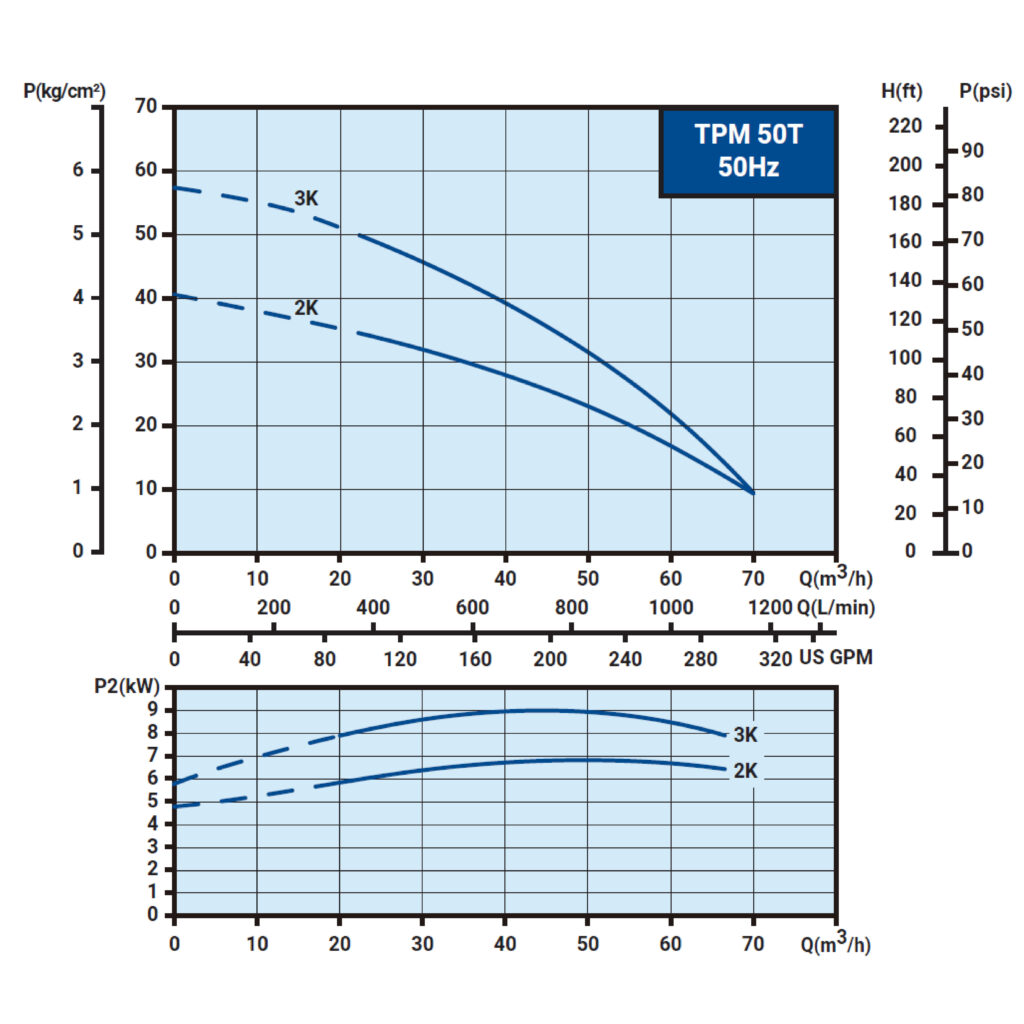

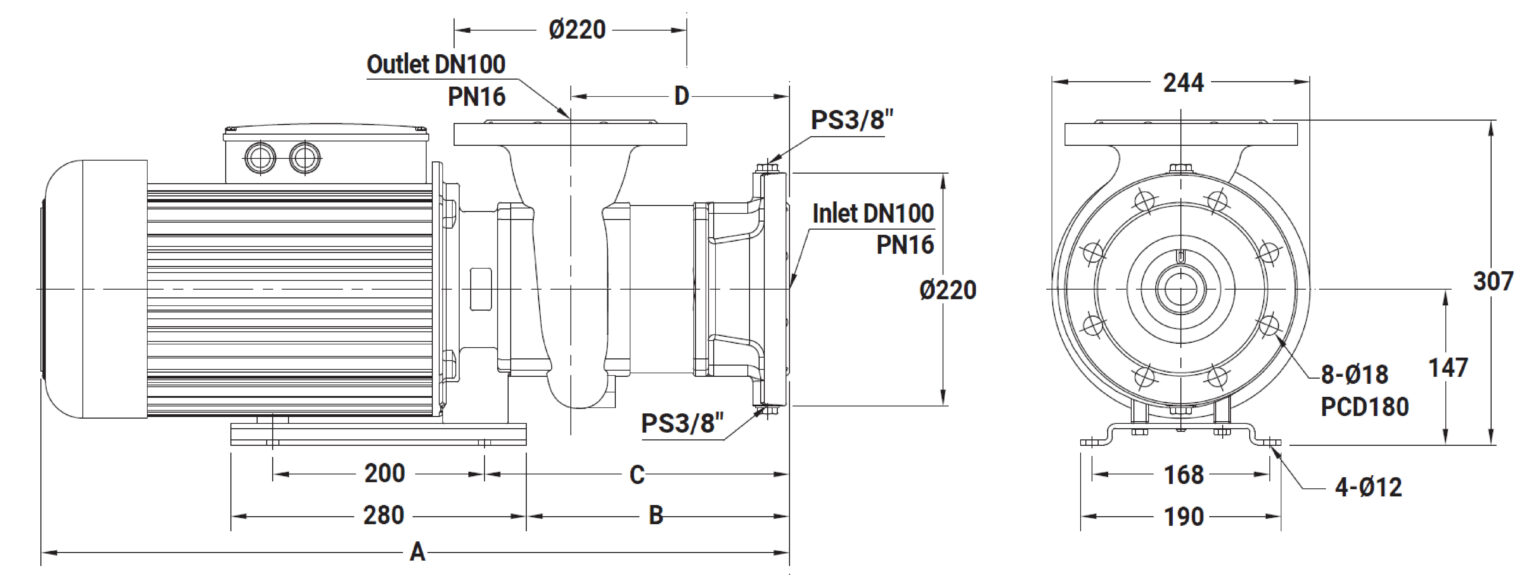

TPM50T

TPM Series Applications

Construction Industry

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Construction Industry

Building Water Supply Systems

Meeting the water extraction, storage, and constant pressure supply needs of large construction. Paired with VFDs to adjust pressure based on requirements.

Heavy,Rain,Falling,On,The,Roof,In,Rainy,Season

Construction Industry

Rainwater Harvesting and Treatment

Transfers rainwater from collection to tanks for secondary uses. Supports sensor and smart control for automatic start-stop based on demand.

Manufacturing Industry

Industrial Process Cooling

A key solution for stable precision manufacturing, suitable for cooling, chip removal, flushing, and lubrication.

The,Interior,Of,An,Industrial,Boiler,Room,With,Three,Large

Manufacturing Industry

Hot and Cold Liquid Transfer

Meeting the needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas

Disk,Type,Oil,Skimmer,For,Liquid,Flood,Coolant,In,Modern

Manufacturing Industry

Industrial Filtration

Integration with filtration and recycling systems enables transfer to storage tanks or subsequent processing stages, ensuring continuous operation and consistent quality.

New,Plastic,Pipes,And,Colorful,Equipment,In,Industrial,Boiler,Room

Manufacturing Industry

Industrial Wastewater Discharge (Compliance-Oriented)

Enabling businesses to reliably transport treated industrial wastewater to discharge systems, ensuring environmental protection and regulatory compliance.

Artificial,Intelligence,And,Large,Language,Model,Training,Cluster.,White,Server

Electricity & New Energy Industry

Data Center Cooling

Designed for in-row, in-rack, and immersion cooling systems in server rooms, meeting data center heat dissipation needs.

EV Car With Electric Charging Station Charger Background. Techno

Electricity & New Energy Industry

Power Supply System Heat Dissipation

Driving the circulation of cooling liquids in fast charging systems to efficiently dissipate generated heat, preventing overheating that could lead to downtime.

Energy,Storage,System,With,Wind,Turbine.,3d,Illustration

Electricity & New Energy Industry

Energy Storage System Heat Dissipation

Drives the circulation of cooling liquids in energy storage systems, effectively dissipating heat generated during operation and preventing overheating.

Water,Park,,Bright,Multi-colored,Slides,With,A,Pool.,A,Water

Entertainment & Leisure Industry

Aquatic Facility Water Systems

Provides water circulation, pressure regulation, and filtration support, and is integrated with VFDs to optimize energy usage.

Pressure,Gauge,On,Condenser,Water,Pump,,Measuring,Instrument,In,Air

Entertainment & Leisure Industry

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Accommodation & Food Service Industry

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Wholesale & Retail Trade

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Aerial,View,Of,Modern,Water,Cleaning,Facility,At,Urban,Wastewater

Water Supply & Pollution Control

Water Distribution

Transports water to reservoirs, municipal systems, and end-users, designed for large-scale capacity and continuous operation.

Pump,Station,For,Reverse,Osmosis,Industrial,City,Water,Treatment,Station.

Water Supply & Pollution Control

Purified Water Treatment (RO)

Provides high pressure to deliver water to RO systems, ensuring efficient treatment and optimal filtration performance to meet the demands of reverse osmosis.

Vertical,View,Of,Municipal,Wastewater,Treatment,Plant,Equipment,And,Technology.

Water Supply & Pollution Control

Wastewater Discharge (Compliance-Oriented)

Stable transfer of treated wastewater to discharge systems, complying with regulations, preventing pollution, and supporting sustainability goals.

Service Industry

High-Pressure Water Supply and Cleaning Systems

Suitable for high-pressure applications such as car washes and air-conditioning cleaning, supporting high-pressure cleaning, cooling, disinfection, and spraying operations.
