Suitable Liquids

Electronic Control Pump

Potable water or other clean, thin or non-aggressive liquids.

Product Feature

The HQ is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

Compact design and quiet operation make the HQ series suitable for many applications. The HQ is constructed from the top quality corrosion resistant materials.

The HQ is constructed from the top quality corrosion resistant materials.

Pump has built in dry-run shut off with automatic reset function.

The motor has built-in thermal overload to protect against high operating temperatures and over current.

The HQ has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

The pumps will lift water up to 7.6m. with foot valve and pump suction piping filled with water.

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: +4°C ~ +40°C

System Pressure : Max. 8.5 kg/cm²

Relative humidity: Max. 85% (RH)

Under normal operation, it is not necessary to adjust the pressure unless the cut in pressure is higher than preset activation point (refer to specification).

Specification, 50Hz

Compare Products

Type
HQ200
HQ400
HQ800
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
HQ200 0.18 1 200-240 1.5 1" 1" 1.6 24 55 7.4 8.0 36
HQ400 0.37 1 200-240 2.8 1" 1" 2.0 31 85 8.4 9.0 36
HQ800 0.75 1 200-240 4.5 1" 1" 2.0 33 110 10.8 11.4 36

Specification, 60Hz

Compare Products

Type
HQ200
HQ400
HQ800
HQ800H
Type Power
(kW)
Phase
(Ø)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
H max
(m)
Q max
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
HQ200 0.18 1 110/220 4.0/2.0 1" 1" 1.6 23 60 7.3 7.9 36
HQ400 0.37 1 110/220 6.0/3.0 1" 1" 1.8 26 80 8.3 8.9 36
HQ800 0.75 1 110/220 10.0/5.0 1" 1" 2.0 27 120 10.7 11.3 36
HQ800H 0.75 1 110/220 10.0/5.0 1" 1" 2.5 45 100 10.9 11.5 36

Dimensions (mm)

Model Cycle (Hz) Dimensions (mm)
A B C
HQ200 50/60 355 153 158
HQ400 50/60 355 153 158
HQ800 50/60 410 162 167
HQ800H 60 410 162 167


i.Catalog

Catalog

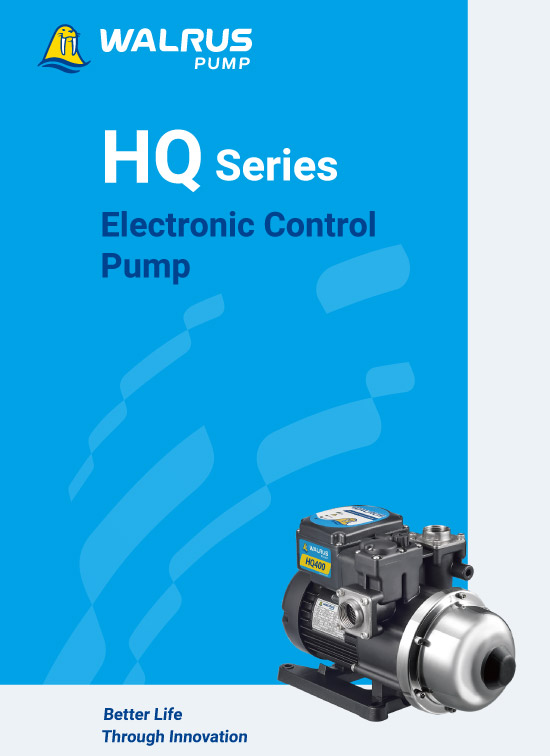

HQ Series Electronic Control Pump

Updated on 2024/03/26

ii.Instruction Manual

Instruction Manual

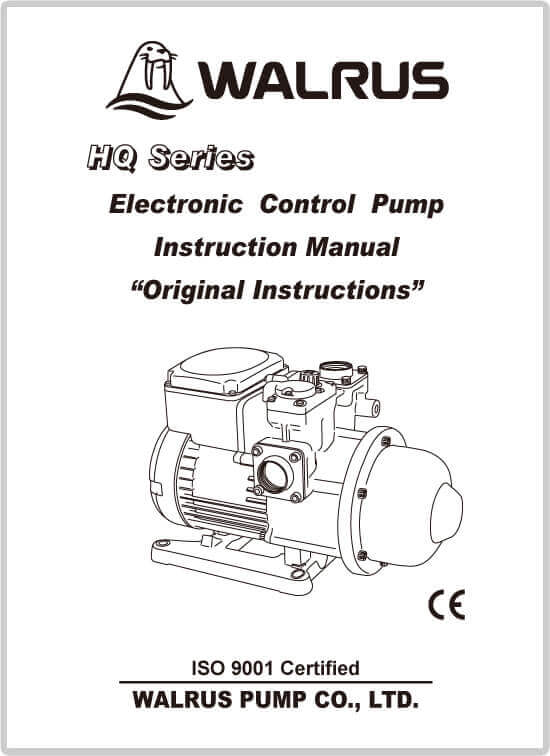

HQ Series Instruction Manual

Updated on 2024/03/29

iii.Mechanical Seal

Service Manual

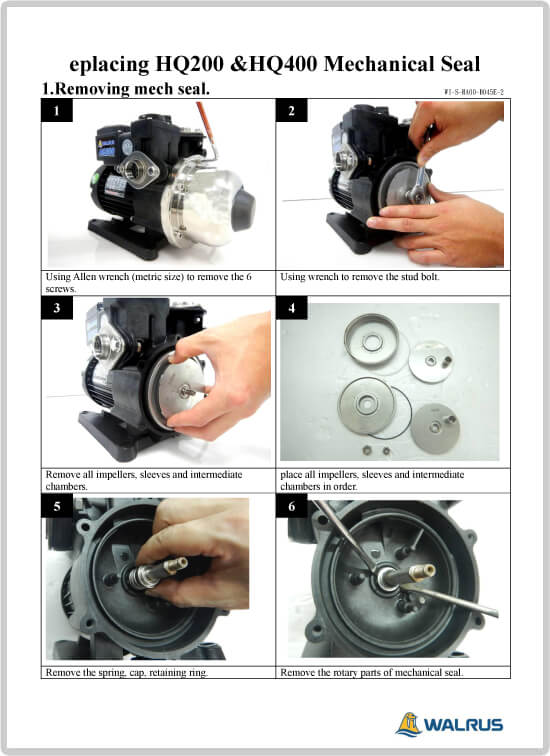

HQ200 & HQ400 Mechanical Seal

Updated on 2024/03/29

Service Manual

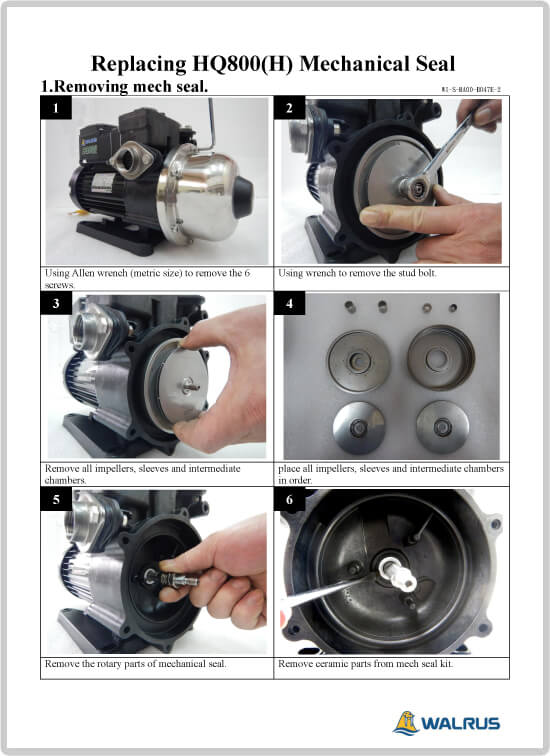

HQ800 Mechanical Seal

Updated on 2024/03/29

Service Manual

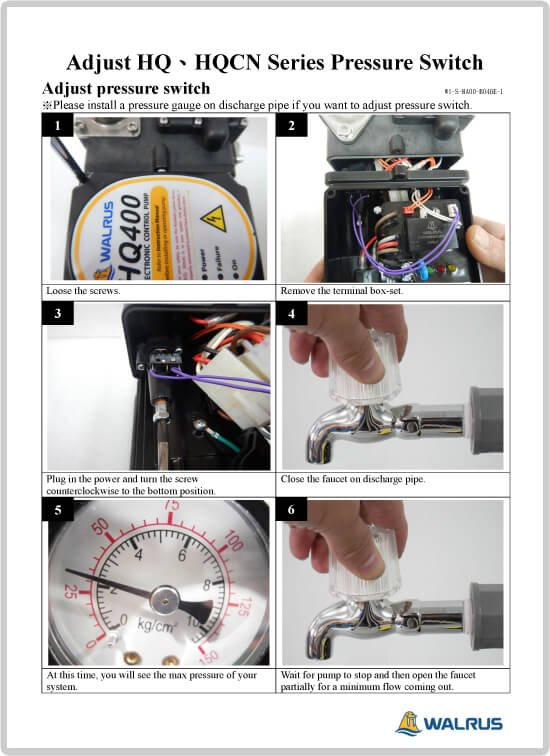

Adjust pressure switch

Updated on 2024/03/29
