Product Feature

Manufactured with non-corrosive rust proof materials.

Special design corrosive resistant pressure tank with good appearance.

Appropriate reliable check valve with silent operation.

Compact design, small size, easy installation.

Every pumps tested in our factory to ensure quality and reliability.

High performance, electricity saving motor with patented cooling construction. Build-in thermal overload protector for motor burnt out protection.

Operating Condition

Ambient temperature:Max. +40°C

Liquid temperature range:+4°C~+40°C

Suction head: Max. 8 m

Inlet pressure: Lower than the pressure switch OFF setting. ( See Specification )

Specification, 50Hz

Compare Products (multiple options available)

Type
TP820P(T)
TP825P(T)
Type Power
(kW)
Phase
(Ø)
Voltage
(V)
Ampere
(A)
Pressure Switch ON
(kg/cm²)
Pressure Switch OFF
(kg/cm²)
Pressure Tank
(L)
Inlet
(in.)
Outlet
(in.)
Maximum Head
(M)
Maximum Capacity
(L/min)
Maximum Pallet Amount N.W.
(kg)
TP820P(T) 0.18 1 200-240 1.4 0.9 1.8 1 ¾" ¾" 25 30 32 6.7
TP825P(T) 0.37 1 200-240 2.7 1.8 2.8 1 1" 1" 30 35 32 7.6

Specification, 60Hz

Compare Products (multiple options available)

Type
TP820P(T)
TP825P(T)
Type Power
(kW)
Phase
(Ø)
Voltage
(V)
Ampere
(A)
Pressure Switch ON
(kg/cm²)
Pressure Switch OFF
(kg/cm²)
Pressure Tank
(L)
Inlet
(in.)
Outlet
(in.)
Maximum Head
(M)
Maximum Capacity
(L/min)
Maximum Pallet Amount N.W.
(kg)
TP820P(T) 0.18 1 110/220 3.2/1.6 1.2 2.4 1 ¾" ¾" 34 35 32 6.7
TP825P(T) 0.37 1 110/220 5.2/2.6 2.0 3.0 1 1" 1" 38 42 32 7.6

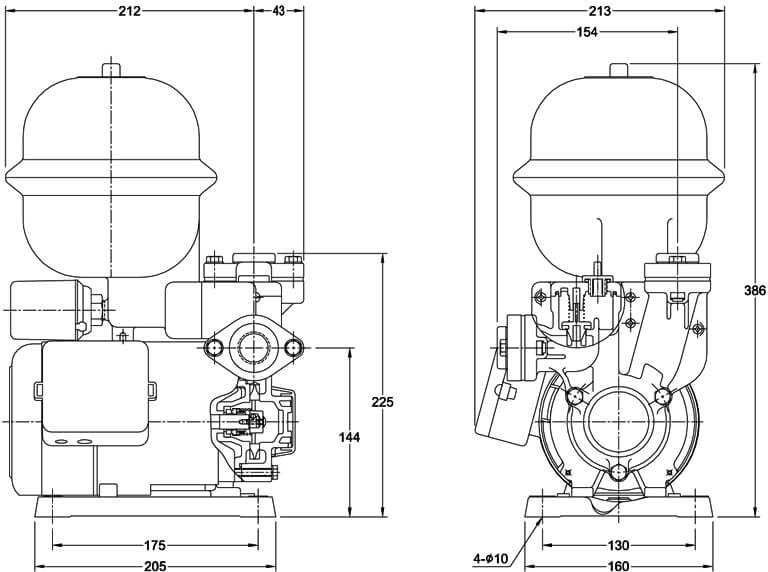

Dimensions (mm)

i.Catalog

Catalog

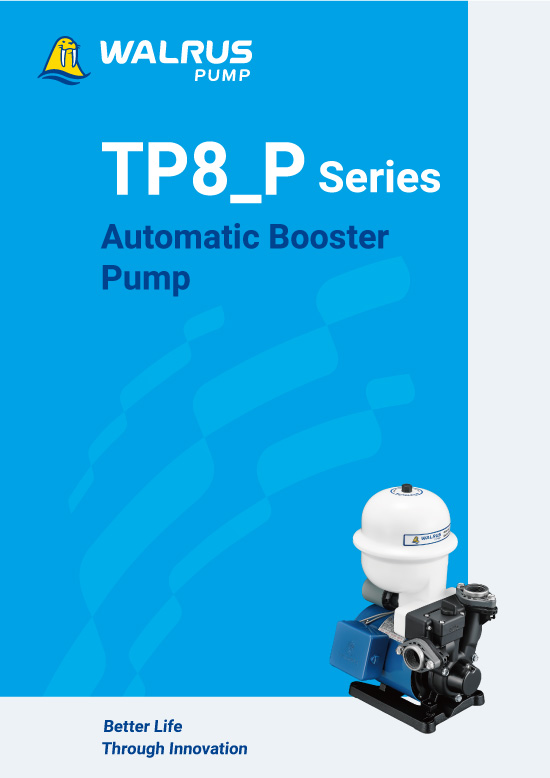

TP8-PT Series Automatic Booster Pump

Updated on 2021/12/20

ii.Instruction Manual

Instruction Manual

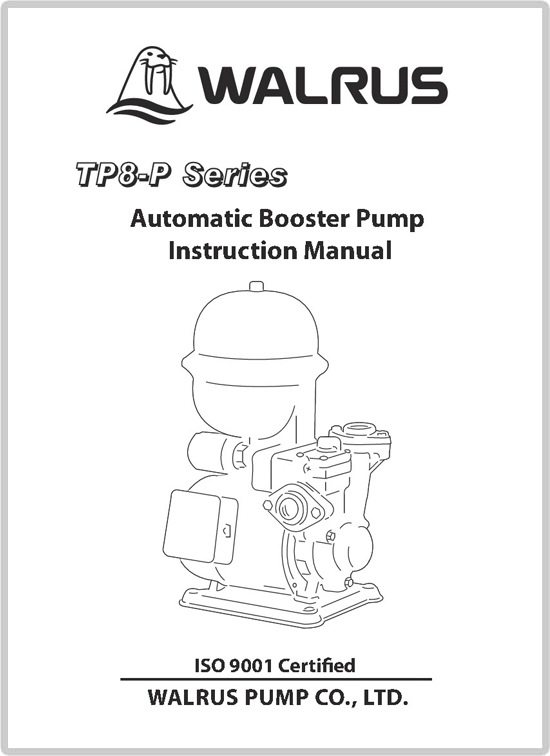

TP8-P(T) Series Instruction Manual

Updated on 2021/12/20

iii.Mechanical Seal

Service Manual

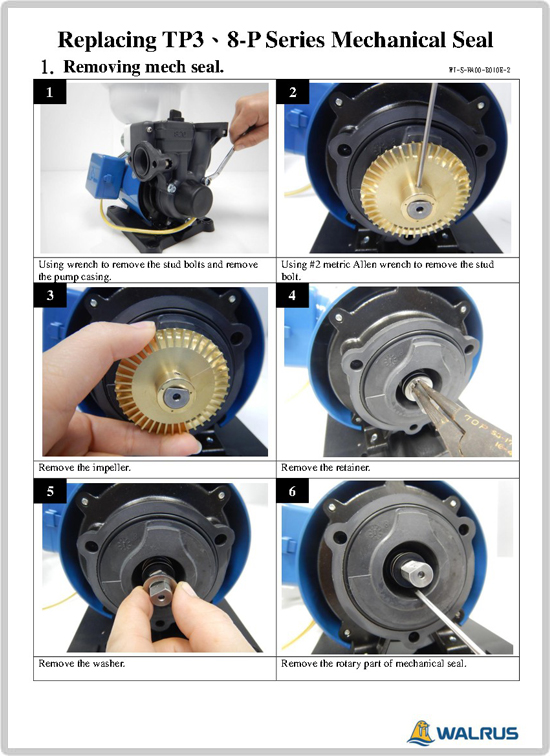

TP8-PT Series Mechanical Seal Manual

Updated on 2021/12/20
