Suitable Liquids

Potable water or other clean, thin or non-aggressive liquids.

Product Feature

The TQ_B is an antimicrobial, complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

Compact design and quiet operation make the TQ_B series suitable for many applications.

The TQ_B is constructed from the top quality corrosion resistant materials.

Pump has built in dry-run shut off with automatic reset function.

The motor has built-in thermal overload to protect against high operating temperatures and over current. (Single phase motor only)

The TQ_B has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

The pumps will lift water up to 6 m. with foot valve and pump suction piping filled with water.

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: +4°C ~ +40°C

System Pressure : Max. 8.5 kg/cm²

Relative humidity: Max. 85% (RH)

Under normal operation, it is not necessary to adjust the pressure unless the cut in pressure is higher than preset activation point (refer to specification).

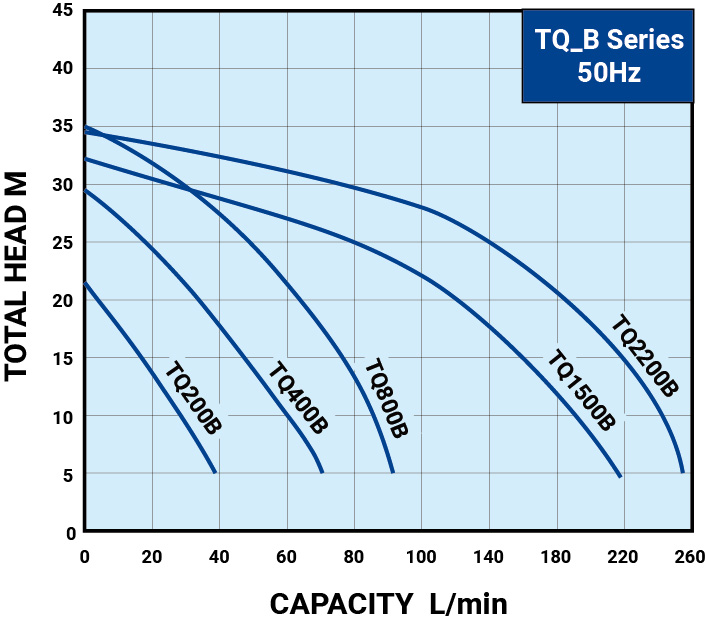

Specification, 50Hz

Compare Products

Type
TQ200B
TQ400B
TQ800B
TQ1500B
TQ2200B
Type Power
(kW)
Phase
(Ø)
Cycle
(Hz)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
Maximum Head
(M)
Maximum Capacity
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TQ200B 0.18 1 50 200-240 1.5 1" 1" 1.2 22 45 7 7.6 30
TQ400B 0.37 1 50 200-240 3 1" 1" 1.8 30 75 7.8 8.4 30
TQ800B 0.75 1 50 200-240 4.4 1" 1" 2.0 35 95 11.6 12.2 24
TQ1500B 1.5 133 50 200-240200-240380-440 7.25.83.3 2" 2" 2.5 32 230 21 22.6 12
TQ2200B 2.2 133 50 200-240200-240380-440 11.17.24.1 2" 2" 2.5 34 250 22 23.6 12

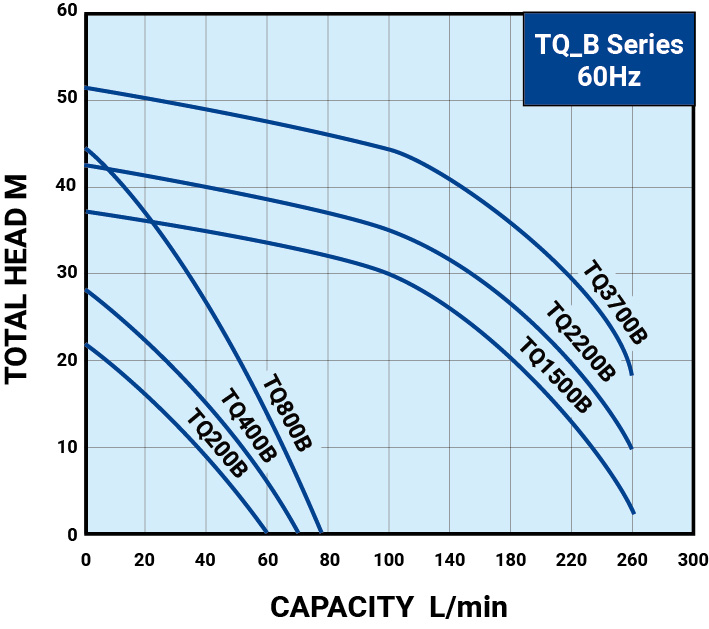

Specification, 60Hz

Compare Products

Type
TQ200B
TQ400B
TQ800B
TQ1500B
TQ2200B
TQ3700B
Type Power
(kW)
Phase
(Ø)
Cycle
(Hz)
Volts
(V)
Ampere
(A)
Inlet
(in.)
Outlet
(in.)
Preset Activation
(kg/cm²)
Maximum Head
(M)
Maximum Capacity
(L/min)
N.W.
(kg)
G.W.
(kg)
Maximum Pallet Amount
TQ200B 0.18 1 60 110/220 4.0/2.0 1" 1" 1.4 22 60 7 7.6 30
TQ400B 0.37 1 60 110/220 6.0/3.0 1" 1" 1.8 28 70 7.8 8.4 30
TQ800B 0.75 1 60 110/220 11/5.5 1" 1" 2.5 44 75 11.6 12.2 24
TQ1500B 1.5 133 60 220220380 9.56.54.2 2" 2" 3.0 37 270 21 22.6 12
TQ2200B 2.2 33 60 220380 9.55.2 2" 2" 3.0 42 270 22 23.6 12
TQ3700B 3.7 33 60 220380 13.86.8 2" 2" 3.0 52 270 25 26.6 12

Dimensions (mm)

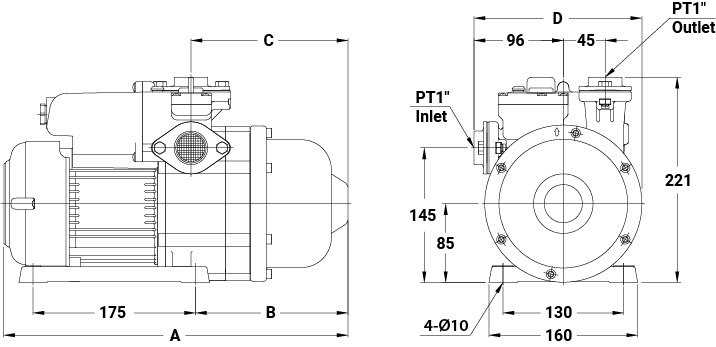

TQ200B/400B/800B
Model Cycle (Hz) Dimensions (mm)
A B C D
TQ200B 50 360 153 158 176
60 336 129 134 176
TQ400B 50 371 164 169 181
60 345 138 4311 181
TQ800B 50 / 60 417 164 169 181

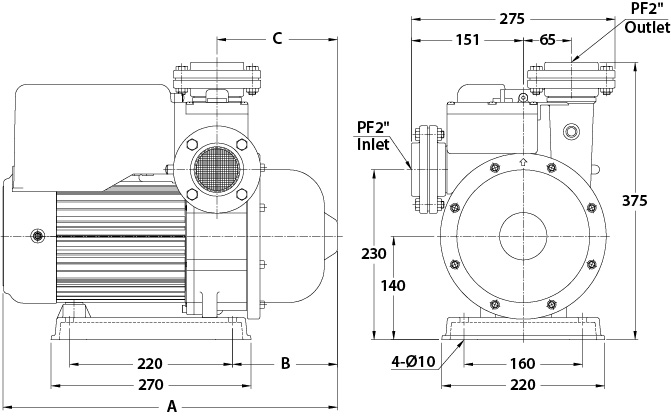

TQ1500B/2200B/3700B
型式 頻率(Hz) 外型尺寸 (mm)
A B C
TQ1500B~ 2200B 50 / 60 452 142 163
TQ3700B 60 452 142 163
