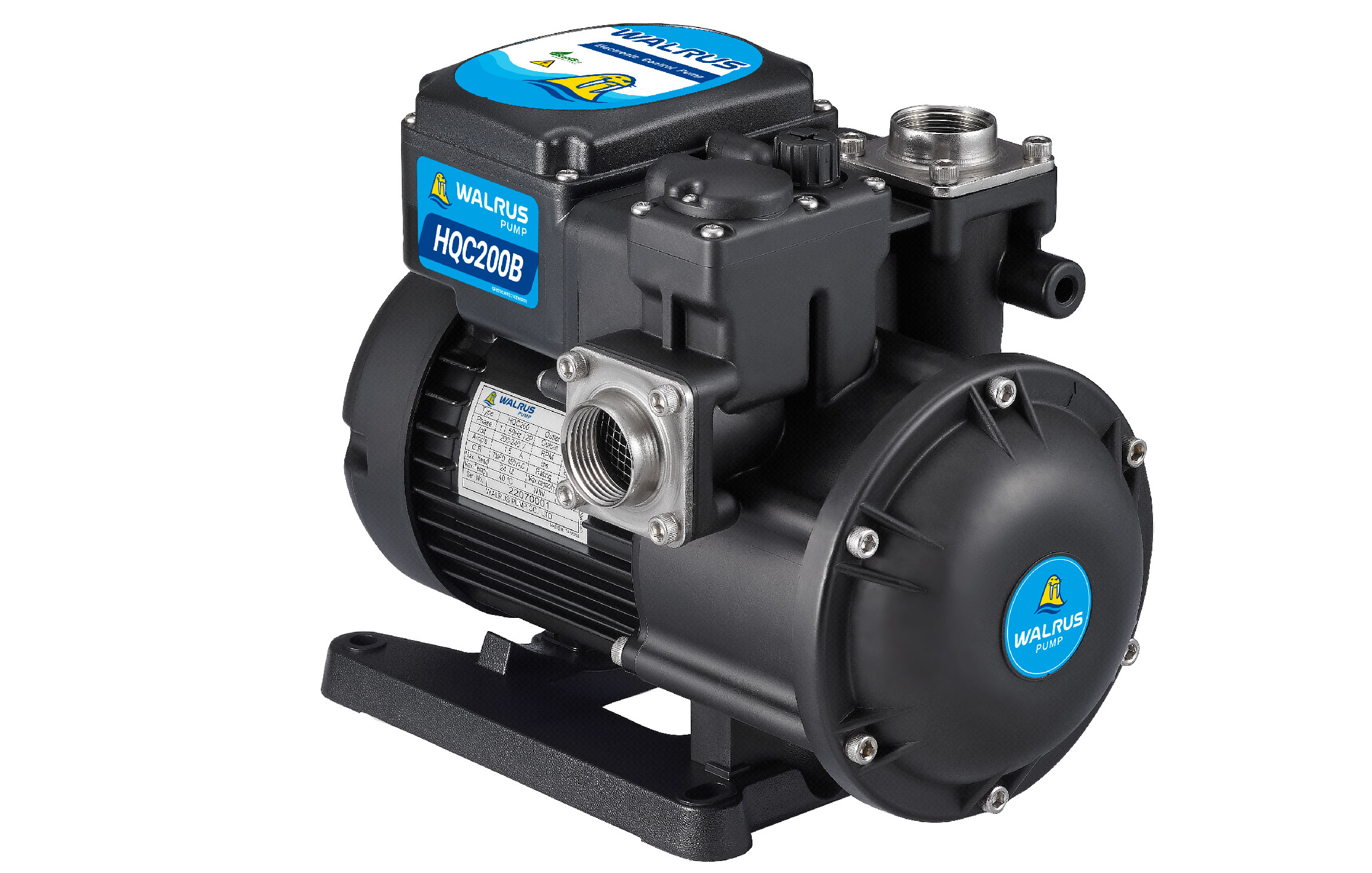

HQC 200B(外銷)產品圖
Model | HQC200B

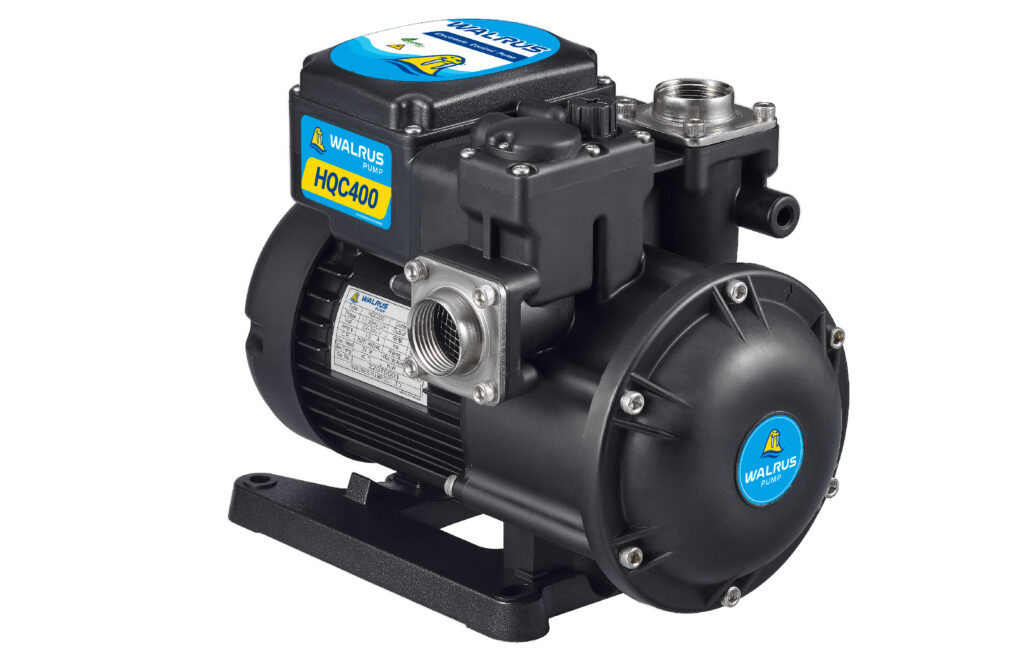

HQC 400B(外銷)產品圖
Model | HQC400B
HQC 200B(外銷)產品圖
HQC 400B(外銷)產品圖

Horizontal Centrifugal Pump

Automatic Flow-Controlled Booster Pump
HQC_B Series

  • Automatically starts and stops based on water inflow, no pressure retention in pipes.
  • Using SUS304 stainless steel centrifugal impellers, quiet and durable.
  • The parts in contact with liquid are made of rust-resistant materials
Construction Industry Construction Industry Service Service Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
0.18 - 0.75
Up to 33
Up to 110
60
0.18 - 0.75
Up to 27
Up to 120

Features

Power Module
Equipped with industrial-grade safety protections, it adapts to various voltage conditions to ensure consistently stable water pressure.
No pressure retention in pipes.
Intelligent electronic control with automatic start / stop based on inflow.
Quiet and Durable
The impeller is made of SUS304 stainless steel to ensure quite operation, high water quality and strength.
Thermal Overload Protection
The motor is equipped with a temperature overload protection device, effectively preventing motor damage due to overheating for reliable safety.
Antibacterial
The first and only pump in the world with antibacterial properties, incorporating Ag+ silver ions, certified by SGS to effectively inhibit the growth of certain bacteria.
Rust-Resistant
The parts in contact with liquid are made of rust-resistant materials, ensuring water hygiene at the source and protecting your family.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+4°C ~ +40°C
Suction Pipes
Must run in positive pressure only a negative pressure unable to work the pump.
Discharge Pipes
Must lower than water tower over 0.5 meter.
Operation Method
It must be installed below a water tower to enable downward pressurization and automatically starts and stops with water usage.
Operating Limitations
The pump cannot operate if the faucet outlet is higher than the water tower or when drawing water upwards from a reservoir.

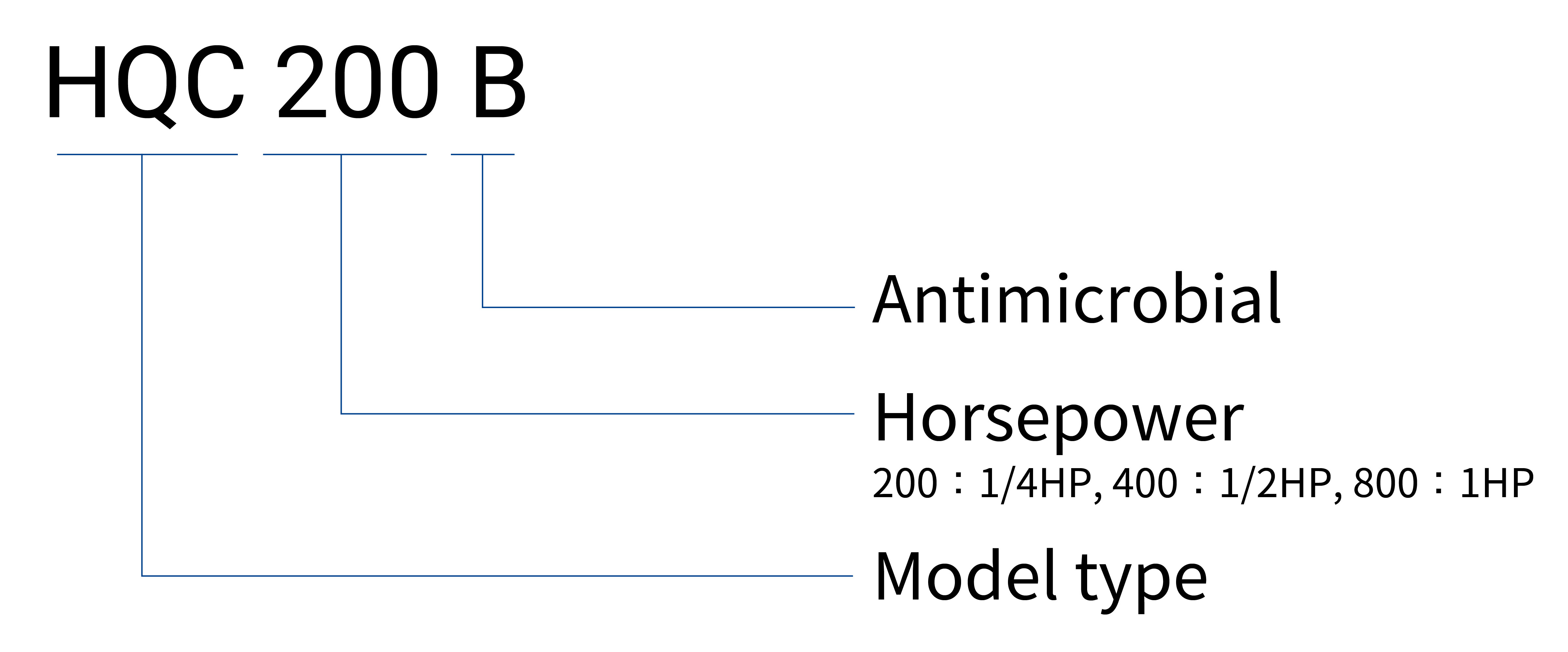

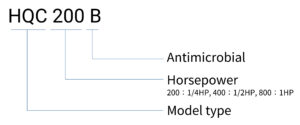

Model code

HQC B 編碼原則(英文)

Frequency

Motor Specifications
Inquiry
Model
Frequency(Hz)
Phase(Ø)
Power(kW)
Voltage(V)
Current(A)
HQC200B
50
1
0.18
200 - 240
1.5
HQC200B
60
1
0.18
110 / 220
4.0 / 2.0
HQC400B
50
1
0.37
200 - 240
2.8
HQC400B
60
1
0.37
110 / 220
6.0 / 3.0
HQC800B
50
1
0.75
200 - 240
4.5
HQC800B
60
1
0.75
110 / 220
10.0 / 5.5

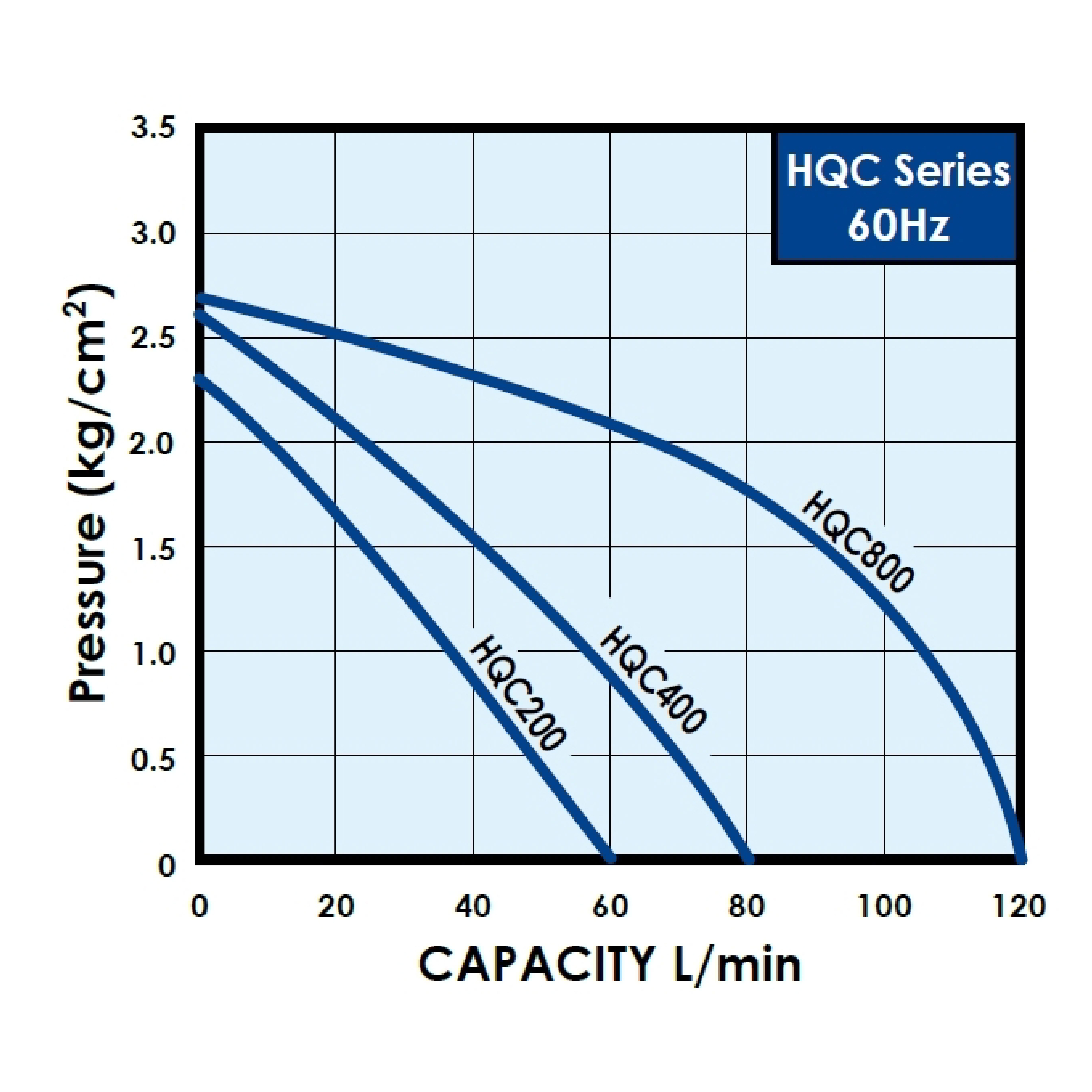

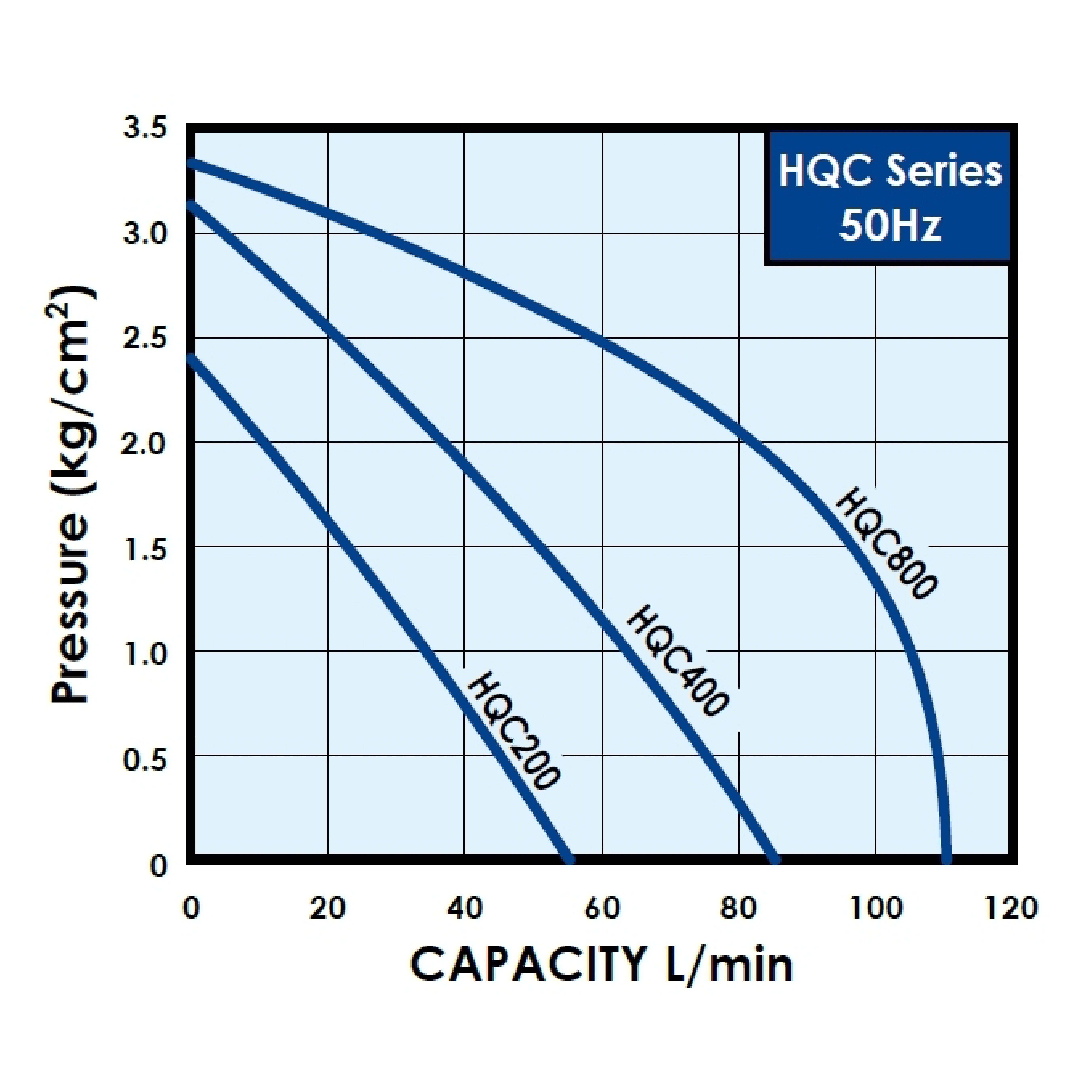

Pump Performance
Graph
Model
Frequency(Hz)
Max. Head(M)
Max. Flow(L/min)
Inlet(in.)
Outlet(in.)
HQC B 50Hz曲線圖(外銷)
HQC200B
50
24
55
1"
1"
HQC B 60Hz曲線圖(外銷)
HQC200B
60
23
60
1"
1"
HQC B 50Hz曲線圖(外銷)
HQC400B
50
31
85
1"
1"
HQC B 60Hz曲線圖(外銷)
HQC400B
60
26
80
1"
1"
HQC B 50Hz曲線圖(外銷)
HQC800B
50
33
110
1"
1"
HQC B 60Hz曲線圖(外銷)
HQC800B
60
27
120
1"
1"

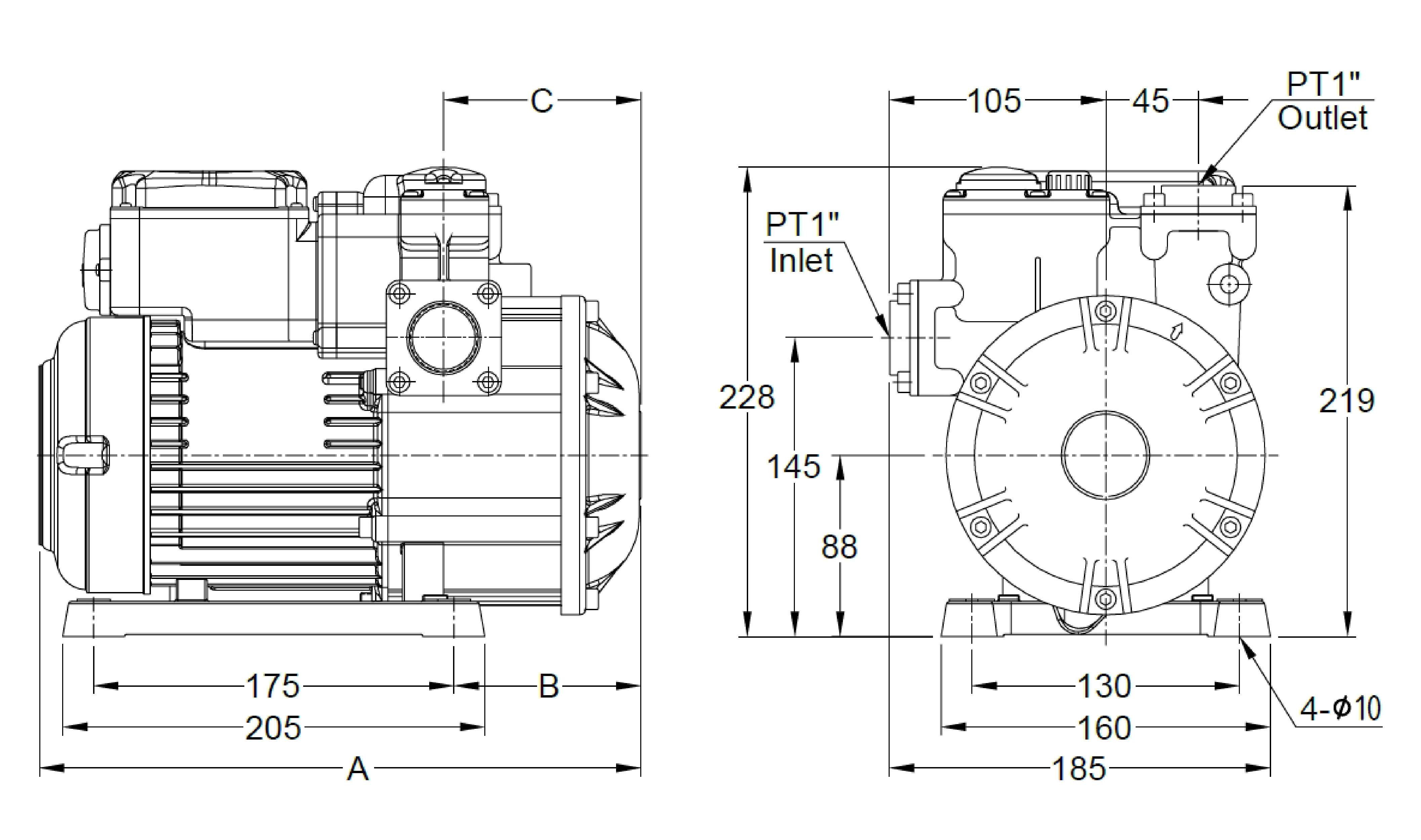

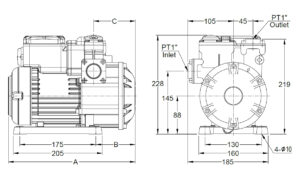

Dimension
Model
Frequency(Hz)
A(mm)
B(mm)
C(mm)
N.W.(kg)
G.W.(kg)
Pallet Loading Qty.(pc)
HQC200B
50
292
91
96
6.8
7.5
45
HQC200B
60
292
91
96
6.7
7.4
45
HQC400B
50
292
91
96
7.9
8.5
45
HQC400B
60
292
91
96
7.8
8.4
45
HQC800B
50
344
96
101
10.3
10.9
36
HQC800B
60
344
96
101
10.2
10.8
36

HQC B 材積圖(外銷)
HQC B 材積圖(外銷)

HQC_B Series Applications

shower head with water drops flowing
Construction Industry
Domestic Water Supply
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.
其他服務 一般民生用水
Service Industry
Domestic Water Supply
For daily use, including water boosting, rooftop tank refilling, and groundwater extraction, ensuring balanced water supply across all floors.

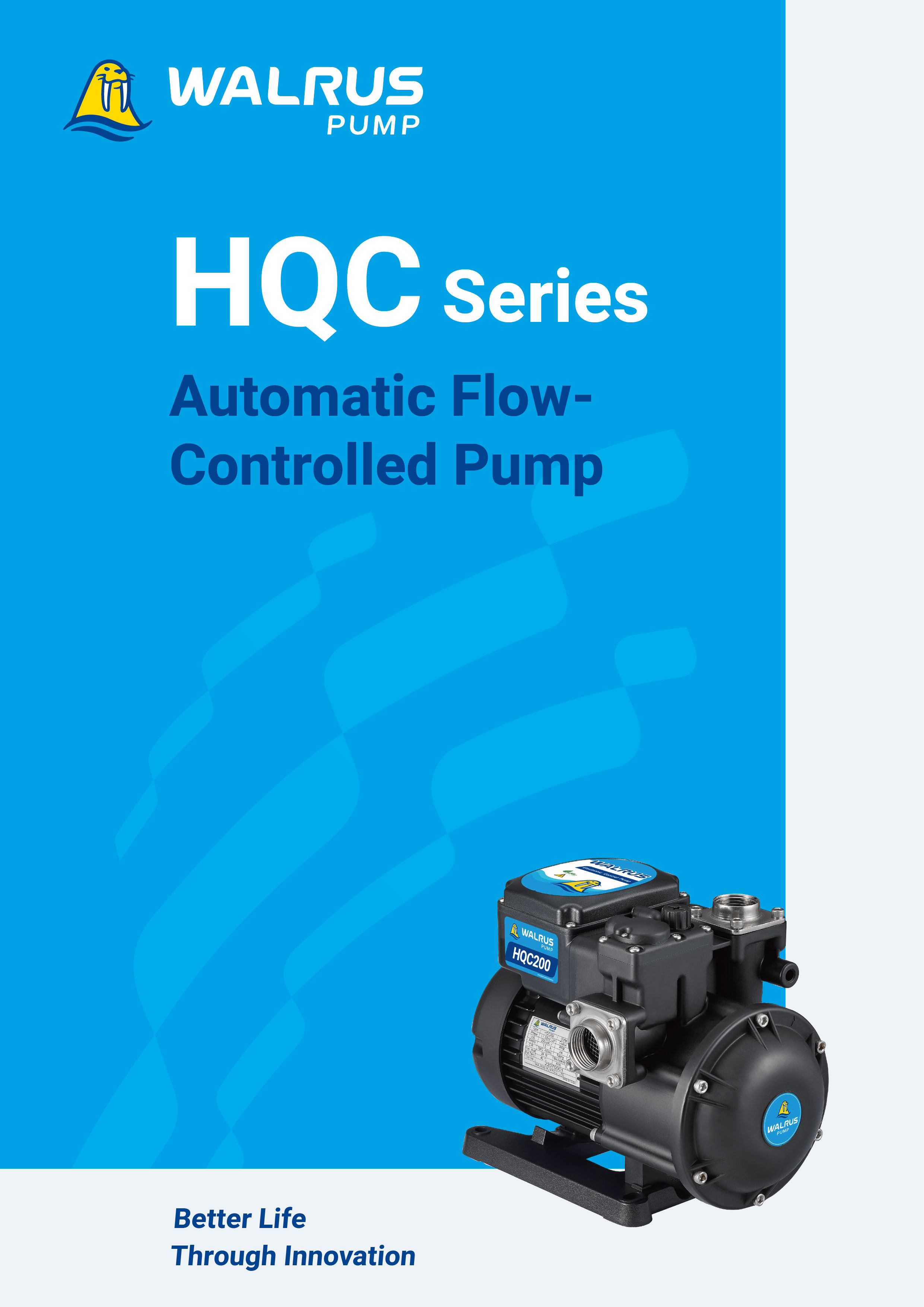

HQC EN000 202309新識別
HQC_B Product Catalogue
Update2025-08-18
Size1.06 MB

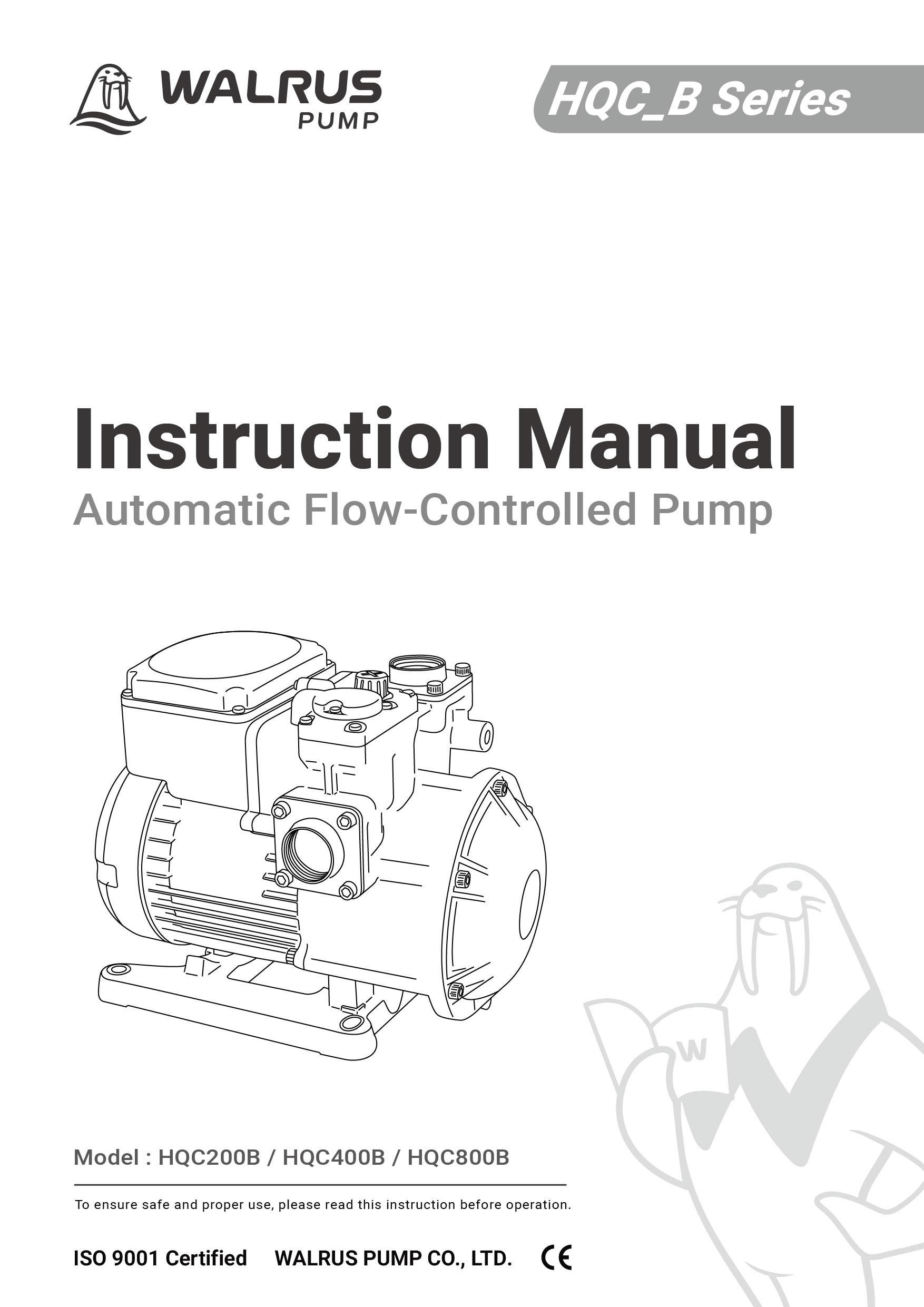

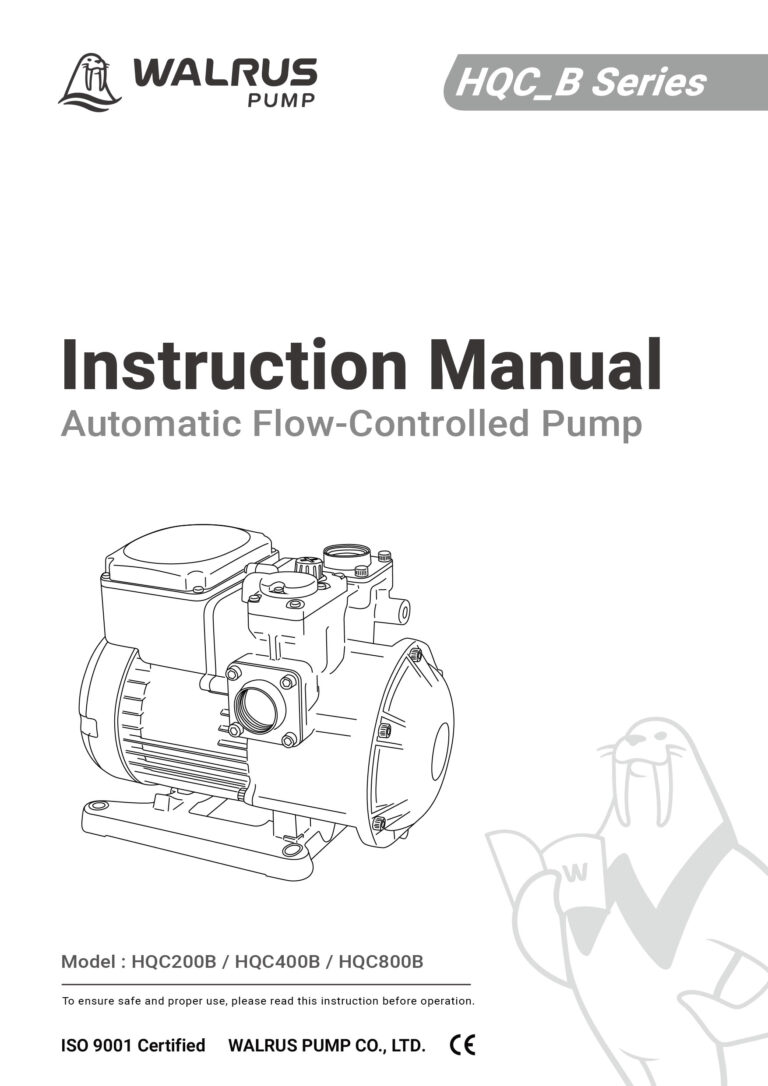

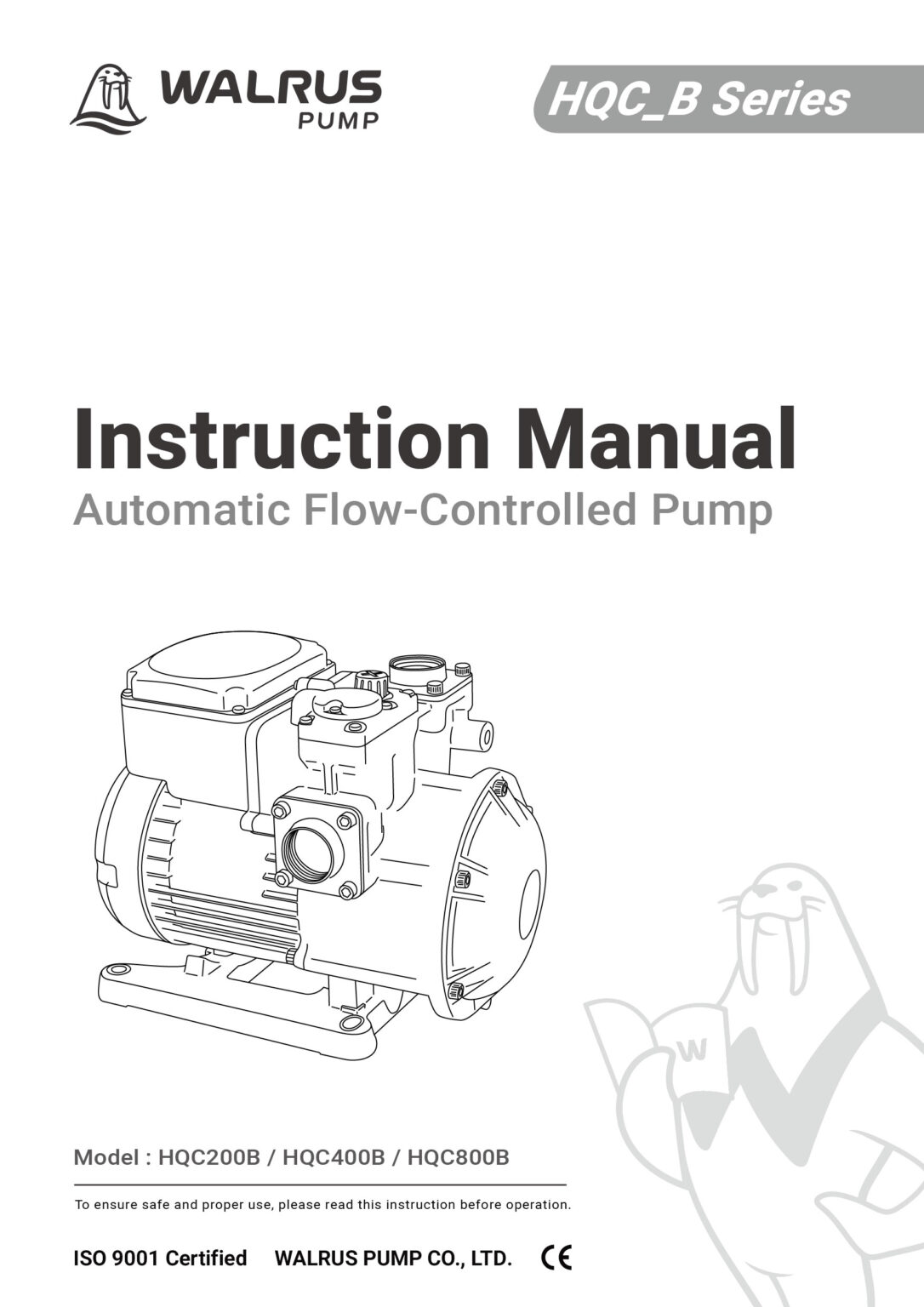

HQC B EW 使用說明書
HQC_B Instruction Manual
Update2025-08-18
Size305.1 KB
Download ({{ selectedDownloadIds.length }})

Related Products

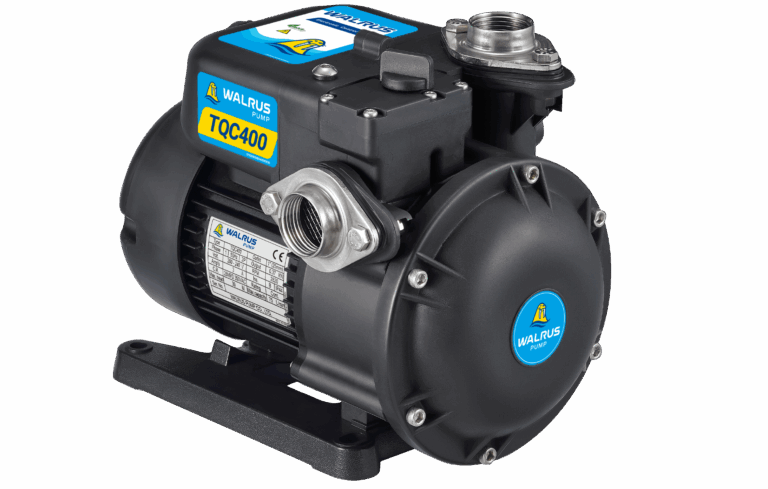

TQC 400B(外銷)列表圖
