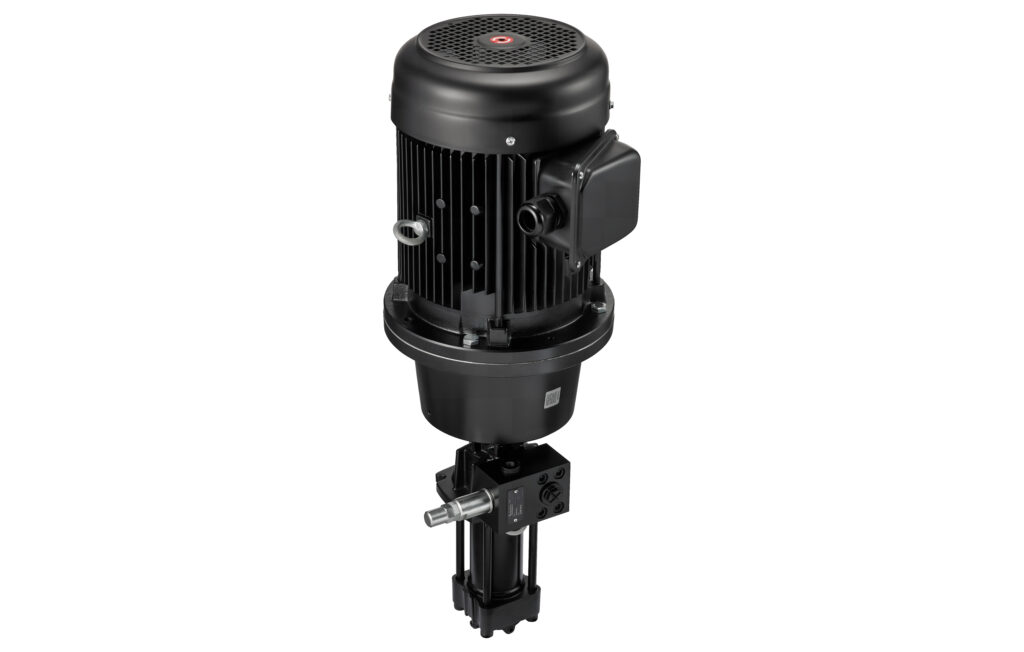

LMP2050
Model | LMP2050
LMP2050

Screw Pump

Screw Pump
LMP Series

  • Meets water pressure requirements ranging from 50 to 80 bar.
  • Wear-resistant, and specifically designed for high-pressure machining to ensure stable workpiece quality.
  • Various precision applications in industries such as aerospace.
Manufacturing Manufacturing Industry
Frequency (Hz)
Power (kW)
Head (M)
Flow (L/min)
50
5.5 - 7.5
Up to 800
Up to 28
60
5.5 - 7.5
Up to 800
Up to 28

Features

Durable, Wear-Resistant Construction
Particularly suitable for precision-critical machining applications involving difficult-to-machine materials such as aluminum and stainless steel.
Complies with High-Precision Processing Standards
Applicable to high-precision industries, such as aerospace machining processes.
Grinding Applications
Machine Tools, Machining Center, Booster station, Centralized and decentralized coolant preparation systems, Lubricants and hydraulics.
High-Pressure
Supports high-pressure water applications within the 50–80 bar range.
Precision Chip Control
Delivers efficient chip breaking to extend tool life and reduce operational costs.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
0°C ~ +80°C
Requirement
When emulsion, minimum oil content is 5%
Maximum Solid Content
40 mg/liter
Maximum Particle Size
0.05 mm (50 microns)
Rotation Direction
Clockwise, starting from the top on the motor vent side.

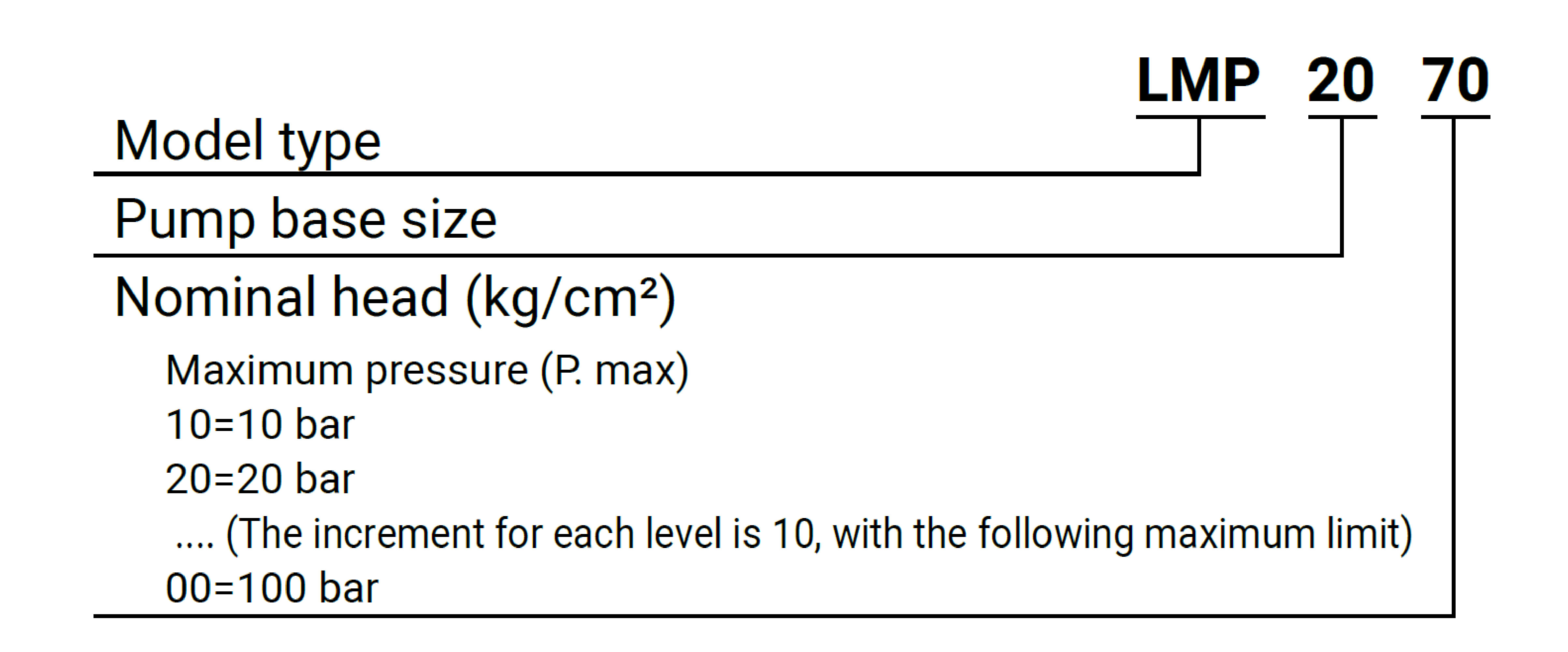

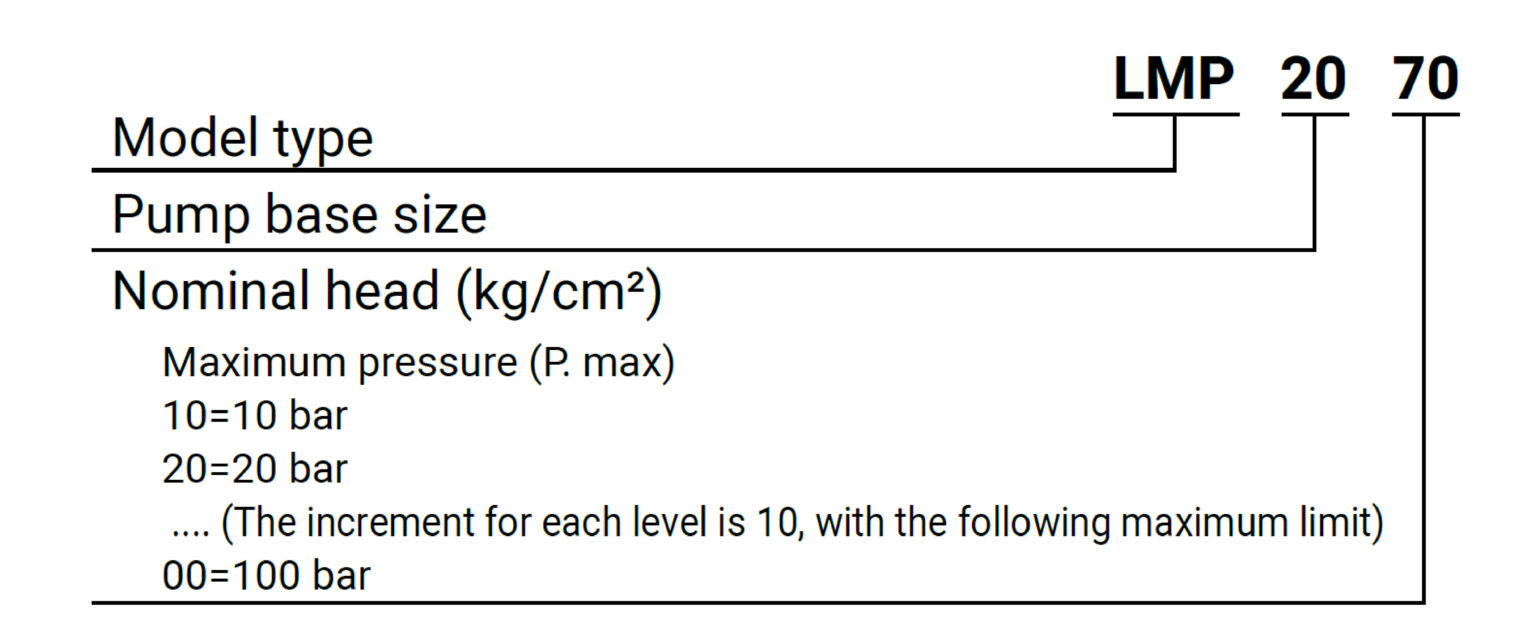

Model code

LMP 編碼原則(英文)

Frequency

Motor Specifications
Inquiry
Model
Frequency(Hz)
50 & 60 Hz
Compatible(Y/N)
Phase(Ø)
Output (P2)(kW)
Voltage(V)
Current
I1/1(A)
Current
Imax(A)
LMP2050
50
Y
3
5.5
220-240 / 380-415
19.6-19.9 / 11.3-11.4
21.3-21.2 / 12.3-12.2
LMP2050
60
Y
3
5.5
220-255 / 380-440
19.1-17.9 / 10.9-10.3
21.7-19.9 / 12.4-11.5
LMP2070
50
Y
3
7.5
220-240 / 380-415
25.0-24.8 / 14.6-14.5
27.3-26.8 / 15.9-15.7
LMP2070
60
Y
3
7.5
220-255 / 380-440
25.4-24.4 / 14.7-14.1
28.9-27.1 / 16.7-15.8
LMP2080
50
N
3
7.5
220-240 / 380-415
25.0-24.8 / 14.6-14.5
27.3-26.8 / 12.3-15.7

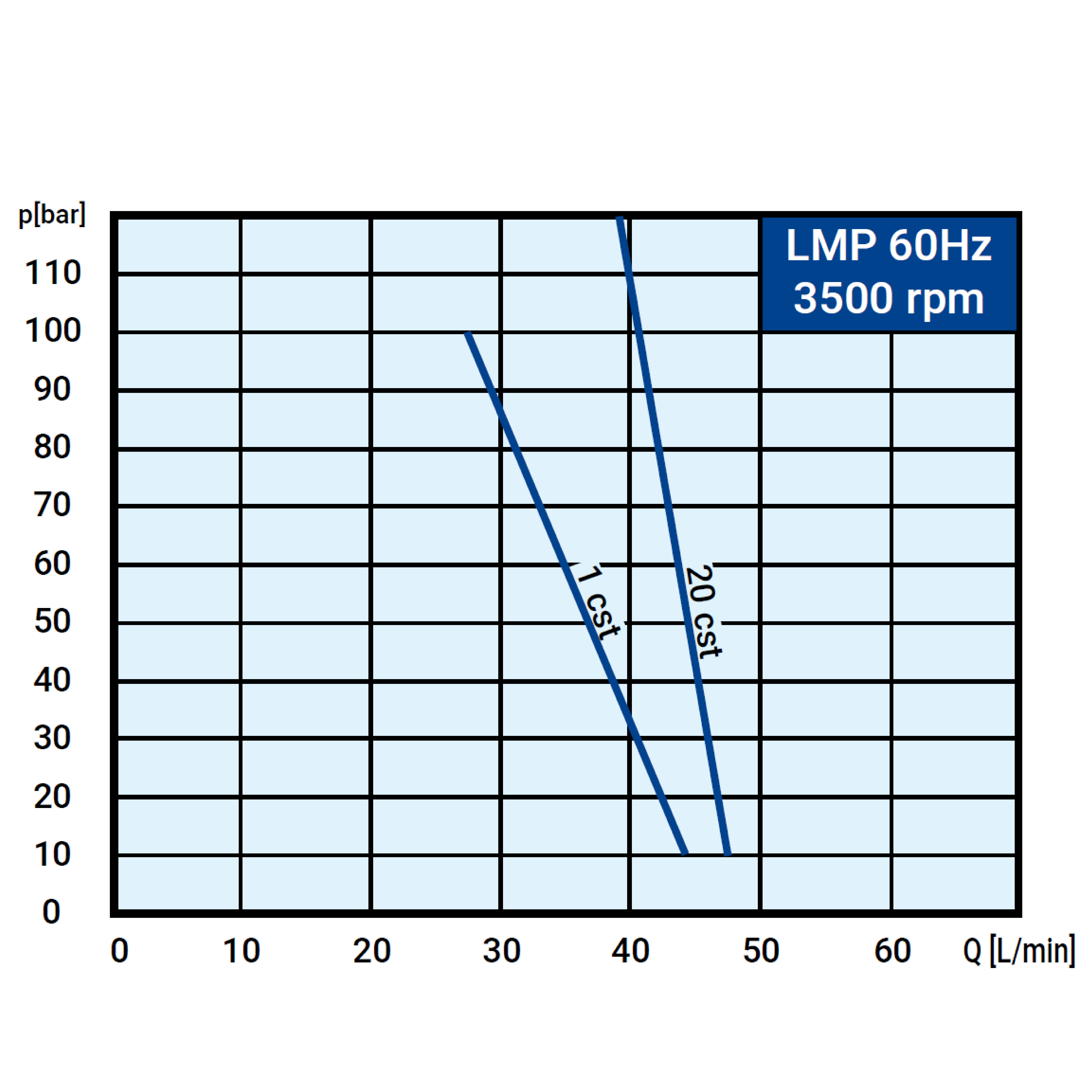

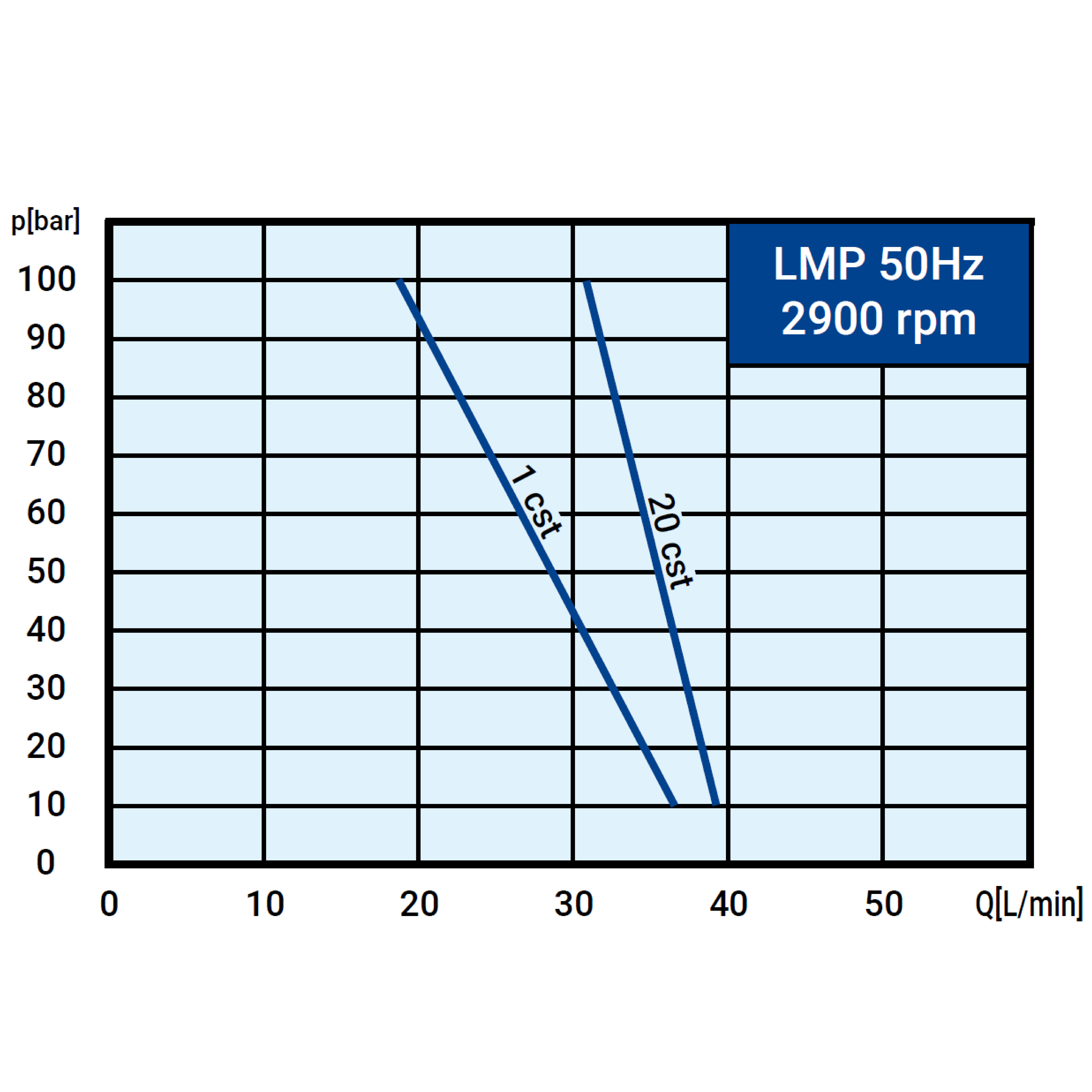

Pump Performance
Graph
Model
Frequency(Hz)
Rated Pressure(bar)
1cst
Rate Flow(L/min)
20cst
Rate Flow(L/min)
Inlet(in.)
Outlet(in.)
LMP2050
50
50
22.7
34.6
1" BSP
1" SAE + ¾" BSP
LMP2050
60
50
36.2
43.1
1" BSP
1" SAE + ¾" BSP
LMP2070
50
70
19.4
27.2
1" BSP
1" SAE + ¾" BSP
LMP2070
60
70
32.4
41.3
1" BSP
1" SAE + ¾" BSP
LMP2080
50
80
17.7
26.5
1" BSP
1" SAE + ¾" BSP

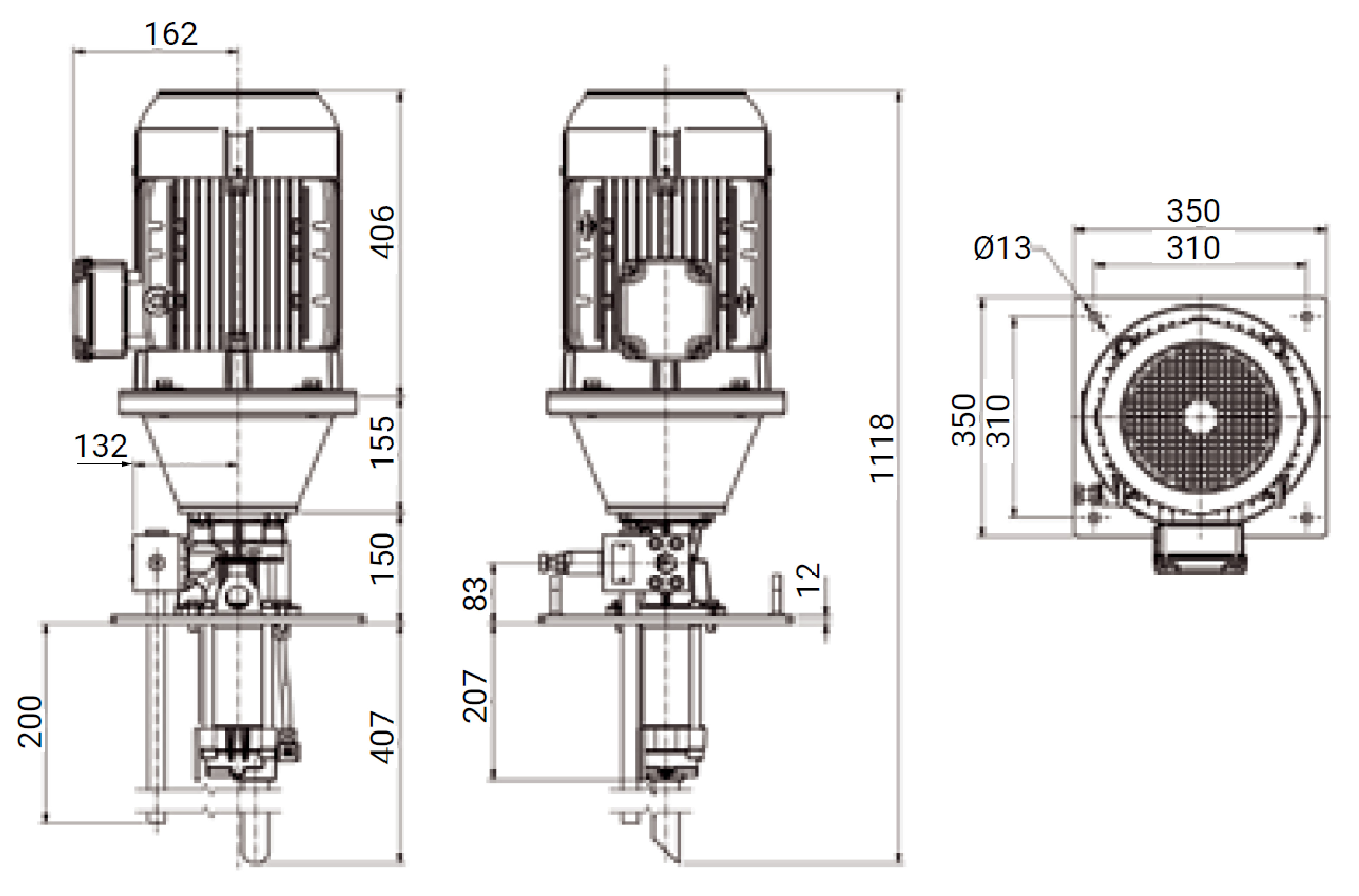

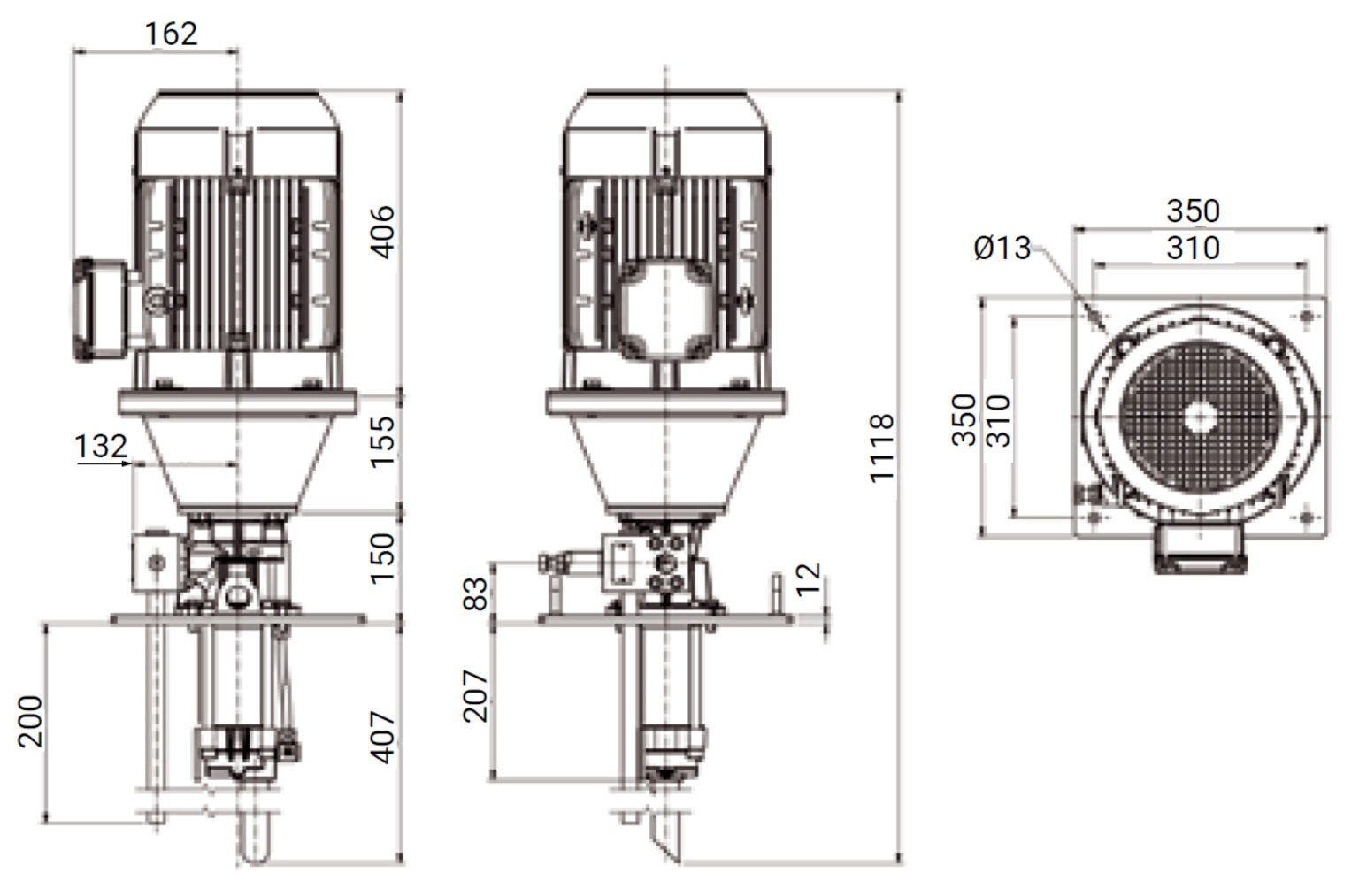

Dimension
Model
Frequency(Hz)
Length(mm)
Width(mm)
Height(mm)
LMP2050
50
337
350
1,118
LMP2050
60
337
350
1,118
LMP2070
50
337
350
1,118
LMP2070
60
337
350
1,118
LMP2080
50
337
350
1,118

內外銷共用 LMP 材積圖
內外銷共用 LMP 材積圖

LMP Series Applications

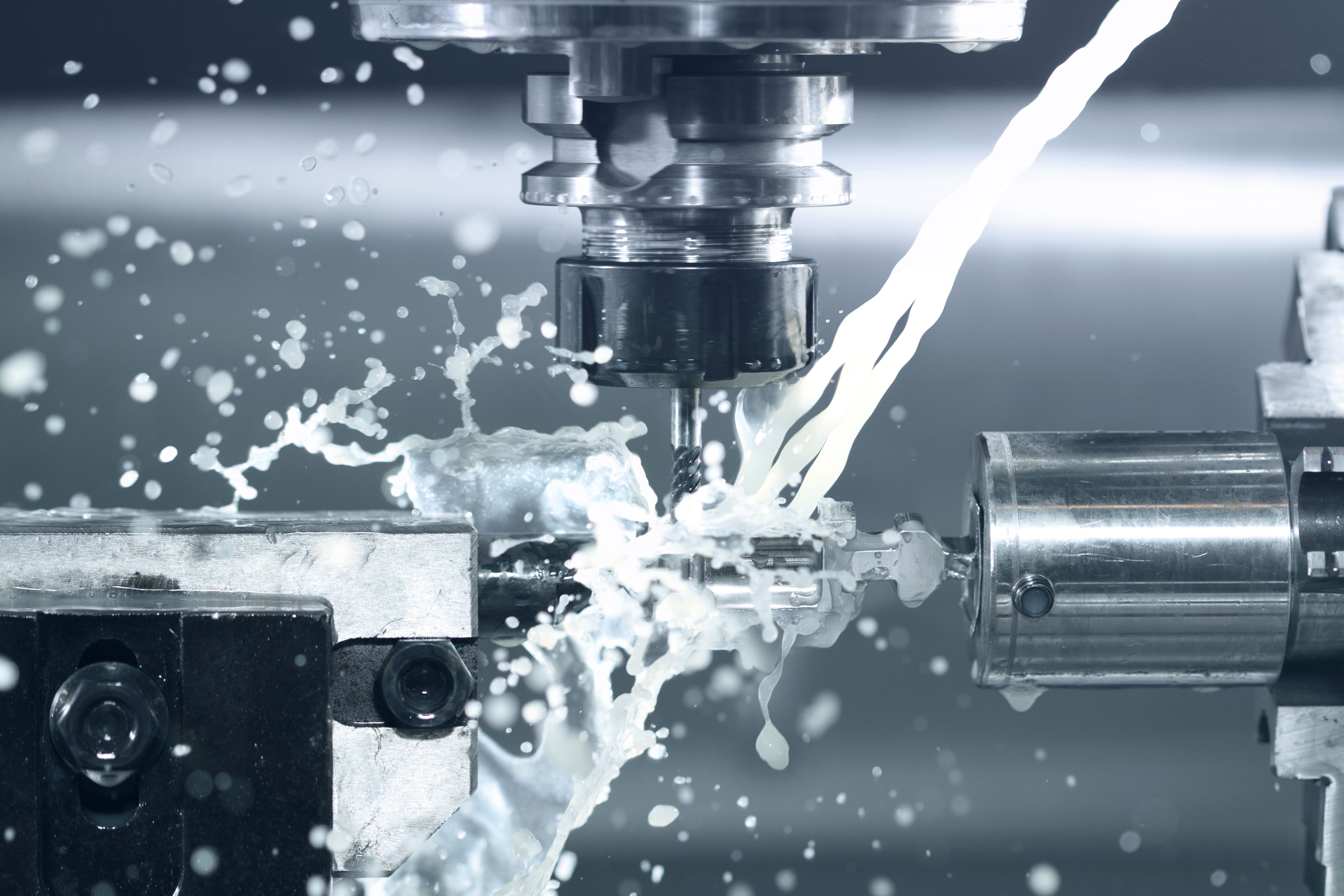

CNC At Work
Manufacturing Industry
Industrial Process Cooling
A key solution for stable precision manufacturing, suitable for cooling, chip removal, flushing, and lubrication.
LMP EN000a 202504
LMP_Product Catalogue
Update2025-09-10
Size541.11 KB
