TPCK2T26 26HIC
Model | TPCK2T26-26EHIC
TPCK2T26 26HIC

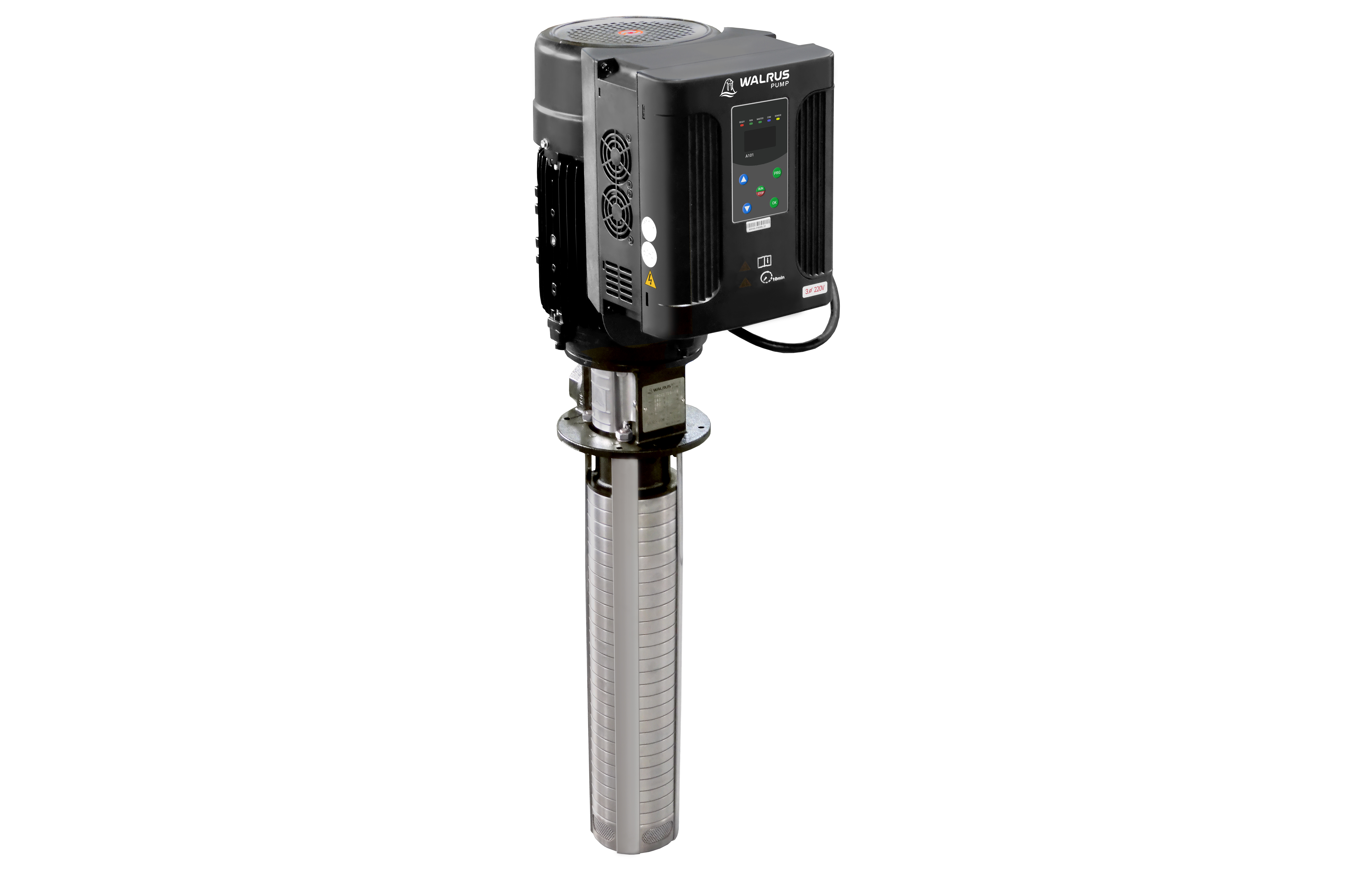

Immersible Centrifugal Pump

Inverter Control Immersible Pump
TPCK_EHIC Series

  • Integrated variable frequency drive with three-stage pressure control supports frequency settings for various applications.
  • Patented drain back tank design allows the leaked liquids to flow back to the tank without interrupting the process.
  • Centrifugal impeller design eliminates concerns related to the oil-water ratio of the cutting fluid, while also offering low operating noise, high efficiency, and low pulsation.
  • Coupling design for easy maintenance.
Manufacturing Manufacturing Industry
Power (kW)
Head (M)
Flow (L/min)
5.5
Up to 350
Up to 91

Features

High Efficiency & Energy Saving
Equipped with a variable frequency drive to enhance operational efficiency, it enables control based on requirements while reducing power consumption, promoting green manufacturing, and lowering carbon emissions.
Flexibly Adjusted for Your Needs
Three-stage pressure control supports frequency settings for various applications.
Stability and Reliability
Centrifugal impeller design eliminates concerns over coolant oil–water ratio, reduces noise, minimizes wear, and maintains performance stability.
No Pressure Relief Valve Needed
No pressure relief valve needed, reducing labor and installation costs.
Drain Back Tank structure
Patented drain back tank structure allows the leaked liquids to flow back to the tank without interrupting the process.
Coupling Design
Coupling design enables easy shaft seal replacement, improving maintenance and lowering costs.
Seal Material Selection
Various seal material options are offered for different liquid applications.
Ideal for the Machine Tool
Immersible multistage centrifugal pump, designed for industrial use, especially for machine tools. It is suitable for carrying fluids such as water, coolant, light oil and other clean, non aggressive matters.

Operating Conditions

Ambient Temp.
Max. +40°C
Liquid Temp.
+0℃ ~ +90℃
Operating Pressure
Max. 38 kg/cm²
Submerged Depth
Min. 40 mm
Filtration Precision
Below 1.5 mm

Motor

Enclosure Protection Class
IP54 (Pump and Motor)
Insulation Class
F

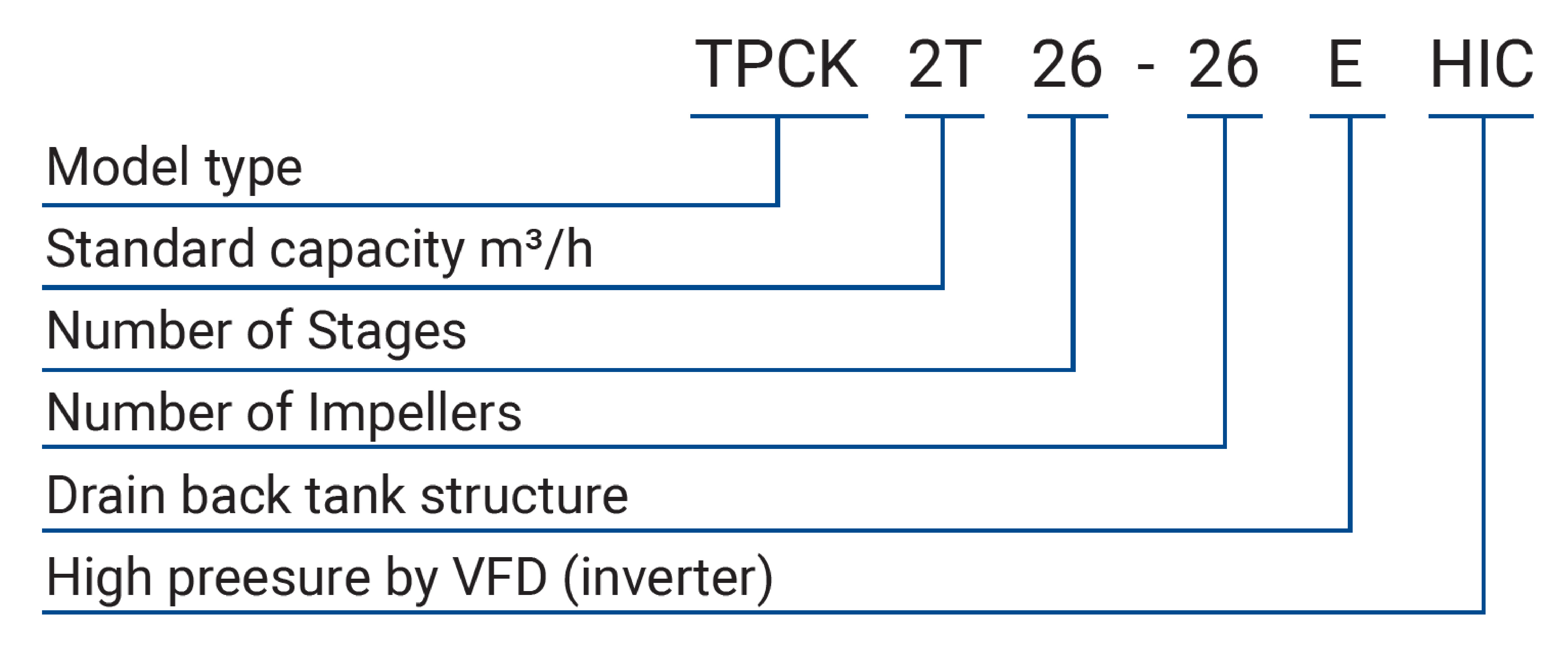

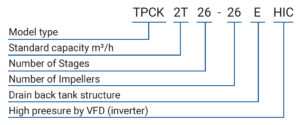

Model code

TPCK2T26 26EHIC 編碼原則(英文)

Frequency

Motor Specifications
Inquiry
Model
Phase(Ø)
Output (P2)(kW)
Voltage(V)
Current(A)
TPCK2T26-26EHIC
3
5.5
220
18.3
TPCK2T26-26EHIC
3
5.5
380
10.6

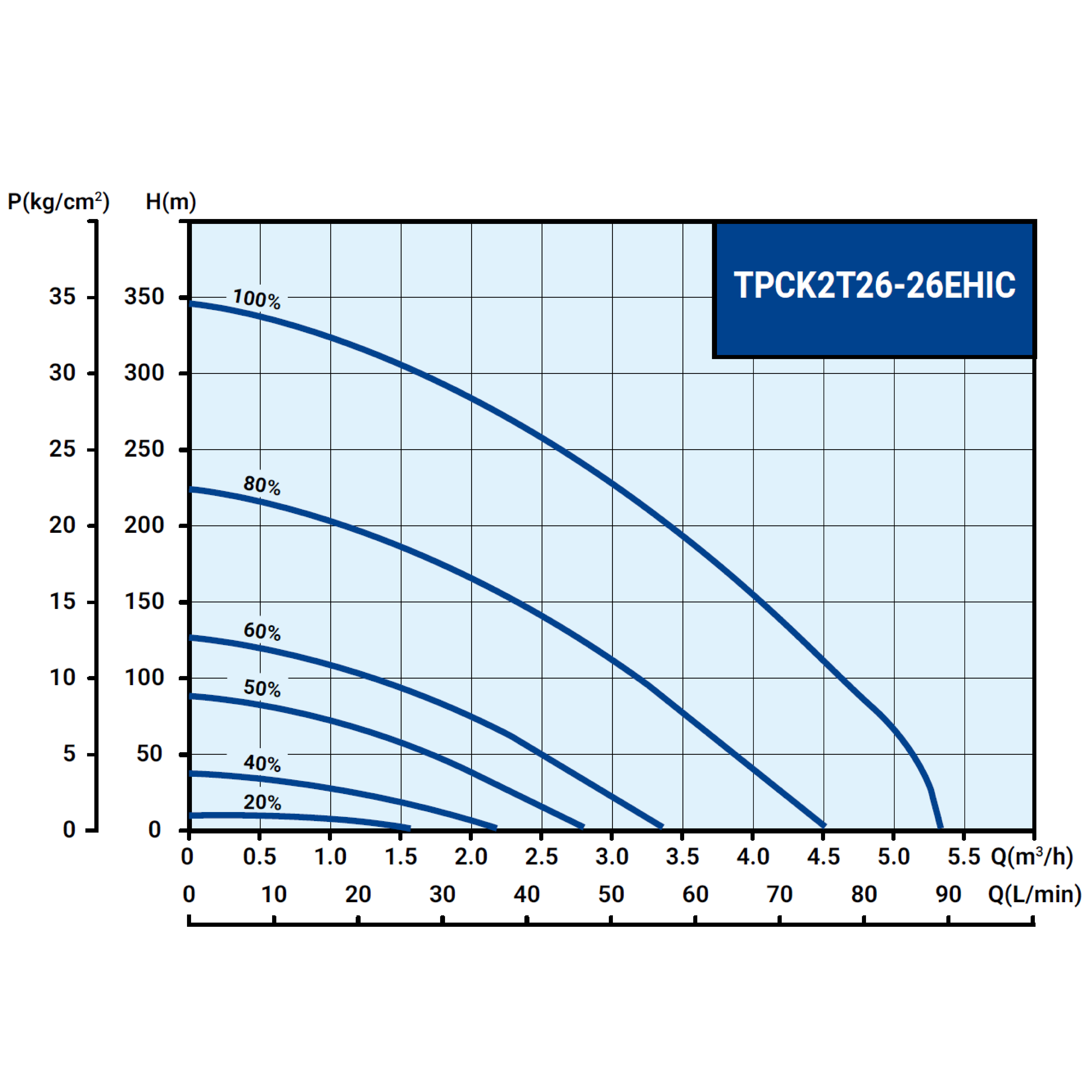

Pump Performance
Graph
Model
Max. Head(M)
Max. Flow(L/min)
Outlet(in.)
TPCK2T26-26EHIC
350
91
Rp 1 1/4"

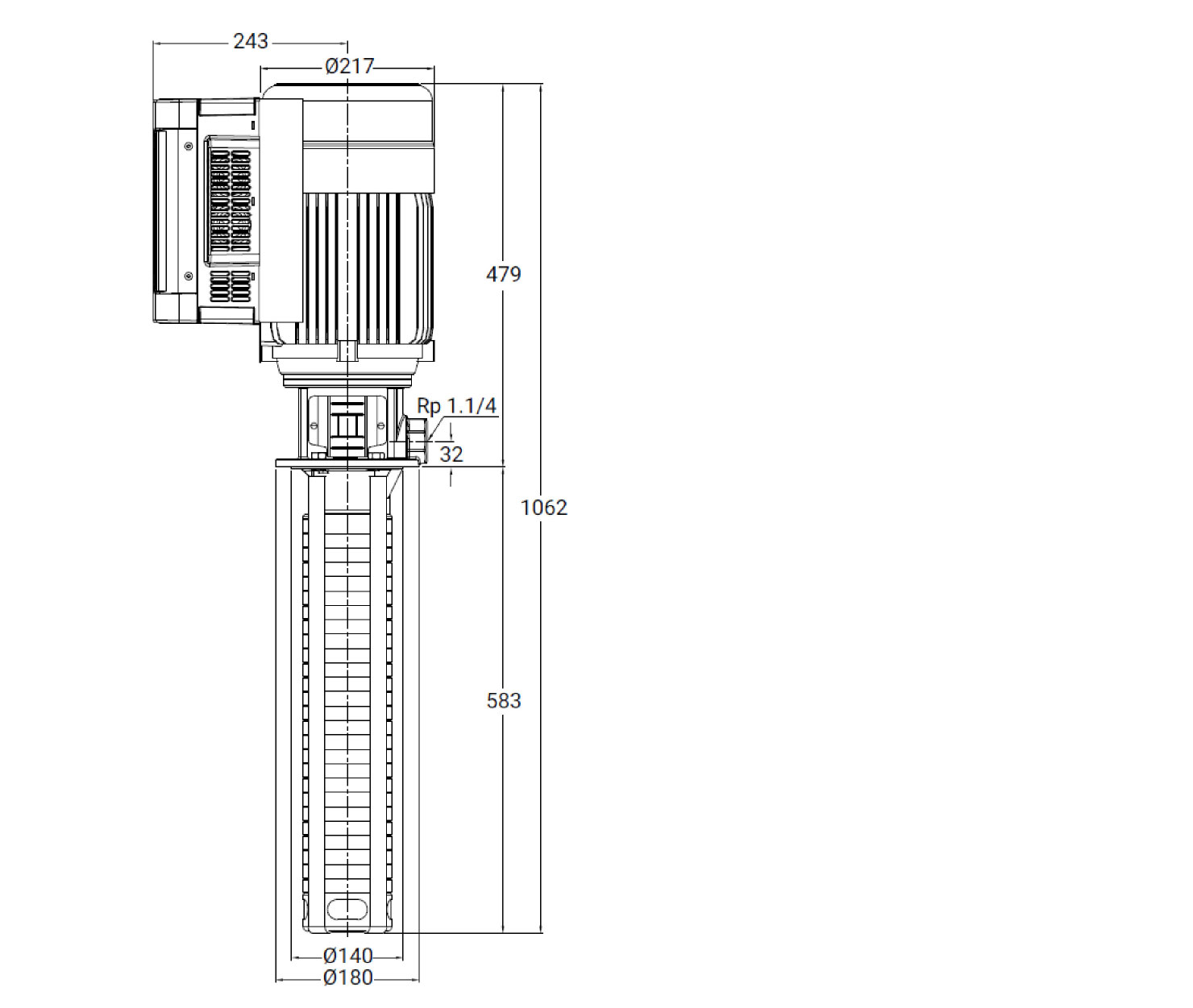

Dimension
Model
Length(mm)
Width(mm)
Height(mm)
N.W.(kg)
TPCK2T26-26EHIC
351.5
217
1,062
60

新TPCK 2T26 26EHIC 材積圖

TPCK_EHIC Series Applications

CNC At Work
Manufacturing Industry
Industrial Process Cooling
A key solution for stable precision manufacturing, suitable for cooling, chip removal, flushing, and lubrication.
TPCK EHIC IE3 EN000 202506
TPCK_EHIC_Product Catalogue
Update2025-09-10
Size809.24 KB
