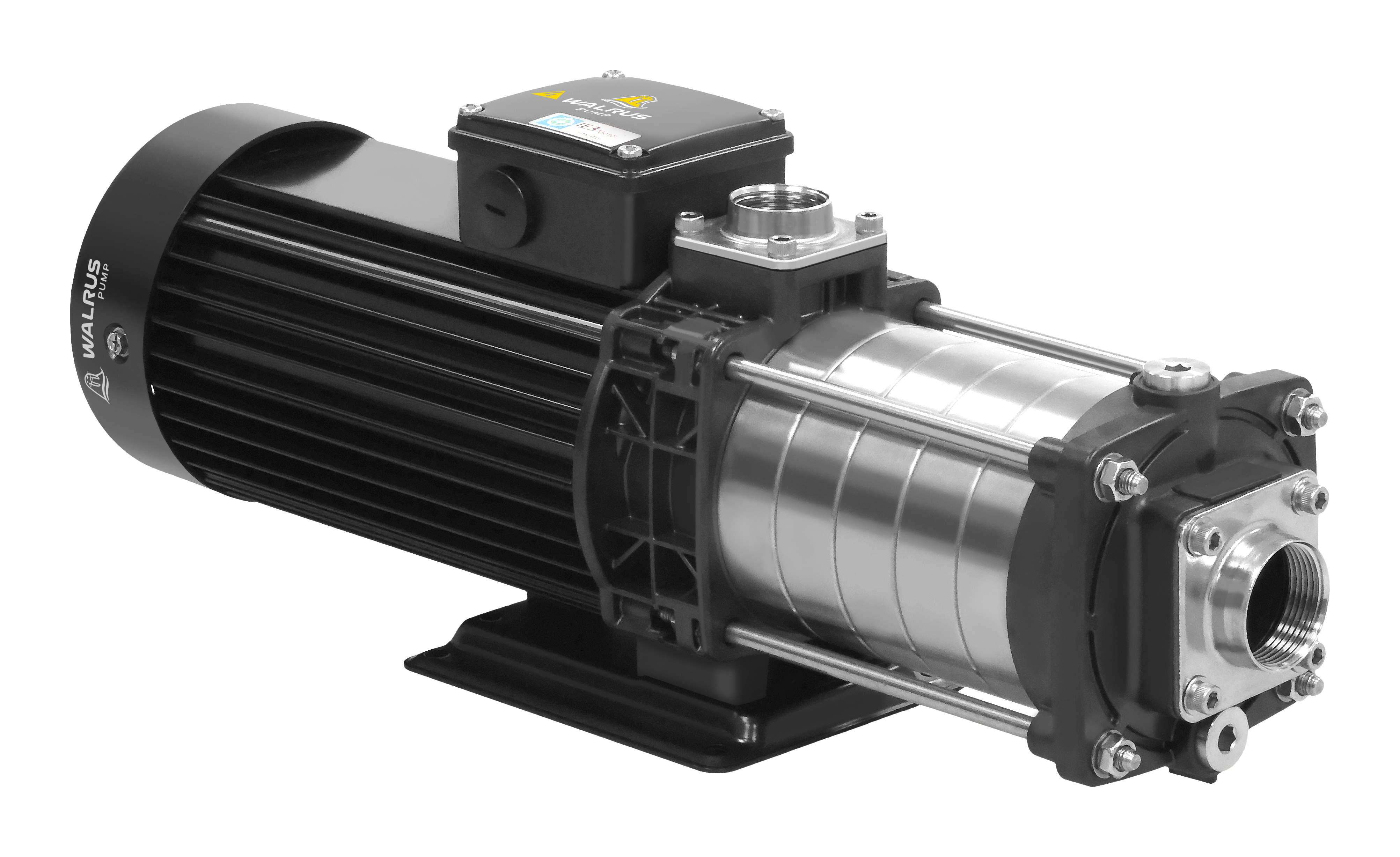

Horizontal Centrifugal Pump

Multi-Stage Horizontal Pump
TPH_P Series

Stainless steel and high-performance composites resist corrosion and rust.
Reduces lead time by 97%, cuts weight by 50%, lowers emissions by over 70%, and enables over 90% recyclability.
Centrifugal impeller design ensures low operational noise and stable performance with high efficiency and minimal pulsation.
In-house high-efficiency IE3-4 motor meets international standards for improved performance and energy savings.

Construction Industry

Manufacturing Industry

Electricity & New Energy Industry

Entertainment & Leisure Industry

Accommodation & Food Service Industry

Agriculture, Forestry, Fishery and Animal Husbandry

Wholesale & Retail Trade

Water Supply & Pollution Control

Service Industry

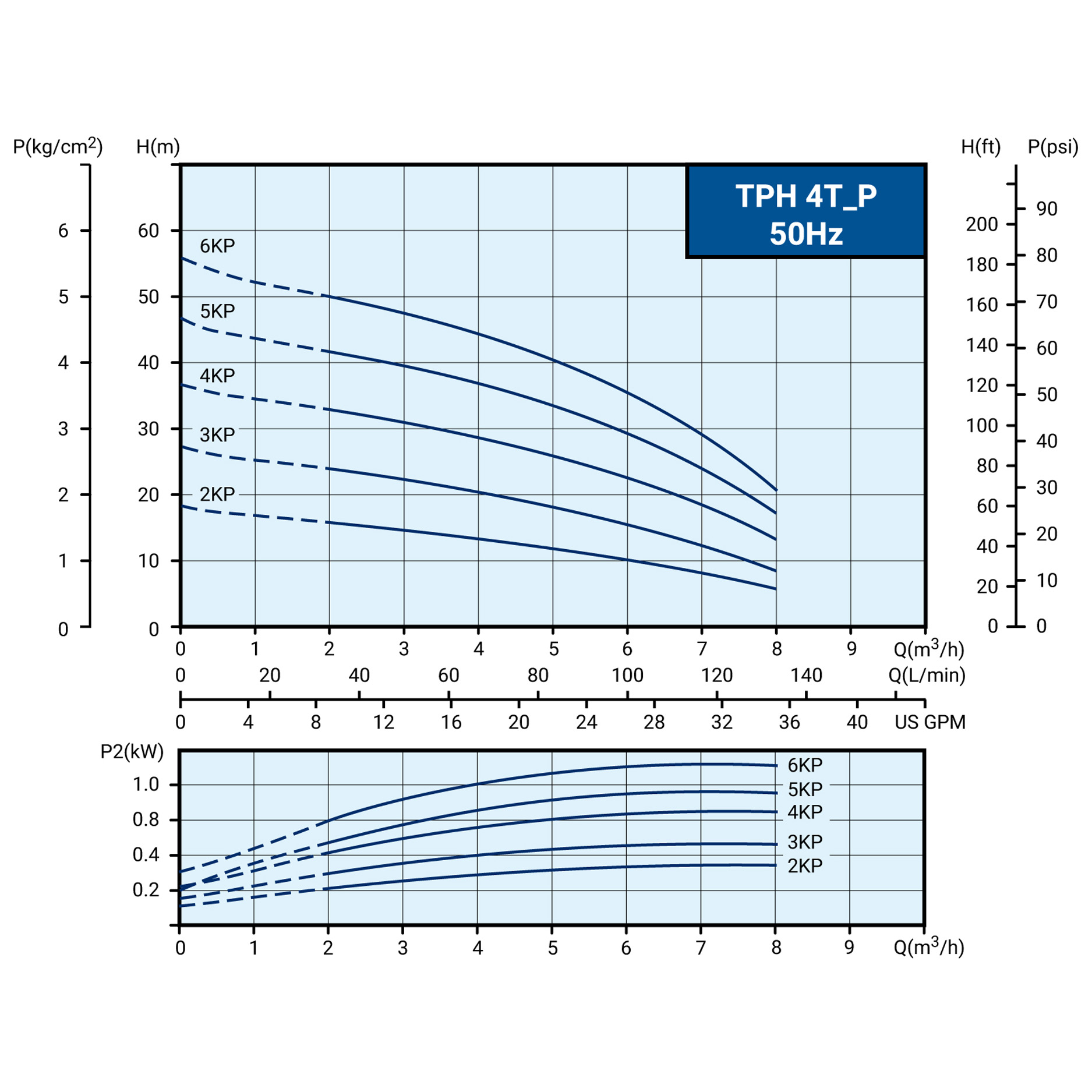

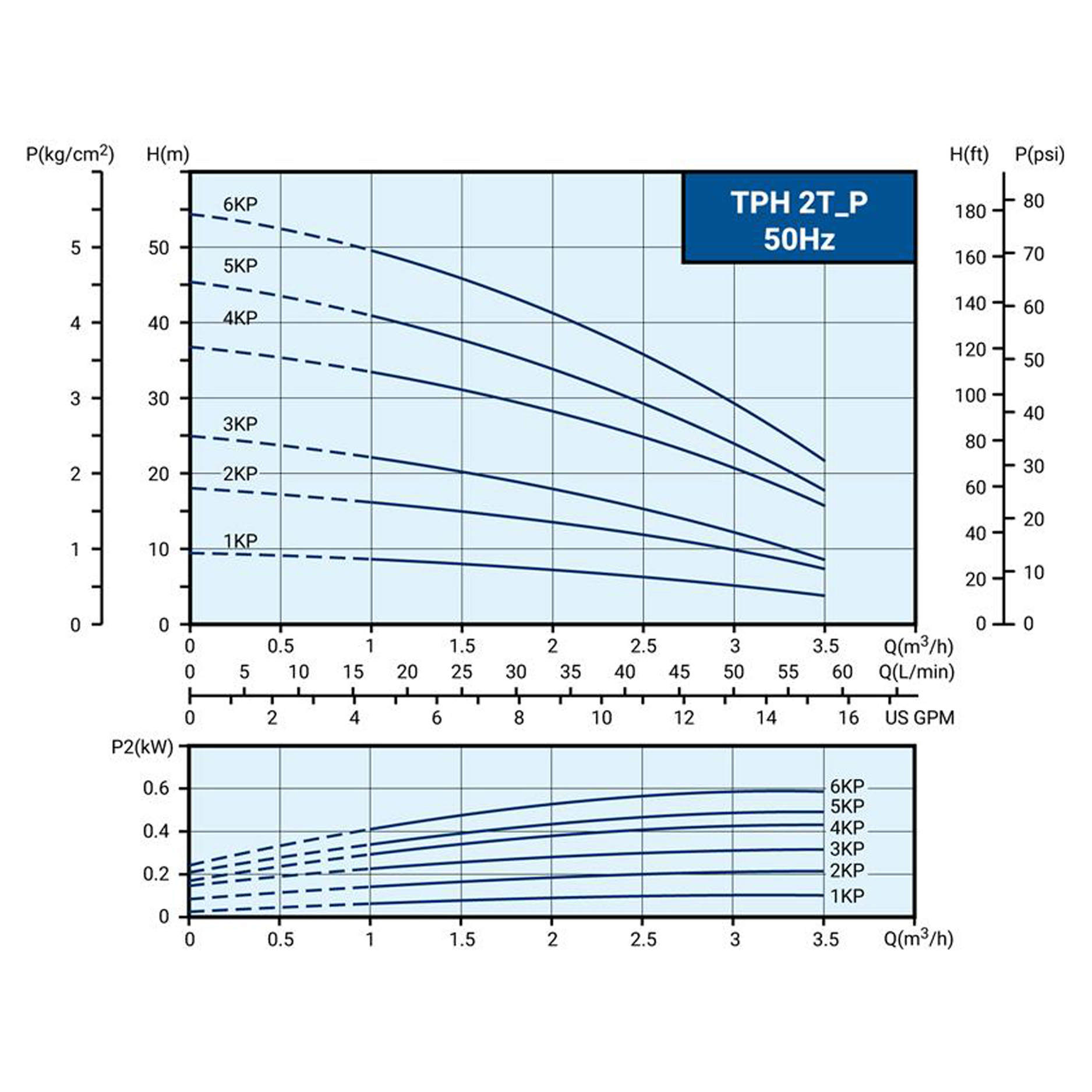

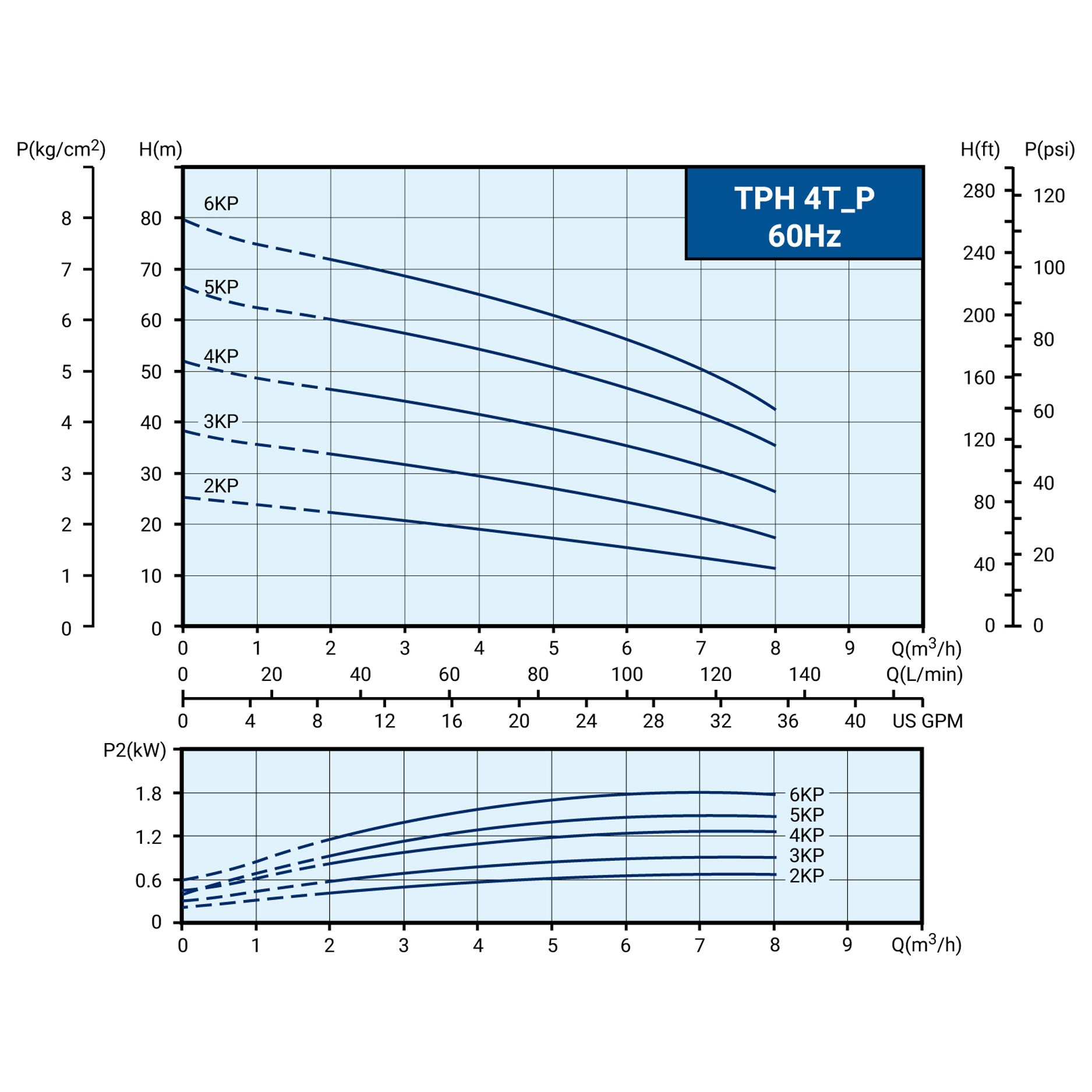

Frequency (Hz)

Power (kW)

Head (M)

Flow (L/min)

0.37 - 1.5

Up to 55

Up to 160

0.37 - 1.5

Up to 79

Up to 190

Features

Materials Innovation

Key moving parts are made of stainless steel, combined innovatively with high-performance composite materials, featuring corrosion resistance and light weight advantages.

Achieving Green Manufacturing

By using high-performance composite materials in place of traditional cast iron, the lead time is reduced by 97%, weight is decreased by 50%, carbon emissions are reduced by over 70%, and recyclability exceeds 90%, fully complying with green manufacturing requirements.

Stability and Reliability

The centrifugal impeller design delivers high efficiency and low pulsation, minimizing pressure fluctuations, enhancing reliability, and maintaining stable flow and pressure.

Energy Efficient

Fitted with an IE3-4 motor for high efficiency and energy savings, minimizing unnecessary energy consumption.

Compact Structure

Structural optimization design provides the most appropriate water source transportation.

Low-Noise Operation

The horizontal multistage centrifugal pump features low operational noise.

Damage Prevention

Featured drainage ports to prevent condensation water buildup and protect the motor burnout.

Flexible Configuration

The number of impeller segments can be adjusted to suit different application requirements.

Operating Conditions

Ambient Temp.

Max. +40°C

Liquid Temp.

+0°C ~ +90°C

Operating Pressure

Max. 10 kg/cm²

Inlet Pressure

Max. 6 kg/cm²

Motor

Frequency Range

50 / 60 Hz

Nominal Speed

2900 / 3500 rpm

Enclosure Protection Class

IP54

Insulation Class

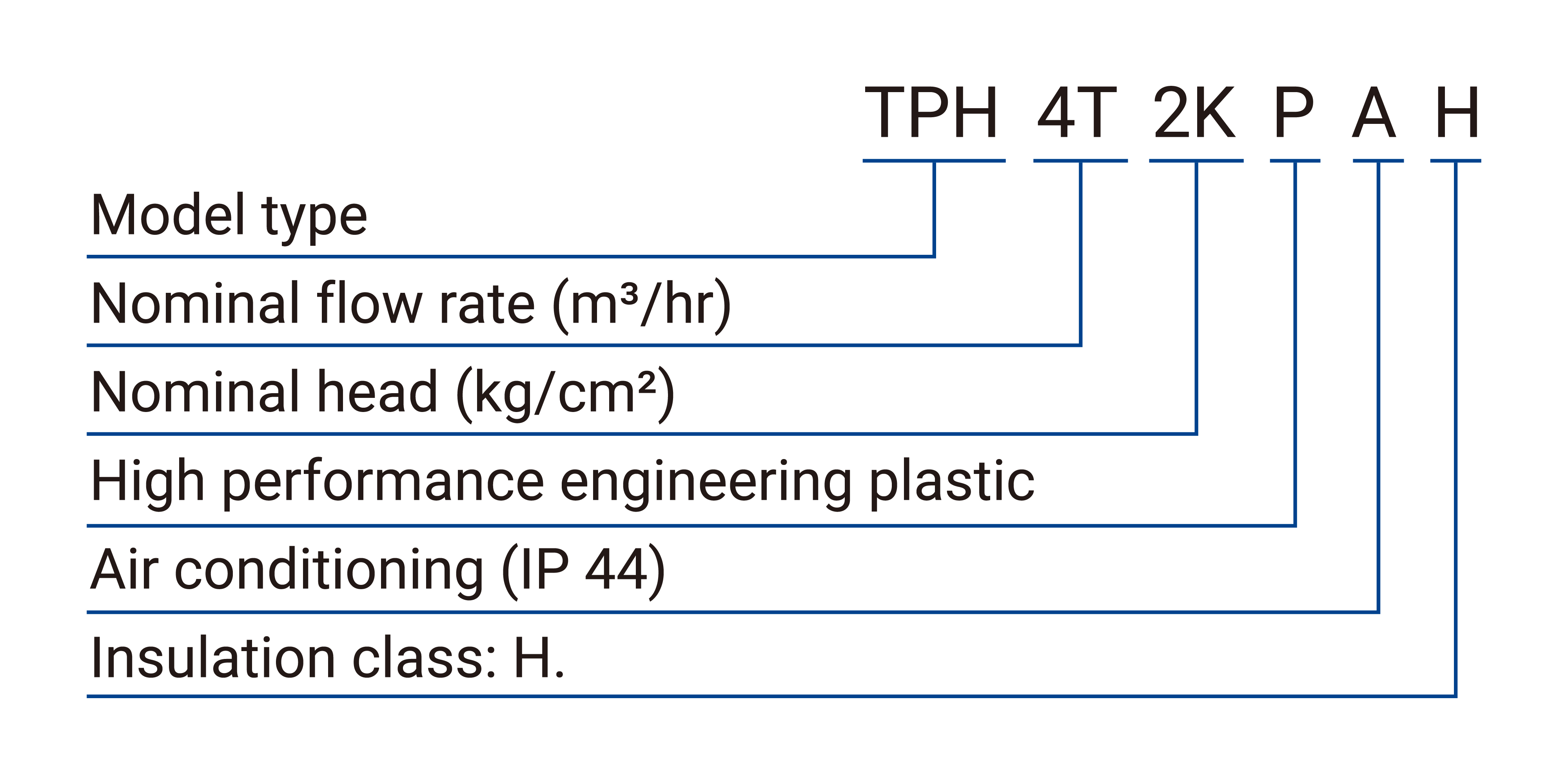

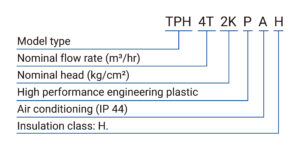

Model code

Frequency

50 Hz

60 Hz

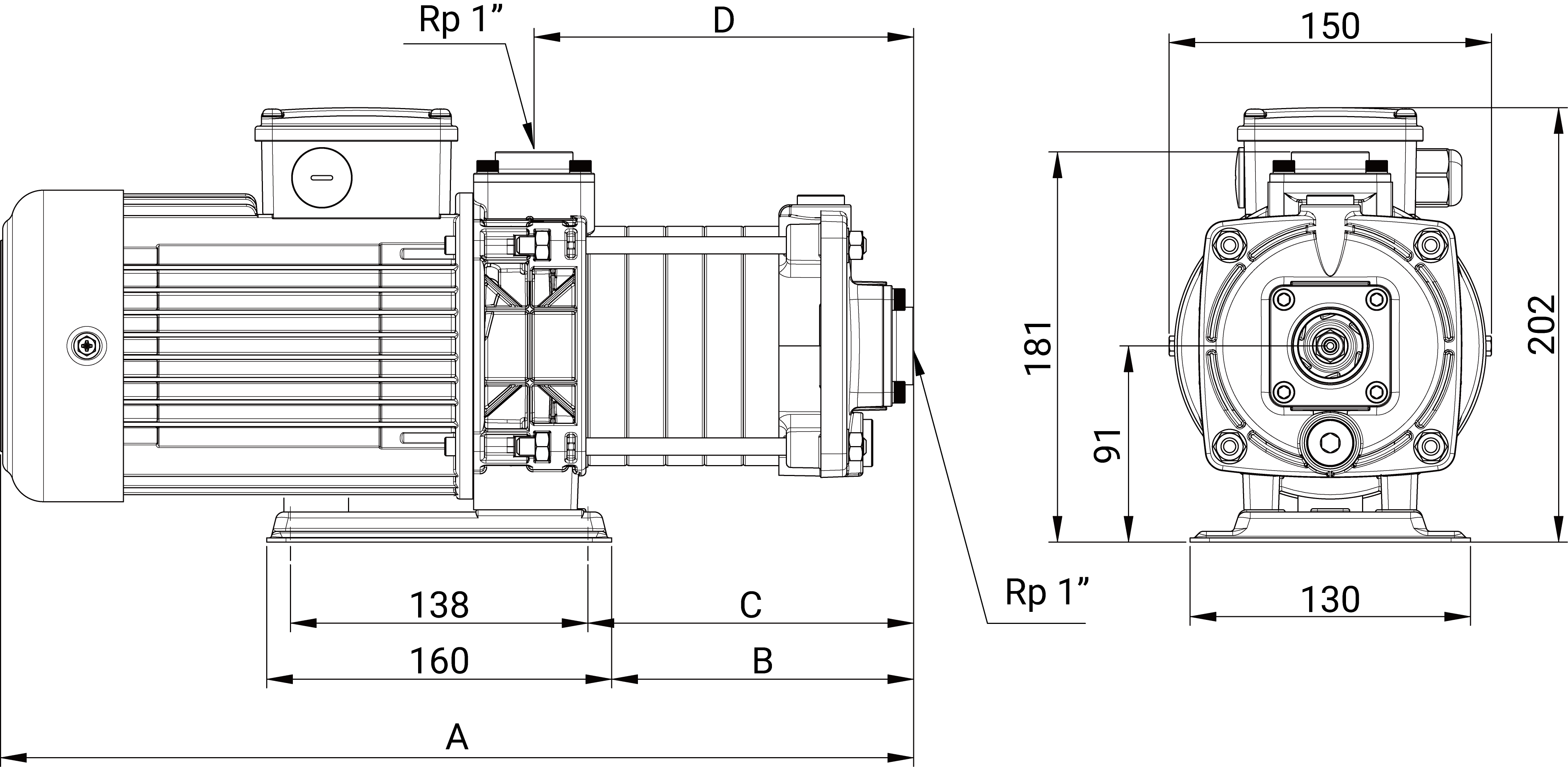

TPH2T_P

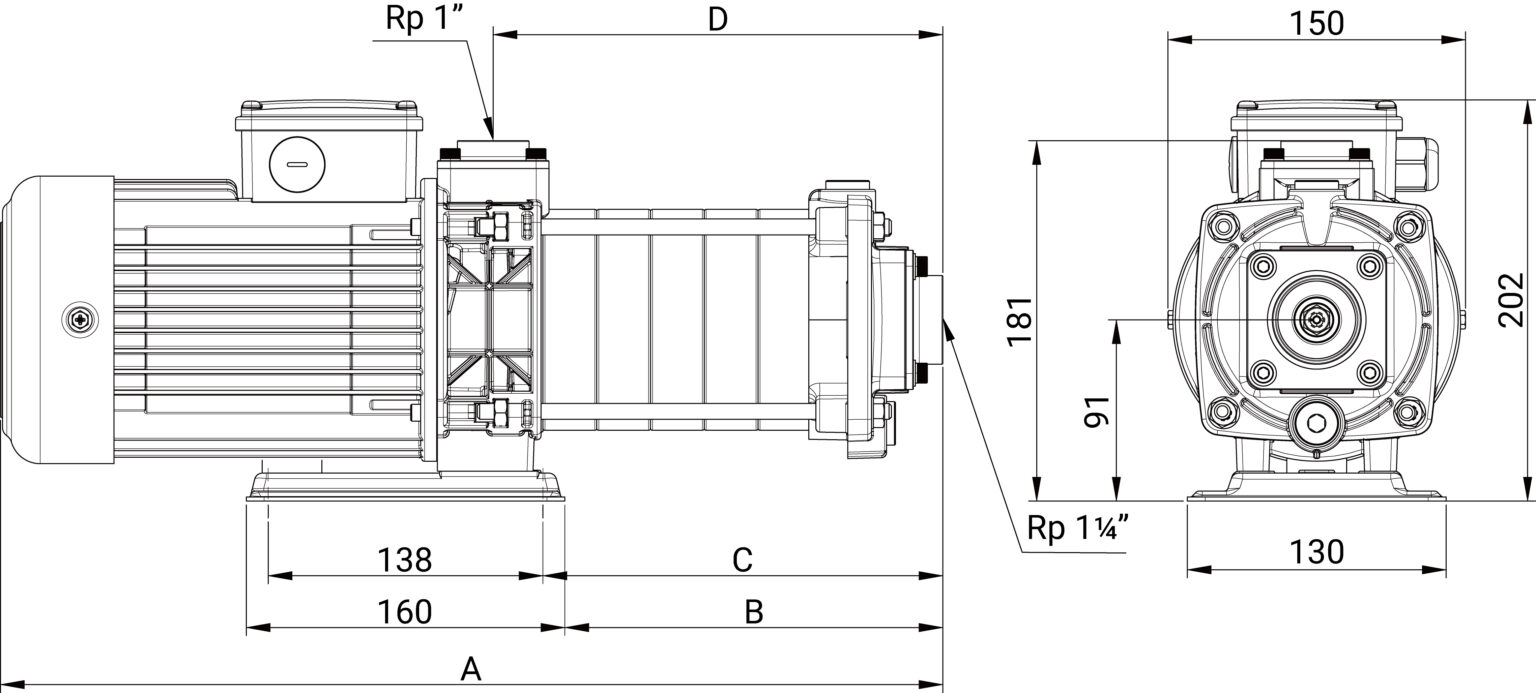

TPH4T_P

TPH_P Series Applications

Construction Industry

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Construction Industry

Building Water Supply Systems

Meeting the water extraction, storage, and constant pressure supply needs of large construction. Paired with VFDs to adjust pressure based on requirements.

Construction Industry

Landscape Pond Water Recirculation

Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.

Heavy,Rain,Falling,On,The,Roof,In,Rainy,Season

Construction Industry

Rainwater Harvesting and Treatment

Transfers rainwater from collection to tanks for secondary uses. Supports sensor and smart control for automatic start-stop based on demand.

Manufacturing Industry

Industrial Process Cooling

A key solution for stable precision manufacturing, suitable for cooling, chip removal, flushing, and lubrication.

The,Interior,Of,An,Industrial,Boiler,Room,With,Three,Large

Manufacturing Industry

Hot and Cold Liquid Transfer

Meeting the needs of cooling systems or heat treatment processes, ensuring stable transport of cold or hot liquids to the required areas

Manufacturing Industry

Industrial Process Flushing

Transporting liquids to cleaning equipment for high-pressure, precise cleaning that removes surface oils, flux residues, and chemical remnants.

Disk,Type,Oil,Skimmer,For,Liquid,Flood,Coolant,In,Modern

Manufacturing Industry

Industrial Filtration

Integration with filtration and recycling systems enables transfer to storage tanks or subsequent processing stages, ensuring continuous operation and consistent quality.

New,Plastic,Pipes,And,Colorful,Equipment,In,Industrial,Boiler,Room

Manufacturing Industry

Industrial Wastewater Discharge (Compliance-Oriented)

Enabling businesses to reliably transport treated industrial wastewater to discharge systems, ensuring environmental protection and regulatory compliance.

Artificial,Intelligence,And,Large,Language,Model,Training,Cluster.,White,Server

Electricity & New Energy Industry

Data Center Cooling

Designed for in-row, in-rack, and immersion cooling systems in server rooms, meeting data center heat dissipation needs.

EV Car With Electric Charging Station Charger Background. Techno

Electricity & New Energy Industry

Power Supply System Heat Dissipation

Driving the circulation of cooling liquids in fast charging systems to efficiently dissipate generated heat, preventing overheating that could lead to downtime.

Energy,Storage,System,With,Wind,Turbine.,3d,Illustration

Electricity & New Energy Industry

Energy Storage System Heat Dissipation

Drives the circulation of cooling liquids in energy storage systems, effectively dissipating heat generated during operation and preventing overheating.

Water,Park,,Bright,Multi-colored,Slides,With,A,Pool.,A,Water

Entertainment & Leisure Industry

Aquatic Facility Water Systems

Provides water circulation, pressure regulation, and filtration support, and is integrated with VFDs to optimize energy usage.

Beautiful,Fountain,In,Tsaritsyno,Park,In,Moscow,,Russia

Entertainment & Leisure Industry

Landscape Pond Water Circulation

Maintaining water clarity and ecological balance while enhancing landscaping through water circulation, filtration, and oxygenation.

Pressure,Gauge,On,Condenser,Water,Pump,,Measuring,Instrument,In,Air

Entertainment & Leisure Industry

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Accommodation & Food Service Industry

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Agriculture, Forestry, Fishery and Animal Husbandry

Irrigation

Delivers water to irrigation points for even moisture distribution across soil and plants. It can be adjusted based on operating conditions with inverters.

Water Flow Treatment System From The Water Pump Pipe.Motion Of W

Agriculture, Forestry, Fishery and Animal Husbandry

Water Supply for Animal Husbandry and Aquaculture

Extracts water into tanks and supplies it to livestock farms or fish ponds, with integration options for filtration or water treatment systems to support sustainable production.

Wholesale & Retail Trade

Commercial HVAC Systems

Applied in chillers to transport cooling liquids and condensate, improving heat exchange efficiency and maintaining balanced control within HVAC systems.

Aerial,View,Of,Modern,Water,Cleaning,Facility,At,Urban,Wastewater

Water Supply & Pollution Control

Water Distribution

Transports water to reservoirs, municipal systems, and end-users, designed for large-scale capacity and continuous operation.

Pump,Station,For,Reverse,Osmosis,Industrial,City,Water,Treatment,Station.

Water Supply & Pollution Control

Purified Water Treatment (RO)

Provides high pressure to deliver water to RO systems, ensuring efficient treatment and optimal filtration performance to meet the demands of reverse osmosis.

Vertical,View,Of,Municipal,Wastewater,Treatment,Plant,Equipment,And,Technology.

Water Supply & Pollution Control

Wastewater Discharge (Compliance-Oriented)

Stable transfer of treated wastewater to discharge systems, complying with regulations, preventing pollution, and supporting sustainability goals.

Service Industry

High-Pressure Water Supply and Cleaning Systems

Suitable for high-pressure applications such as car washes and air-conditioning cleaning, supporting high-pressure cleaning, cooling, disinfection, and spraying operations.
